Toyota Hiace/Hiace S.B.V
1995-08 → 2011-11 · chassis KLH1#,2#,LXH1#,2#,RCH1#,2# · catalogue 713210 · Europe
Discontinued model
Data version 2012-01

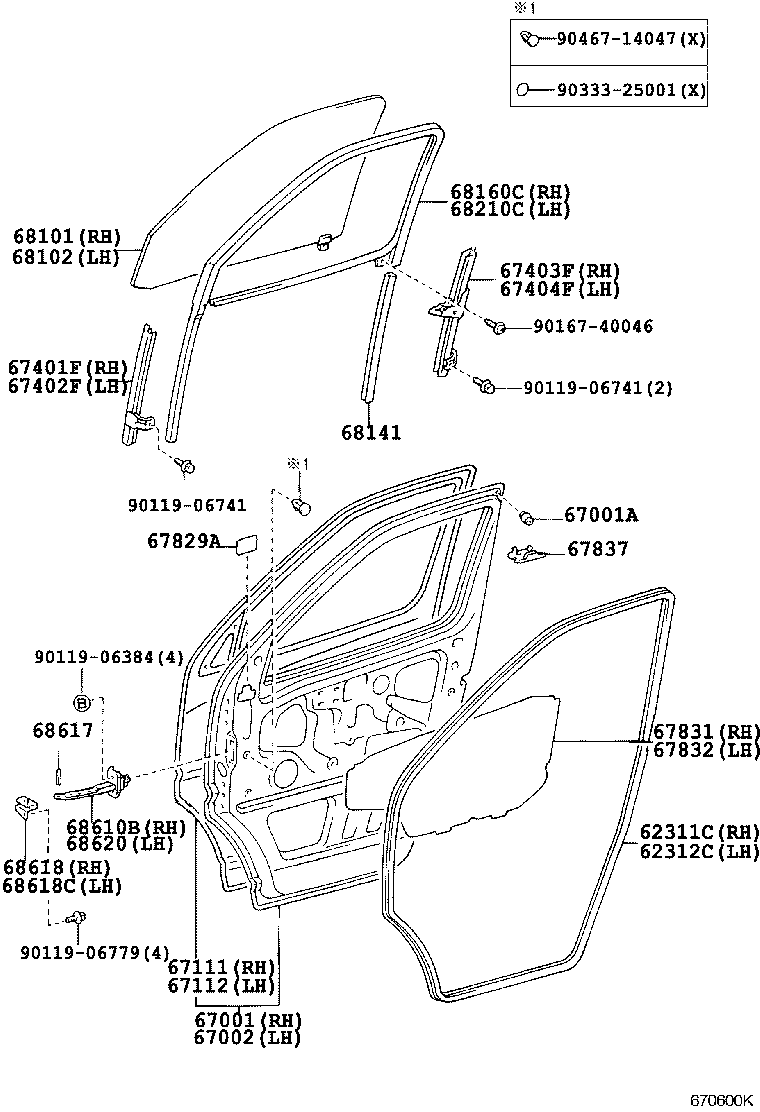

Front Door Panel & Glass
39 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 62311C | Weatherstrip, Front Door Opening Trim, RH |
| 62312C | Weatherstrip, Front Door Opening Trim, LH |
| 67001 | Panel Sub-assy, Front Door, RH |
| 67001A | Cushion, Front Door Panel |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67111 | Panel, Front Door, Outer RH |
| 67112 | Panel, Front Door, Outer LH |
| 67401F | Frame Sub-assy, Front Door, Front Lower RH |
| 67402F | Frame Sub-assy, Front Door, Front Lower LH |
| 67403F | Frame Sub-assy, Front Door, Rear Lower RH |
| 67404F | Frame Sub-assy, Front Door, Rear Lower LH |
| 67491A | Garnish, Front Door Lower Frame Bracket, RH |
| 67492A | Garnish, Front Door Lower Frame Bracket, LH |
| 67499 | Retainer, Front Door Lower Frame Bracket Garnish |
| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67601A | Retainer(FOR FRONT DOOR TRIM BOARD) |
| 67601B | Clip(FOR FRONT DOOR TRIM BOARD) |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67625A | Bracket, Front Door Trim, NO.1 |
| 67715 | Pad, Door Trim, NO.1 |
| 67777 | Pocket, Front Door Trim, RH |
| 67777A | Clip, Front Door Pocket |
| 67778 | Pocket, Front Door Trim, LH |
| 67829A | Seal, Front Door Wire Hole |
| 67831 | Cover, Front Door Service Hole, RH |
| 67832 | Cover, Front Door Service Hole, LH |
| 67837 | Protector, Front Door Service Hole Cover |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68141 | Run, Front Door Glass |
| 68160C | Weatherstrip Assy, Front Door Glass, Outer RH |
| 68171B | Weatherstrip, Front Door Glass, Inner RH |
| 68210C | Weatherstrip Assy, Front Door Glass, Outer LH |
| 68220A | Weatherstrip Assy, Front Door Glass, Inner LH |
| 68610B | Check Assy, Front Door, RH |
| 68617 | Pin, Front Door Check |
| 68618 | Bracket, Front Door Check Arm, RH |
| 68618C | Bracket, Front Door Check Arm, LH |
| 68620 | Check Assy, Front Door, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
