Toyota Hiace/Hiace S.B.V
1995-08 → 2011-11 · chassis KLH1#,2#,LXH1#,2#,RCH1#,2# · catalogue 713210 · Europe
Discontinued model
Data version 2012-01

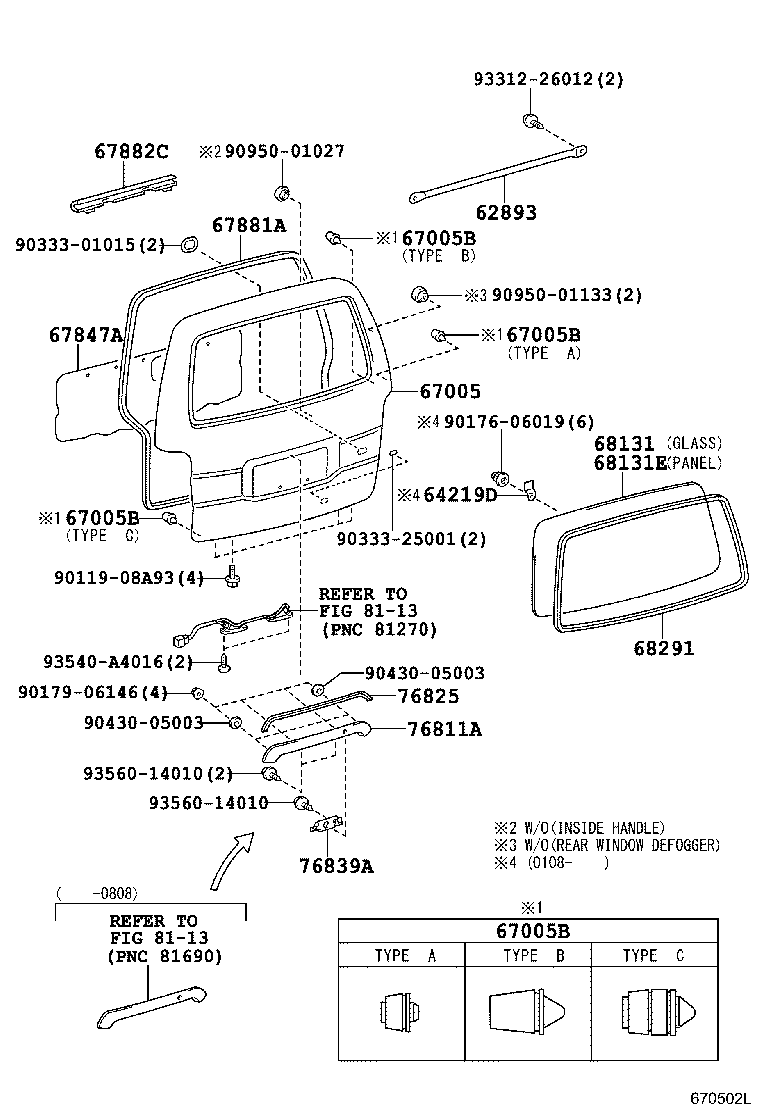

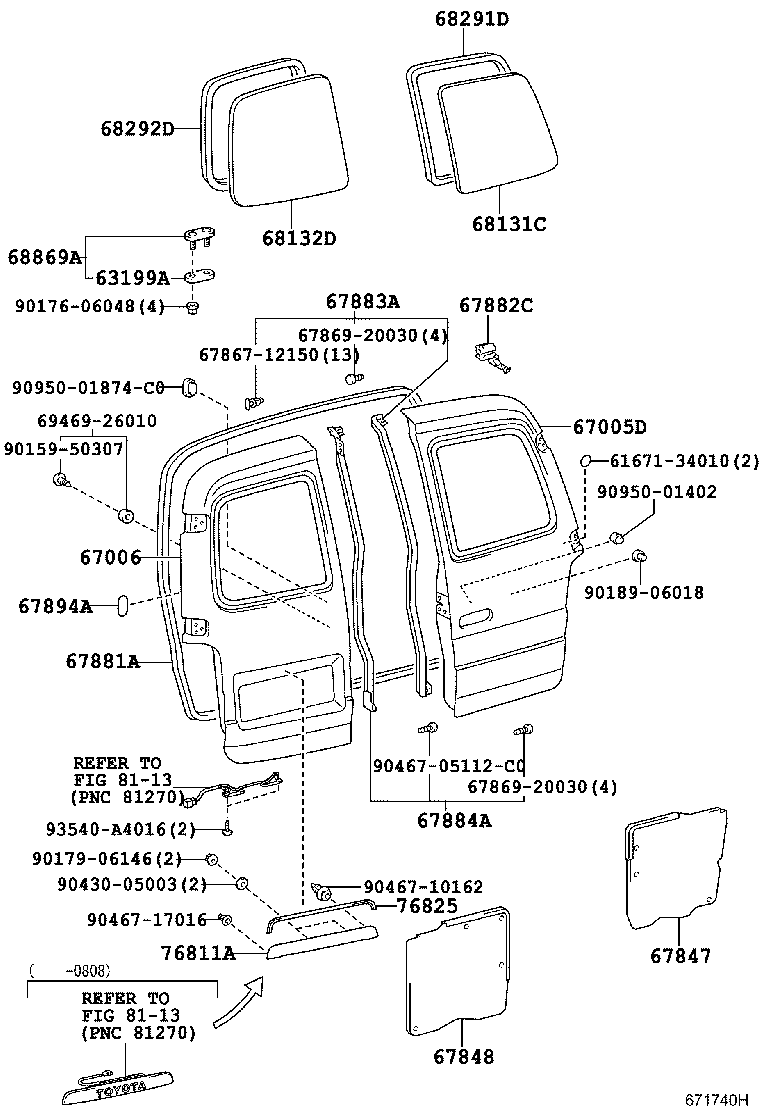

Back Door Panel & Glass
30 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 62893 | Tube, Back Door Window Guard |
| 63199A | Packing, Back Door Weatherstrip Bracket |
| 64219D | Stay, Back Panel |
| 64781B | Board, Back Door Trim, RH |
| 64782 | Board, Back Door Trim, LH |
| 67005 | Panel Sub-assy, Back Door |
| 67005B | Cushion(FOR BACK DOOR PANEL) |
| 67005D | Panel Sub-assy, Back Door, RH |
| 67006 | Door Sub-assy, Back, LH |
| 67751 | Board, Back Door Trim |
| 67751A | Clip(FOR BACK DOOR TRIM BOARD) |
| 67847 | Cover, Back Door Service Hole, RH |
| 67847A | Cover, Back Door Service Hole |
| 67848 | Cover, Back Door Service Hole, LH |
| 67881A | Weatherstrip, Back Door |
| 67882C | Weatherstrip, Back Door, NO.2 |
| 67883A | Retainer, Back Door Weatherstrip |
| 67884A | Weatherstrip, Back Door, Center |
| 67894A | Protector, Back Door Panel, NO.1 |
| 68131 | Glass, Back Door |
| 68131C | Glass, Back Door, RH |
| 68131E | Panel, Back Door Glass |
| 68132D | Glass, Back Door, LH |
| 68291 | Weatherstrip, Back Door Glass |
| 68291D | Weatherstrip, Back Door Glass, RH |
| 68292D | Weatherstrip, Back Door Glass, LH |
| 68869A | Plate, Back Door Hinge Seal |
| 76811A | Garnish, Back Door, Outside |
| 76825 | Protector, Back Door Outside Garnish |
| 76839A | Cover, Back Door Garnish |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
