Toyota Hiace/Hiace S.B.V

1995-08 → 2011-11 · chassis KLH1#,2#,LXH1#,2#,RCH1#,2# · catalogue 713210 · Europe

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

161 part groups · 26 illustrations

Illustrations

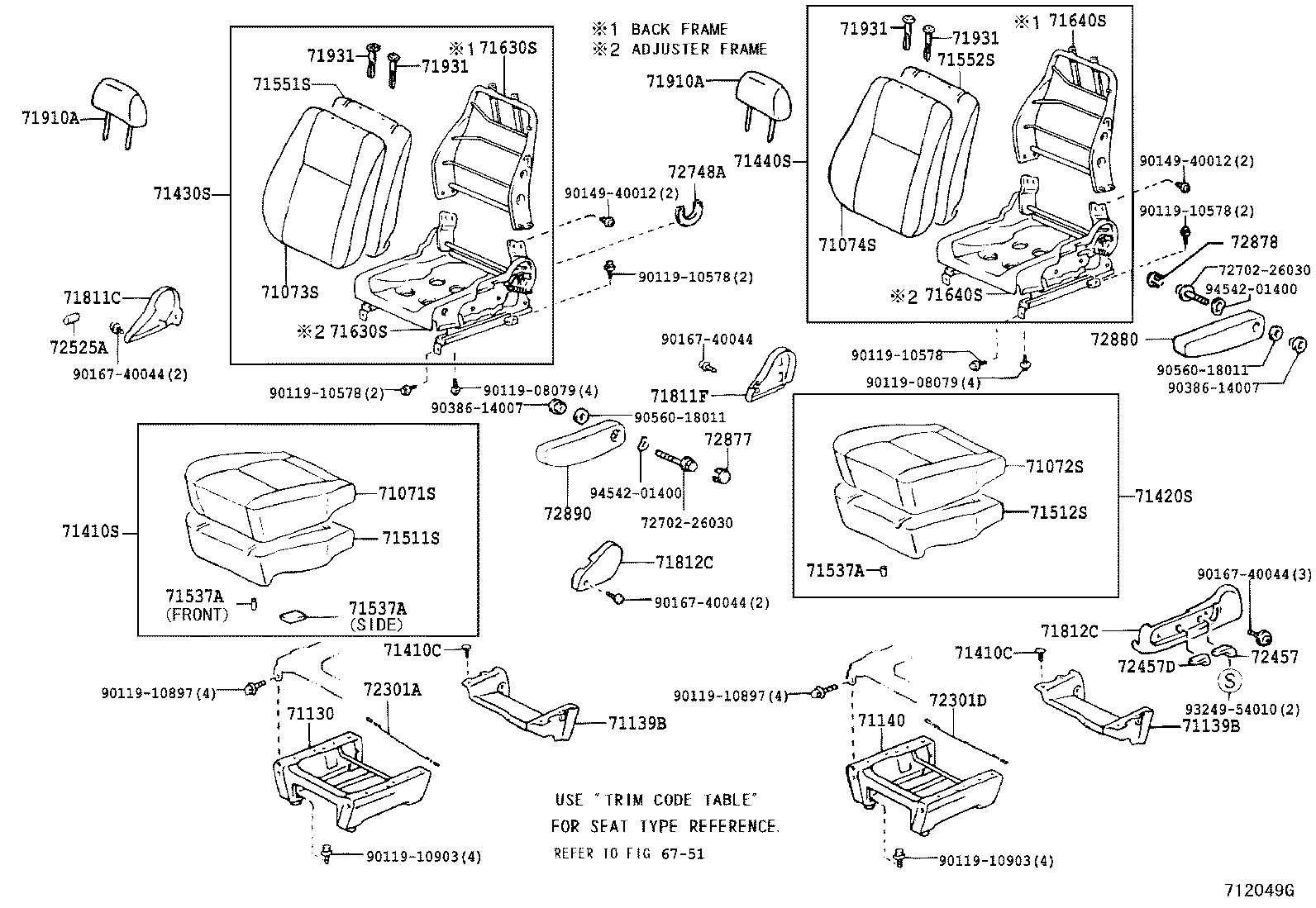

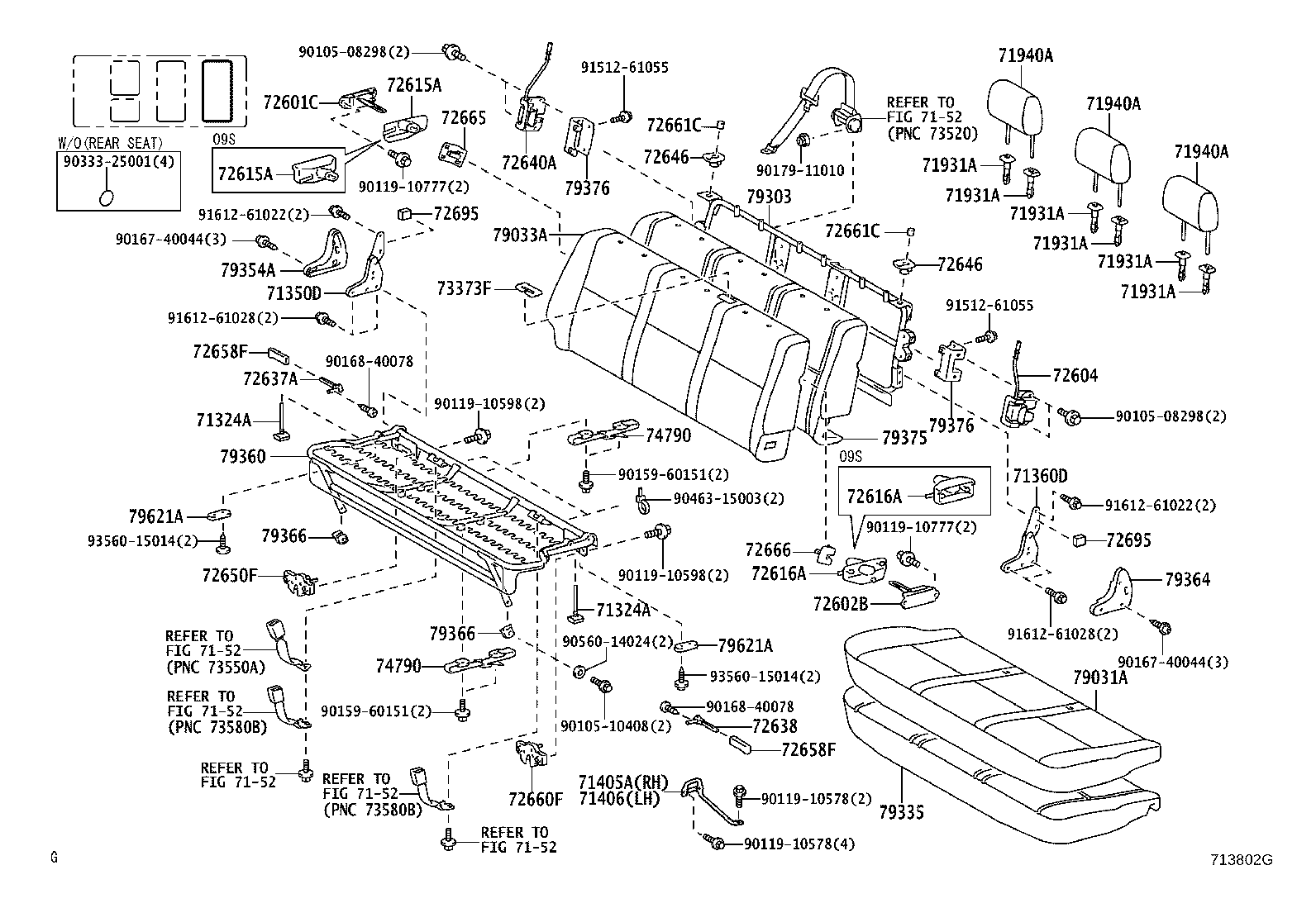

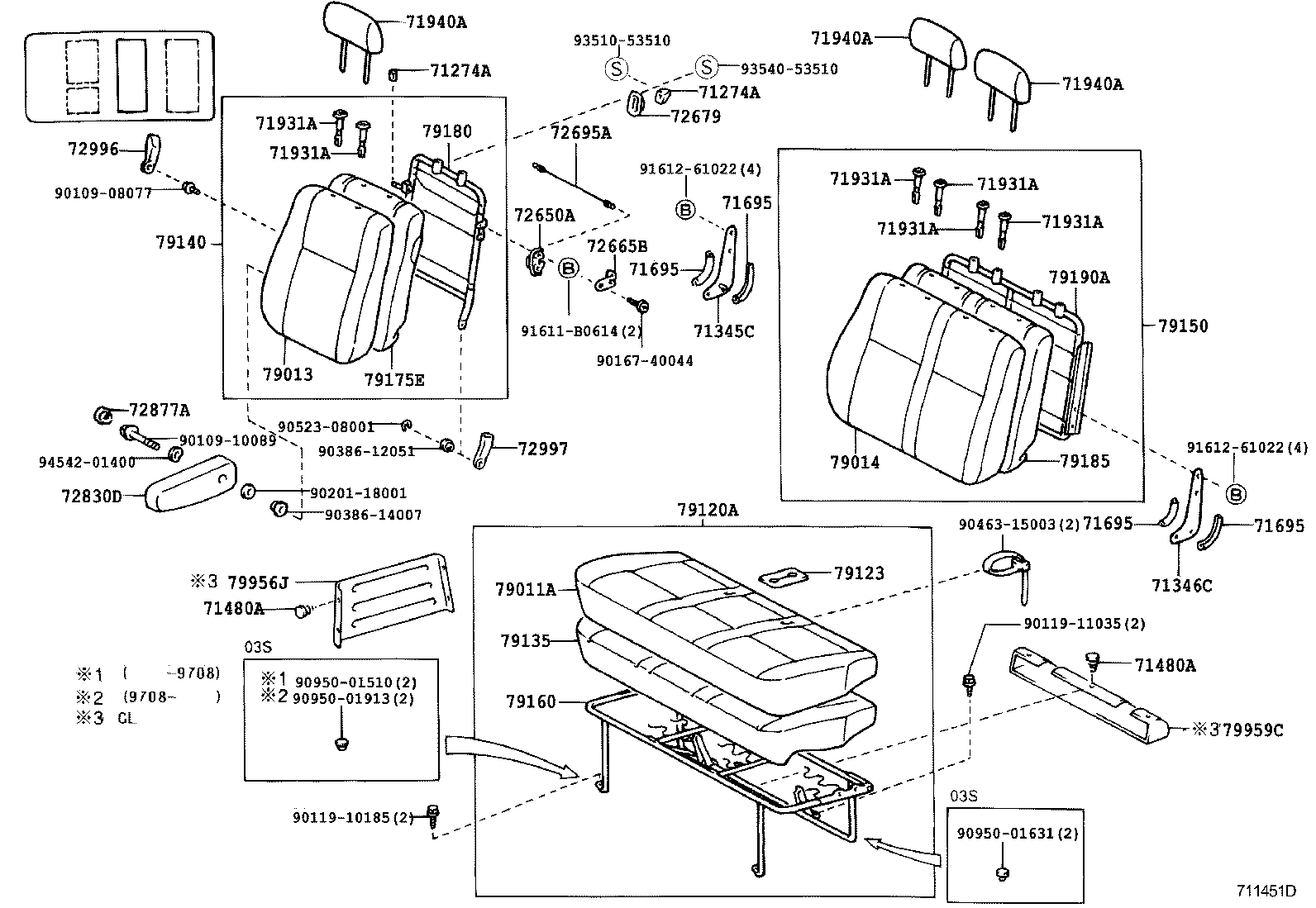

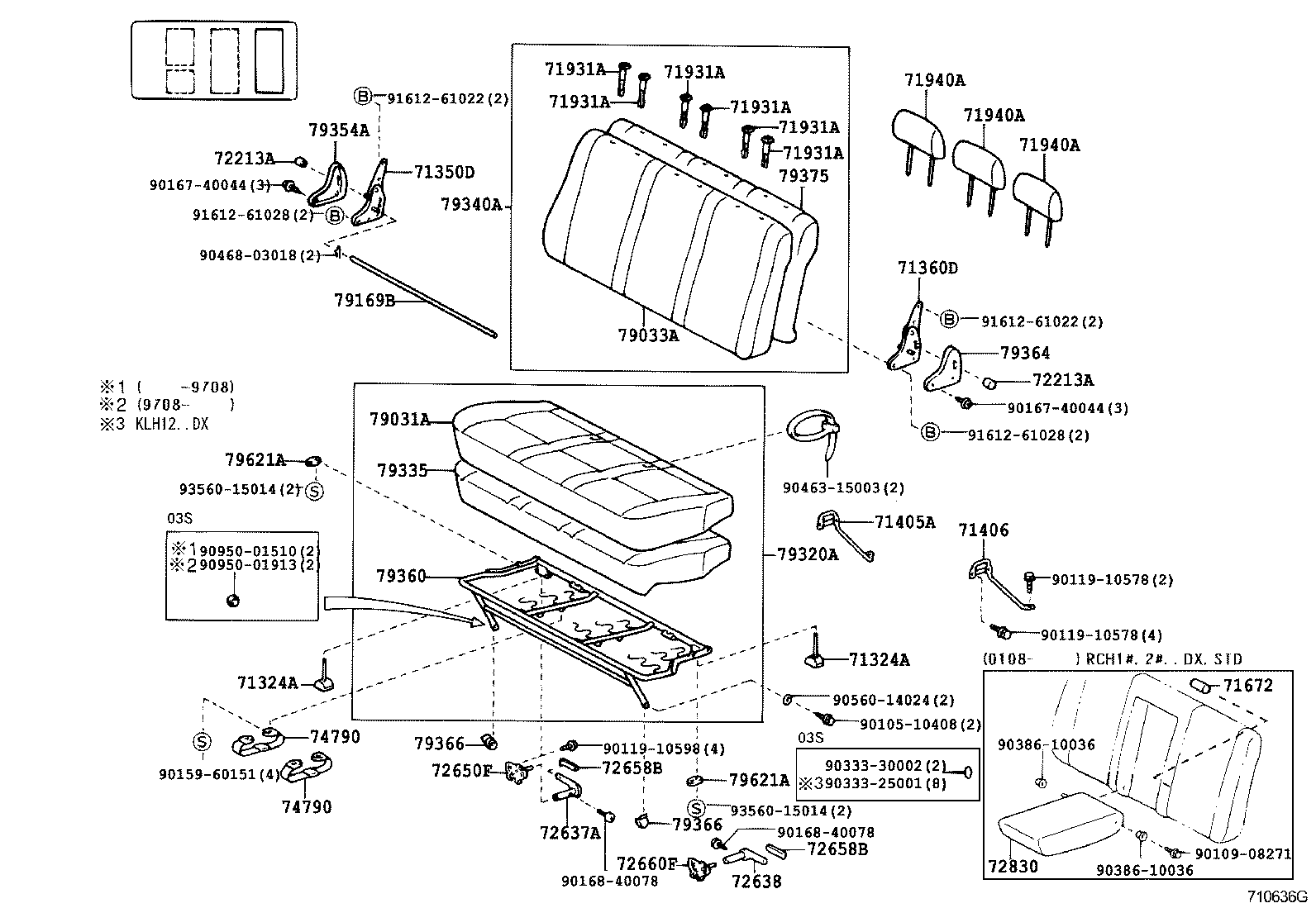

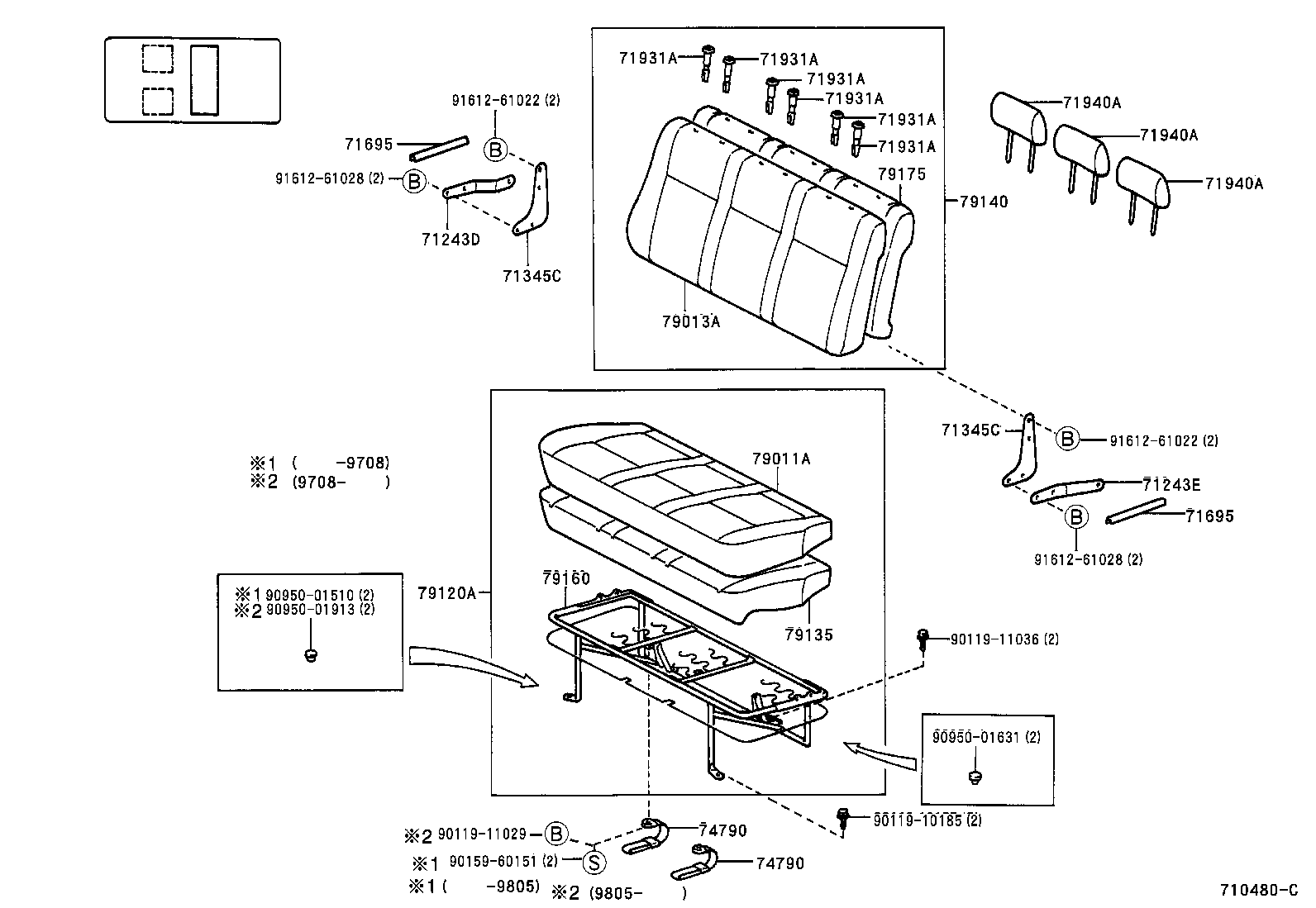

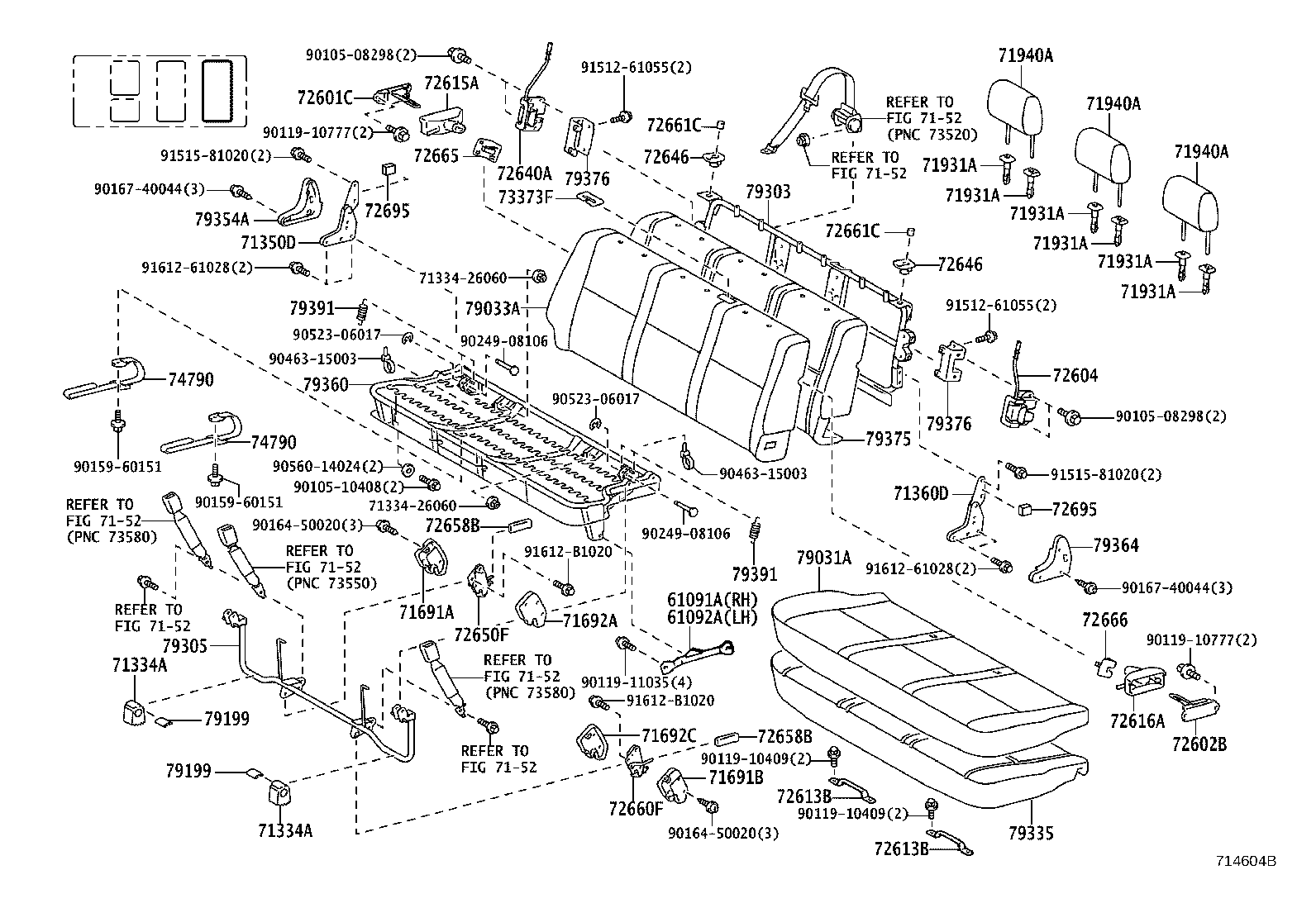

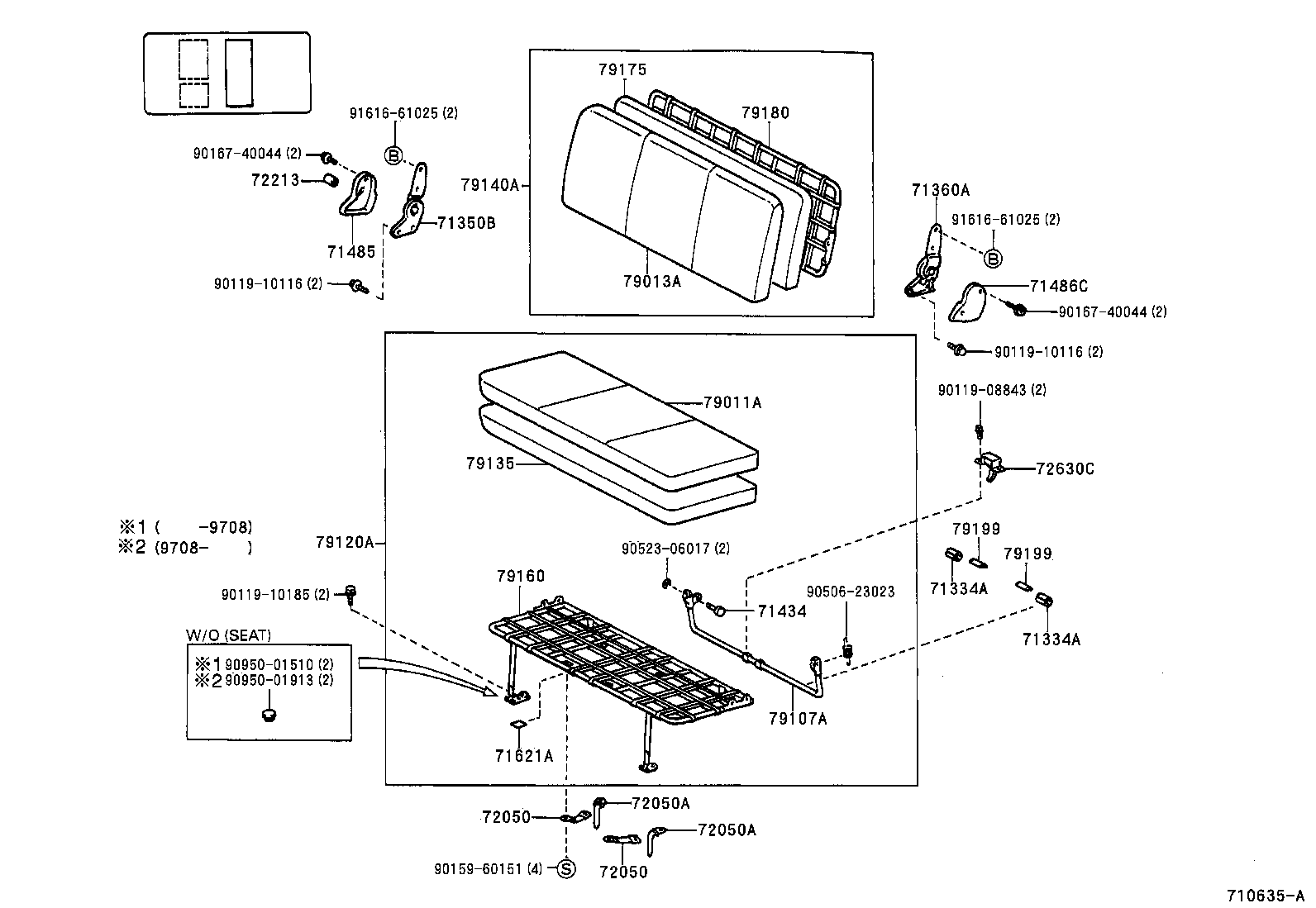

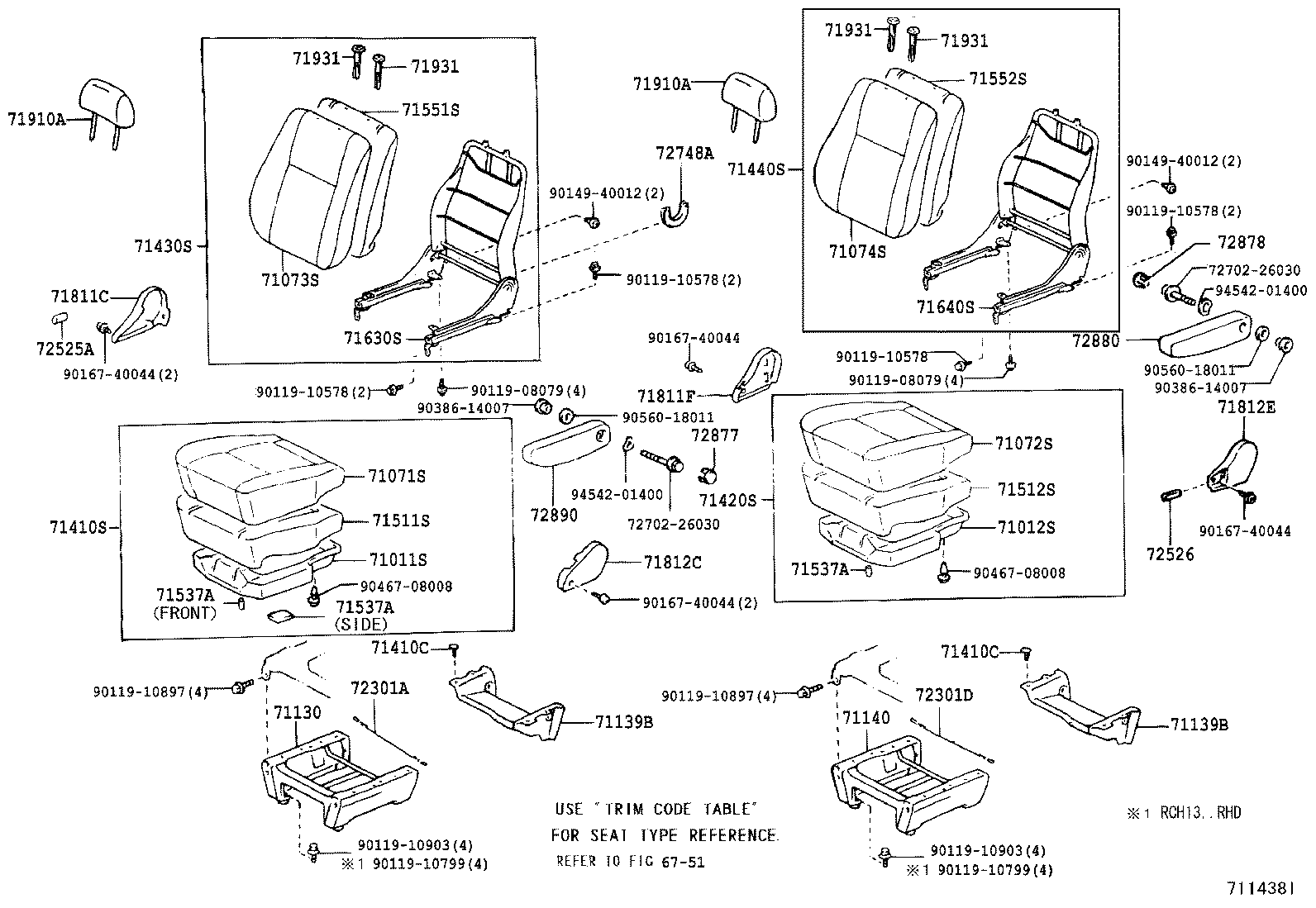

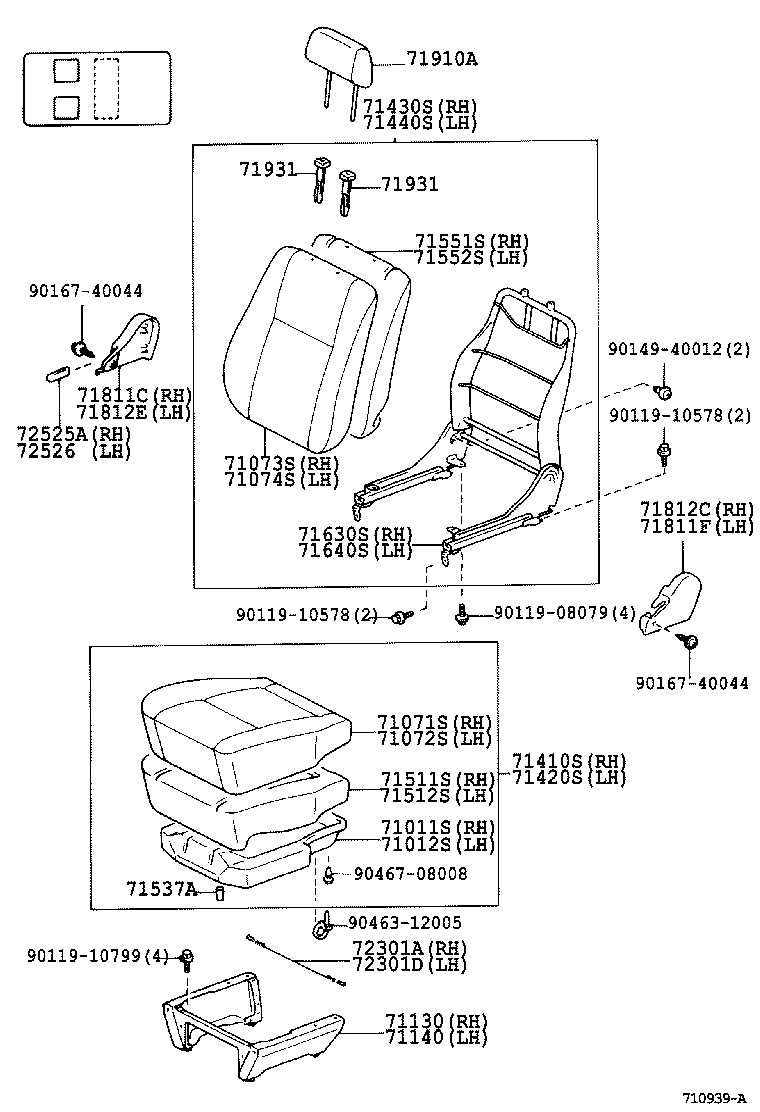

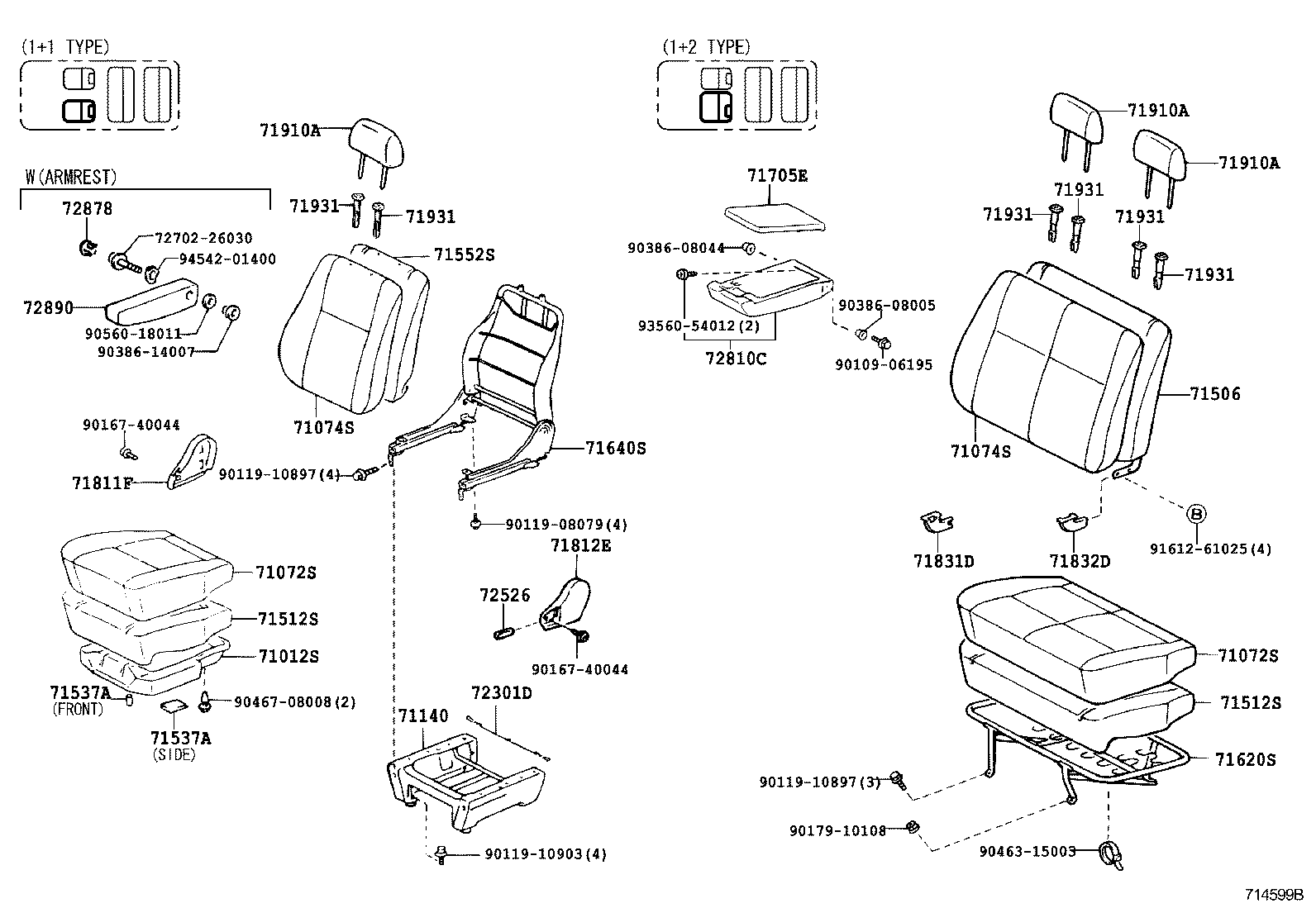

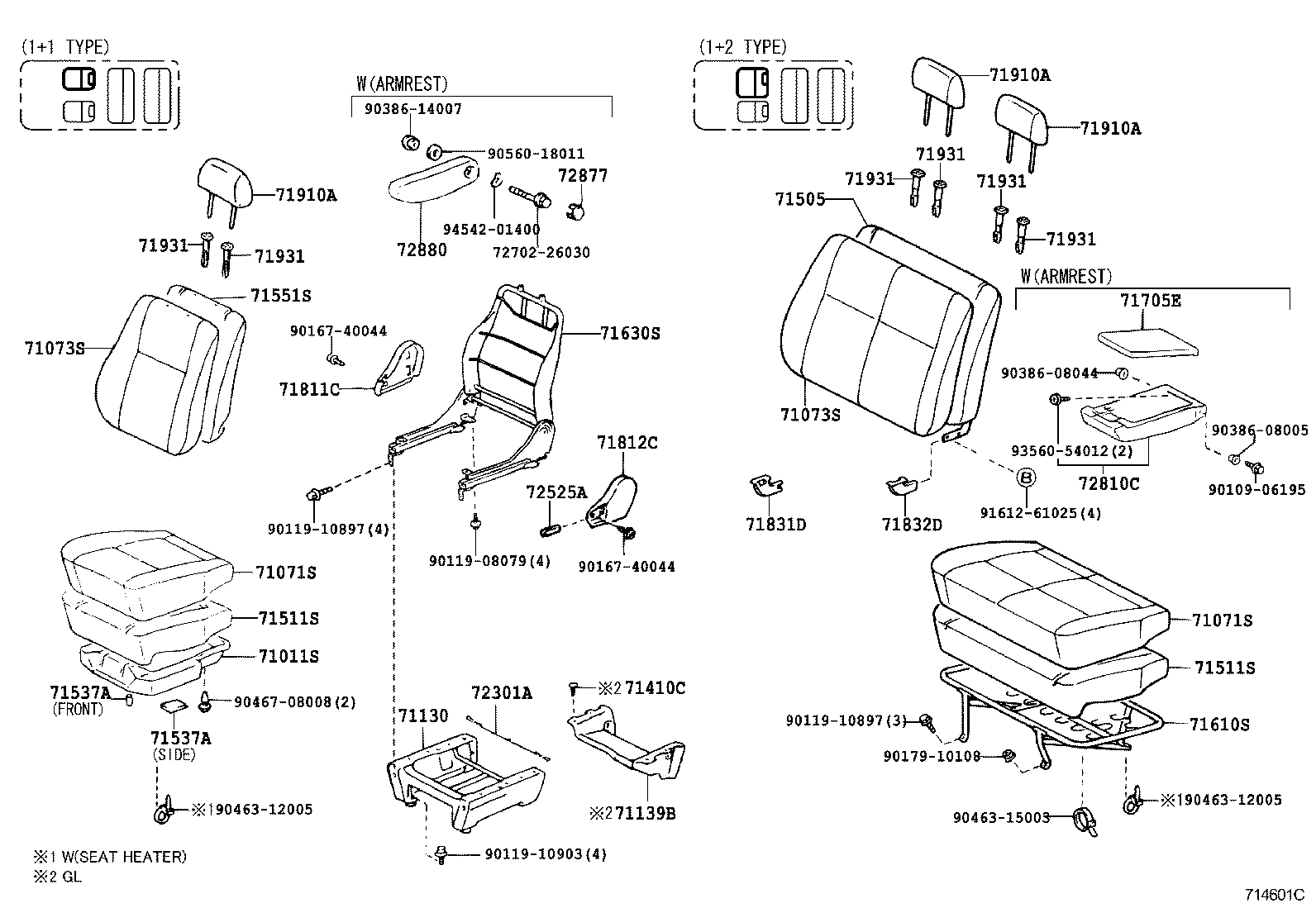

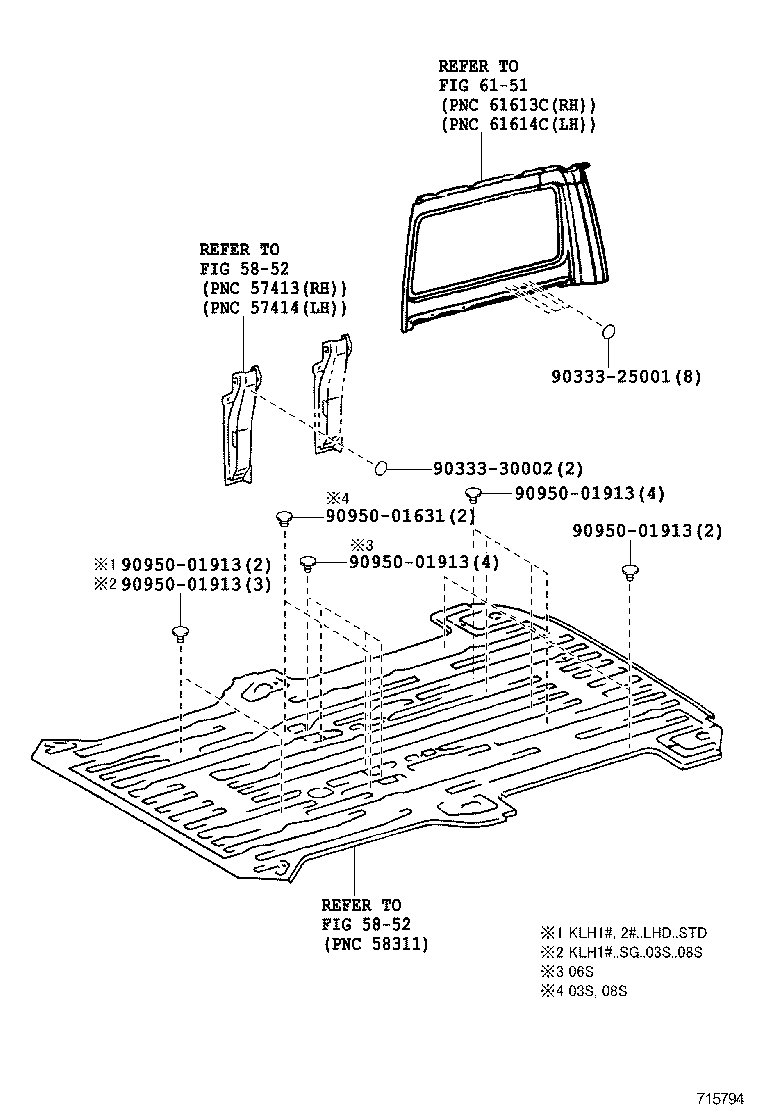

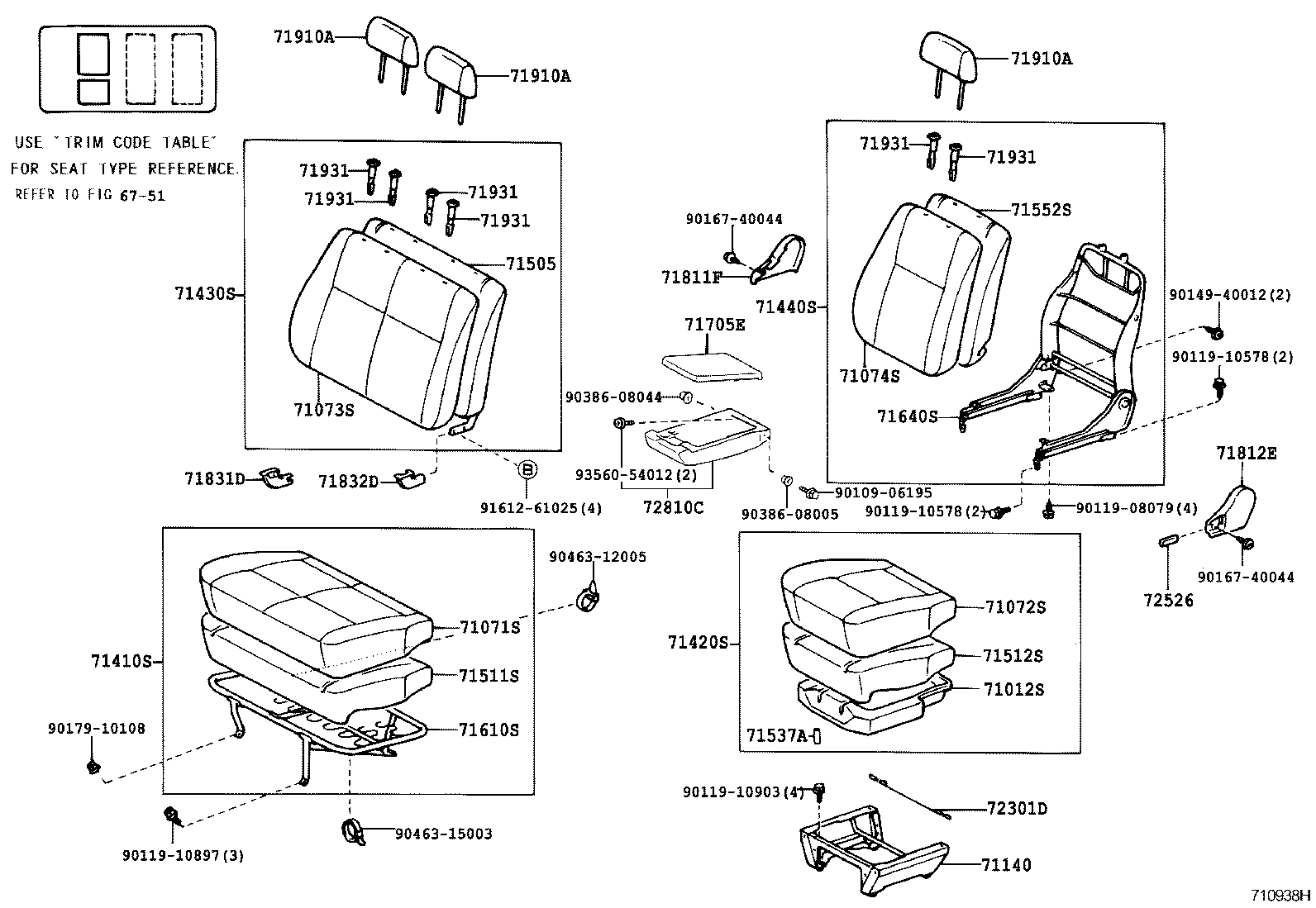

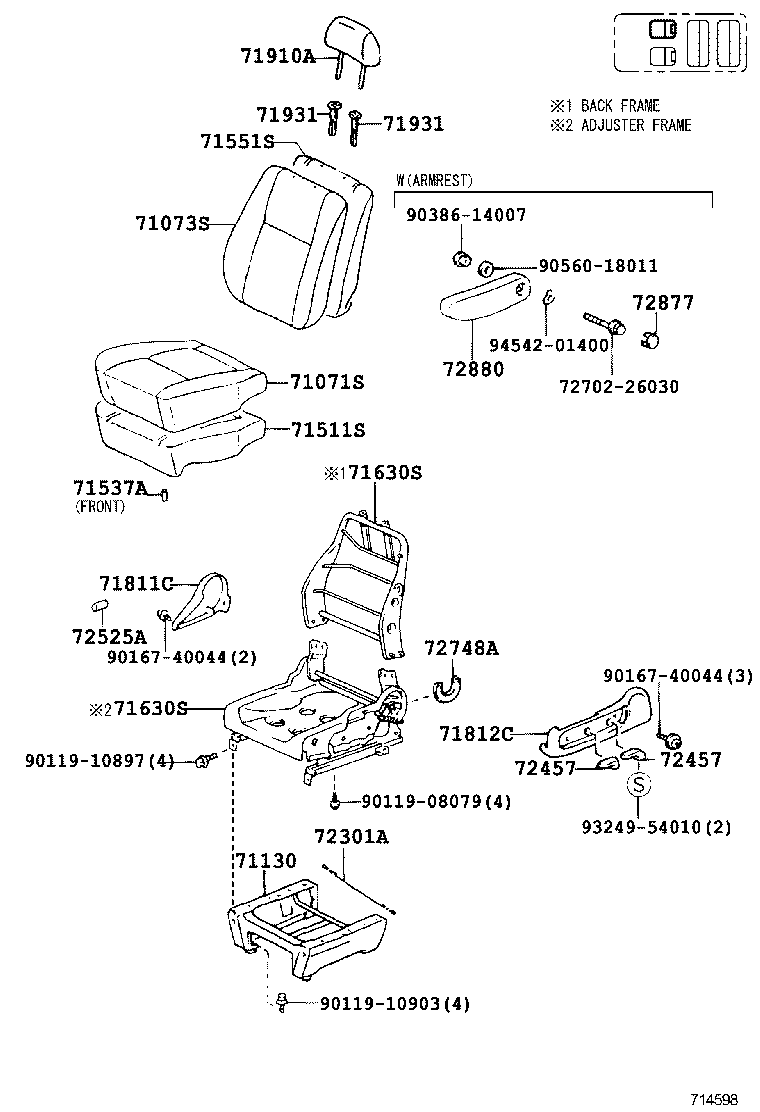

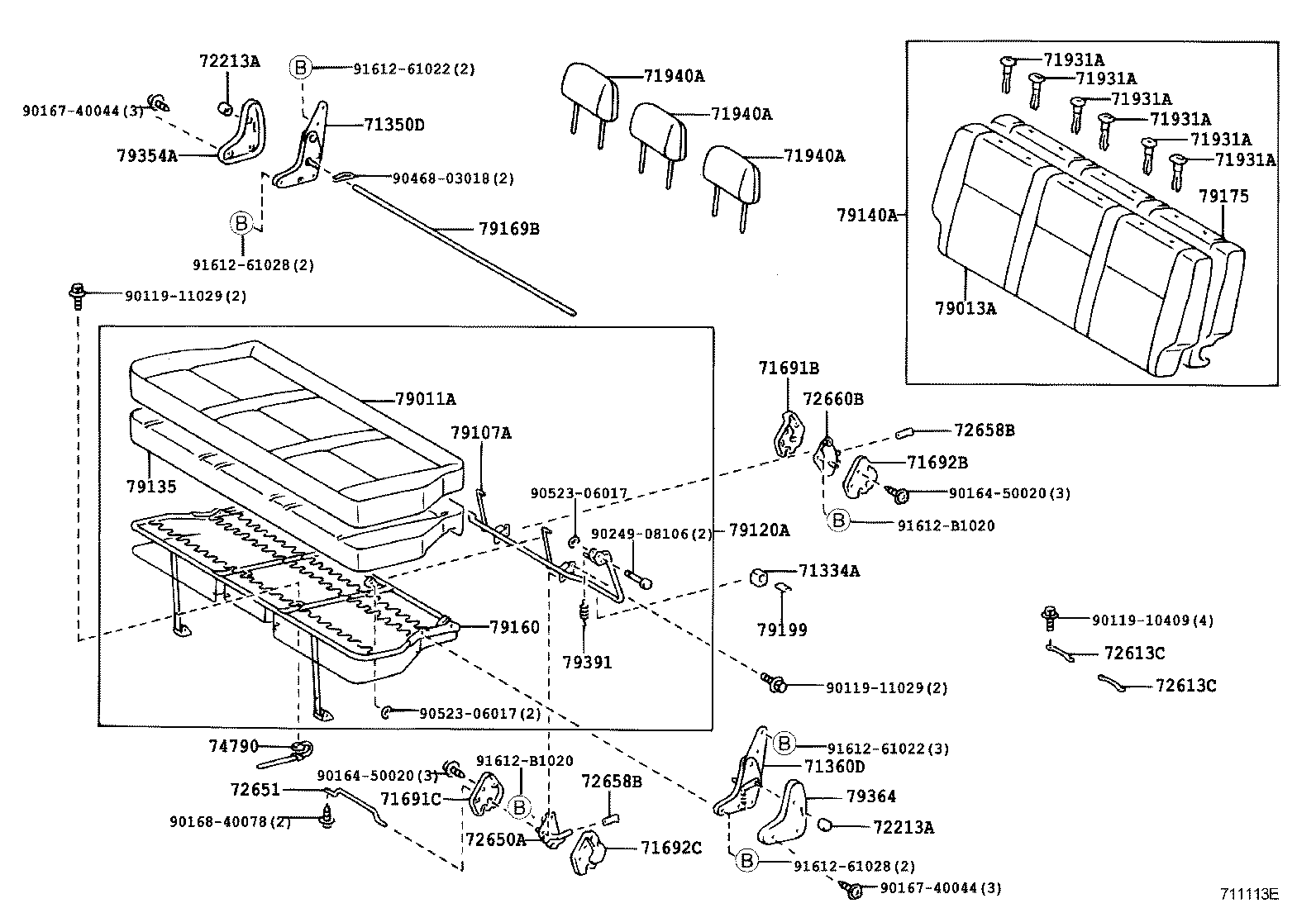

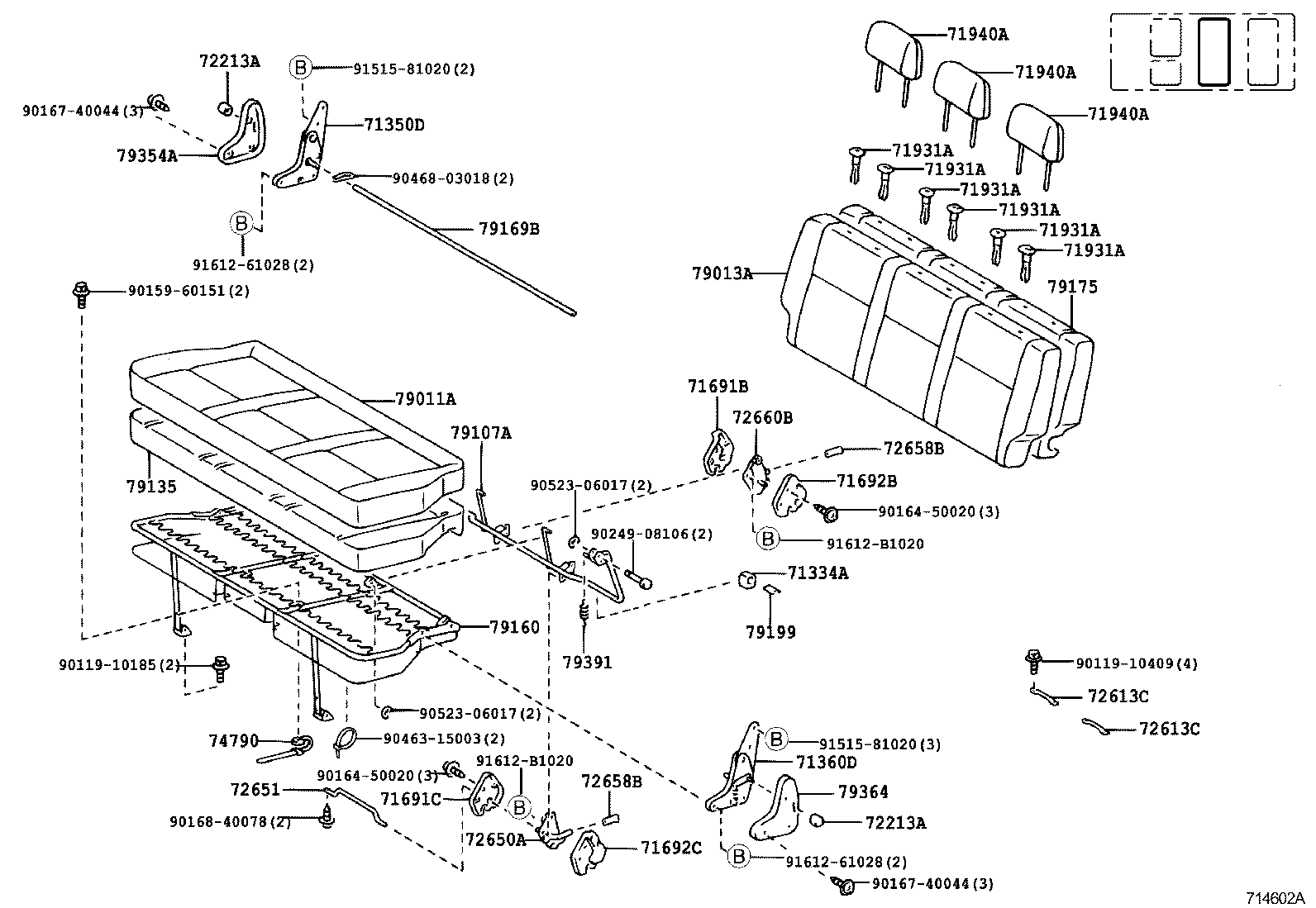

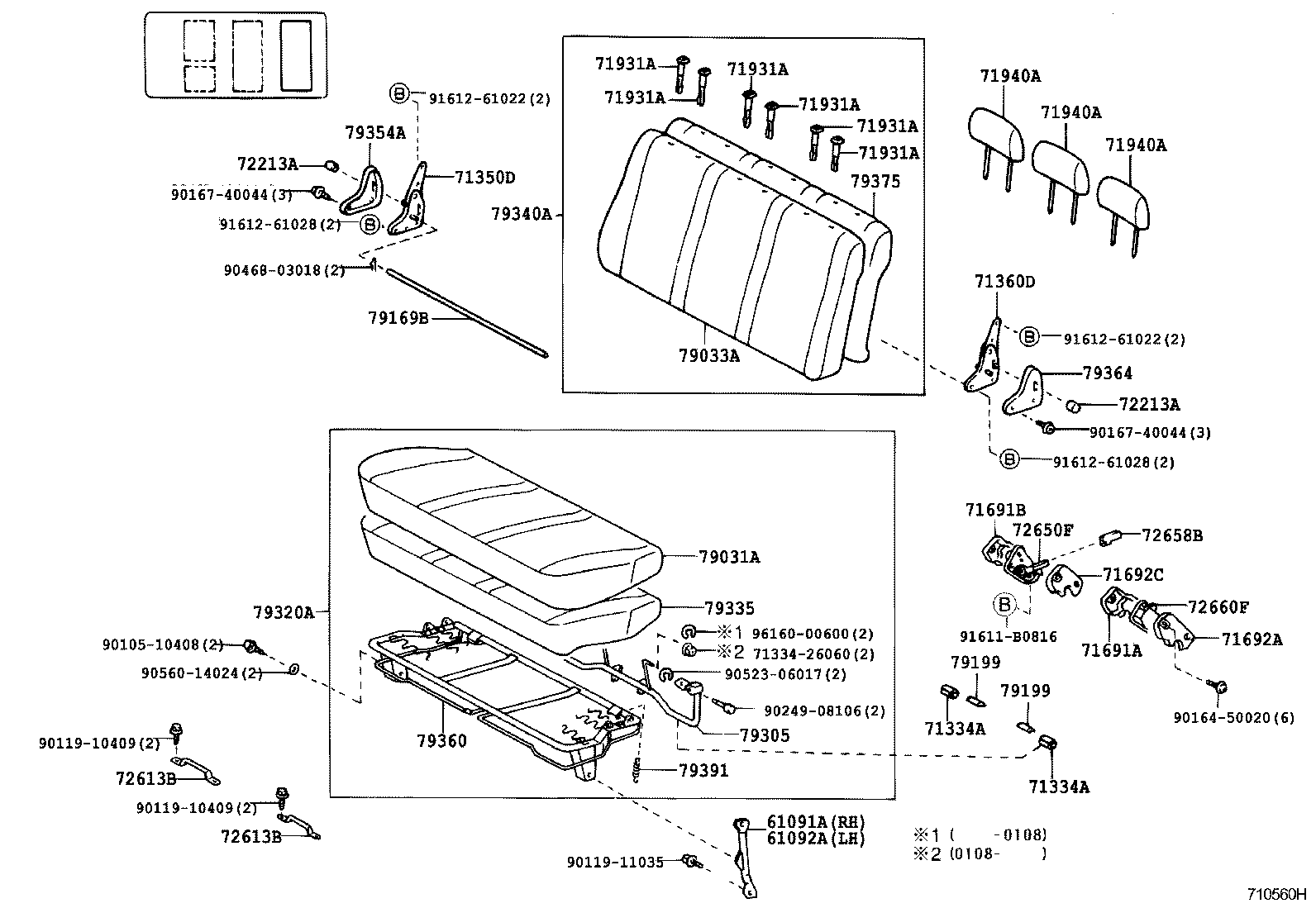

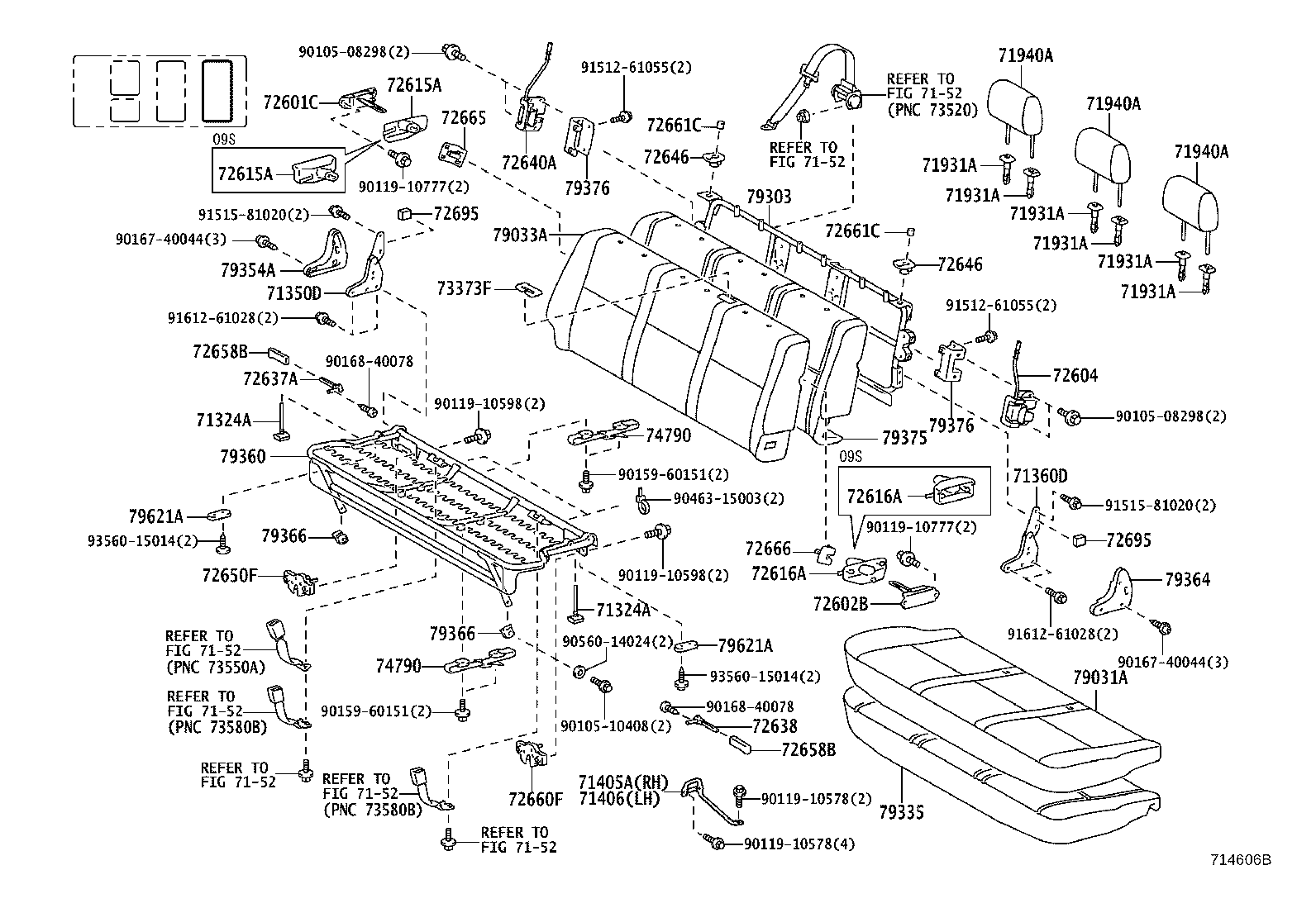

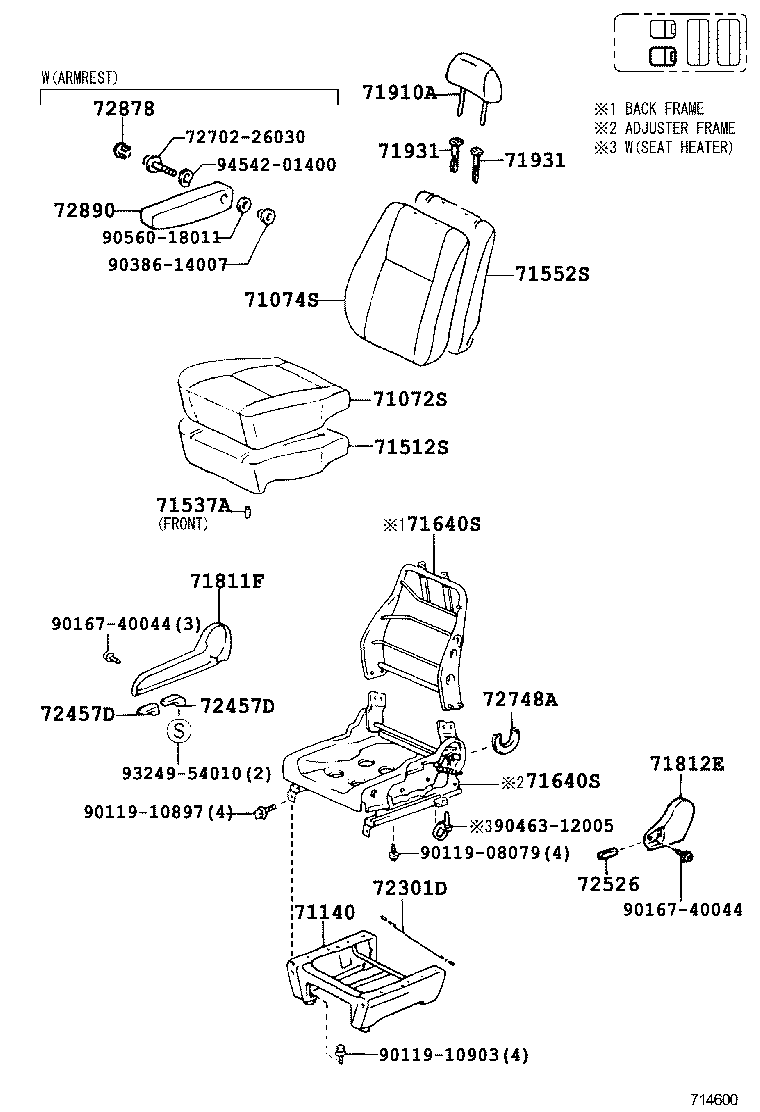

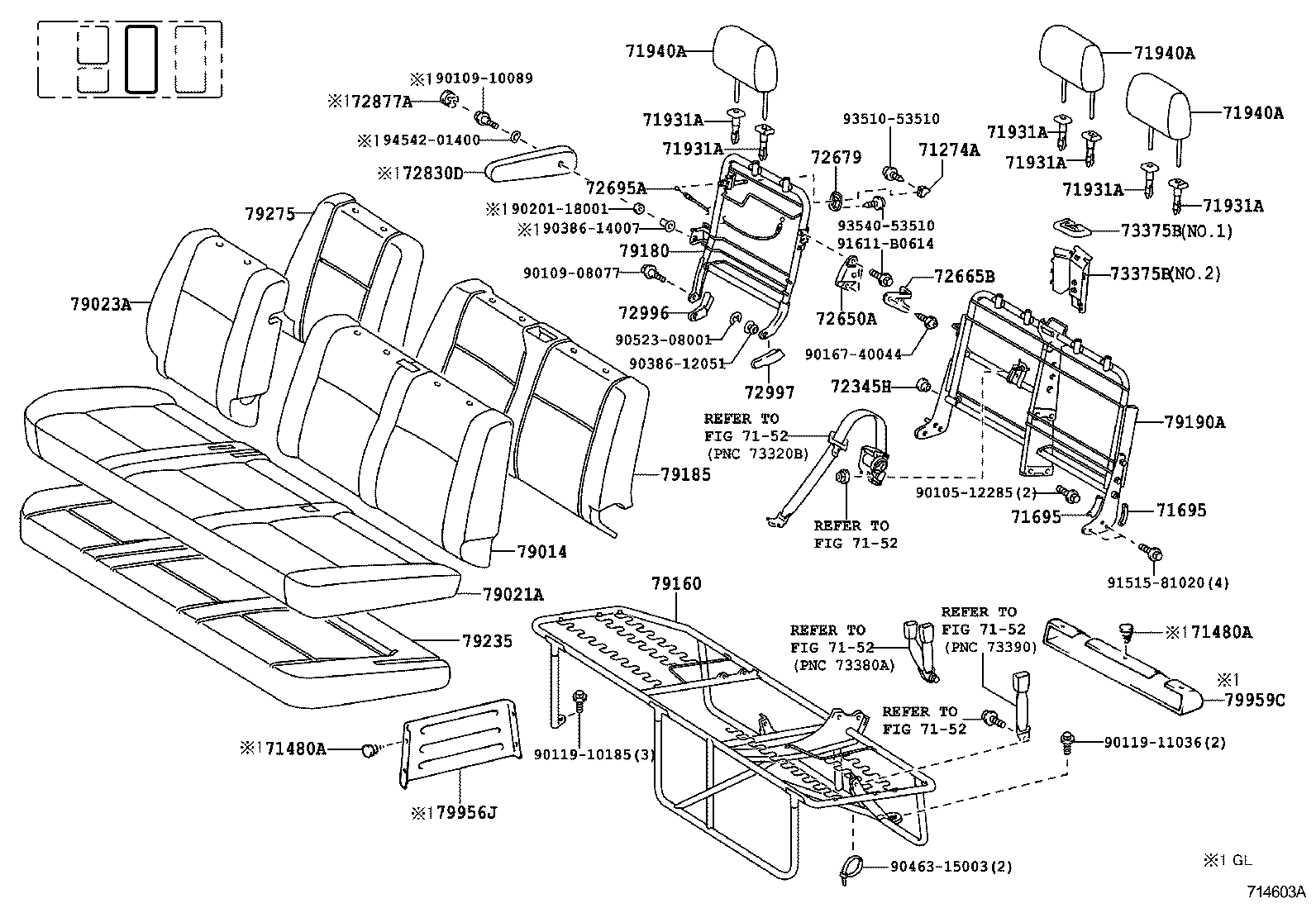

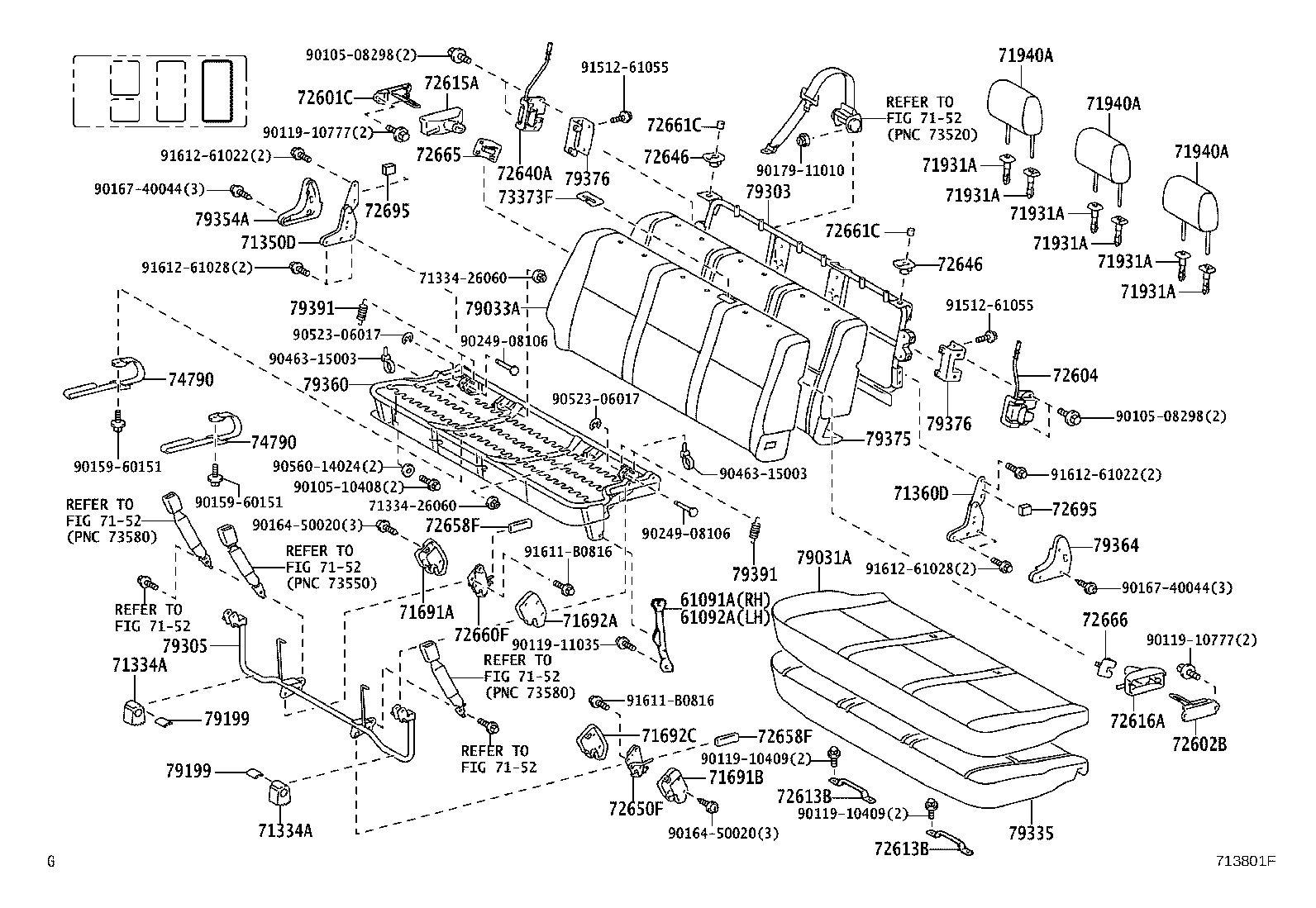

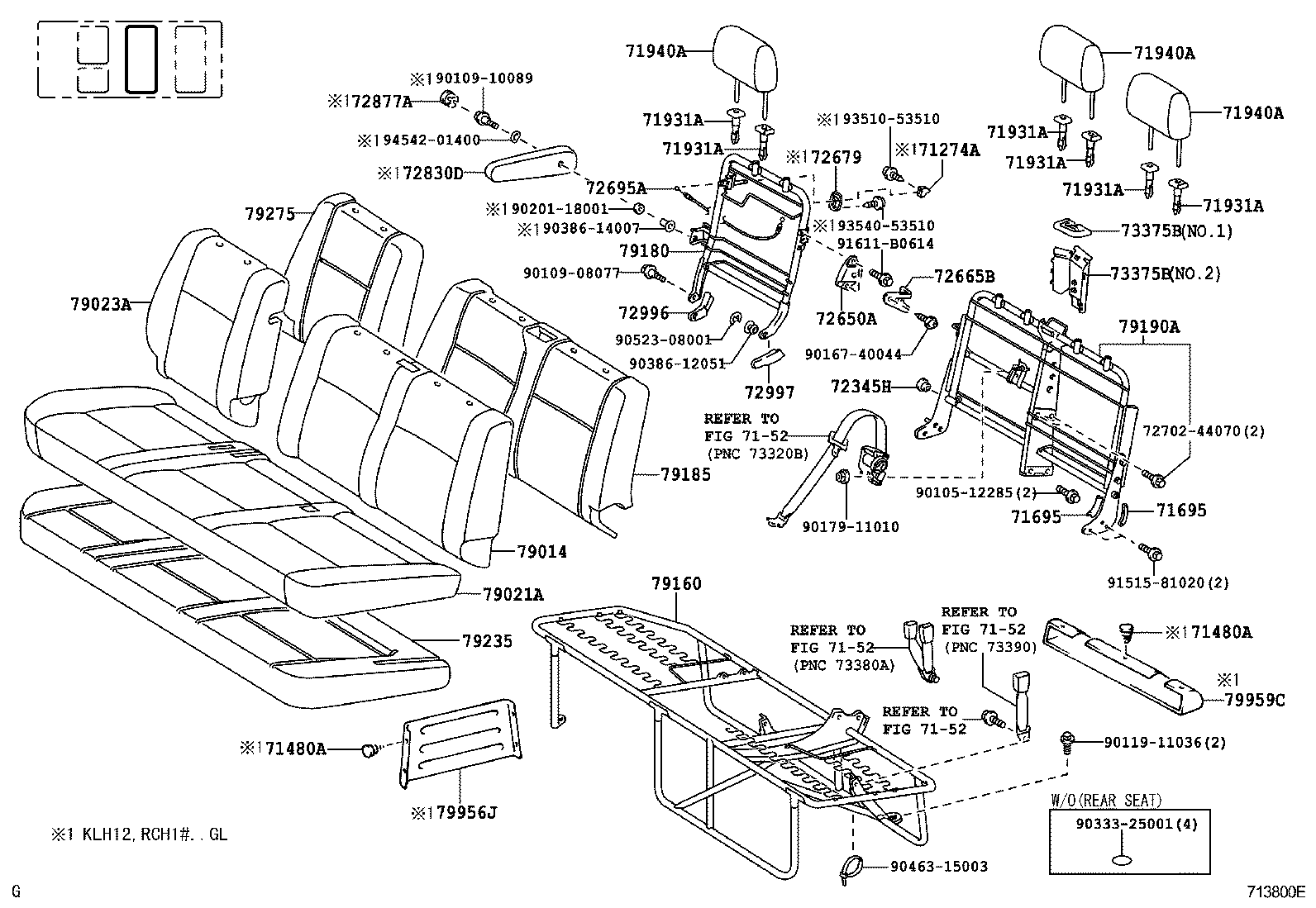

Figure 712094F 712094F 1995-08 → 2006-08 Figure 710938H 710938H 1995-08 → 2006-08 Figure 710939A 710939A 1995-08 → 1999-07 Figure 711438I 711438I 1999-07 → 2006-08 Figure 712049G 712049G 1999-07 → 2006-08 Figure 714600 714600 2006-08 → — Figure 714598 714598 2006-08 → — Figure 714601C 714601C 2006-08 → — Figure 714599B 714599B 2006-08 → — Figure 712092D 712092D 2001-08 → — Figure 710480C 710480C 1995-08 → 1998-04 Figure 710635A 710635A 1995-08 → 1998-04 Figure 711113E 711113E 1998-04 → 2006-08 Figure 711451D 711451D 1995-08 → 2004-05 Figure 711451D 711451D 2004-05 → 2006-08 Figure 713800E 713800E 2004-05 → 2006-08 Figure 714602A 714602A 2006-08 → — Figure 714603A 714603A 2006-08 → — Figure 715794 715794 2006-08 → — Figure 710636G 710636G 1995-08 → 2004-05 Figure 710636G 710636G 2004-05 → 2006-08 Figure 710560H 710560H 1997-03 → 2004-05 Figure 713802G 713802G 2004-05 → 2006-08 Figure 713801E 713801E 2004-05 → 2006-08 Figure 714606B 714606B 2006-08 → — Figure 714604B 714604B 2006-08 → —

Part groups

PNCDescription
61091A Bracket Sub-assy, Rear Seat Leg, RH
61092A Bracket Sub-assy, Rear Seat Leg, LH
71011S Frame Sub-assy, Front Seat Cushion, RH
71012S Frame Sub-assy, Front Seat Cushion, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71130 Leg Assy, Front Seat, RH
71139B Cover, Front Seat Leg, NO.2
71140 Leg Assy, Front Seat, LH
71243D Bracket, Rear Seat Cushion Hinge, RH
71243E Bracket, Rear Seat Cushion Hinge, LH
71274A Knob, Rear Seat Hinge
71324A Cushion, Rear Seat
71334A Stopper, Rear Seat Leg
71345C Hinge, Rear Seatback, RH
71346C Hinge, Rear Seatback, LH
71350B Hinge Assy, Rear Seat, RH
71350D Hinge Assy, Rear Seat, NO.2 RH
71360A Hinge Assy, Rear Seat, LH
71360D Hinge Assy, Rear Seat, NO.2 LH
71405A Striker Sub-assy, Rear Seat Lock, RH
71406 Striker Sub-assy, Rear Seat Lock, LH
71410C Clip(FOR FRONT SEAT CUSHION)
71410S Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71434 Pin, Rear Seat Cushion Leg, Rear
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71480A Clip (FOR REAR SEATBACK)
71485 Cover, Rear Seat Hinge
71486C Cover, Rear Seat Hinge, LH
71505 Pad Sub-assy, Front Seatback W/Frame, RH
71506 Pad Sub-assy, Front Seatback W/Frame, LH
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537A Protector, Front Seat Cushion
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71610S Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71620S Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71621A Pad, Rear Seat Cushion Silencer, A
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71672 Pad, Rear Seatback Silencer, B
71691A Cover, Rear NO.3 Seat Lock, RH
71691B Cover, Rear Seat Lock, Outer RH
71691C Cover, Rear Seat Lock, Inner RH
71692A Cover, Rear NO.3 Seat Lock, LH
71692B Cover, Rear Seat Lock, Outer LH
71692C Cover, Rear Seat Lock, Inner LH
71695 Protector, Rear Seatback
71705E Board Sub-assy, Front Seatback
71811C Cover, Reclining Adjuster, RH
71811F Cover, Reclining Adjuster, RH
71812C Cover, Reclining Adjuster, LH
71812E Cover, Reclining Adjuster, LH
71831D Cover, Front Seat Hinge, RH
71832D Cover, Front Seat Hinge, LH
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
72050 Belt Assy, Rear Seat Hook
72050A Belt Assy, Rear Seat Hook
72213 Knob, Seat Track Adjusting Handle
72213A Knob, Seat Track Adjusting Handle
72301A Wire Sub-assy, Seat Track Equalizing, RH
72301D Wire Sub-assy, Seat Track Equalizing, LH
72345H Cap, Seat Stand Frame
72457 Knob, Vertical Seat Adjuster
72457D Knob, Vertical Seat Adjuster, LH
72525A Handle, Reclining Adjuster Release, RH
72526 Handle, Reclining Adjuster Release, LH
72601C Striker Sub-assy, Rear Seatback Lock, NO.2 RH
72602B Striker Sub-assy, Rear Seatback Lock, NO.2 LH
72604 Lock Sub-assy, Rear Seatback, LH
72613B Striker, Rear Seat Lock
72613C Striker, Rear Seat Lock
72615A Cover, Rear Seatback Lock Striker, RH
72616A Cover, Rear Seatback Lock Striker, LH
72630C Lock Assy, Rear Seatback, RH
72637A Handle, Rear Seat Lock
72638 Handle, Rear Seat Lock, LH
72640A Lock Assy, Rear Seatback, LH
72646 Grommet, Rear Seatback Stop Button
72650A Lock Assy, Rear Seat, RH
72650F Lock Assy, Rear Seat, RH
72651 Rod, Rear Seatback Lock
72658B Knob, Rear Seat Lock Handle
72658F Knob, Rear Seat Lock Handle
72660B Lock Assy, Rear NO.3 Seat, LH
72660F Lock Assy, Rear Seat, LH
72661C Button, Rear Seatback Lock Release
72665 Cover, Rear Seatback Lock, RH
72665B Cover, Rear Seatback Lock
72666 Cover, Rear Seatback Lock, LH
72679 Bezel, Rear Seatback Lock Control
72695 Silencer, Rear Seatback Lock Control Rod
72695A Cable, Rear Seat Lock Control
72748A Protector, Guard Frame, Lower LH
72810C Armrest Assy, Front Seat, Center
72830 Armrest Assy, Rear Seat, Center
72830D Armrest Assy, Rear Seat, RH
72877 Cover, Seat Armrest, RH
72877A Cover, Seat Armrest, NO.2 RH
72878 Cover, Seat Armrest, LH
72880 Armrest Assy, Seat, C RH
72890 Armrest Assy, Seat, C LH
72996 Cover, Rear Seatback, RH
72997 Cover, Rear Seatback, LH
73373F Cover, Rear Seat Shoulder Belt Hole
73375B Cover, Rear Seat Shoulder Belt Hole, LH
74790 Holder Assy, Warning Reflector
78630 Adjuster Assy, FR0NT Seat Side Table
78631 Table, Front Seat Side
78632 Cover, Front Seat Side Table
78632A Clip, Front Seat Side Table Cover
78632B Cover, Front Seat Side Table Leg
78639 Clip, Front Seat Side Table
79011A Cover Sub-assy, NO.1 Seat Cushion
79013 Cover Sub-assy, NO.1 Seatback, RH
79013A Cover Sub-assy, NO.1 Seatback
79014 Cover Sub-assy, NO.1 Seatback, LH
79021A Cover Sub-assy, NO.2 Seat Cushion
79023A Cover Sub-assy, NO.2 Seatback
79031A Cover Sub-assy, NO.3 Seat Cushion
79033A Cover Sub-assy, NO.3 Seatback
79107A Leg Sub-assy, NO.1 Seat, Rear
79120A Cushion Assy, NO.1 Seat
79123 Plate, NO.1 Seat Cushion
79135 Pad, NO.1 Seat Cushion
79140 Back Assy, NO.1 Seat, RH
79140A Back Assy, NO.1 Seat
79150 Back Assy, NO.1 Seat, LH
79160 Spring Assy, NO.1 Seat Cushion
79169B Rod, Rear NO.2 Seat Hinge Connector
79175 Pad, NO.1 Seatback
79175E Pad, NO.1 Seatback, RH
79180 Spring Assy, NO.1 Seatback
79185 Pad, NO.1 Seatback, LH
79190A Spring Assy, NO.1 Seatback, LH
79199 Holder, NO.1 Seat Leg Stopper
79235 Pad, NO.2 Seat Cushion
79275 Pad, NO.2 Seatback
79303 Frame Sub-assy, NO.3 Seatback
79305 Leg Sub-assy, NO.3 Seat
79320A Cushion Assy, NO.3 Seat
79335 Pad, NO.3 Seat Cushion
79340A Back Assy, NO.3 Seat
79354A Cover, NO.3 Seatback Hinge, RH
79360 Spring Assy, NO.3 Seat Cushion
79364 Cover, NO.3 Seatback Hinge, LH
79366 Cover, NO.3 Seat Leg, NO.1
79375 Pad, NO.3 Seatback
79376 Pad, NO.3 Seatback Side
79391 Spring, Rear Seat Cushion
79621A Stopper, NO.3 Seat Cushion
79956J Cover, NO.3 Seat Leg, Inner RH
79959C Cover, Rear Seat Leg
