Toyota Hiace/Hiace S.B.V

1995-08 → 2011-11 · chassis KLH1#,2#,LXH1#,2#,RCH1#,2# · catalogue 713210 · Europe

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

31 part groups · 7 illustrations

Illustrations

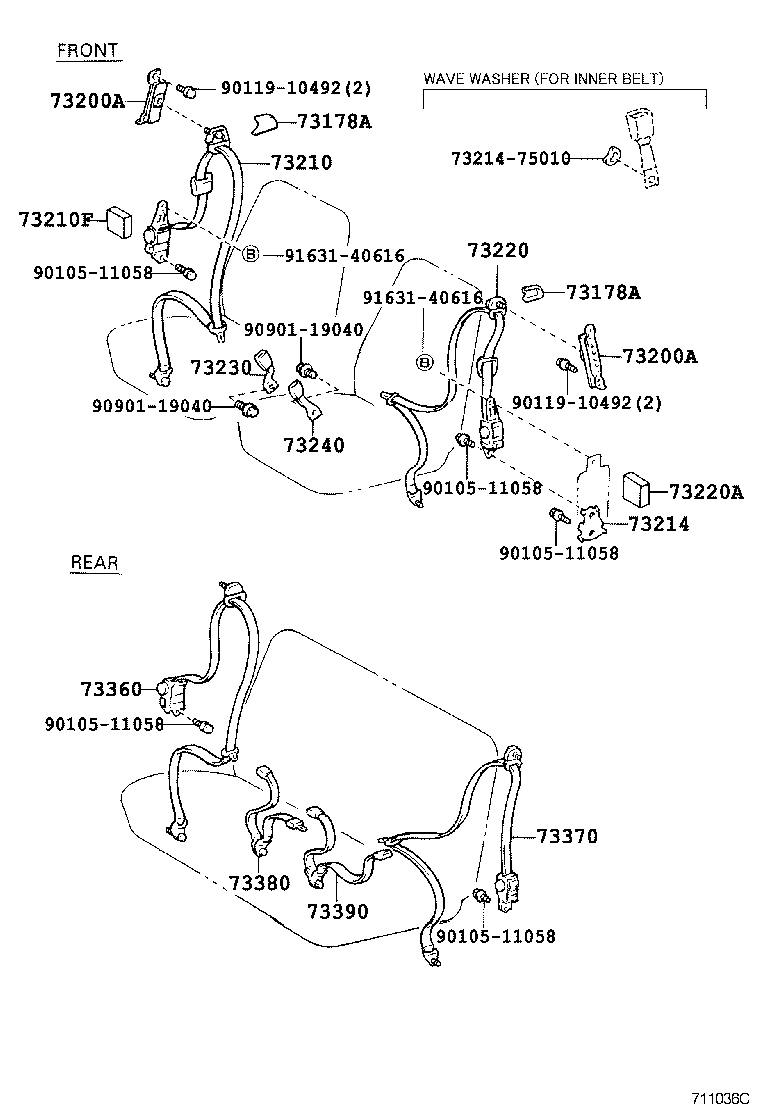

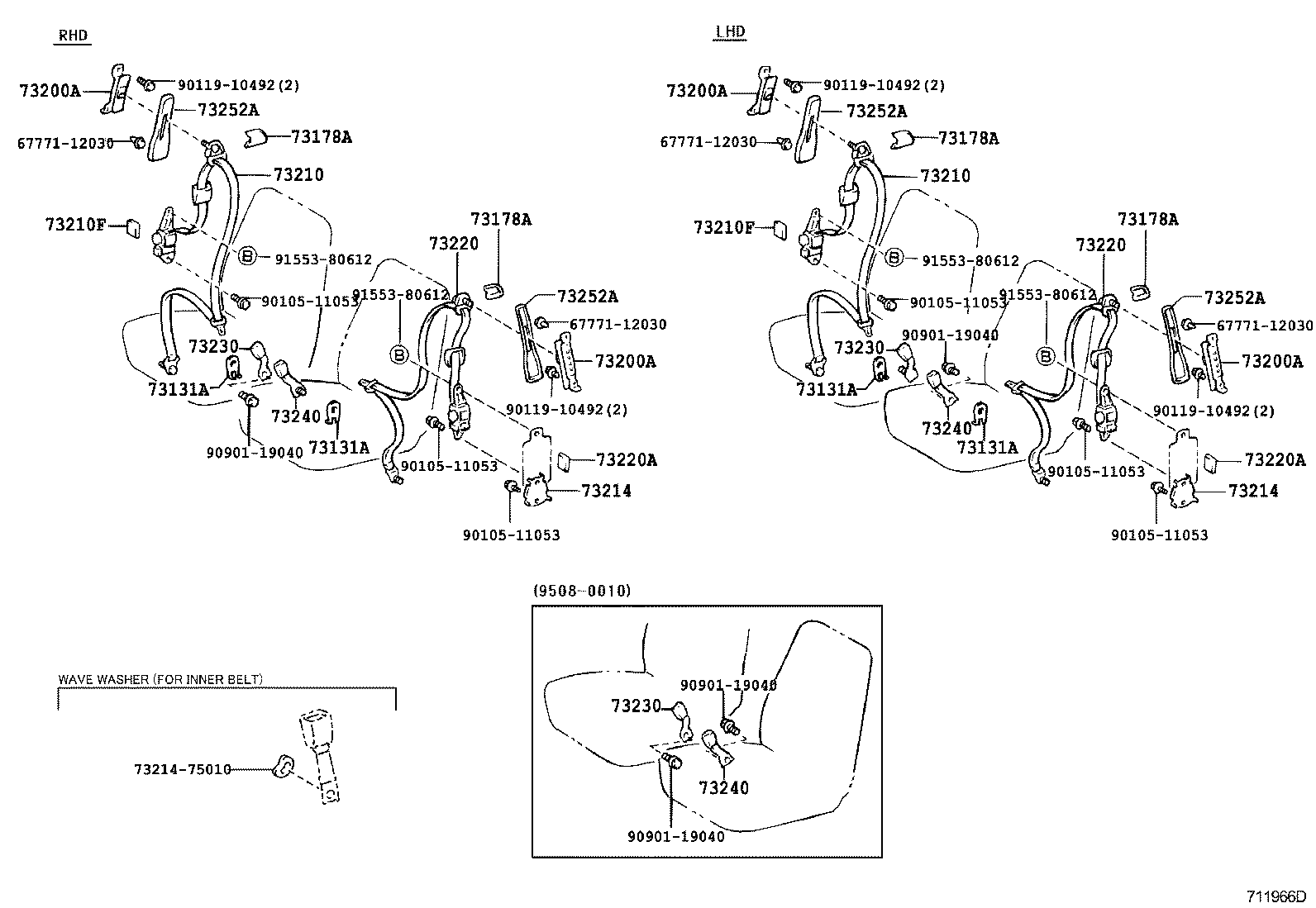

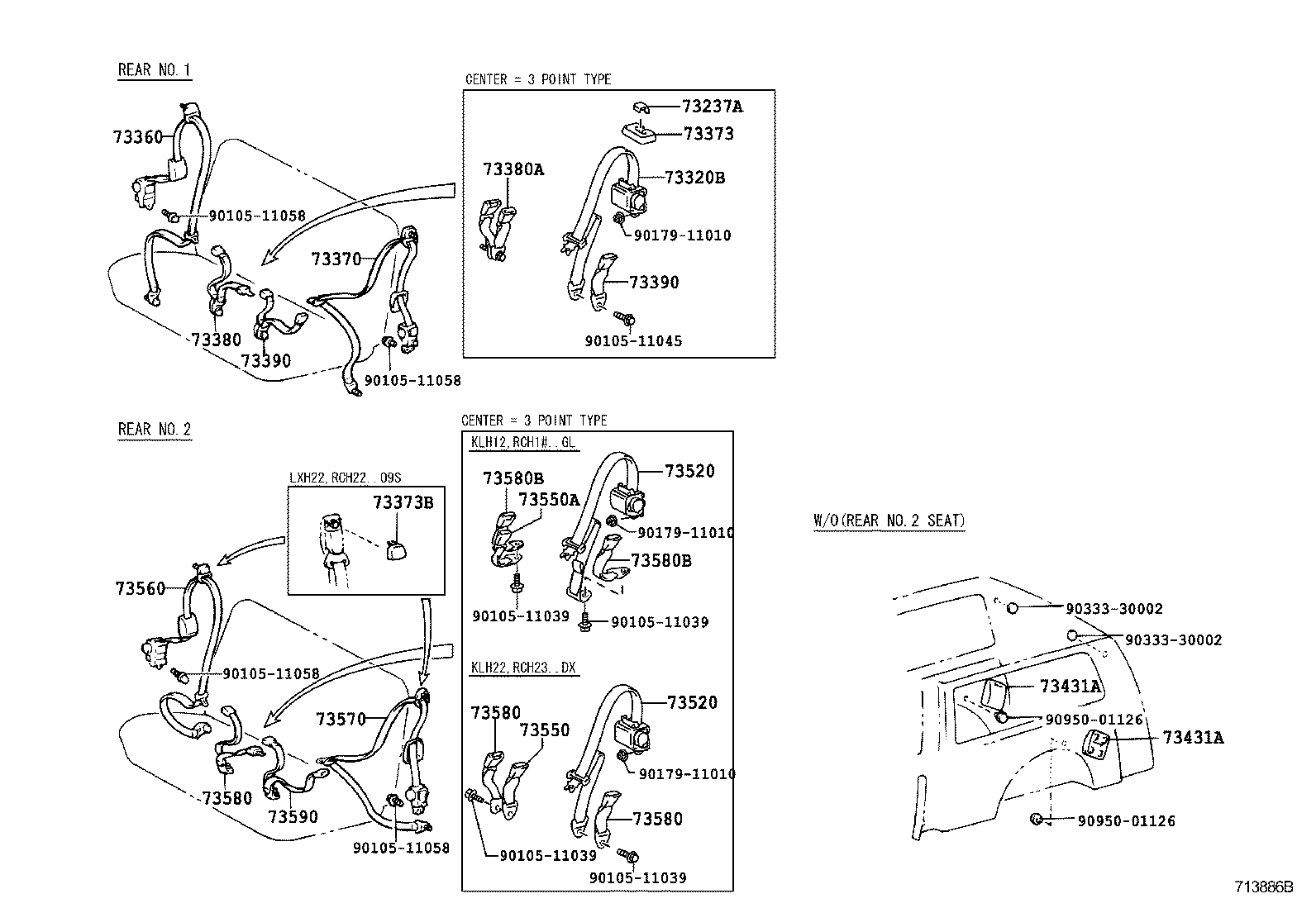

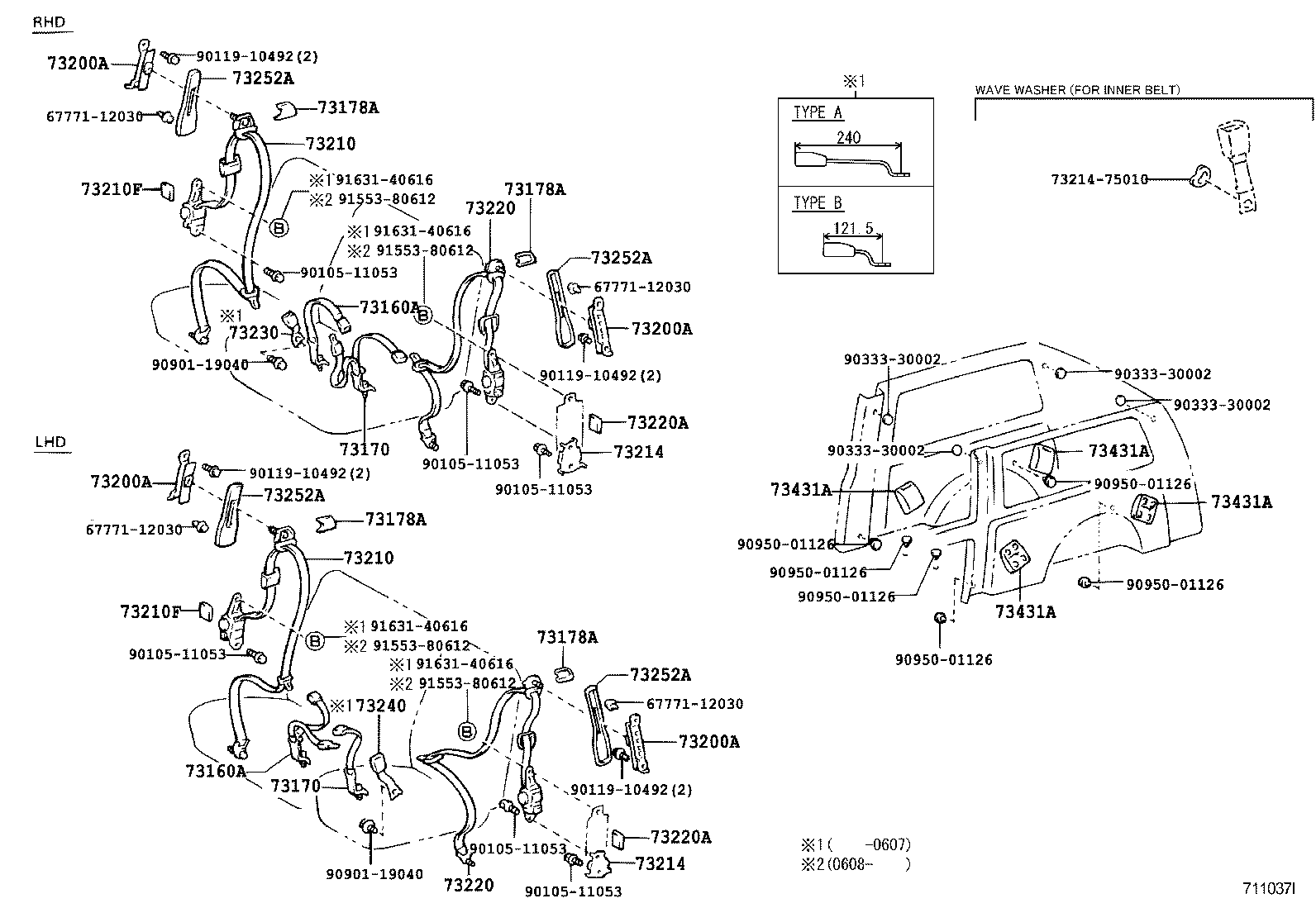

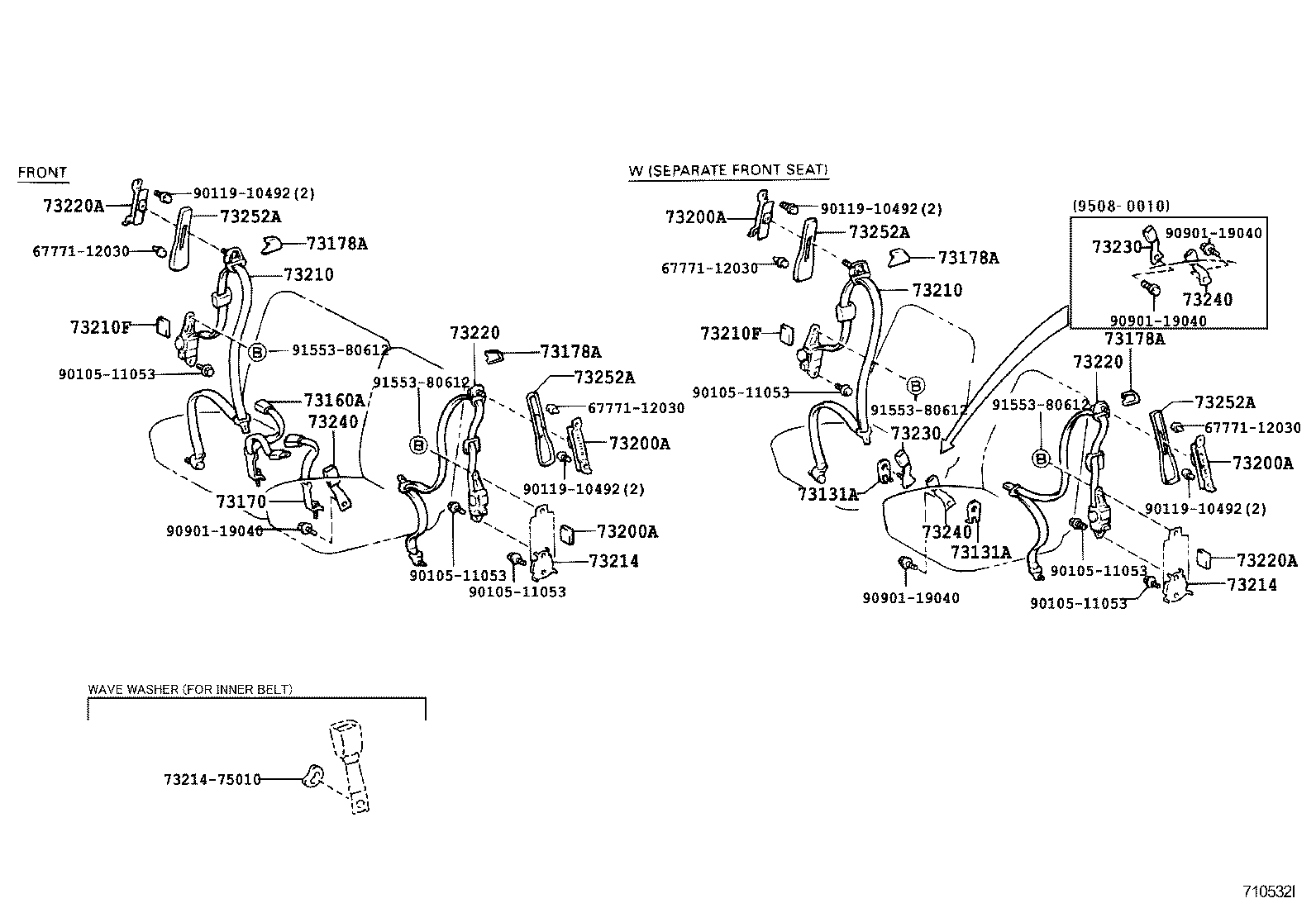

Figure 711035G 711035G 1995-08 → — Figure 711036C 711036C 1995-08 → 1999-07 Figure 711037I 711037I 1995-08 → — Figure 711966D 711966D 1995-08 → — Figure 710532I 710532I 1995-08 → — Figure 711098A 711098A 1998-05 → — Figure 713886B 713886B 1995-08 → —

Part groups

PNCDescription
73131A Bracket, Seat Belt
73160A Seat Belt Assy, Front Center, RH
73170 Belt Assy, Front Center, LH
73178A Cap, Seat Belt Anchor Cover
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73210F Pad, Front Seat Belt, Outer RH
73214 Plate, Front Seat Belt Anchor
73220 Belt Assy, Front Seat Outer, LH
73220A Pad, Front Seat Belt, Outer LH
73230 Belt Assy, Front Seat Inner, RH
73237A Cover, Shoulder Belt Anchor
73240 Belt Assy, Front Seat Inner, LH
73252A Cover, Shoulder Belt Anchor Adjust
73320B Belt Assy, Rear Seat Lap Type, NO.2
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73373 Cover, Rear Seat Shoulder Belt
73373B Cover, Rear NO.1 Seat Shoulder Belt
73380 Belt Assy, Rear Seat 3 Point Type, Inner, RH
73380A Belt Assy, Rear Seat, Inner
73390 Belt Assy, Rear Seat 3 Point Type, Inner, LH
73431A Cover, Rear Seat Belt Retractor
73520 Belt Assy, Rear Seat Lap Type, NO.2
73550 Belt Assy, Rear NO.2 Seat Lap Type, Center
73550A Belt Assy, NO.3 Seat Lap Type, Center
73560 Belt Assy, Rear NO.2 Seat, Outer RH
73570 Belt Assy, Rear NO.2 Seat, Outer LH
73580 Belt Assy, Rear NO.2 Seat, Inner RH
73580B Belt Assy, Rear Seat, Inner RH
73590 Belt Assy, Rear NO.2 Seat, Inner LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
