Toyota Hiace/Hiace S.B.V

1995-08 → 2011-11 · chassis KLH1#,2#,LXH1#,2#,RCH1#,2# · catalogue 713210 · Europe

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

14 part groups · 2 illustrations

Illustrations

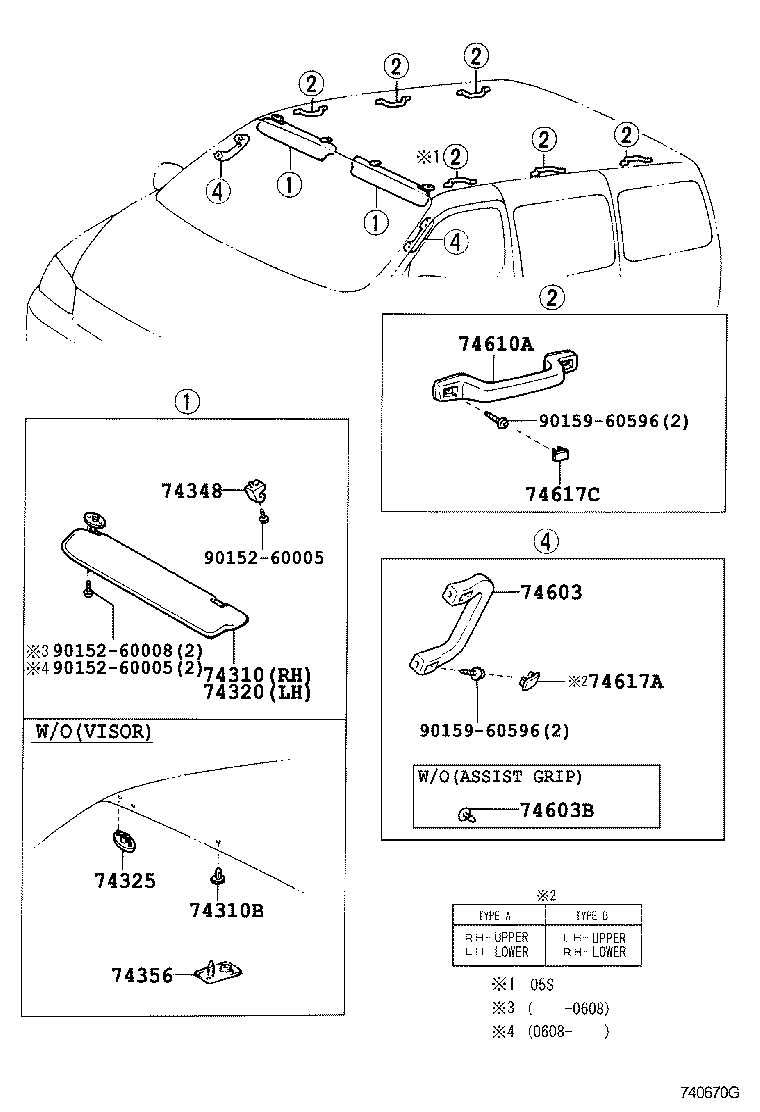

Figure 742548A 742548A 1995-08 → — Figure 740670G 740670G 1995-08 → —

Part groups

PNCDescription
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74310 Visor Assy, RH
74310B Plug, Hole (FOR VISOR)
74320 Visor Assy, LH
74325 Cover, Visor Bracket
74348 Holder, Visor
74356 Cover, Visor Holder Hole
74603 Grip Sub-assy, Assist, Front
74603B Clip (FOR ASSIST GRIP)
74610A Grip Sub-assy, Assist
74617A Plug, Assist Grip
74617C Plug, Assist Grip
74811B Handle, Door Pull
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
