Toyota Hiace/Hiace S.B.V
1995-08 → 2011-11 · chassis KLH1#,2#,LXH1#,2#,RCH1#,2# · catalogue 713210 · Europe
Discontinued model
Data version 2012-01

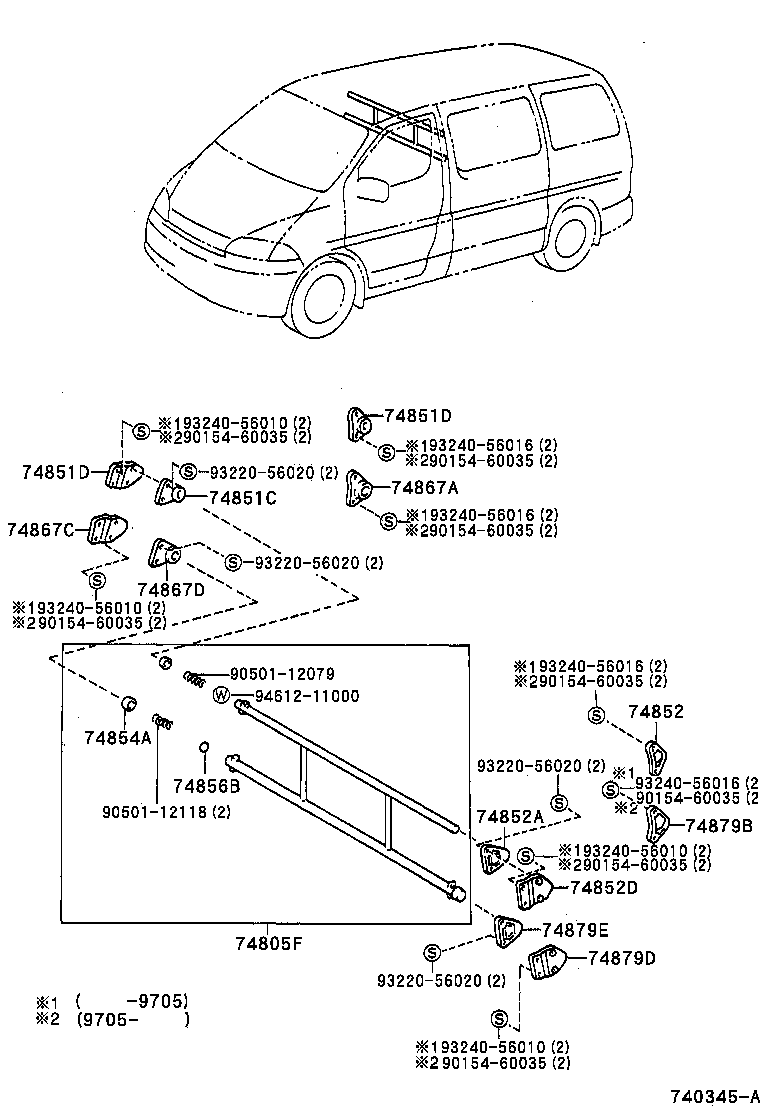

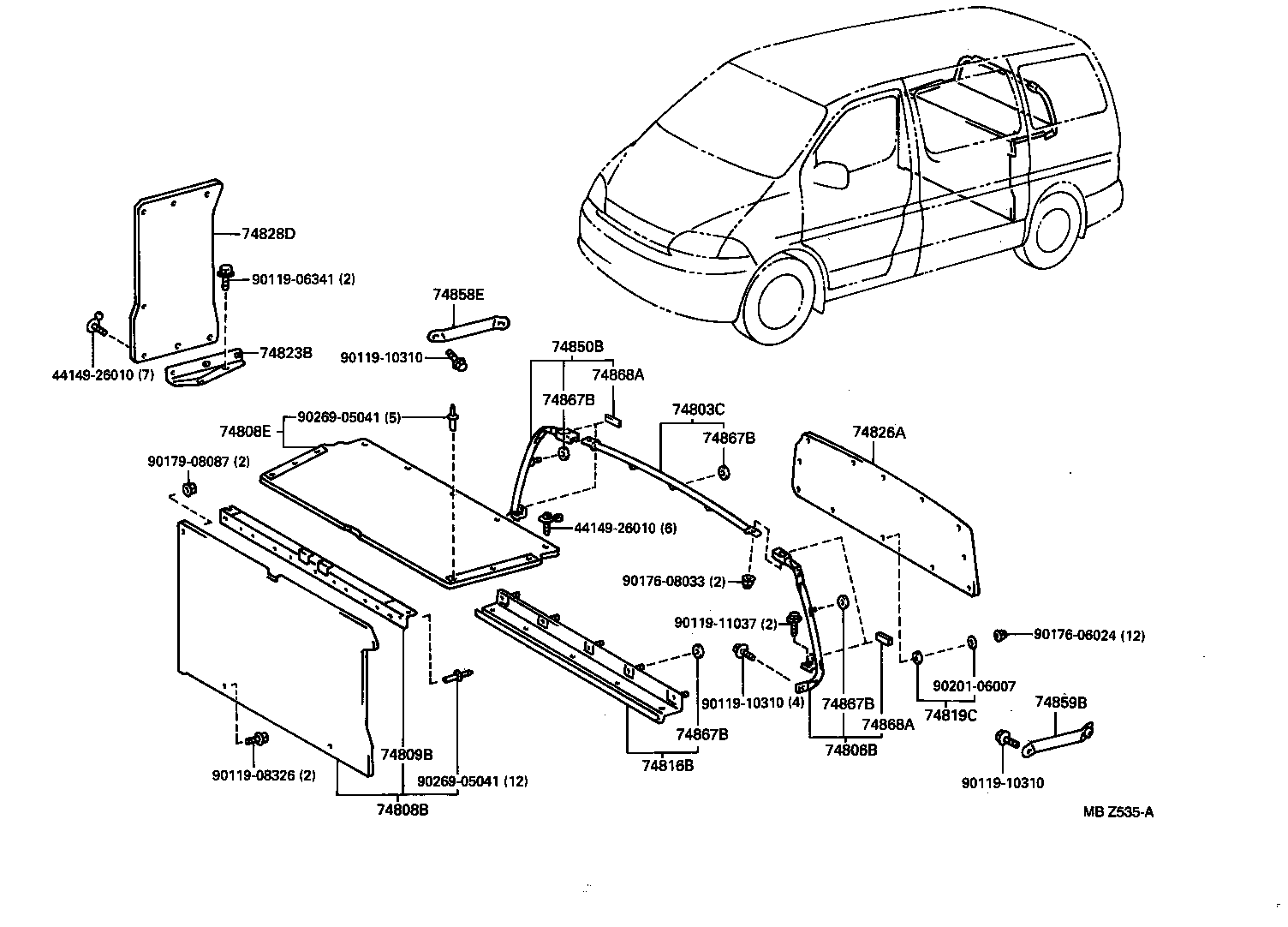

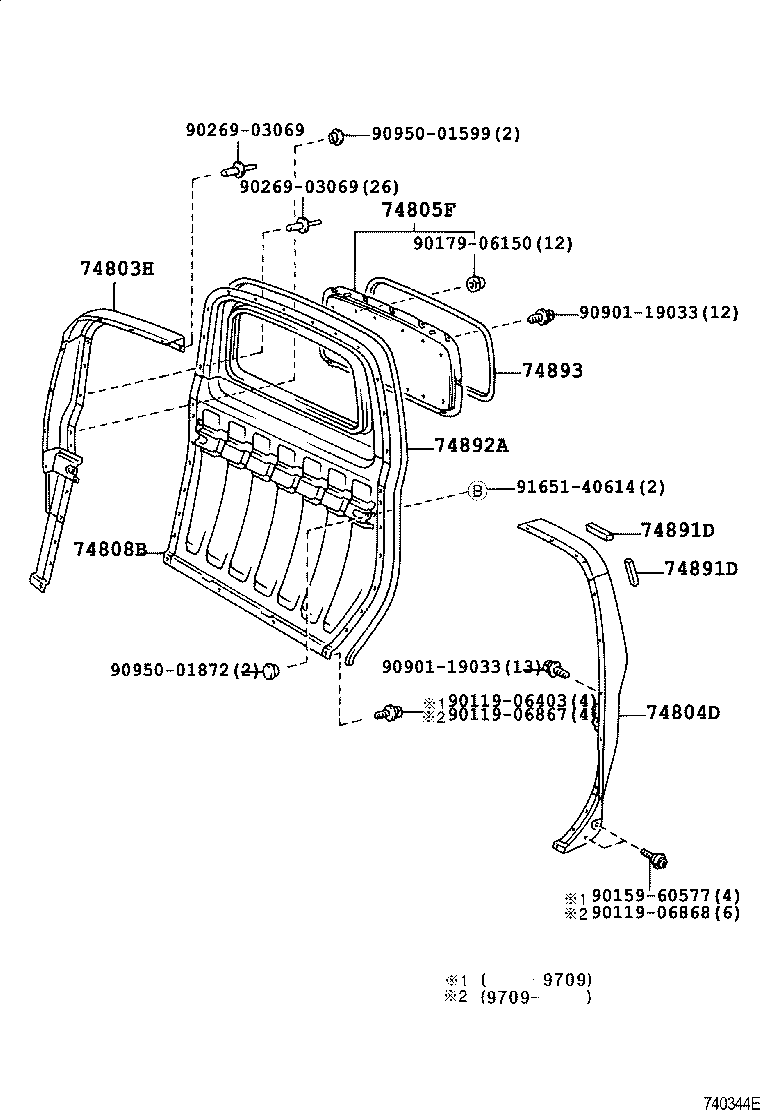

Separator & Separator Curtain
37 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 64831B | Weatherstrip, Back Window Glass |
| 74803C | Bar Sub-assy, Separator, C |
| 74803H | Panel Sub-assy, Separator Board, RH |
| 74804D | Panel Sub-assy, Separator Board, LH |
| 74805F | Bar Sub-assy, Separator, A |
| 74806B | Bar Sub-assy, Separator, B |
| 74808B | Board Sub-assy, Separator |
| 74808E | Separator Sub-assy, Rear |
| 74809B | Bar Sub-assy, Separator |
| 74810E | Bar Assy, Separator |
| 74816B | Reinforcement, Separator Window |
| 74819C | Cushion, Separator Window |
| 74823B | Bracket, Separator Board Side, Lower |
| 74826A | Window, Separator |
| 74828D | Board, Separator, NO.3 |
| 74850B | Separator Sub-assy, Rear |
| 74851C | Bracket, Separator, Upper RH |
| 74851D | Bracket, Separator Bar, Upper RH |
| 74852 | Bracket, Separator, RH |
| 74852A | Bracket, Separator, Upper LH |
| 74852D | Bracket, Separator Bar, Upper LH |
| 74854A | Stop, Separator |
| 74856B | Plate, Spring Set |
| 74858E | Stay, Rear Separator Bar, RH |
| 74859B | Stay, Rear Separator Bar, LH |
| 74867A | Bracket, Separator Bar, NO.4 |
| 74867B | Spacer, Separator, NO.1 |
| 74867C | Bracket, Separator Bar, Lower |
| 74867D | Bracket, Separator Bar, Lower |
| 74868A | Spacer, Separator, NO.2 |
| 74875A | Plate, Curtain Rear Separator |
| 74879B | Bracket, Separator Bar, Lower LH |
| 74879D | Bracket, Separator Bar, Lower LH |
| 74879E | Bracket, Separator Bar, Lower LH |
| 74891D | Protector, Separator Board, NO.1 |
| 74892A | Cover, Separator Bar, NO.2 |
| 74893 | Protector,Separator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
