Toyota Hiace/Hiace S.B.V

1995-08 → 2011-11 · chassis KLH1#,2#,LXH1#,2#,RCH1#,2# · catalogue 713210 · Europe

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

66 part groups · 6 illustrations

Illustrations

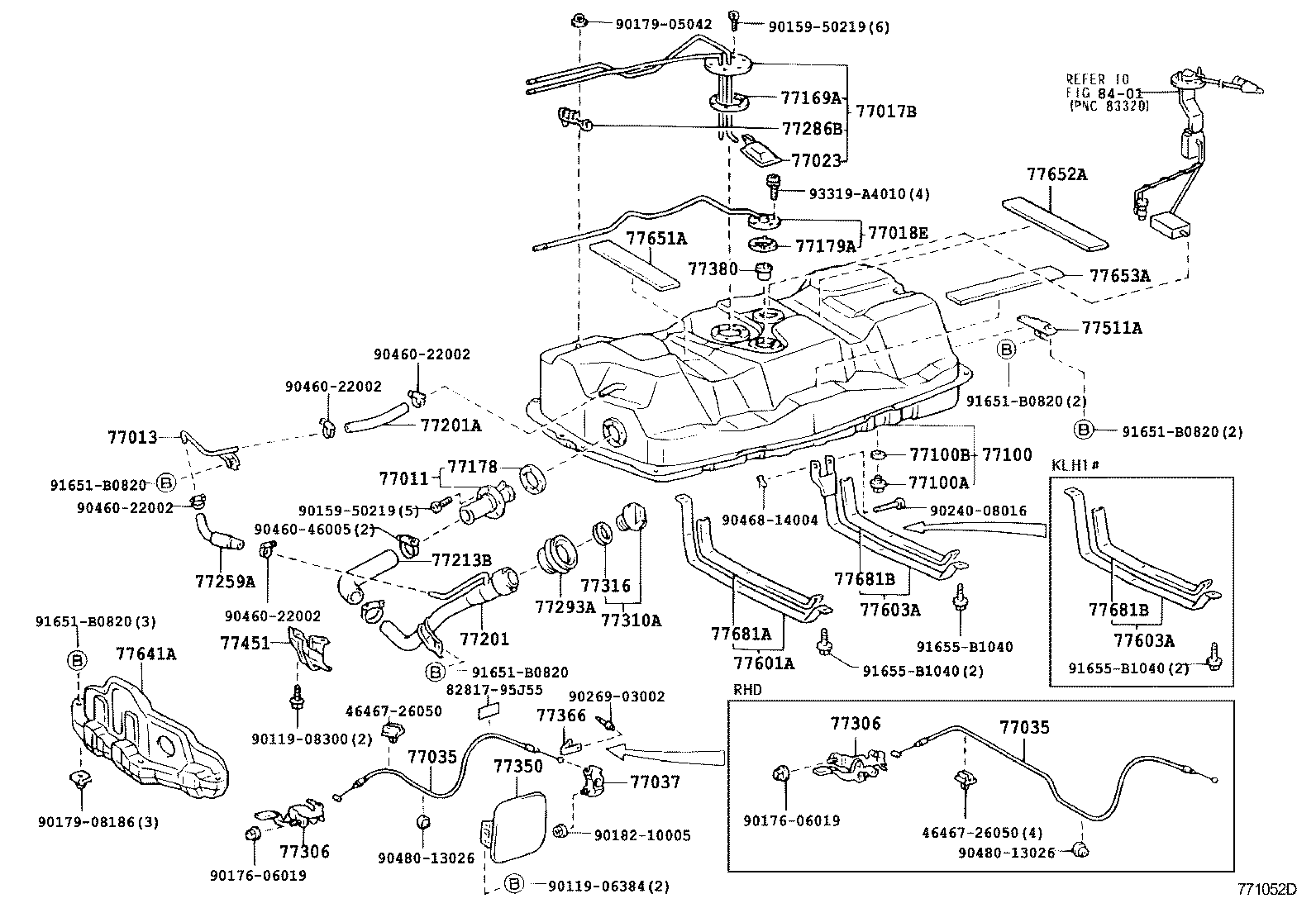

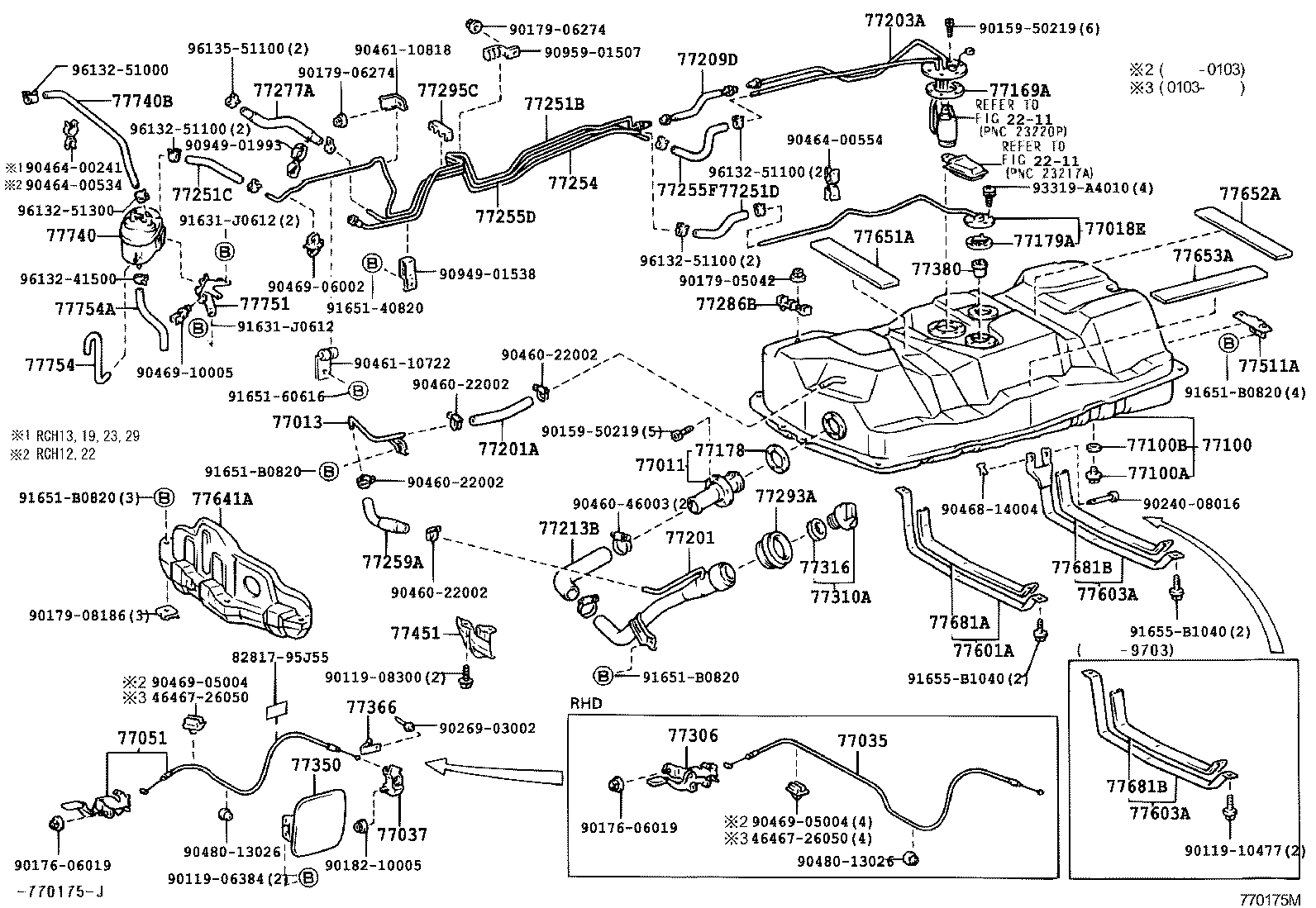

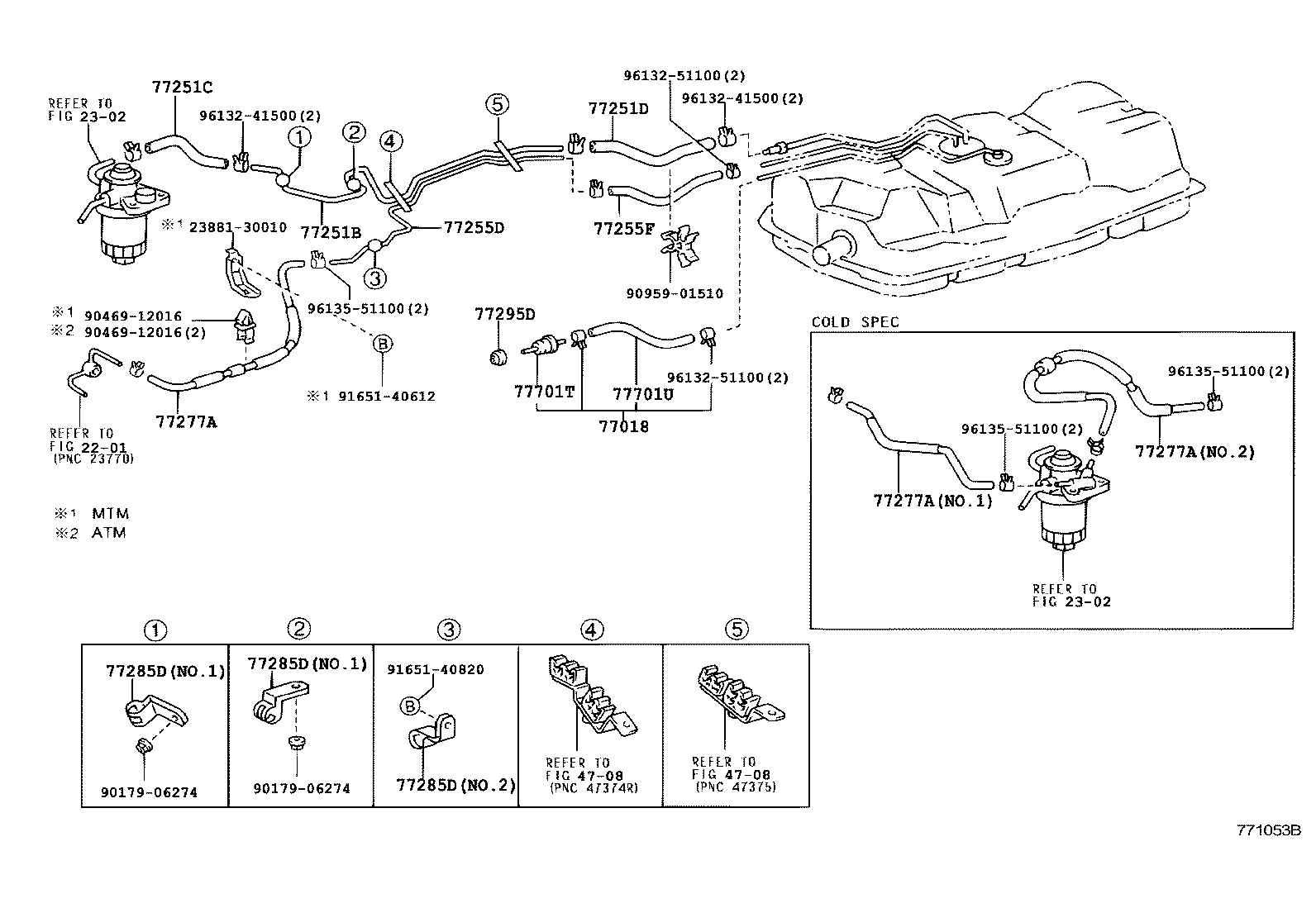

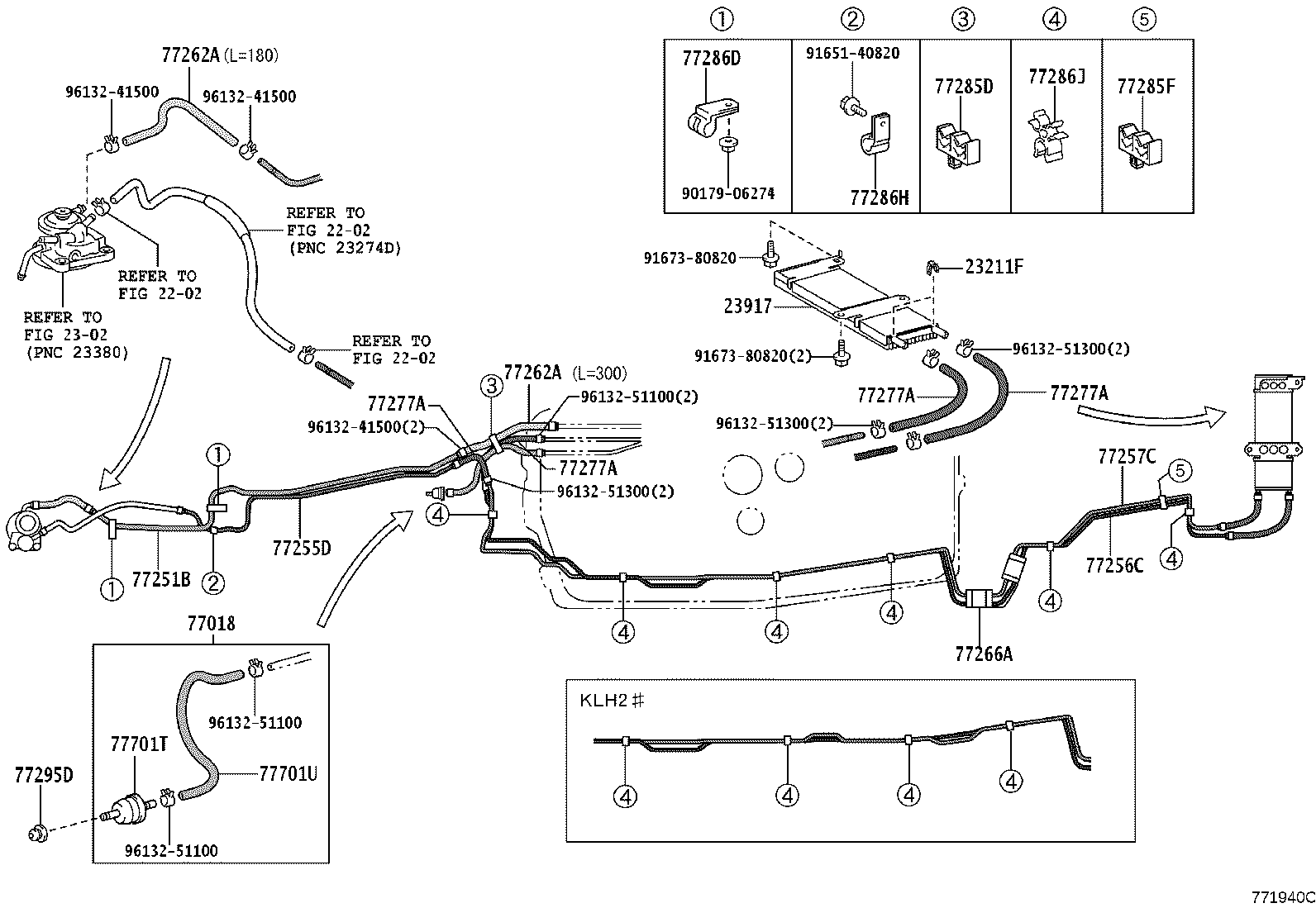

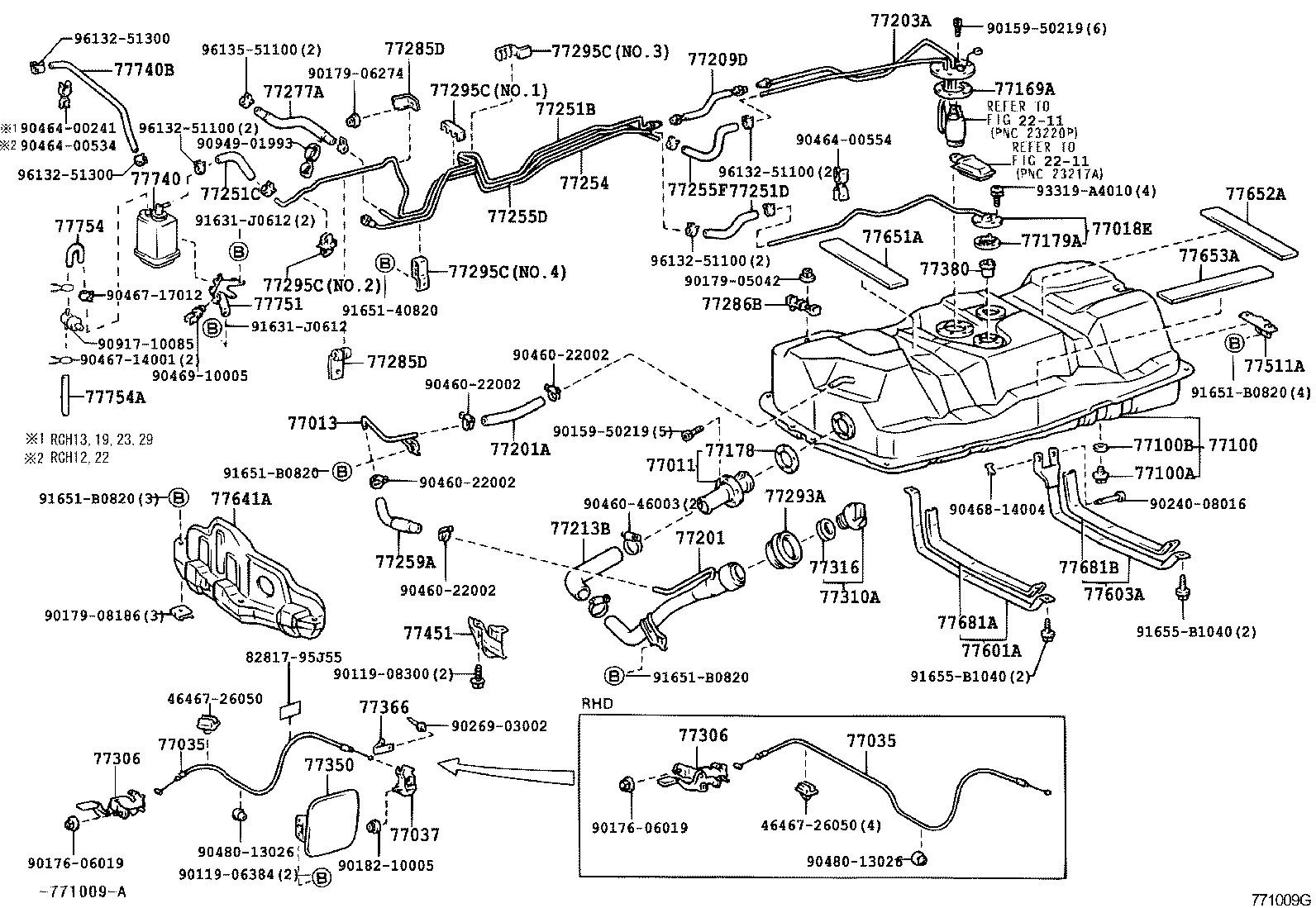

Figure 770219K 770219K 1995-08 → 2001-08 Figure 770175O 770175O 1995-08 → 2001-08 Figure 771009G 771009G 2001-08 → — Figure 771052D 771052D 2001-08 → — Figure 771053B 771053B 2001-08 → 2006-08 Figure 771940C 771940C 2006-08 → —

Part groups

PNCDescription
23211F Bracket
23917 Cooler, Fuel
77011 Pipe Sub-assy, Fuel Tank Filler, Lower
77013 Tube Sub-assy, Fuel Tank Breather, NO.2
77017B Tube Sub-assy, Fuel Tank Vent
77018 Valve Sub-assy, Fuel Vapour Separate
77018E Tube Sub-assy, Fuel Tank Evaporation Vent
77023 Filter Sub-assy, Fuel Suction Tube
77035 Cable Sub-assy, Fuel Lid Lock Control
77037 Lock Sub-assy, Fuel Filler Opening Lid
77051 Lever Sub-assy, Fuel Lid Open
77100 Tank Assy, Fuel
77100A Plug(FOR FUEL TANK)
77100B Gasket(FOR FUEL TANK)
77169A Gasket, Fuel Suction Tube Set
77178 Gasket, Fuel Tank Filler Pipe, Lower
77179A Gasket, Fuel Tank Breather Tube
77201 Pipe Sub-assy, Fuel Tank Inlet
77201A Hose, Fuel, NO.1(FOR FUEL TANK INLET PIPE)
77203A Tube Sub-assy, Fuel Suction
77209D Tube Sub-assy, Fuel Tank Main
77213B Hose, Fuel Tank TO Filler Pipe
77251B Tube, Fuel Main
77251C Hose, Fuel, NO.1(FOR FUEL MAIN TUBE)
77251D Hose, Fuel, NO.2(FOR FUEL MAIN TUBE)
77254 Tube, Fuel Emission, NO.1
77255D Tube, Fuel Return
77255F Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE)
77256C Tube, Fuel Return, NO.2
77257C Tube, Fuel Return, NO.3
77259A Hose, Fuel(FOR BREATHER TUBE)
77262A Hose, Fuel, NO.1(FOR FUEL TANK TO CANISTER CENTER TUBE)
77266A Protector, Fuel Tube, NO.1
77277A Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
77285D Clamp, Fuel Tube, NO.1
77285F Clamp, Fuel Tube, NO.1
77286B Clamp, Fuel Tube W/Grommet, NO.2
77286D Clamp, Fuel Tube, NO.2
77286H Clamp, Fuel Tube, NO.3
77286J Clamp, Fuel Tube, NO.4
77293A Shield, Fuel Tank Filler Pipe, NO.3
77295C Grommet, Fuel Tube
77295D Grommet, Fuel Tube
77306 Lever Sub-assy, Fuel Lid Lock Open
77310A Cap Assy, Fuel Tank
77316 Gasket, Fuel Tank Cap
77350 Lid Assy, Fuel Filler Opening
77366 Spring, Fuel Filler Opening Lid Hinge
77380 Valve Assy, Fuel Cut Off
77451 Protector, Fuel Inlet Hose
77511A Bracket, Fuel Tank
77601A Band Sub-assy, Fuel Tank, NO.1
77603A Band Sub-assy, Fuel Tank, NO.2
77641A Protector, Fuel Tank, NO.1
77651A Cushion, Fuel Tank, NO.1
77652A Cushion, Fuel Tank, NO.2
77653A Cushion, Fuel Tank, NO.3
77681A Seat, Fuel Tank Band
77681B Seat, Fuel Tank Band
77701T Valve, Check (FOR MAIN FUEL TANK)
77701U Hose, Fuel (FOR CHECK VALVE)
77740 Canister Assy, Charcoal
77740B Hose, Fuel, NO.2(FOR CHARCOAL CANISTER)
77751 Bracket, Charcoal Canister Base
77754 Hose, Charcoal Canister Outlet, NO.1
77754A Hose, Charcoal Canister Outlet, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
