Toyota Hiace/Hiace S.B.V

1995-08 → 2011-11 · chassis KLH1#,2#,LXH1#,2#,RCH1#,2# · catalogue 713210 · Europe

Discontinued model Data version 2012-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery & Battery Cable

5 part groups · 2 illustrations

Illustrations

Figure 821868G

821868G 1995-08 → —

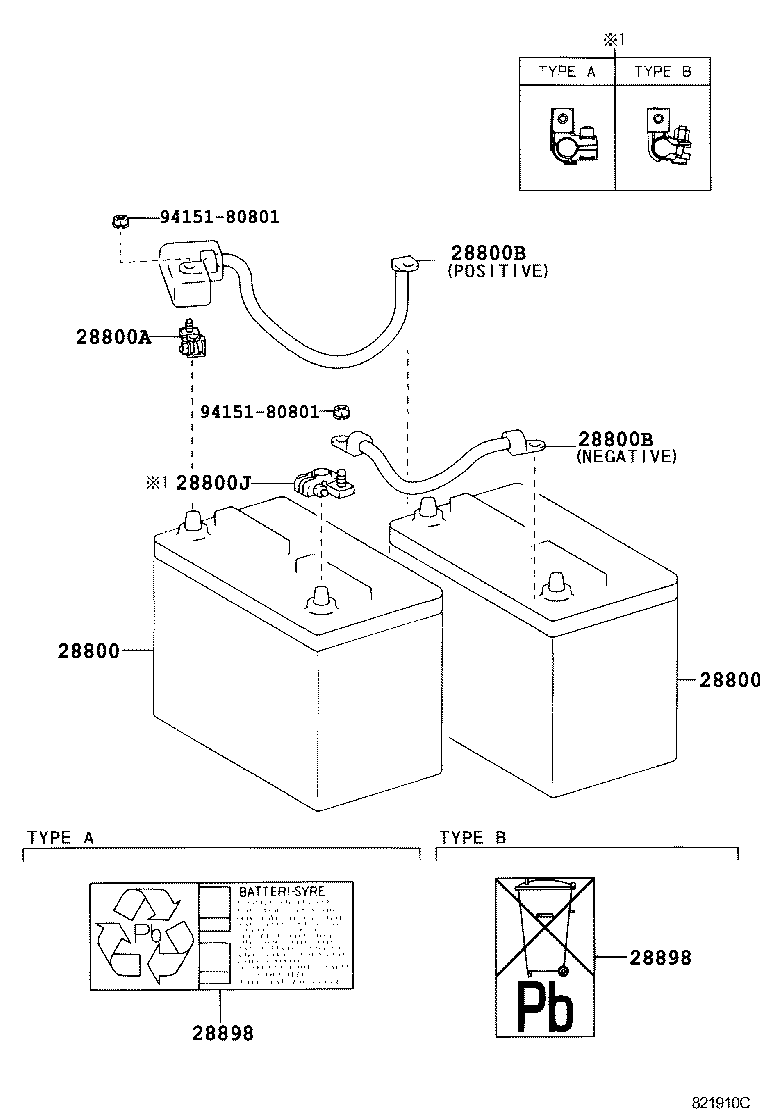

Figure 821910C

821910C 1995-08 → —

Part groups

PNC	Description
28800	Battery
28800A	Terminal, Battery Positive
28800B	Cable, Battery TO Ground
28800J	Terminal, Battery Negative
28898	Plate, Battery

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
