Toyota Hiace/Hiace S.B.V
1995-08 → 2011-11 · chassis KLH1#,2#,LXH1#,2#,RCH1#,2# · catalogue 713210 · Europe
Discontinued model
Data version 2012-01
Wiring & Clamp
39 part groups · 23 illustrations

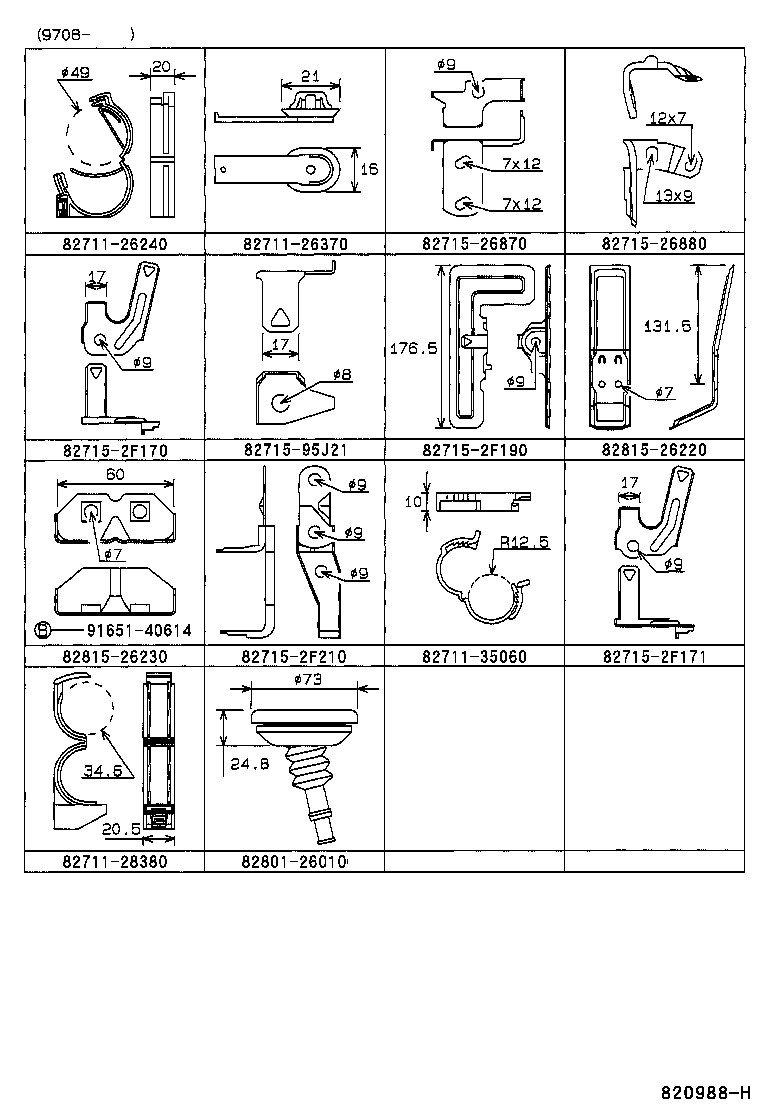

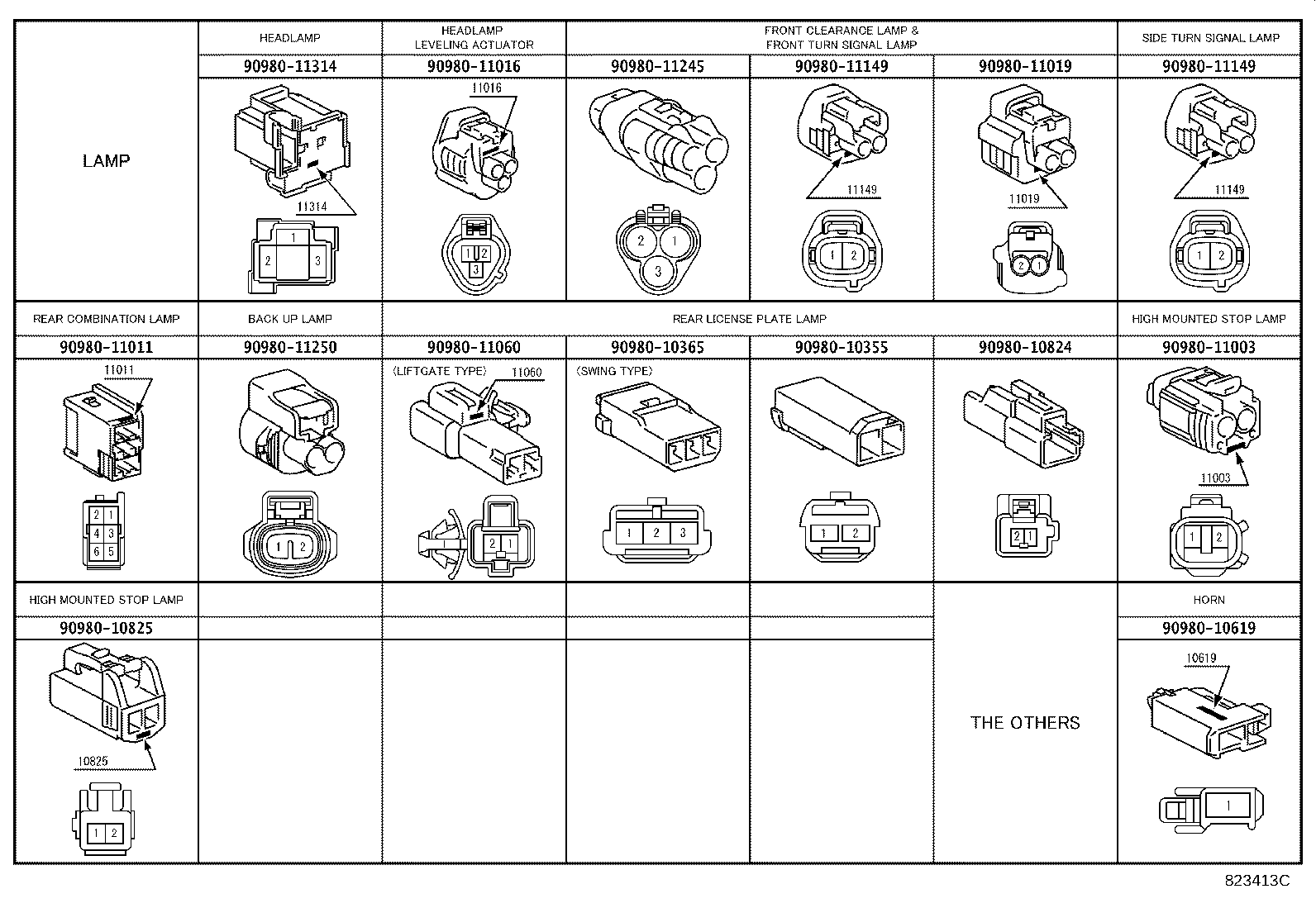

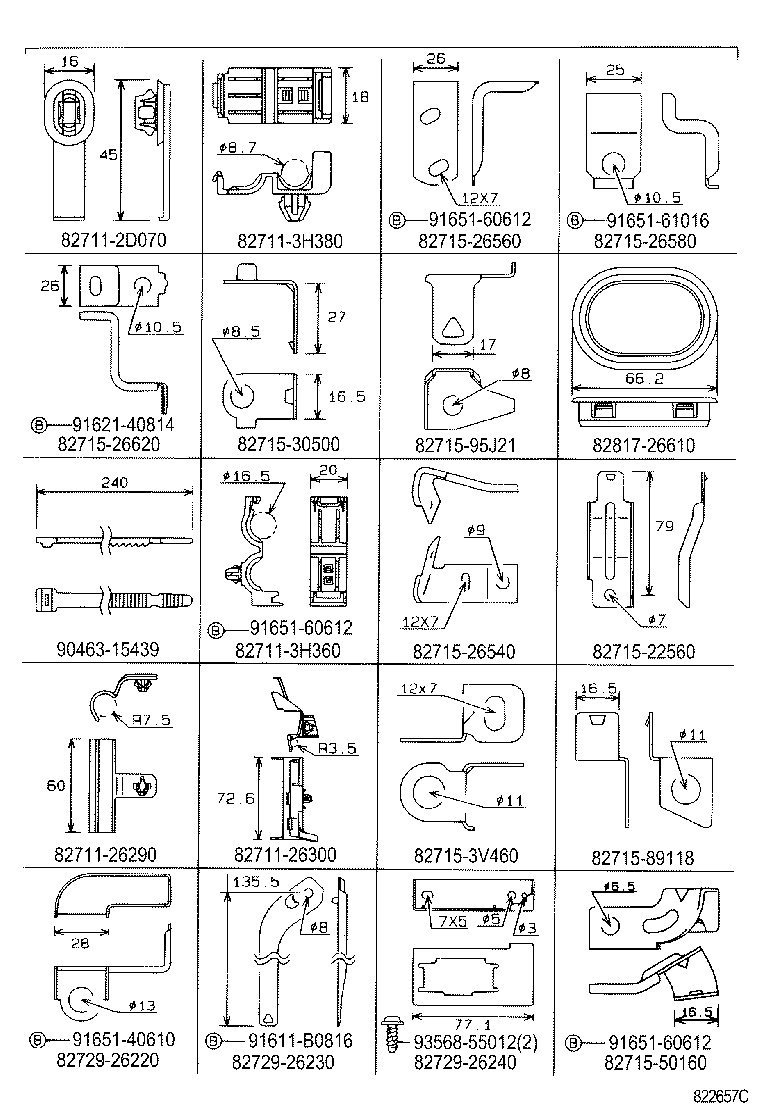

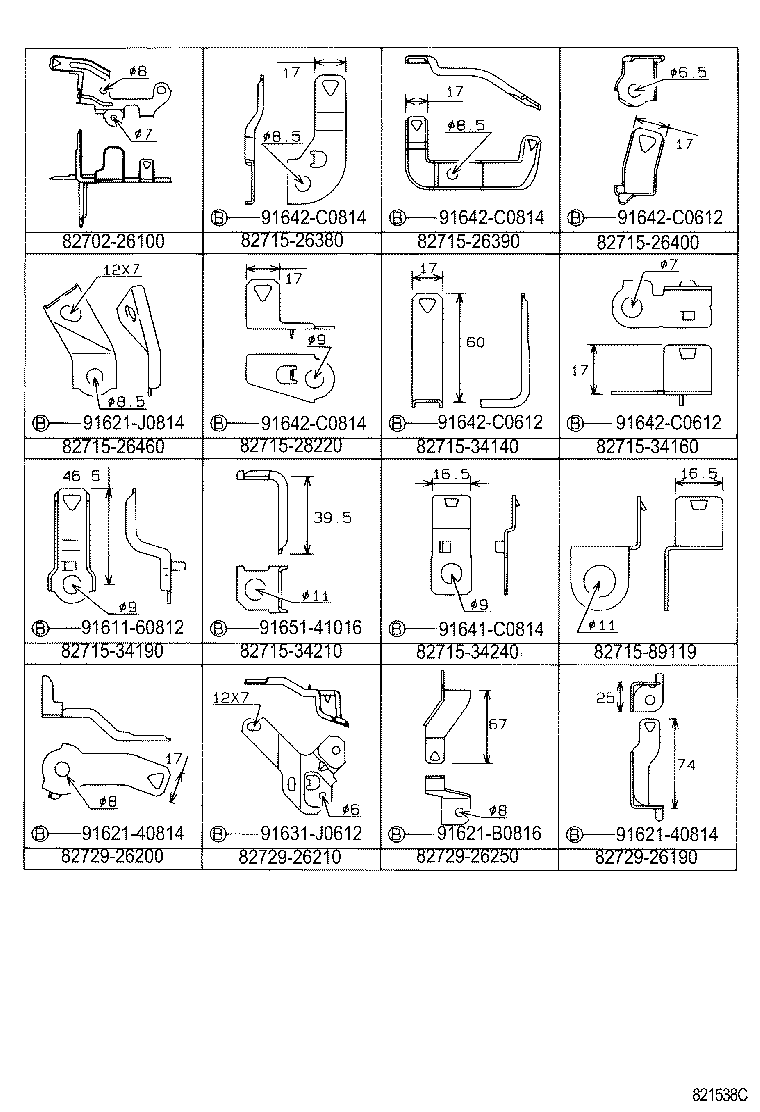

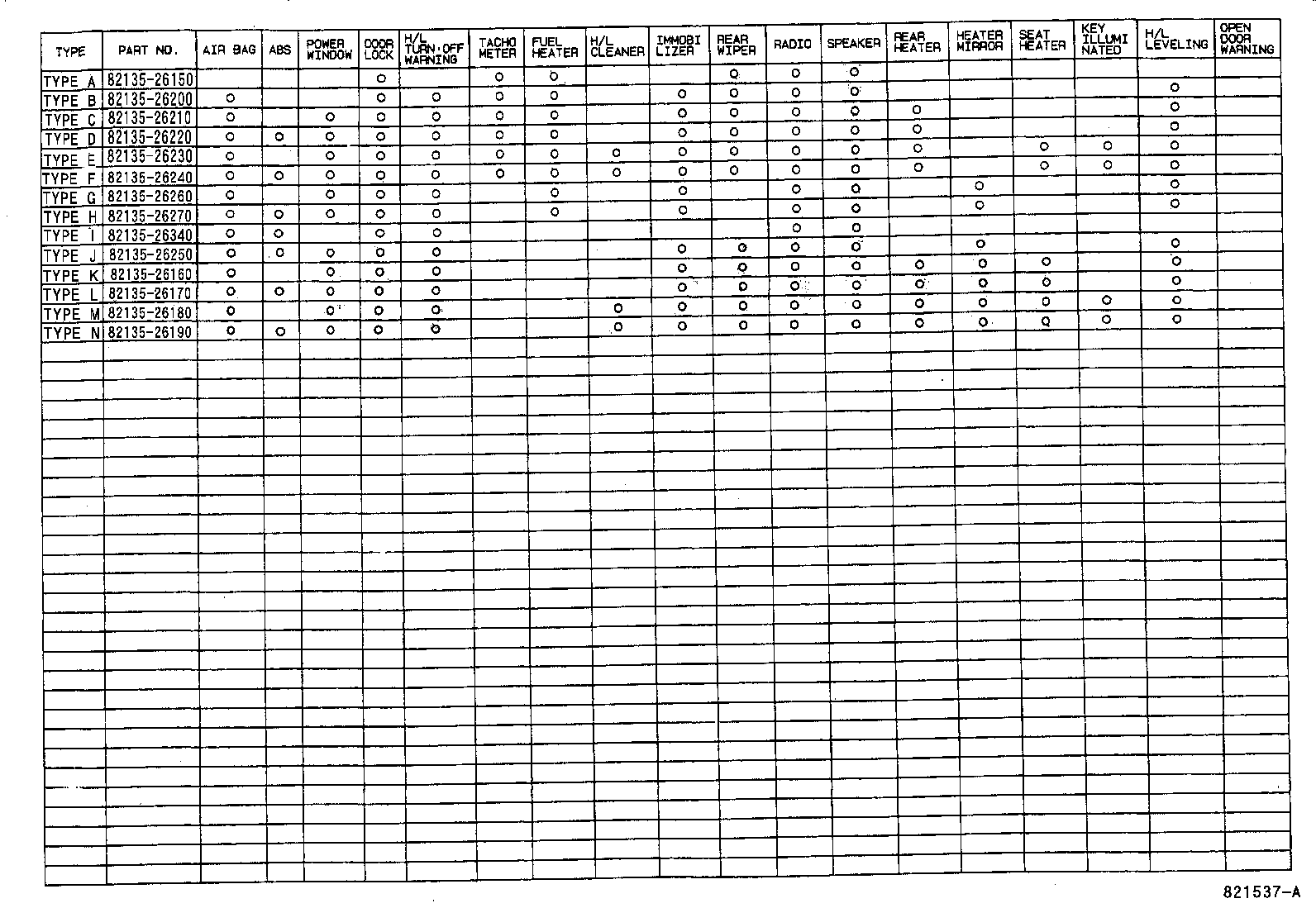

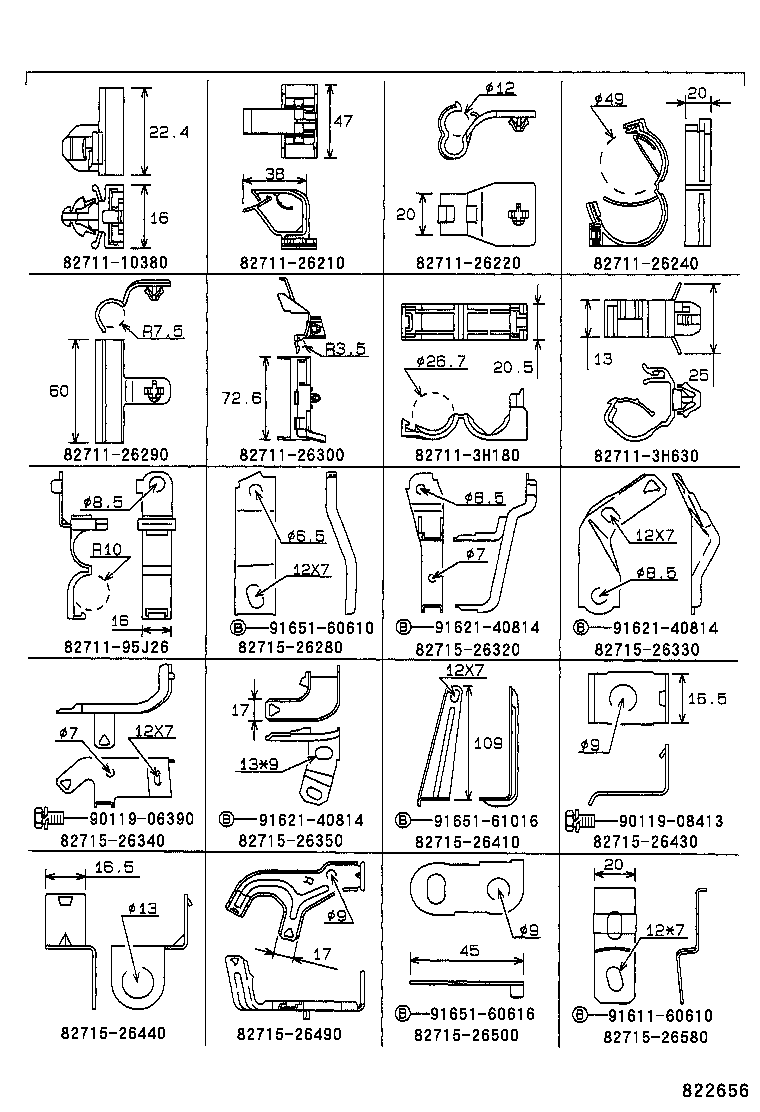

Illustrations
Part groups
| PNC | Description |
|---|---|

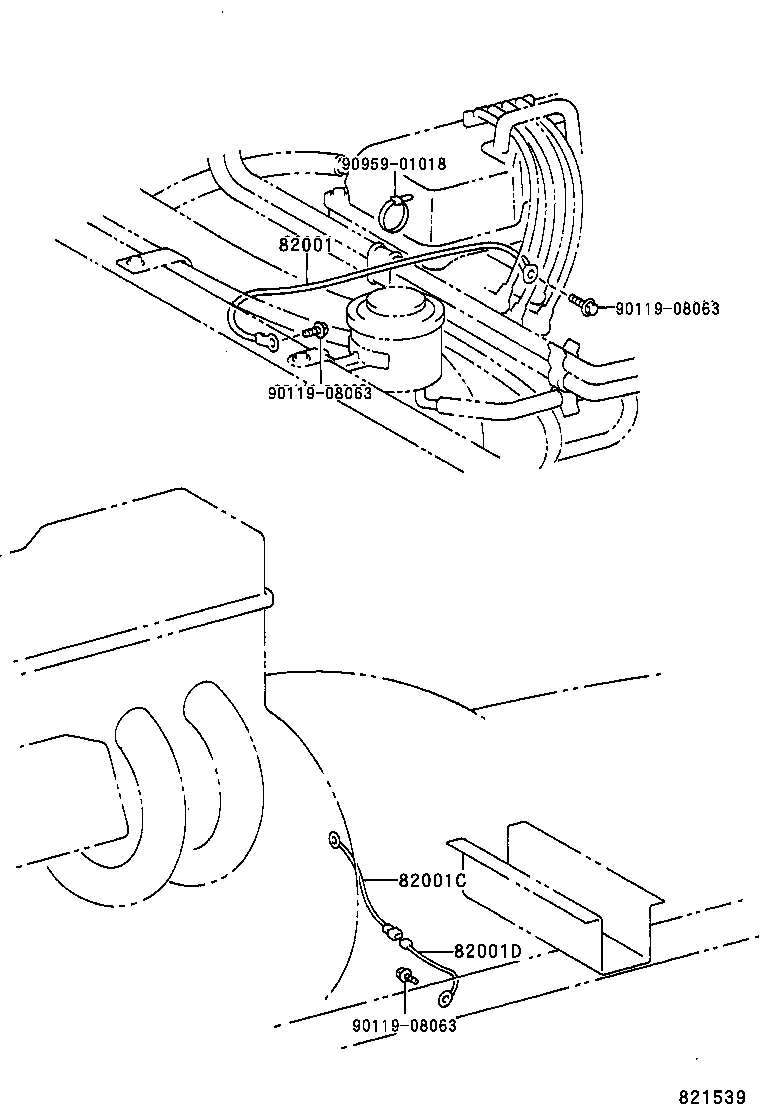

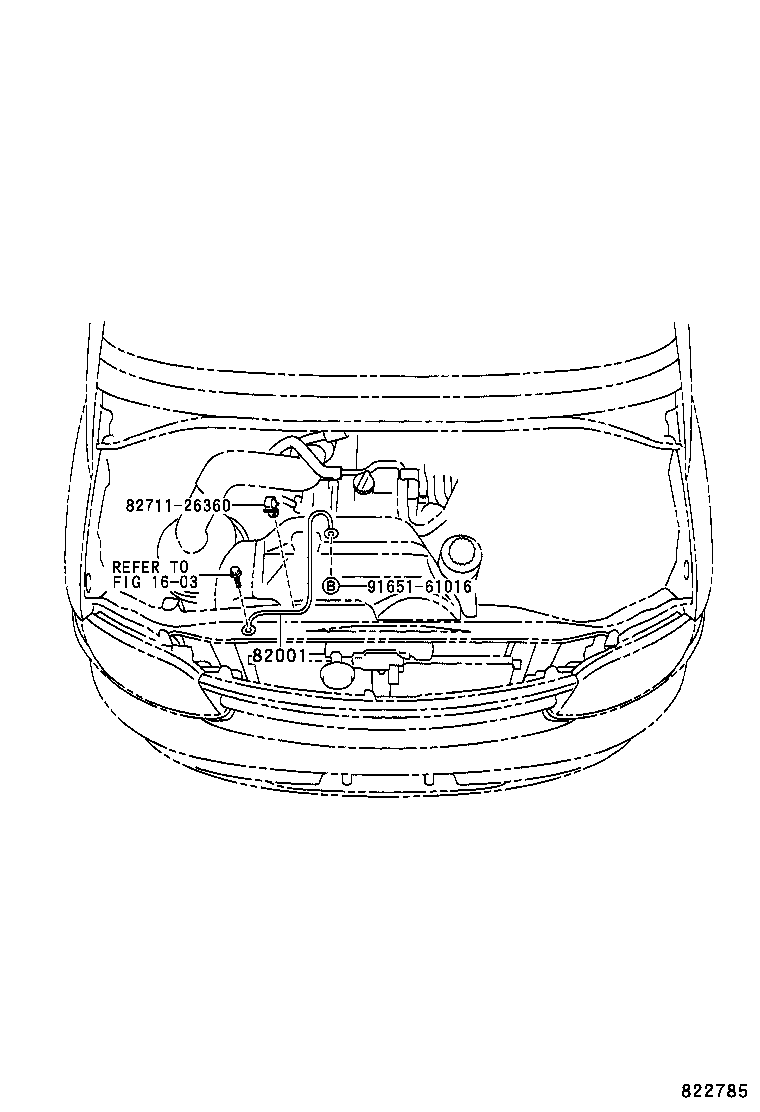

| 82001 | Cable, Bond, NO.1 |
| 82001C | Cable, Bond, NO.2 |
| 82001D | Cable, Bond, NO.3 |

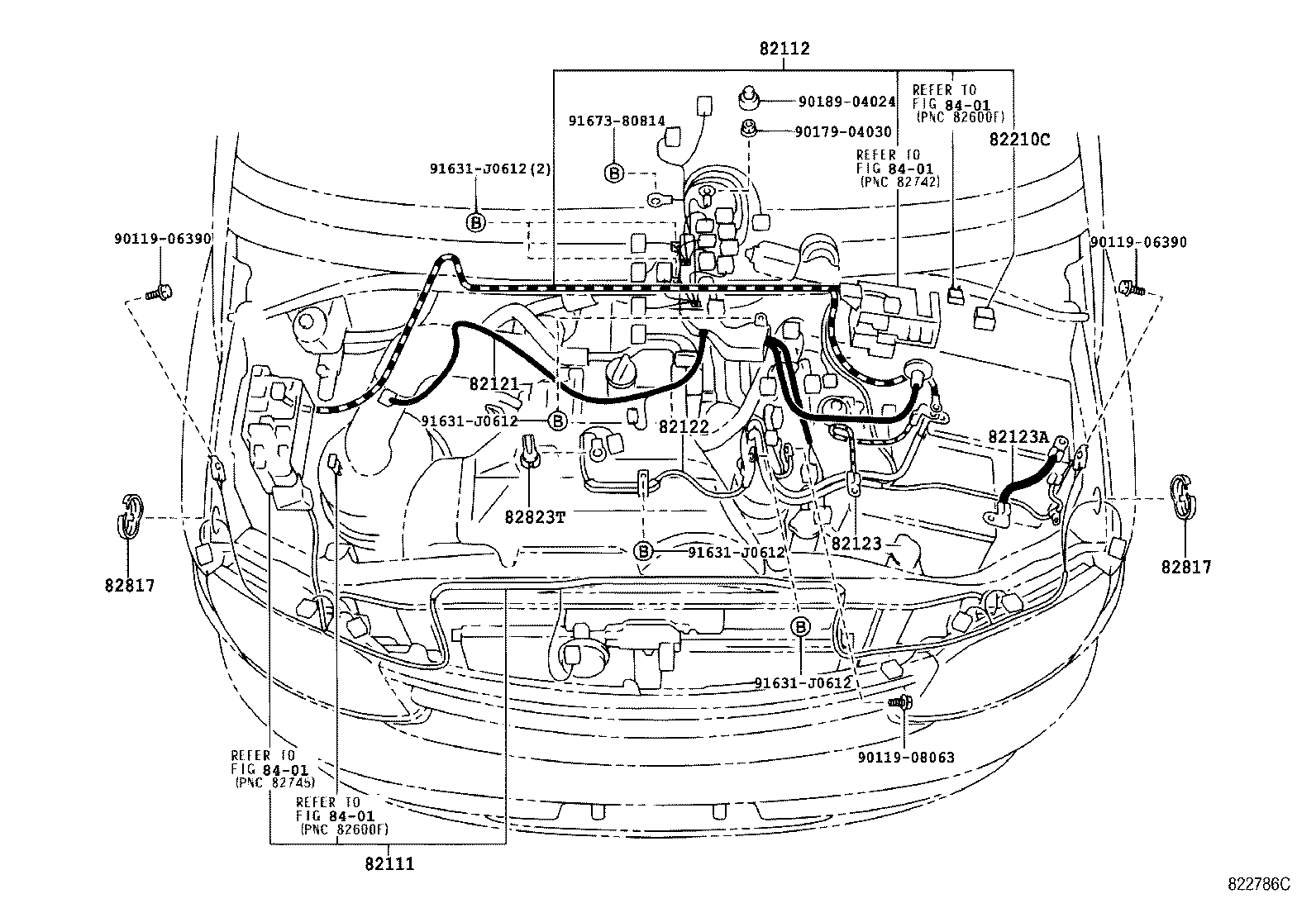

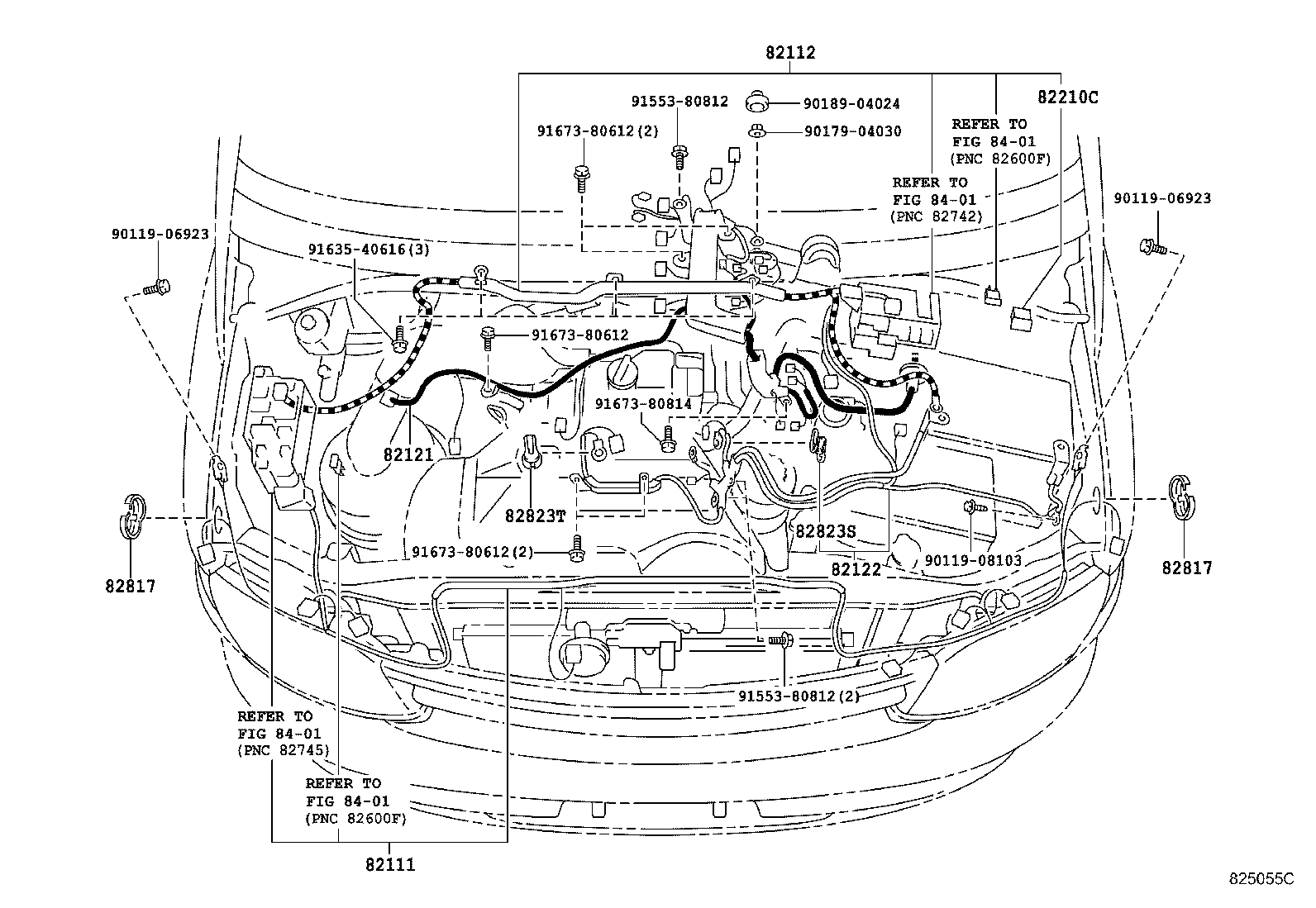

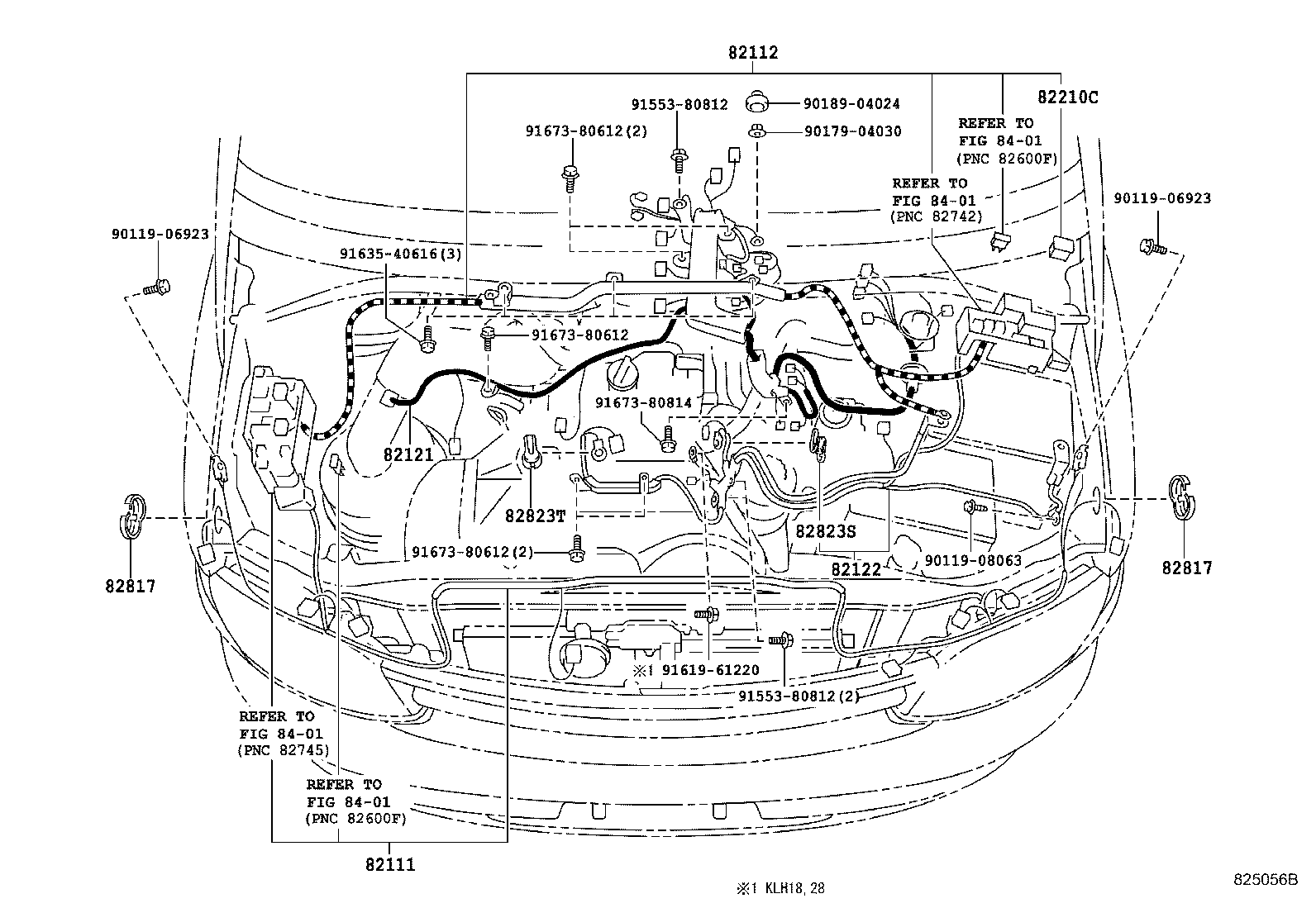

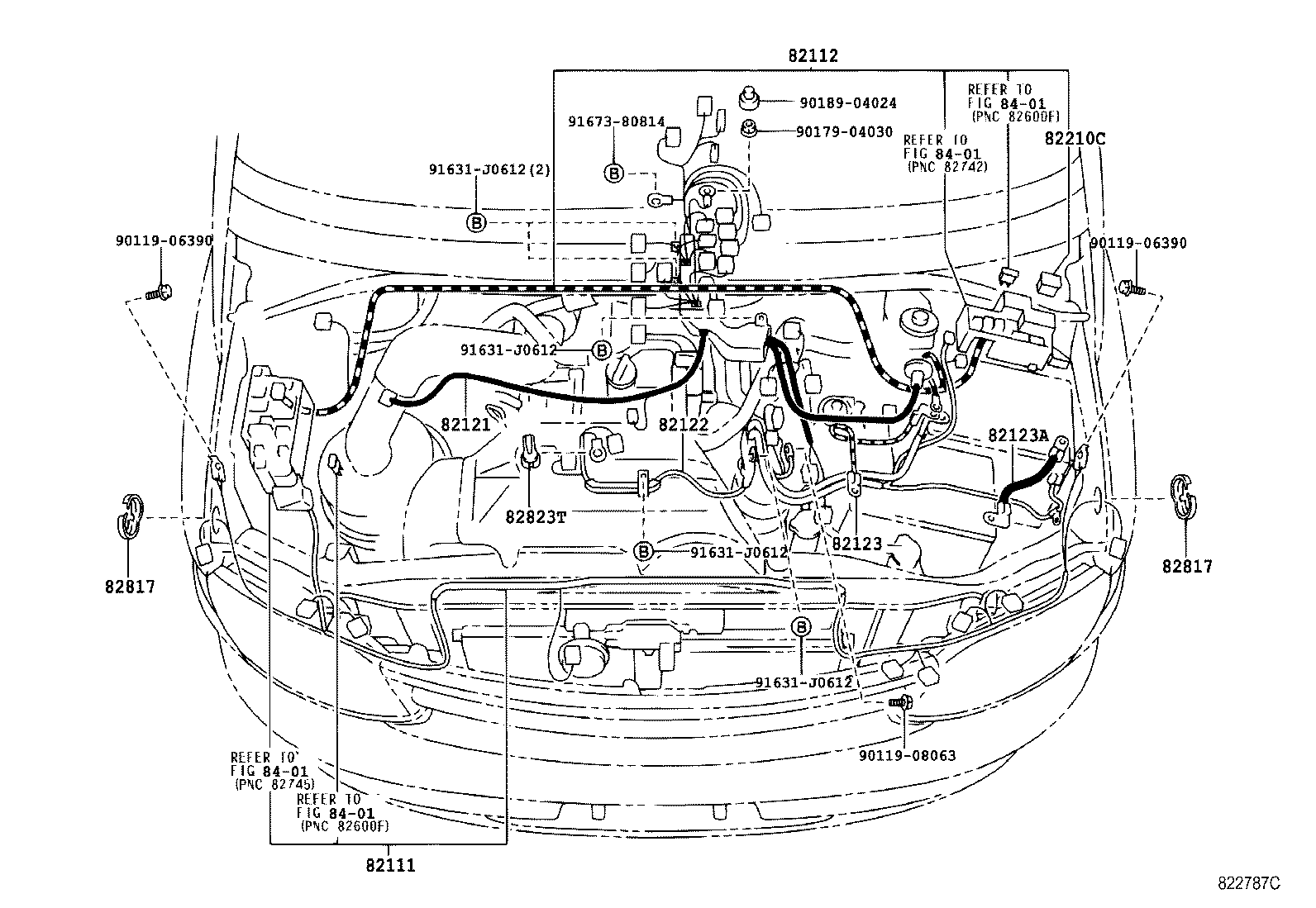

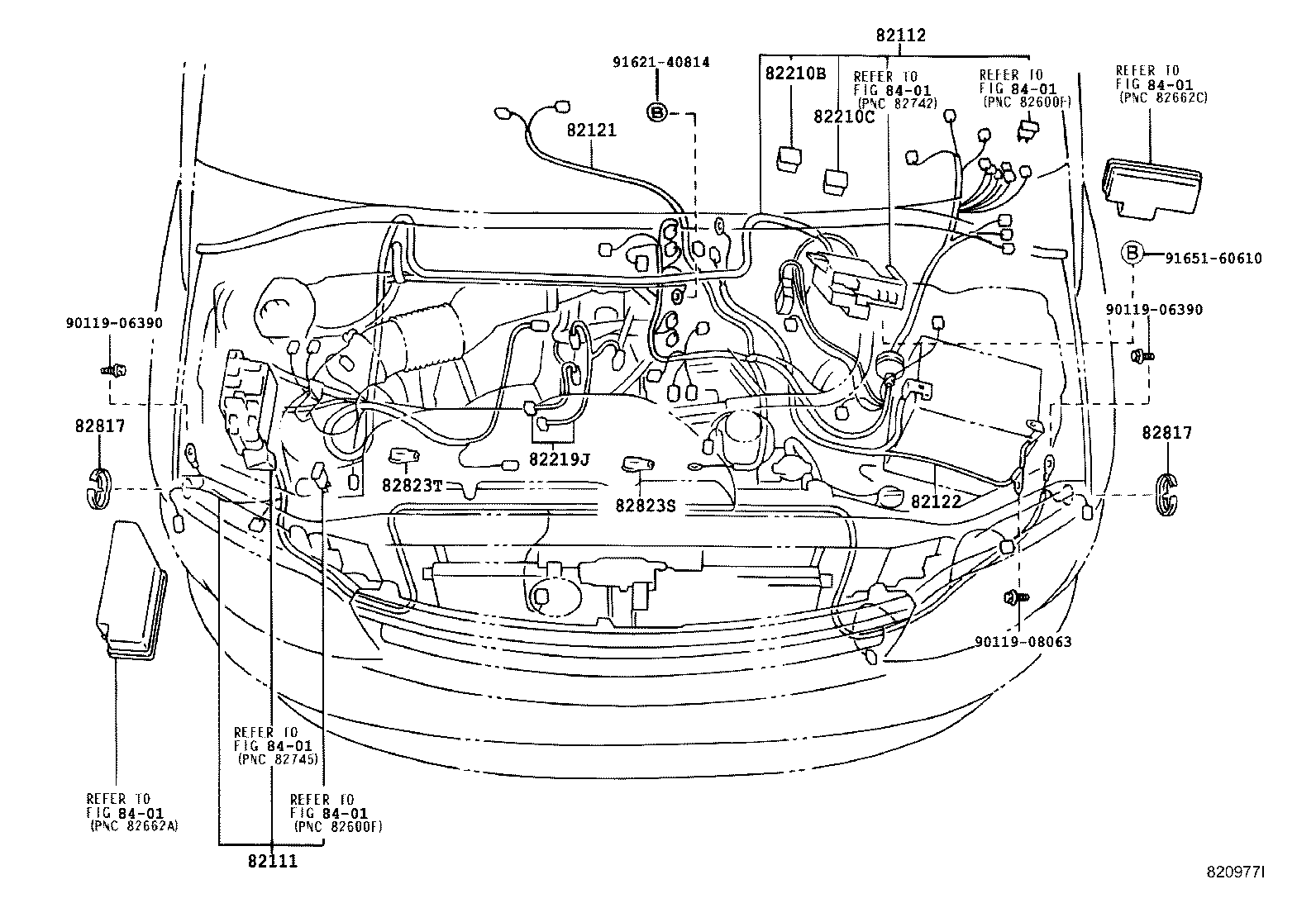

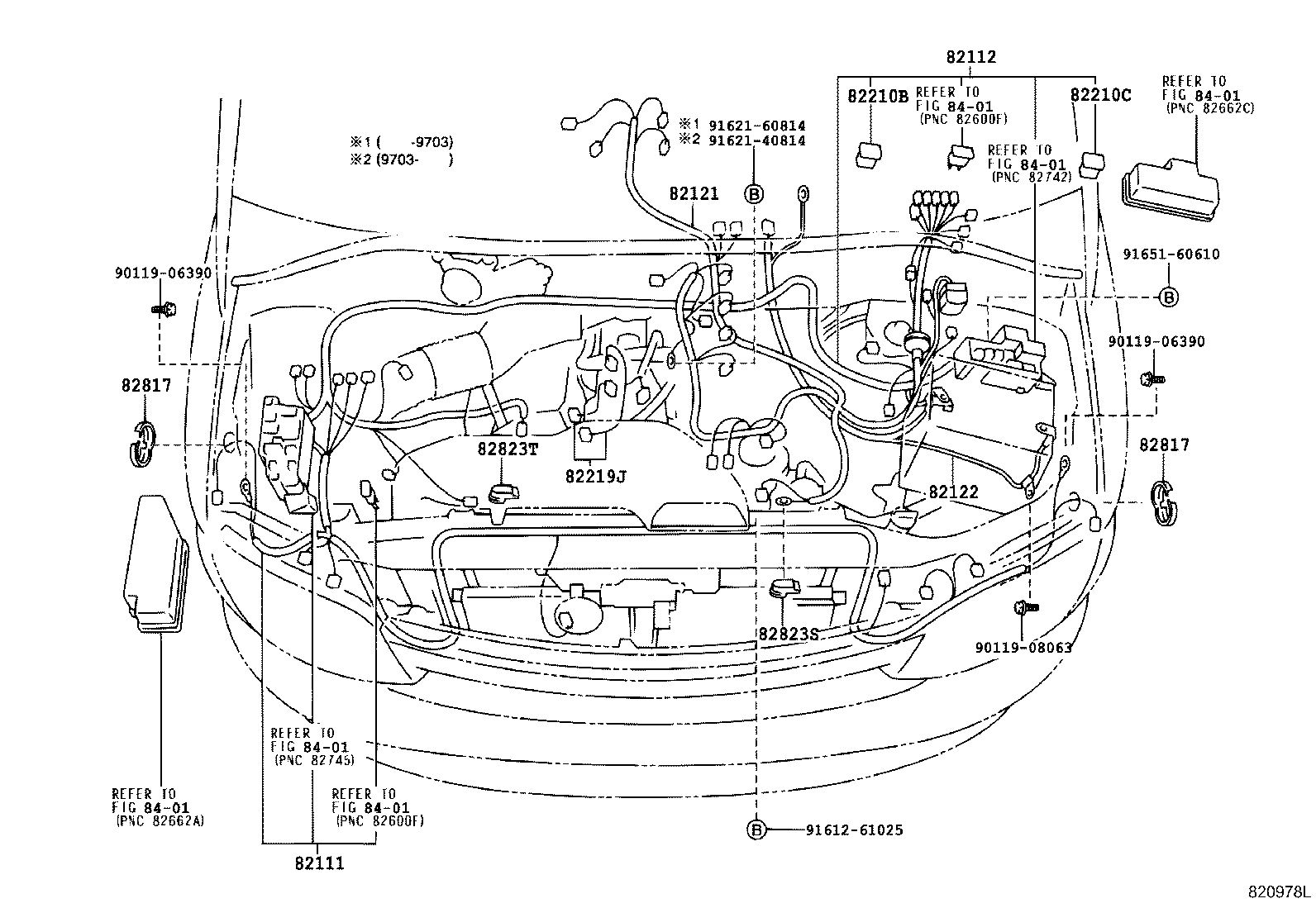

| 82111 | Wire, Engine Room Main |
| 82112 | Wire, Engine Room, NO.2 |
| 82121 | Wire, Engine |
| 82122 | Wire, Engine, NO.2 |
| 82123 | Wire, Engine, NO.3 |
| 82123A | Wire, Engine, NO.3 |
| 82124 | Wire, Engine, NO.4 |

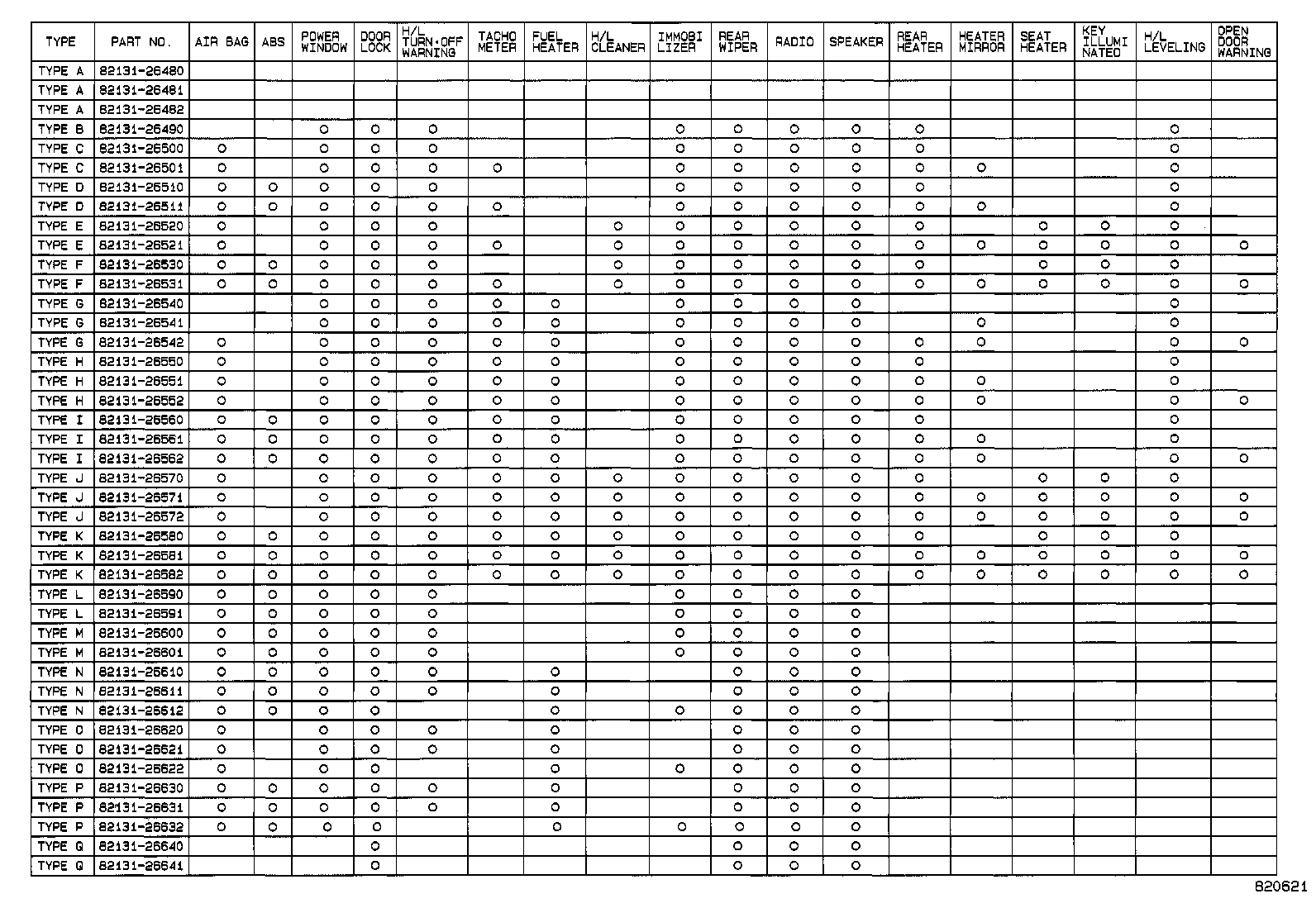

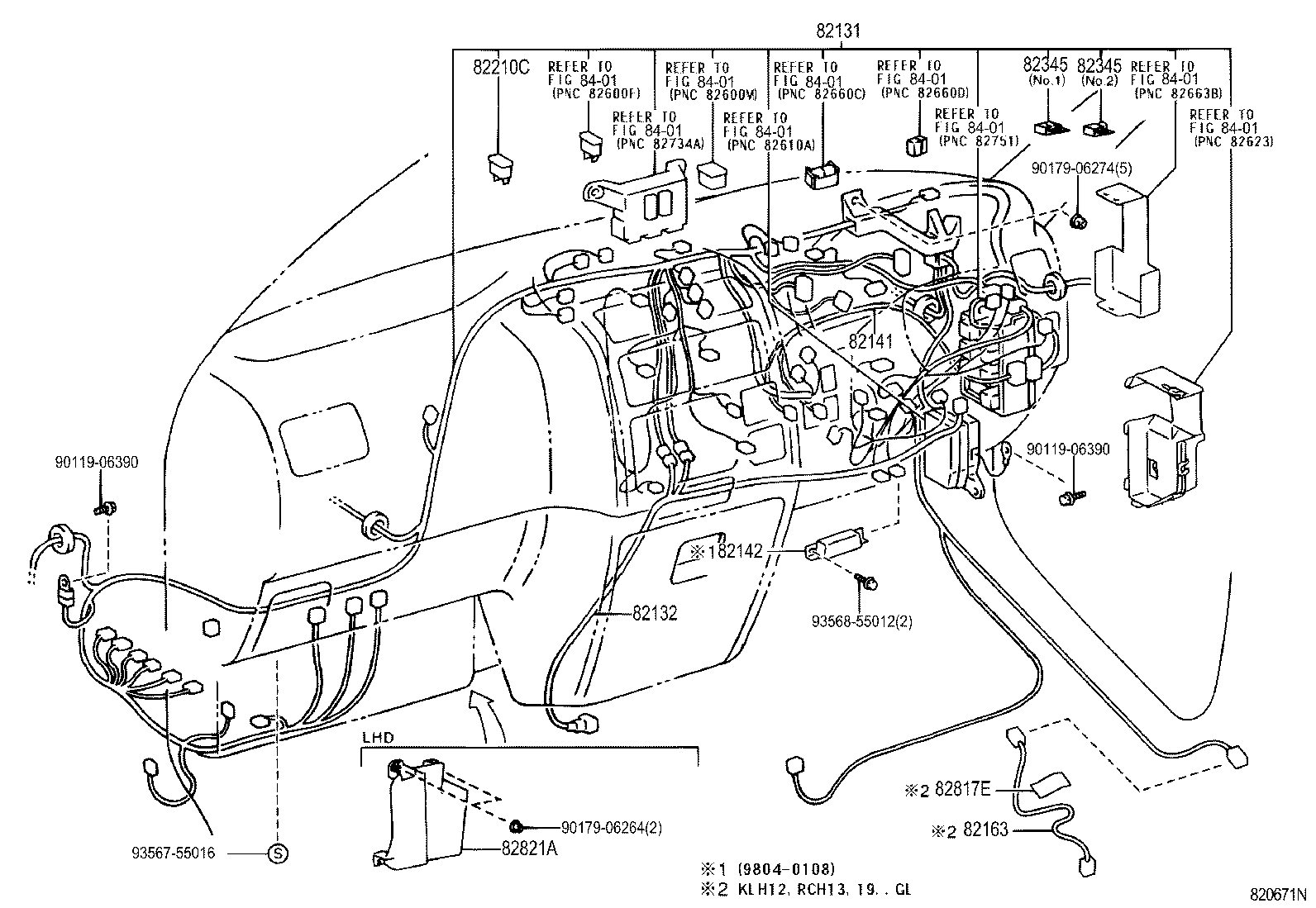

| 82131 | Wire, Cowl |
| 82132 | Wire, Cowl, NO.2 |

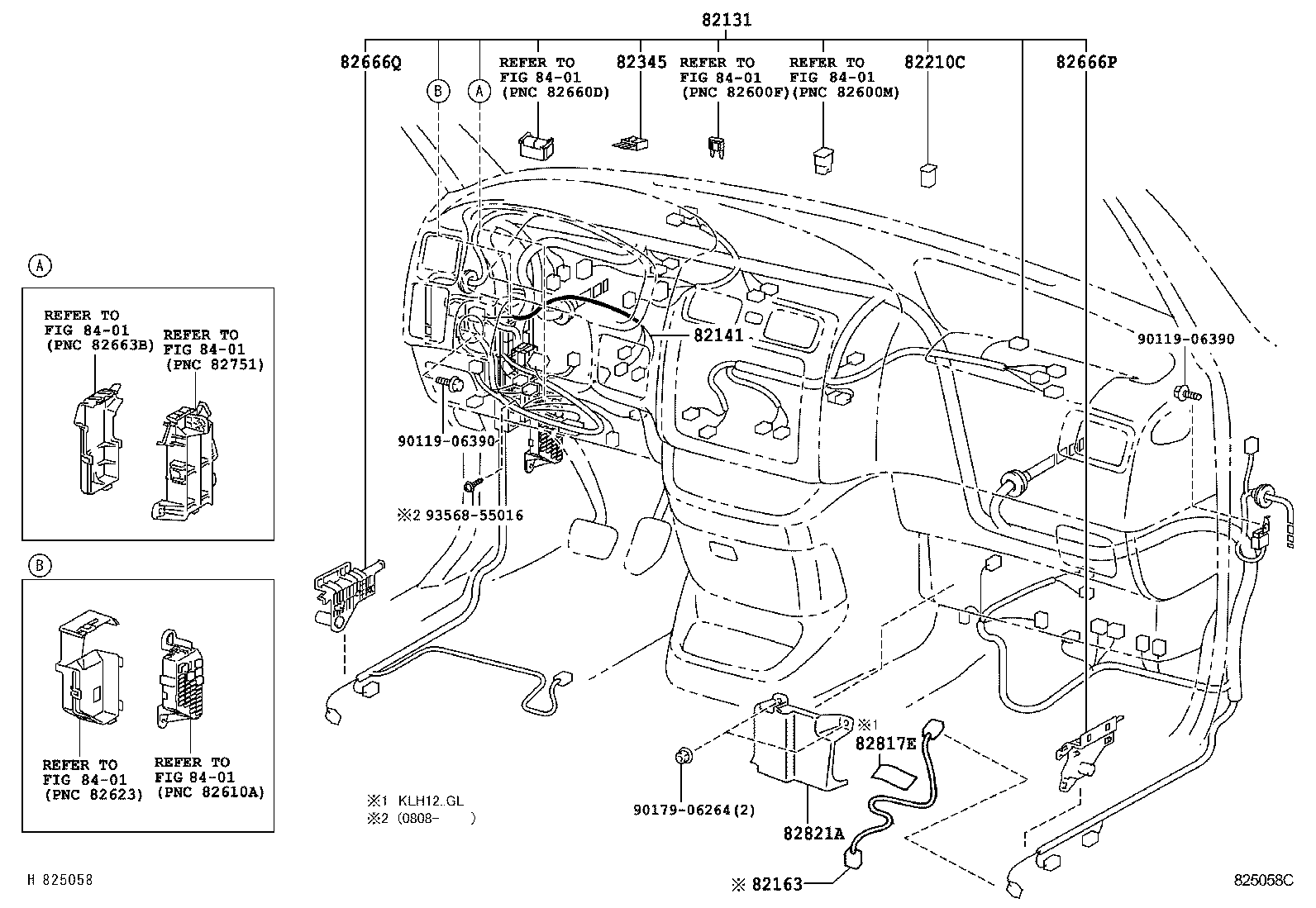

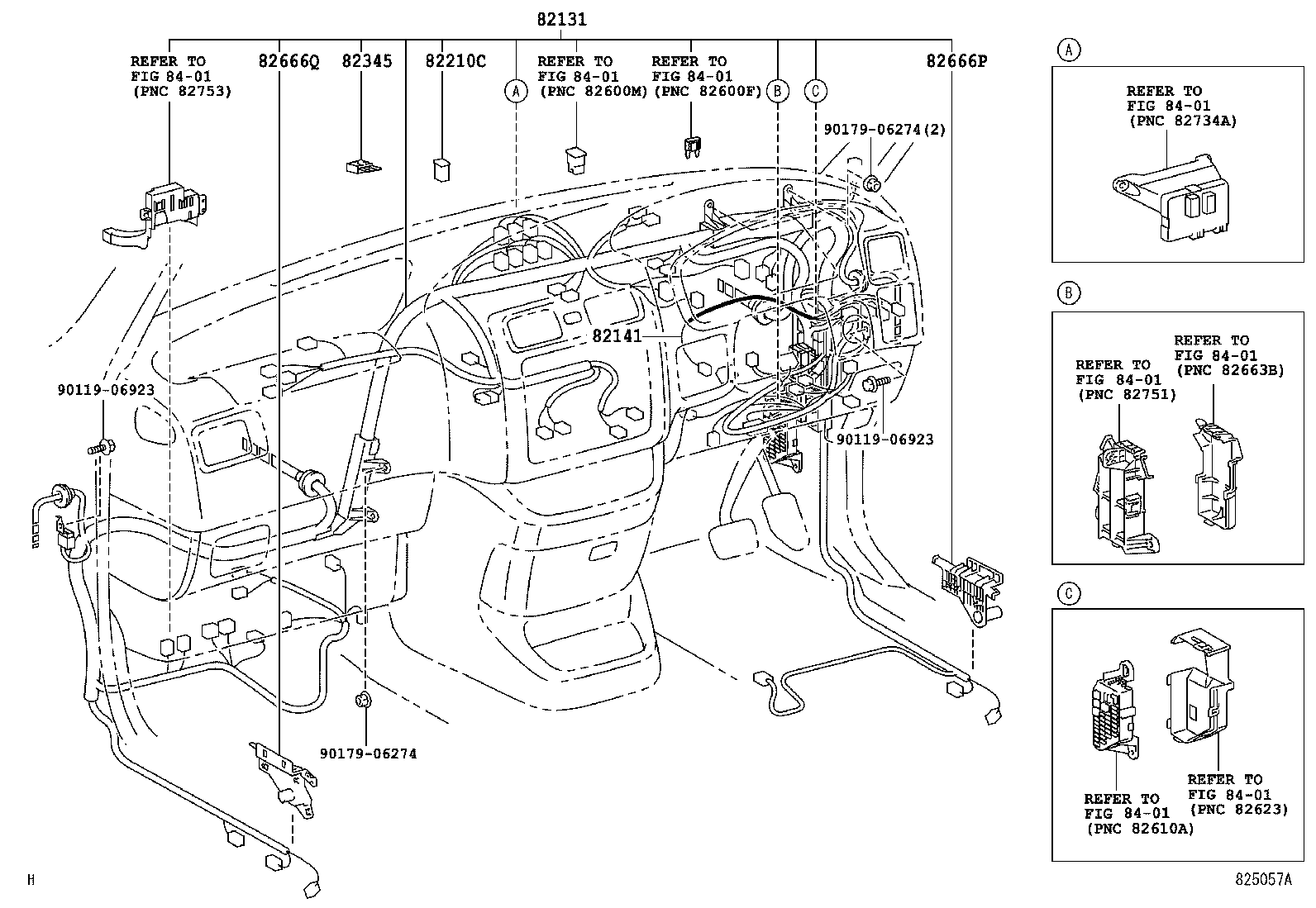

| 82141 | Wire, Instrument Panel |
| 82142 | Wire, Instrument Panel, NO.2 |
| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |
| 82163 | Wire, Floor, NO.3 |
| 82164 | Wire, Frame |
| 82165 | Wire, Frame, NO.2 |
| 82171 | Wire, Roof, NO.1 |
| 82173 | Wire, Roof, NO.3 |

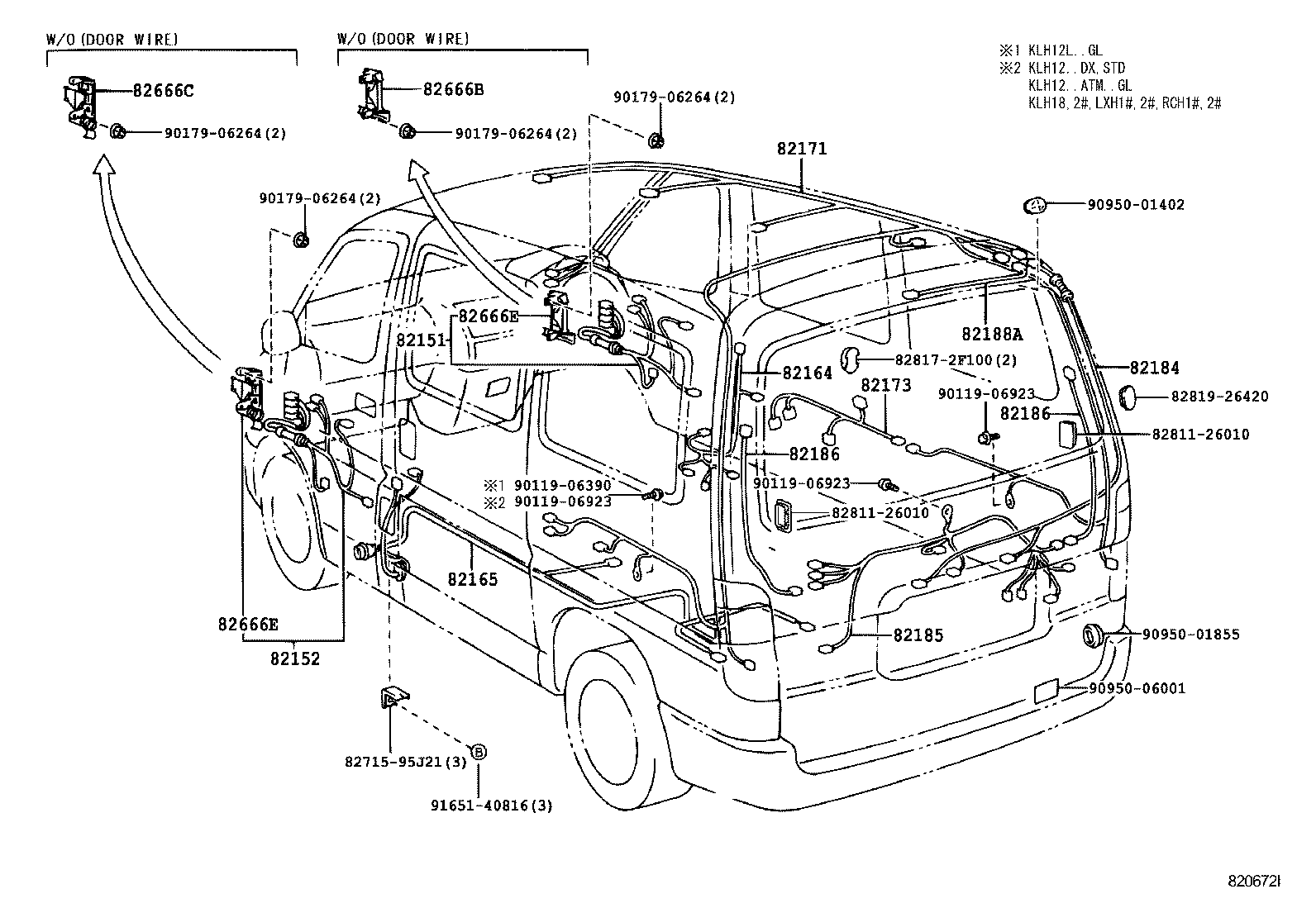

| 82184 | Wire, Back Door, NO.1 |
| 82185 | Wire, Back Door, NO.2 |
| 82186 | Wire, Rear Window, NO.1 |
| 82188A | Wire, Back Door, NO.3 |
| 82210B | Fusible Link |
| 82210C | Fusible Link |
| 82219J | Wire, Knock Sensor |
| 82345 | Diode |
| 82666B | Holder, Connector NO.3 |
| 82666C | Holder, Connector NO.4 |
| 82666E | Holder, Connector NO.6 |
| 82666P | Holder, Connector NO.11 |
| 82666Q | Holder, Connector NO.12 |
| 82817 | Protector, Wiring Harness, NO.1 |
| 82817E | Protector, Wiring Harness, NO.6 |
| 82821A | Cover, Connector |
| 82823S | Cap, Starter Terminal |
| 82823T | Cap, Alternator Terminal |
