Toyota Hiace/Hiace S.B.V

1995-08 → 2011-11 · chassis KLH1#,2#,LXH1#,2#,RCH1#,2# · catalogue 713210 · Europe

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

8 part groups · 3 illustrations

Illustrations

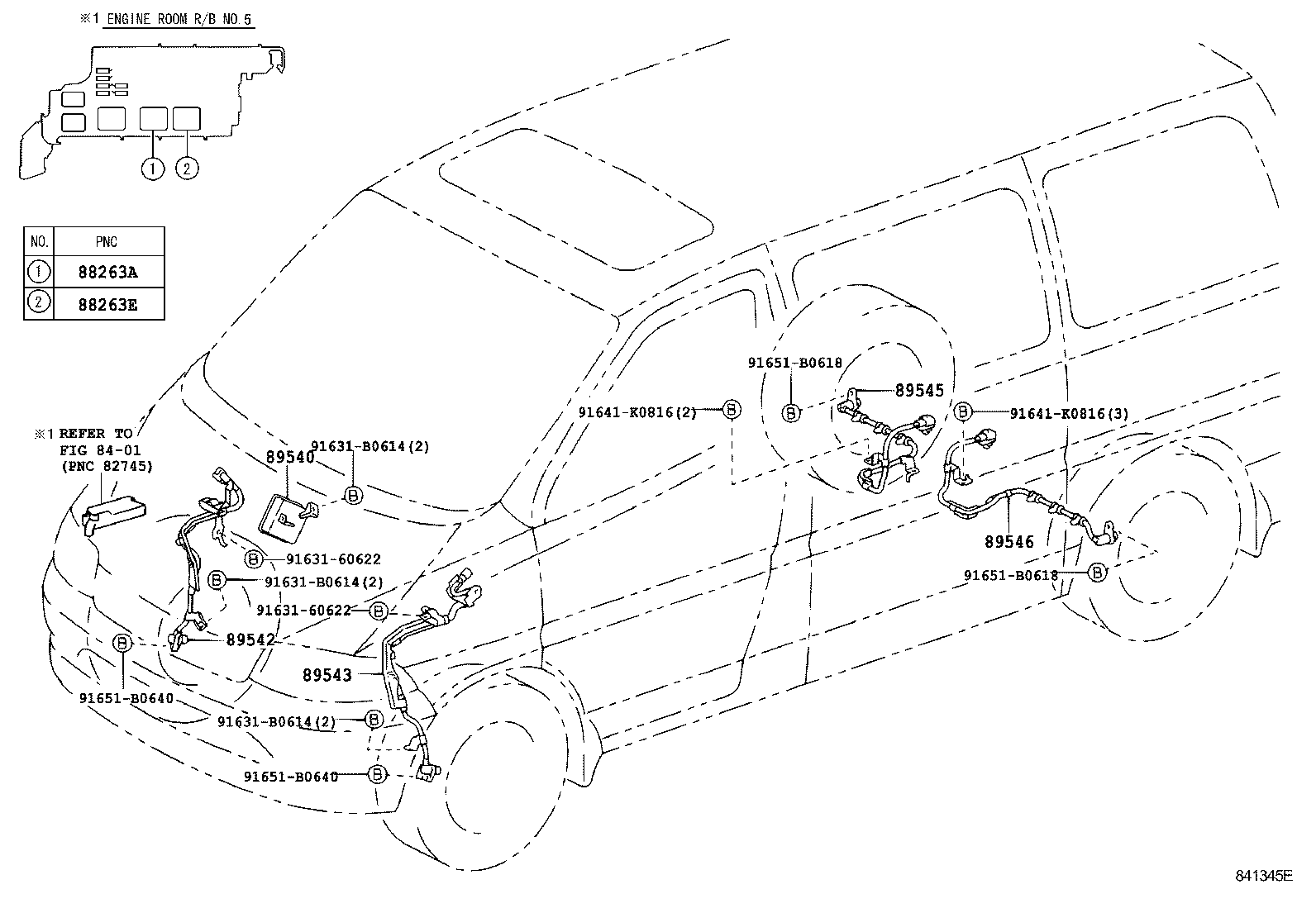

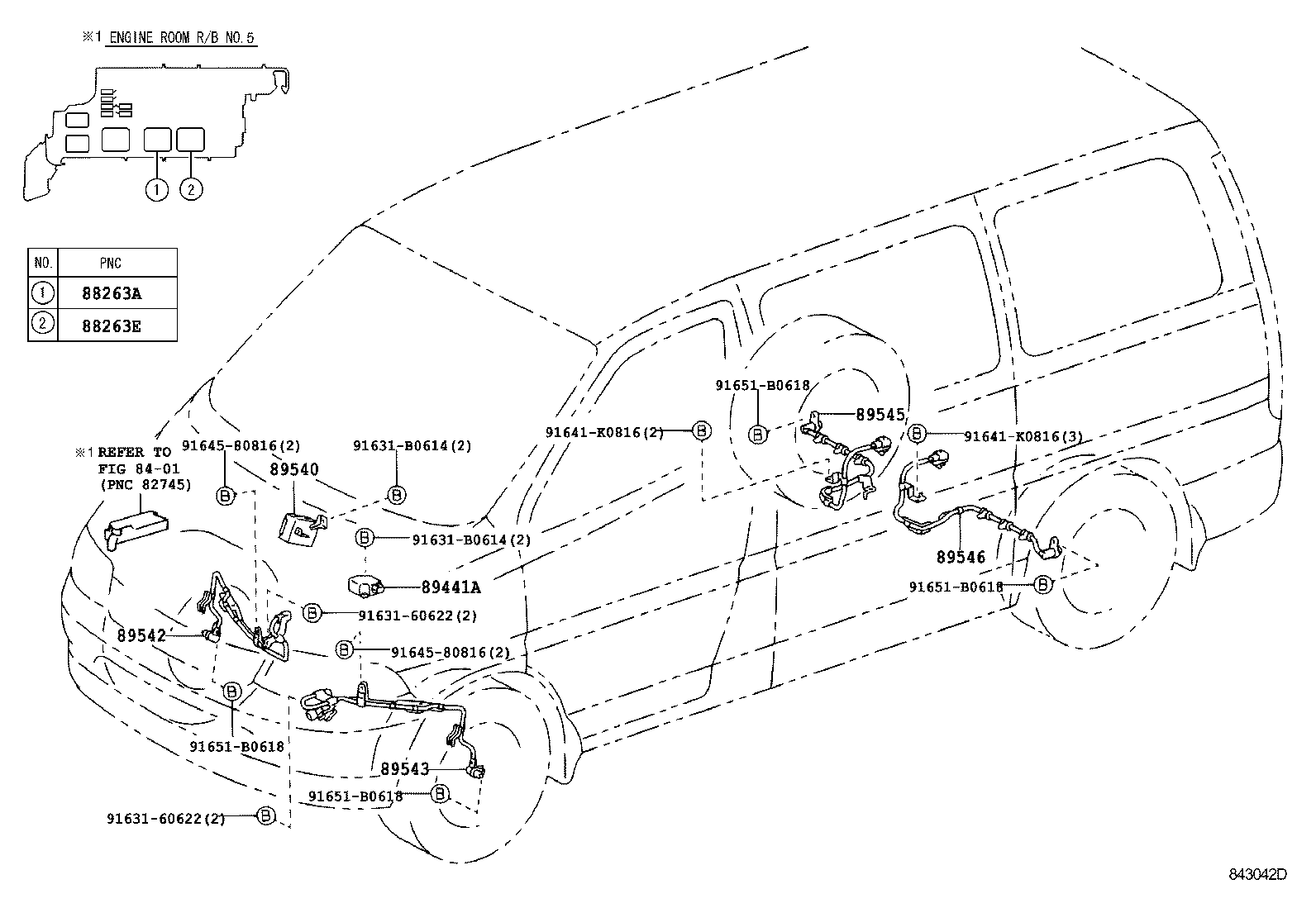

Figure 841346C 841346C 1995-08 → 1996-08 Figure 841345E 841345E 1996-08 → — Figure 843042D 843042D 1996-08 → —

Part groups

PNCDescription
88263A Relay, Skid Control
88263E Relay, Skid Control NO.2
89441A Sensor, Deceleration
89540 Computer Assy, Skid Control
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
