Toyota Hiace/Hiace S.B.V
1995-08 → 2011-11 · chassis KLH1#,2#,LXH1#,2#,RCH1#,2# · catalogue 713210 · Europe
Discontinued model
Data version 2012-01

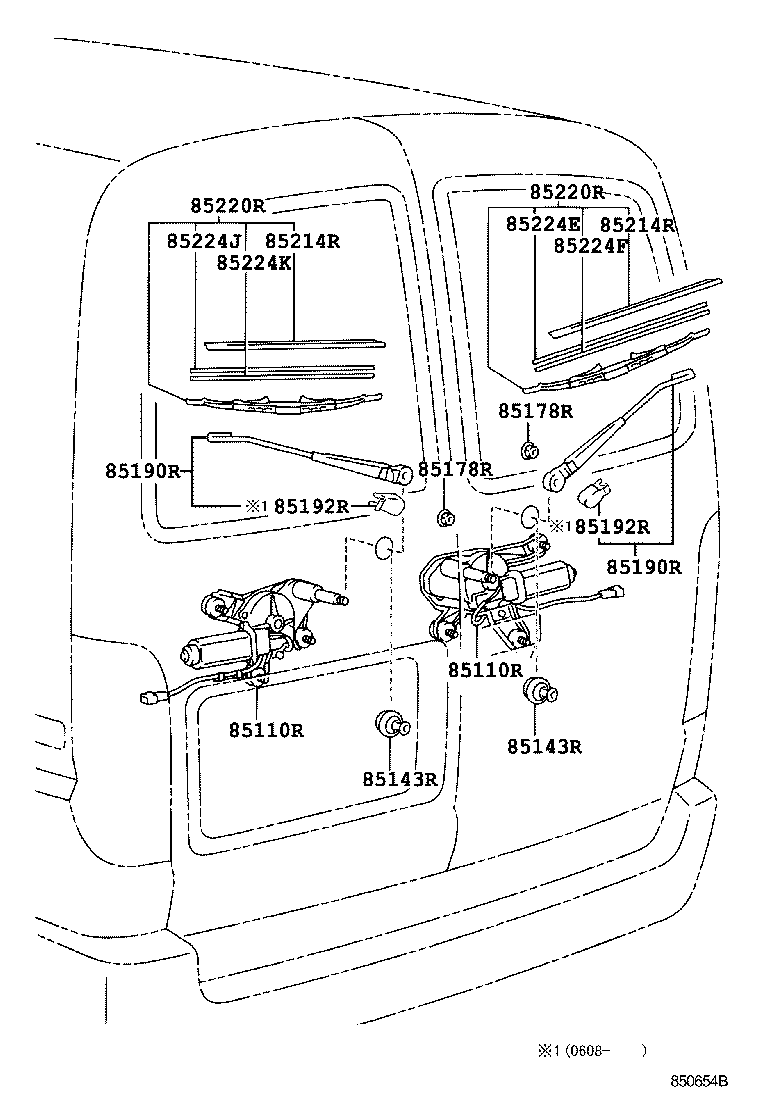

Rear Wiper
16 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85110R | Motor Assy, Rear Wiper |
| 85120R | Motor And Bracket Assy, Rear Wiper |
| 85143R | Grommet, Rear Wiper Motor |
| 85160R | Link Assy, Rear Wiper |
| 85168R | Nut, Rear Wiper Link Pivot, NO.1 |
| 85169R | Washer, Rear Wiper Link Pivot, NO.1 |
| 85178R | Nut (FOR REAR WIPER ARM SETTING) |
| 85188R | Cap, Rear Wiper Pivot, NO.1 |
| 85190R | Arm Assy, Rear Wiper |
| 85192R | Cover, Rear Wiper Arm |
| 85214R | Rubber, Rear Wiper |
| 85220R | Blade Assy, Rear Wiper |
| 85224E | Plate, Rear Wiper Rubber Backing, NO.1 |
| 85224F | Plate, Rear Wiper Rubber Backing, NO.2 |
| 85224J | Plate, Wiper Blade Rubber Backing, NO.3 |
| 85224K | Plate, Wiper Blade Rubber Backing, NO.4 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
