Toyota Hiace/Hiace S.B.V
1995-08 → 2011-11 · chassis KLH1#,2#,LXH1#,2#,RCH1#,2# · catalogue 713210 · Europe
Discontinued model
Data version 2012-01

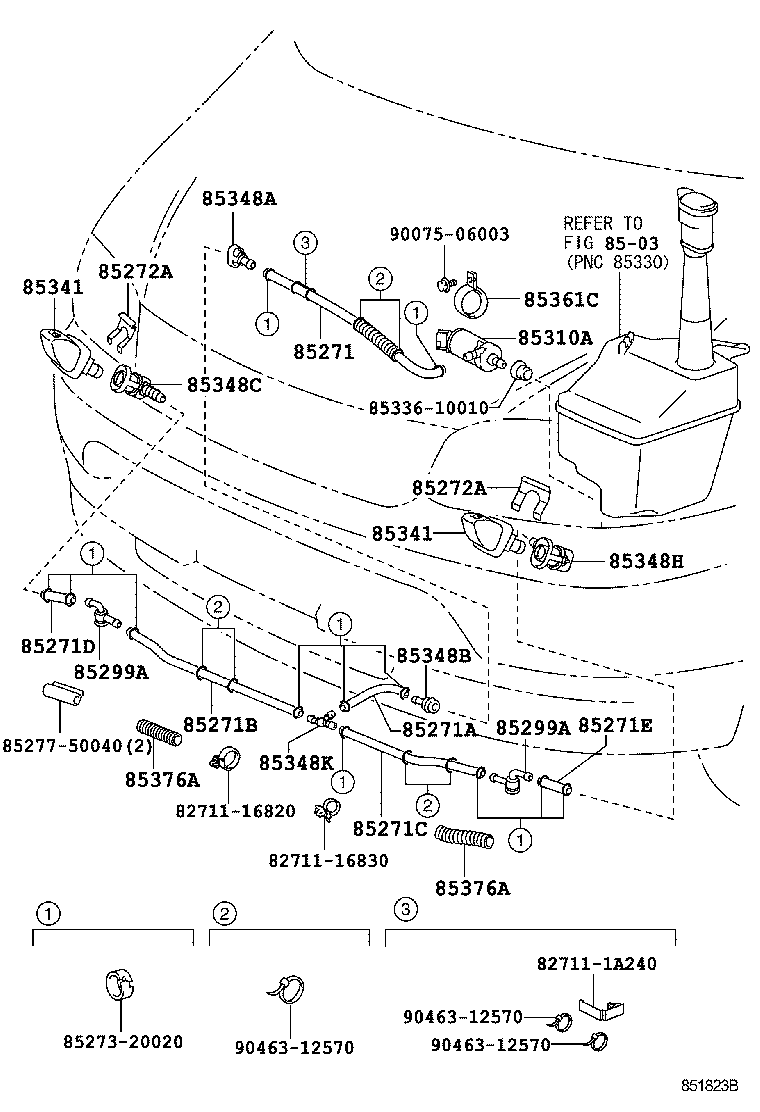

Headlamp Cleaner
20 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85031 | Valve, Headlamp Cleaner Washer Hose |
| 85271 | Hose, Headlamp Cleaner, NO.1 |
| 85271A | Hose, Headlamp Cleaner, NO.2 |
| 85271B | Hose, Headlamp Cleaner, NO.3 |
| 85271C | Hose, Headlamp Cleaner, NO.4 |
| 85271D | Hose, Headlamp Cleaner, NO.5 |
| 85271E | Hose, Headlamp Cleaner, NO.6 |
| 85272A | Clamp, Headlamp Cleaner, NO.1 |
| 85299A | Valve Assy, Check |
| 85310A | Motor And Pump Assy, Headlamp Cleaner Washer |
| 85341 | Nozzle, Headlamp Cleaner Washer |
| 85348A | Joint, Headlamp Cleaner Hose, NO.1 |
| 85348B | Joint, Headlamp Cleaner Hose, NO.2 |
| 85348C | Joint, Headlamp Cleaner Hose, NO.3 |
| 85348H | Joint, Headlamp Cleaner Hose, NO.4 |
| 85348K | Joint, Headlamp Cleaner Elbow, NO.1 |
| 85361C | Bracket, Washer |
| 85373A | Hose, Headlamp Cleaner Washer (FROM JOINT TO NOZZLE) |
| 85376 | Protector, Headlamp Cleaner Hose, NO.1 |
| 85376A | Protector, Headlamp Cleaner Hose, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
