Toyota Hiace/Hiace S.B.V
1995-08 → 2011-11 · chassis KLH1#,2#,LXH1#,2#,RCH1#,2# · catalogue 713210 · Europe
Discontinued model
Data version 2012-01
Heating & Air Conditioning - Control & Air Duct
17 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55519 | Plate, Heater Control Name |
| 55519R | Plate, Heater Control Name |
| 55905A | Knob, Heater Control |
| 55906A | Cable Sub-assy, Defroster Damper Control |
| 55907R | Cable Sub-assy, Temperature Control |
| 55908A | Cable Sub-assy, Air Inlet Damper Control |
| 55909A | Cable Sub-assy, Airmix Damper Control |
| 55910 | Control Assy, Heater OR Boost Ventilator |
| 55910R | Control Assy, Heater |
| 55937R | Knob, Heater Control Lever |
| 55939 | Ornament, Heater Control |
| 55944 | Plate, Heater Control Support |
| 81942A | Sheet, Heater Control Name, NO.1 |
| 87211 | Duct, Air, NO.1 |

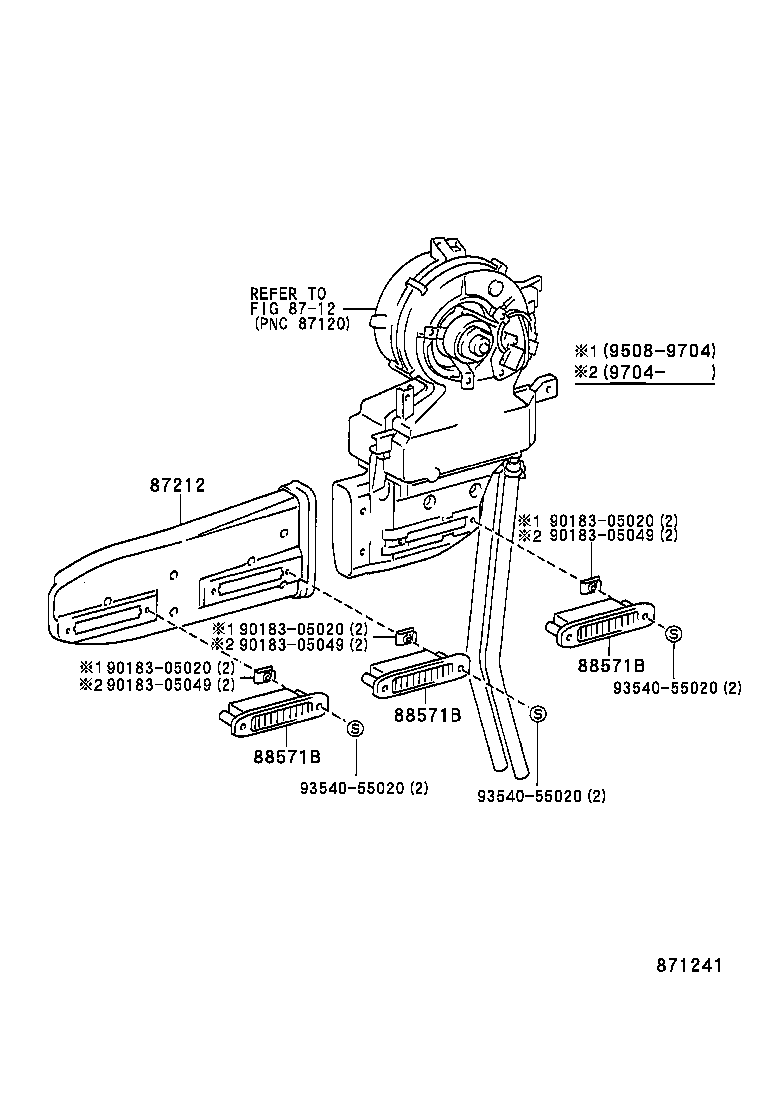

| 87212 | Duct, Air, Rear NO.1 |
| 87710E | Quick Heater Assy |
| 88571B | Grille, Air Outlet |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
