Toyota Lexus LM500H/350H

2023-06 → present · chassis AAWH1#,TAWH15 · catalogue 714320 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

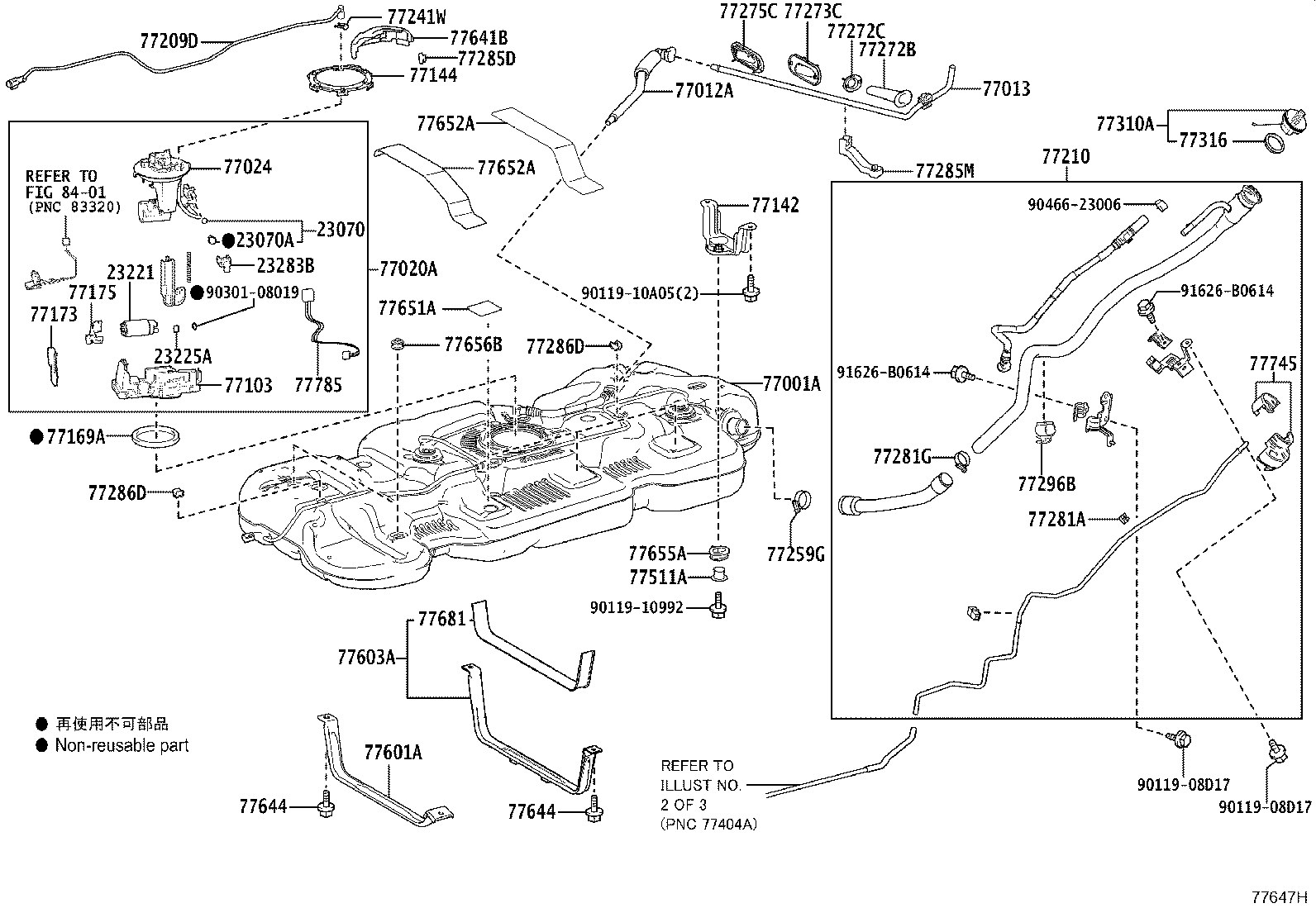

Exploded illustration 77647H 77013 — TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2 (1 parts) 77272B — SUPPORT, BREATHER TUBE, NO.1 (1 parts) 77273C — SUPPORT, BREATHER TUBE, NO.2 (1 parts) 77272C — SUPPORT, BREATHER TUBE, NO.3 (1 parts) 77275C — SUPPORT, BREATHER TUBE, NO.4 (1 parts) 77655A — CUSHION, FUEL TANK, NO.5 (1 parts) 77511A — BRACKET, FUEL TANK (1 parts) 77285M — CLAMP, FUEL TUBE, NO.1 (1 parts) 77210 — PIPE ASSY, FUEL TANK FILLER (7 parts) 77142 — BRACKET, FUEL TANK MOUNTING, REAR (1 parts) 77012A — TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1 (2 parts) 77652A — CUSHION, FUEL TANK, NO.2 (1 parts) 77652A — CUSHION, FUEL TANK, NO.2 (1 parts) 9030108019 — not listed in this catalogue 23070 — VALVE ASSY, FUEL MAIN (1 parts) 23283B — HOLDER, FUEL PRESSURE REGULATOR (1 parts) 77103 — SUB-TANK SUB-ASSY, FUEL (2 parts) 23070A — RING, O, NO.1(FOR FUEL MAIN VALVE) (1 parts) 23225A — SPACER, FUEL PUMP (1 parts) 77173 — BRACKET, FUEL GAGE (1 parts) 23221 — PUMP, FUEL (2 parts) 77175 — SUPPORT, FUEL SUCTION, NO.2 (1 parts) 77785 — HARNESS, FUEL PUMP (1 parts) 8401 — not listed in this catalogue 77024 — TUBE SUB-ASSY, FUEL MAIN & RETURN, FRONT (4 parts) 77656B — CUSHION, FUEL TANK, NO.6 (1 parts) 77209D — TUBE SUB-ASSY, FUEL TANK MAIN (1 parts) 77144 — RETAINER, FUEL PUMP GAUGE (1 parts) 77285D — CLAMP, FUEL TUBE, NO.1 (1 parts) 77241W — CLIP, TUBE JOINT (2 parts) 77651A — CUSHION, FUEL TANK, NO.1 (1 parts) 9011910A05 — not listed in this catalogue 77641B — COVER, FUEL TANK (1 parts) 77259G — CLIP, FUEL HOSE (1 parts) 9011910992 — not listed in this catalogue 77281A — CLAMP, FUEL FILLER PIPE (2 parts) 77281G — CLAMP, FUEL HOSE (1 parts) 77296B — SUPPORT, FUEL TUBE PROTECTOR, NO.1 (2 parts) 77745 — FILTER, CHARCOAL CANISTER, NO.1 (1 parts) 77310A — CAP ASSY, FUEL TANK (4 parts) 77316 — GASKET, FUEL TANK CAP (2 parts) 91626B0614 — not listed in this catalogue 9046623006 — not listed in this catalogue 9011908D17 — not listed in this catalogue 9011908D17 — not listed in this catalogue 91626B0614 — not listed in this catalogue 77169A — GASKET, FUEL SUCTION TUBE SET (1 parts) 77286D — CLAMP, FUEL TUBE, NO.2 (1 parts) 77286D — CLAMP, FUEL TUBE, NO.2 (1 parts) 77020A — TUBE ASSY, FUEL SUCTION W/PUMP & GAGE (4 parts) 77601A — BAND SUB-ASSY, FUEL TANK, NO.1 (1 parts) 77644 — BOLT, FUEL TANK (1 parts) 77644 — BOLT, FUEL TANK (1 parts) 77001A — TANK SUB-ASSY, FUEL (2 parts) 77603A — BAND SUB-ASSY, FUEL TANK, NO.2 (1 parts) 77681 — SEAT, FUEL TANK BAND, RH (1 parts)
77647H · 47 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
67 parts on this figure
Part number Description Fitment Price
23070 — Valve Assy, Fuel Main
23070-25020 Valve Assy, Fuel Main
2023-06 → —
A25,T24 AAWH1#,TAWH15 —
23070A — Ring, O, NO.1(FOR FUEL MAIN VALVE)
90301-15024 Ring, O, NO.1(FOR FUEL MAIN VALVE)
2023-06 → —
A25,T24 AAWH1#,TAWH15 —
23221 — Pump, Fuel
23221-25030 Pump, Fuel
2023-06 → —
A25 AAWH1# —
23221-25080 Pump, Fuel
2023-11 → —
T24 TAWH15 —
23225A — Spacer, Fuel Pump
23225-31020 Spacer, Fuel Pump
2023-06 → —
A25,T24 AAWH1#,TAWH15 —
23283B — Holder, Fuel Pressure Regulator
23283-24010 Holder, Fuel Pressure Regulator
2023-06 → —
A25,T24 AAWH1#,TAWH15 —
77001A — Tank Sub-assy, Fuel
77001-V2070 Tank Sub-assy, Fuel
2023-06 → —
AAWH15,TAWH15 CHI,KRE —
77001-V2080 Tank Sub-assy, Fuel
2023-06 → —
AAWH1#,TAWH15 ARL,EUR,GEN,PHL,RUS,TWN —
77012A — Tube Sub-assy, Fuel Tank Breather, NO.1
77012-V2050 Tube Sub-assy, Fuel Tank Breather, NO.1
2023-06 → —
AAWH1#,TAWH15 ARL,EUR,GEN,PHL,RUS,TWN —
77012-V2070 Tube Sub-assy, Fuel Tank Breather, NO.1
2023-06 → —
AAWH15,TAWH15 CHI,KRE —
77013 — Tube Sub-assy, Fuel Tank Breather, NO.2
77013-V2010 Tube Sub-assy, Fuel Tank Breather, NO.2
2023-06 → —
AAWH1#,TAWH15 —
77020A — Tube Assy, Fuel Suction W/Pump & Gage
77020-V2020 Tube Assy, Fuel Suction W/Pump & Gage
2023-06 → —
AAWH1# ARL,EUR,GEN,PHL,RUS,TWN —
77020-V2070 Tube Assy, Fuel Suction W/Pump & Gage
2023-11 → —
TAWH15 ARL,GEN,TWN —
77020-V2080 Tube Assy, Fuel Suction W/Pump & Gage
2023-06 → —
AAWH15 CHI —
77020-V2090 Tube Assy, Fuel Suction W/Pump & Gage
2023-11 → —
TAWH15 CHI,KRE —
77024 — Tube Sub-assy, Fuel Main & Return, Front
77024-V2020 Tube Sub-assy, Fuel Main & Return, Front
2023-06 → —
AAWH1# ARL,EUR,GEN,PHL,RUS,TWN —
77024-V2050 Tube Sub-assy, Fuel Main & Return, Front
2023-11 → —
TAWH15 ARL,GEN,TWN —
77024-V2060 Tube Sub-assy, Fuel Main & Return, Front
2023-06 → —
AAWH15 CHI —
77024-V2070 Tube Sub-assy, Fuel Main & Return, Front
2023-11 → —
TAWH15 CHI,KRE —
77103 — Sub-tank Sub-assy, Fuel
77103-42120 Sub-tank Sub-assy, Fuel
2023-06 → —
AAWH1# —
77103-48100 Sub-tank Sub-assy, Fuel
2023-11 → —
TAWH15 —
77142 — Bracket, Fuel Tank Mounting, Rear
77142-V2011 Bracket, Fuel Tank Mounting, Rear
2023-06 → —
AAWH1#,TAWH15 —
77144 — Retainer, Fuel Pump Gauge
77144-30030 Retainer, Fuel Pump Gauge
2023-06 → —
AAWH1#,TAWH15 —
77169A — Gasket, Fuel Suction Tube Set
77169-47040 Gasket, Fuel Suction Tube Set
2023-06 → —
AAWH1#,TAWH15 —
77173 — Bracket, Fuel Gage
77173-12020 Bracket, Fuel Gage
2023-06 → —
AAWH1#,TAWH15 —
77175 — Support, Fuel Suction, NO.2
77175-12030 Support, Fuel Suction, NO.2
2023-06 → —
AAWH1#,TAWH15 —
77209D — Tube Sub-assy, Fuel Tank Main
77209-V2040 Tube Sub-assy, Fuel Tank Main
2023-06 → —
AAWH1#,TAWH15 —
77210 — Pipe Assy, Fuel Tank Filler
77210-V2040 Pipe Assy, Fuel Tank Filler
2023-06 → —
AAWH15,TAWH15 CHI,KRE —
77210-V2050 note Pipe Assy, Fuel Tank Filler
2024-04 → —
AAWH15 RHD GEN —
77210-V2050 note Pipe Assy, Fuel Tank Filler
2023-06 → —
TAWH15 RHD GEN;AAWH15 RHD +2 —
77210-V2050 note Pipe Assy, Fuel Tank Filler
2023-06 → —
AAWH10 V GEN;AAWH15,TAWH15 RHD +1 —
77210-V2050 Pipe Assy, Fuel Tank Filler
2023-06 → —
AAWH15,TAWH15 TWN —
77210-V2060 Pipe Assy, Fuel Tank Filler
2023-06 → —
AAWH1#,TAWH15 ARL,GEN,PHL —
77210-V2080 Pipe Assy, Fuel Tank Filler
2023-06 → —
AAWH1# EUR,RUS —
77241W — Clip, Tube Joint
77241-60550 Clip, Tube Joint
2023-06 → —
AAWH1#,TAWH15 ARL,EUR,GEN,PHL,RUS,TWN —
77241-60550 Clip, Tube Joint
2023-06 → —
AAWH15,TAWH15 CHI,KRE —
77259G — Clip, Fuel Hose
90460-50008 Clip, Fuel Hose
2023-06 → —
AAWH1#,TAWH15 ARL,EUR,GEN,PHL,RUS,TWN —
77272B — Support, Breather Tube, NO.1
77272-58010 Support, Breather Tube, NO.1
2023-06 → —
AAWH1#,TAWH15 —
77272C — Support, Breather Tube, NO.3
77273-58010 Support, Breather Tube, NO.3
2023-06 → —
AAWH1#,TAWH15 —
77273C — Support, Breather Tube, NO.2
77272-V2010 Support, Breather Tube, NO.2
2023-06 → —
AAWH1#,TAWH15 —
77275C — Support, Breather Tube, NO.4
77273-V2010 Support, Breather Tube, NO.4
2023-06 → —
AAWH1#,TAWH15 —
77281A — Clamp, Fuel Filler Pipe
77281-30110 Clamp, Fuel Filler Pipe
2023-06 → —
AAWH1#,TAWH15 ARL,EUR,GEN,PHL,RUS,TWN —
77281-58010 Clamp, Fuel Filler Pipe
2023-06 → —
AAWH15,TAWH15 CHI,KRE —
77281G — Clamp, Fuel Hose
90460-40007 Clamp, Fuel Hose
2023-06 → —
AAWH1#,TAWH15 ARL,EUR,GEN,PHL,RUS,TWN —
77285D — Clamp, Fuel Tube, NO.1
77285-30350 Clamp, Fuel Tube, NO.1
2023-06 → —
AAWH1#,TAWH15 —
77285M — Clamp, Fuel Tube, NO.1
77285-V2020 Clamp, Fuel Tube, NO.1
2023-06 → —
AAWH1#,TAWH15 —
77286D — Clamp, Fuel Tube, NO.2
77286-30180 Clamp, Fuel Tube, NO.2
2023-06 → —
AAWH1#,TAWH15 ARL,EUR,GEN,PHL,RUS,TWN —
77296B — Support, Fuel Tube Protector, NO.1
77296-58010 Support, Fuel Tube Protector, NO.1
2023-06 → —
AAWH1#,TAWH15 ARL,EUR,GEN,PHL,RUS,TWN —
77296-58020 Support, Fuel Tube Protector, NO.1
2023-06 → —
AAWH15,TAWH15 CHI,KRE —
77310A — Cap Assy, Fuel Tank
77300-11010 Cap Assy, Fuel Tank
2023-06 → —
AAWH15,TAWH15 CHI —
77300-12020 Cap Assy, Fuel Tank
2023-06 → —
AAWH1#,TAWH15 ARL,GEN,PHL,RUS —
77300-33040 Cap Assy, Fuel Tank
2023-11 → —
TAWH15 KRE —
77300-48020 Cap Assy, Fuel Tank
2023-06 → —
AAWH1#,TAWH15 EUR,TWN —
77316 — Gasket, Fuel Tank Cap
77316-52040 Gasket, Fuel Tank Cap
2023-06 → —
AAWH1#,TAWH15 ARL,GEN,PHL,RUS —
77316-75020 Gasket, Fuel Tank Cap
2023-06 → —
AAWH1#,TAWH15 CHI,EUR,KRE,TWN —
77511A — Bracket, Fuel Tank
77511-48030 Bracket, Fuel Tank
2023-06 → —
AAWH1#,TAWH15 —
77601A — Band Sub-assy, Fuel Tank, NO.1
77601-V2040 Band Sub-assy, Fuel Tank, NO.1
2023-06 → —
AAWH1#,TAWH15 —
77603A — Band Sub-assy, Fuel Tank, NO.2
77602-V2040 Band Sub-assy, Fuel Tank, NO.2
2023-06 → —
AAWH1#,TAWH15 —
77641B — Cover, Fuel Tank
77641-V2030 Cover, Fuel Tank
2023-06 → —
AAWH1#,TAWH15 —
77644 — Bolt, Fuel Tank
90119-10A05 Bolt, Fuel Tank
2023-06 → —
AAWH1#,TAWH15 —
77651A — Cushion, Fuel Tank, NO.1
77651-12070 Cushion, Fuel Tank, NO.1
2023-06 → —
AAWH1#,TAWH15 —
77652A — Cushion, Fuel Tank, NO.2
77651-35070 Cushion, Fuel Tank, NO.2
2023-06 → —
AAWH1#,TAWH15 —
77655A — Cushion, Fuel Tank, NO.5
77655-30080 Cushion, Fuel Tank, NO.5
2023-06 → —
AAWH1#,TAWH15 —
77656B — Cushion, Fuel Tank, NO.6
77656-33010 Cushion, Fuel Tank, NO.6
2023-06 → —
AAWH1#,TAWH15 —
77681 — Seat, Fuel Tank Band, RH
77681-47020 Seat, Fuel Tank Band, RH
2023-06 → —
AAWH1#,TAWH15 —
77745 — Filter, Charcoal Canister, NO.1
77745-12050 Filter, Charcoal Canister, NO.1
2023-06 → —
AAWH1#,TAWH15 ARL,EUR,GEN,PHL,RUS,TWN —
77785 — Harness, Fuel Pump
77785-42070 Harness, Fuel Pump
2023-06 → —
AAWH1#,TAWH15 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
