Toyota Lexus LM500H/350H
2023-06 → present · chassis AAWH1#,TAWH15 · catalogue 714320 · Europe
Supported model
Data version 2023-11

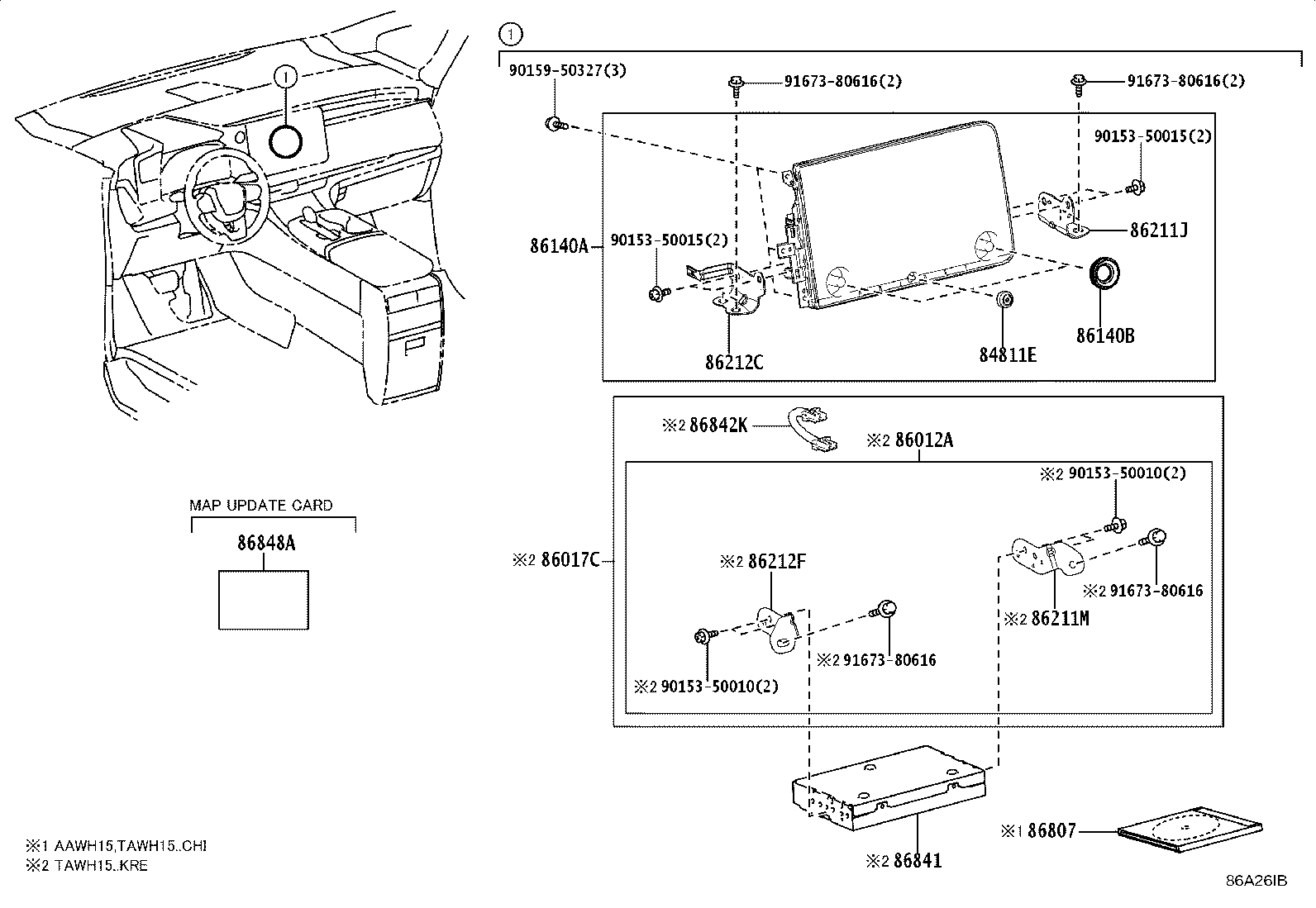

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84811E — Knob, Switch | ||||
| 90010-23061 note |
Knob, Switch
2023-06 → 2023-11
ended
|
AAWH15 RHD GEN | — | |
| 90010-23061 note |
Knob, Switch
2023-11 → —
|
AAWH15 RHD GEN | — | |
| 90010-23061 note |
Knob, Switch
2023-06 → —
|
AAWH10 V GEN;AAWH15,TAWH15 RHD +1 | — | |
| 90010-23061 |
Knob, Switch
2023-06 → —
|
AAWH1#,TAWH15 ARL,CHI,KRE,TWN | — | |
| 90010-24211 note |
Knob, Switch
2023-06 → 2023-11
ended
|
AAWH10 GEN | — | |
| 90010-24211 |
Knob, Switch
2023-11 → —
|
AAWH1# GEN | — | |
| 90010-24211 |
Knob, Switch
2023-06 → —
|
TAWH15 GEN;AAWH1# EUR,PHL,RUS | — | |
| 90010-24211 note |
Knob, Switch
2023-06 → 2023-11
ended
|
AAWH15 LHD GEN | — | |
| 90010-24211 note |
Knob, Switch
2023-06 → 2023-11
ended
|
AAWH15 RHD GEN | — | |
| 90010-24211 note |
Knob, Switch
2023-06 → 2023-11
ended
|
AAWH15 RHD V GEN | — | |
| 90010-24211 note |
Knob, Switch
2023-06 → 2023-11
ended
|
AAWH15 LHD GEN | — | |
| 90010-24211 note |
Knob, Switch
2023-06 → 2023-11
ended
|
AAWH10 V GEN | — | |
| 90010-24211 note |
Knob, Switch
2023-06 → 2023-11
ended
|
AAWH10 GEN | — | |
| 86012A — Parts Set, Radio Setting | ||||
| 86012-V2010 |
Parts Set, Radio Setting
2023-11 → —
|
TAWH15 KRE | — | |
| 86017C — Fitting Set, Navigation Setting | ||||
| 86017-V2020 |
Fitting Set, Navigation Setting
2023-11 → —
|
TAWH15 KRE | — | |
| 86140A — Receiver Assy, Radio & Display | ||||
| 86100-V2140 note |
Receiver Assy, Radio & Display
2023-06 → 2023-09
ended
|
AAWH15 LHD EUR | — | |
| 86100-V2141 note |
Receiver Assy, Radio & Display
2023-10 → 2024-07
ended
|
AAWH15 LHD EUR | — | |
| 86100-V2142 note |
Receiver Assy, Radio & Display
2024-08 → 2024-11
ended
|
AAWH15 LHD EUR | — | |
| 86100-V2143 note |
Receiver Assy, Radio & Display
2024-12 → —
|
AAWH15 LHD EUR | — | |
| 86100-V2150 note |
Receiver Assy, Radio & Display
2023-06 → 2023-09
ended
|
AAWH15 RUS | — | |
| 86100-V2150 note |
Receiver Assy, Radio & Display
2023-06 → 2023-09
ended
|
AAWH15 RUS | — | |
| 86100-V2150 note |
Receiver Assy, Radio & Display
2023-06 → 2023-09
ended
|
AAWH15 RUS | — | |
| 86100-V2150 note |
Receiver Assy, Radio & Display
2023-06 → 2023-09
ended
|
AAWH15 RUS | — | |
| 86100-V2150 note |
Receiver Assy, Radio & Display
2023-06 → 2023-09
ended
|
AAWH15 RUS | — | |
| 86100-V2150 note |
Receiver Assy, Radio & Display
2023-06 → 2023-09
ended
|
AAWH15 RUS | — | |
| 86100-V2150 note |
Receiver Assy, Radio & Display
2023-06 → 2023-09
ended
|
AAWH15 RUS | — | |
| 86100-V2151 note |
Receiver Assy, Radio & Display
2023-10 → 2024-09
ended
|
AAWH15 RUS | — | |
| 86100-V2151 note |
Receiver Assy, Radio & Display
2023-10 → 2024-09
ended
|
AAWH15 RUS | — | |
| 86100-V2151 note |
Receiver Assy, Radio & Display
2023-10 → 2024-09
ended
|
AAWH15 RUS | — | |
| 86100-V2151 note |
Receiver Assy, Radio & Display
2023-10 → 2024-09
ended
|
AAWH15 RUS | — | |
| 86100-V2151 note |
Receiver Assy, Radio & Display
2023-10 → 2024-09
ended
|
AAWH15 RUS | — | |
| 86100-V2151 note |
Receiver Assy, Radio & Display
2023-10 → 2024-09
ended
|
AAWH15 RUS | — | |
| 86100-V2151 note |
Receiver Assy, Radio & Display
2023-10 → 2024-09
ended
|
AAWH15 RUS | — | |
| 86100-V2152 note |
Receiver Assy, Radio & Display
2024-10 → —
|
AAWH15 RUS | — | |
| 86100-V2152 note |
Receiver Assy, Radio & Display
2024-10 → —
|
AAWH15 RUS | — | |
| 86100-V2152 note |
Receiver Assy, Radio & Display
2024-10 → —
|
AAWH15 RUS | — | |
| 86100-V2152 note |
Receiver Assy, Radio & Display
2024-10 → —
|
AAWH15 RUS | — | |
| 86100-V2152 note |
Receiver Assy, Radio & Display
2024-10 → —
|
AAWH15 RUS | — | |
| 86100-V2152 note |
Receiver Assy, Radio & Display
2024-10 → —
|
AAWH15 RUS | — | |
| 86100-V2152 note |
Receiver Assy, Radio & Display
2024-10 → —
|
AAWH15 RUS | — | |
| 86100-V2160 note |
Receiver Assy, Radio & Display
2023-11 → —
|
AAWH15 RHD GEN | — | |
| 86100-V2160 note |
Receiver Assy, Radio & Display
2023-06 → 2023-11
ended
|
AAWH15 RHD GEN | — | |
| 86100-V2170 note |
Receiver Assy, Radio & Display
2023-11 → 2024-03
ended
|
AAWH1#,TAWH15 RHD GEN | — | |
| 86100-V2170 note |
Receiver Assy, Radio & Display
2023-06 → 2023-11
ended
|
AAWH15 RHD GEN | — | |
| 86100-V2170 note |
Receiver Assy, Radio & Display
2023-06 → 2023-11
ended
|
AAWH15 RHD V GEN | — | |
| 86100-V2170 note |
Receiver Assy, Radio & Display
2023-06 → 2023-11
ended
|
AAWH10 V GEN | — | |
| 86100-V2170 note |
Receiver Assy, Radio & Display
2023-06 → 2023-11
ended
|
AAWH10 GEN | — | |
| 86100-V2170 note |
Receiver Assy, Radio & Display
2023-06 → 2023-11
ended
|
AAWH10 GEN | — | |
| 86100-V2171 note |
Receiver Assy, Radio & Display
2024-04 → 2025-01
ended
|
AAWH1#,TAWH15 RHD GEN | — | |
| 86100-V2180 note |
Receiver Assy, Radio & Display
2023-11 → —
|
AAWH15 LHD GEN | — | |
| 86100-V2180 note |
Receiver Assy, Radio & Display
2023-06 → 2023-11
ended
|
AAWH15 LHD GEN | — | |
| 86100-V2180 note |
Receiver Assy, Radio & Display
2023-06 → —
|
AAWH15 PHL;TAWH15 LHD GEN | — | |
| 86100-V2190 note |
Receiver Assy, Radio & Display
2023-06 → —
|
AAWH15,TAWH15 CHI | — | |
| 86100-V2200 note |
Receiver Assy, Radio & Display
2023-11 → —
|
TAWH15 KRE | — | |
| 86100-V2210 note |
Receiver Assy, Radio & Display
2023-06 → —
|
AAWH10 V GEN;AAWH15,TAWH15 RHD +1 | — | |
| 86100-V2220 note |
Receiver Assy, Radio & Display
2023-06 → —
|
AAWH15,TAWH15 TWN | — | |
| 86100-V2230 note |
Receiver Assy, Radio & Display
2023-06 → —
|
AAWH1#,TAWH15 ARL | — | |
| 86100-V2240 note |
Receiver Assy, Radio & Display
2023-06 → 2024-01
ended
|
AAWH15 LHD EUR | — | |
| 86100-V2241 note |
Receiver Assy, Radio & Display
2024-02 → 2024-07
ended
|
AAWH15 LHD EUR | — | |
| 86100-V2242 note |
Receiver Assy, Radio & Display
2024-08 → —
|
AAWH15 LHD EUR | — | |
| 86100-V2260 note |
Receiver Assy, Radio & Display
2023-06 → 2023-09
ended
|
AAWH1# RHD EUR | — | |
| 86100-V2261 note |
Receiver Assy, Radio & Display
2023-10 → 2024-07
ended
|
AAWH1# RHD EUR | — | |
| 86100-V2262 note |
Receiver Assy, Radio & Display
2024-08 → —
|
AAWH1# RHD EUR | — | |
| 86100-V2270 note |
Receiver Assy, Radio & Display
2023-06 → 2024-01
ended
|
AAWH15 LHD EUR | — | |
| 86100-V2270 note |
Receiver Assy, Radio & Display
2023-06 → 2024-01
ended
|
AAWH15 LHD EUR | — | |
| 86100-V2271 note |
Receiver Assy, Radio & Display
2024-02 → 2024-07
ended
|
AAWH15 LHD EUR | — | |
| 86100-V2271 note |
Receiver Assy, Radio & Display
2024-02 → 2024-07
ended
|
AAWH15 LHD EUR | — | |
| 86100-V2272 note |
Receiver Assy, Radio & Display
2024-08 → —
|
AAWH15 LHD EUR | — | |
| 86100-V2272 note |
Receiver Assy, Radio & Display
2024-08 → —
|
AAWH15 LHD EUR | — | |
| 86100-V2470 note |
Receiver Assy, Radio & Display
2023-06 → —
|
AAWH15 LHD GEN | — | |
| 86100-V2480 note |
Receiver Assy, Radio & Display
2023-06 → —
|
AAWH15 RUS | — | |
| 86100-V2490 note |
Receiver Assy, Radio & Display
2023-06 → —
|
AAWH15 RUS | — | |
| 86140B — Knob, Radio & Display Receiver Switch | ||||
| 90010-24205 note |
Knob, Radio & Display Receiver Switch
2023-06 → 2023-11
ended
|
AAWH15 LHD GEN | — | |
| 90010-24205 |
Knob, Radio & Display Receiver Switch
2023-11 → —
|
AAWH1# GEN | — | |
| 90010-24205 |
Knob, Radio & Display Receiver Switch
2023-06 → —
|
TAWH15 GEN;AAWH1# EUR,PHL,RUS | — | |
| 90010-24205 note |
Knob, Radio & Display Receiver Switch
2023-06 → 2023-11
ended
|
AAWH15 LHD GEN | — | |
| 90010-24205 note |
Knob, Radio & Display Receiver Switch
2023-06 → 2023-11
ended
|
AAWH15 RHD GEN | — | |
| 90010-24205 note |
Knob, Radio & Display Receiver Switch
2023-06 → 2023-11
ended
|
AAWH15 RHD V GEN | — | |
| 90010-24205 note |
Knob, Radio & Display Receiver Switch
2023-06 → 2023-11
ended
|
AAWH10 V GEN | — | |
| 90010-24205 note |
Knob, Radio & Display Receiver Switch
2023-06 → 2023-11
ended
|
AAWH10 GEN | — | |
| 90010-24205 note |
Knob, Radio & Display Receiver Switch
2023-06 → 2023-11
ended
|
AAWH10 GEN | — | |
| 86211J — Bracket, Radio Receiver, NO.1 | ||||
| 86211-V2050 |
Bracket, Radio Receiver, NO.1
2023-11 → —
|
AAWH1# RHD GEN | — | |
| 86211-V2050 |
Bracket, Radio Receiver, NO.1
2023-06 → —
|
TAWH15 RHD;AAWH1# RHD (ARL,EUR) | — | |
| 86211-V2050 note |
Bracket, Radio Receiver, NO.1
2023-06 → 2023-11
ended
|
AAWH10 V GEN | — | |
| 86211-V2050 note |
Bracket, Radio Receiver, NO.1
2023-06 → 2023-11
ended
|
AAWH15 RHD GEN | — | |
| 86211-V2050 note |
Bracket, Radio Receiver, NO.1
2023-06 → 2023-11
ended
|
AAWH15 RHD V GEN | — | |
| 86211-V2050 note |
Bracket, Radio Receiver, NO.1
2023-06 → 2023-11
ended
|
AAWH10 V GEN;AAWH15 RHD +1 | — | |
| 86211-V2050 note |
Bracket, Radio Receiver, NO.1
2023-06 → 2023-11
ended
|
AAWH10 GEN | — | |
| 86211-V2050 note |
Bracket, Radio Receiver, NO.1
2023-06 → 2023-11
ended
|
AAWH10 GEN | — | |
| 86211-V2050 note |
Bracket, Radio Receiver, NO.1
2023-06 → 2023-11
ended
|
AAWH15 RHD GEN | — | |
| 86211-V2060 note |
Bracket, Radio Receiver, NO.1
2023-06 → 2023-11
ended
|
AAWH15 LHD GEN | — | |
| 86211-V2060 note |
Bracket, Radio Receiver, NO.1
2023-06 → 2023-11
ended
|
AAWH15 LHD GEN | — | |
| 86211-V2060 |
Bracket, Radio Receiver, NO.1
2023-06 → —
|
TAWH15 LHD;AAWH15 LHD (CHI,EUR,PHL,RUS,TWN) | — | |
| 86211-V2060 |
Bracket, Radio Receiver, NO.1
2023-11 → —
|
AAWH15 LHD GEN | — | |
| 86211M — Bracket, Radio Receiver, NO.3 | ||||
| 86211-V2030 |
Bracket, Radio Receiver, NO.3
2023-11 → —
|
TAWH15 KRE | — | |
| 86212C — Bracket, Radio Receiver, NO.2 | ||||
| 86212-V2050 note |
Bracket, Radio Receiver, NO.2
2023-06 → 2023-11
ended
|
AAWH15 RHD GEN | — | |
| 86212-V2050 |
Bracket, Radio Receiver, NO.2
2023-11 → —
|
AAWH1# RHD GEN | — | |
| 86212-V2050 |
Bracket, Radio Receiver, NO.2
2023-06 → —
|
TAWH15 RHD;AAWH1# RHD (ARL,EUR) | — | |
| 86212-V2050 note |
Bracket, Radio Receiver, NO.2
2023-06 → 2023-11
ended
|
AAWH15 RHD V GEN | — | |
| 86212-V2050 note |
Bracket, Radio Receiver, NO.2
2023-06 → 2023-11
ended
|
AAWH10 V GEN;AAWH15 RHD +1 | — | |
| 86212-V2050 note |
Bracket, Radio Receiver, NO.2
2023-06 → 2023-11
ended
|
AAWH10 V GEN | — | |
| 86212-V2050 note |
Bracket, Radio Receiver, NO.2
2023-06 → 2023-11
ended
|
AAWH10 GEN | — | |
| 86212-V2050 note |
Bracket, Radio Receiver, NO.2
2023-06 → 2023-11
ended
|
AAWH10 GEN | — | |
| 86212-V2050 note |
Bracket, Radio Receiver, NO.2
2023-06 → 2023-11
ended
|
AAWH15 RHD GEN | — | |
| 86212-V2060 note |
Bracket, Radio Receiver, NO.2
2023-06 → 2023-11
ended
|
AAWH15 LHD GEN | — | |
| 86212-V2060 note |
Bracket, Radio Receiver, NO.2
2023-06 → 2023-11
ended
|
AAWH15 LHD GEN | — | |
| 86212-V2060 |
Bracket, Radio Receiver, NO.2
2023-06 → —
|
TAWH15 LHD;AAWH15 LHD (CHI,EUR,PHL,RUS,TWN) | — | |
| 86212-V2060 |
Bracket, Radio Receiver, NO.2
2023-11 → —
|
AAWH15 LHD GEN | — | |
| 86212F — Bracket, Radio Receiver, NO.4 | ||||
| 86212-V2030 |
Bracket, Radio Receiver, NO.4
2023-11 → —
|
TAWH15 KRE | — | |
| 86807 — Disc Kit, Cd-rom | ||||
| 86807-0W230 note |
Disc Kit, Cd-rom
2023-06 → 2023-08
ended
|
AAWH15 CHI | — | |
| 86841 — Computer, Navigation | ||||
| 86840-78040 note |
Computer, Navigation
2023-11 → —
|
TAWH15 KRE | — | |
| 86842K — Wire, Navigation, NO.3 | ||||
| 86842-V2240 |
Wire, Navigation, NO.3
2023-11 → —
|
TAWH15 KRE | — | |
| 86848A — Card, Serial Number Map Update | ||||
| 86848-78010 note |
Card, Serial Number Map Update
2024-10 → —
|
AAWH15 RHD GEN | — | |
| 86848-78020 note |
Card, Serial Number Map Update
2024-10 → —
|
AAWH10 V GEN;AAWH15,TAWH15 RHD +1 | — | |
| 86848-78030 |
Card, Serial Number Map Update
2024-10 → —
|
AAWH1#,TAWH15 ARL | — | |
| 86848-78040 |
Card, Serial Number Map Update
2024-10 → —
|
AAWH15,TAWH15 TWN | — | |
| 86848-78080 |
Card, Serial Number Map Update
2024-10 → —
|
AAWH1#,TAWH15 GEN,PHL | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
