Timing Gear Cover & Rear End Plate

7 part groups · 2 illustrations

Illustrations

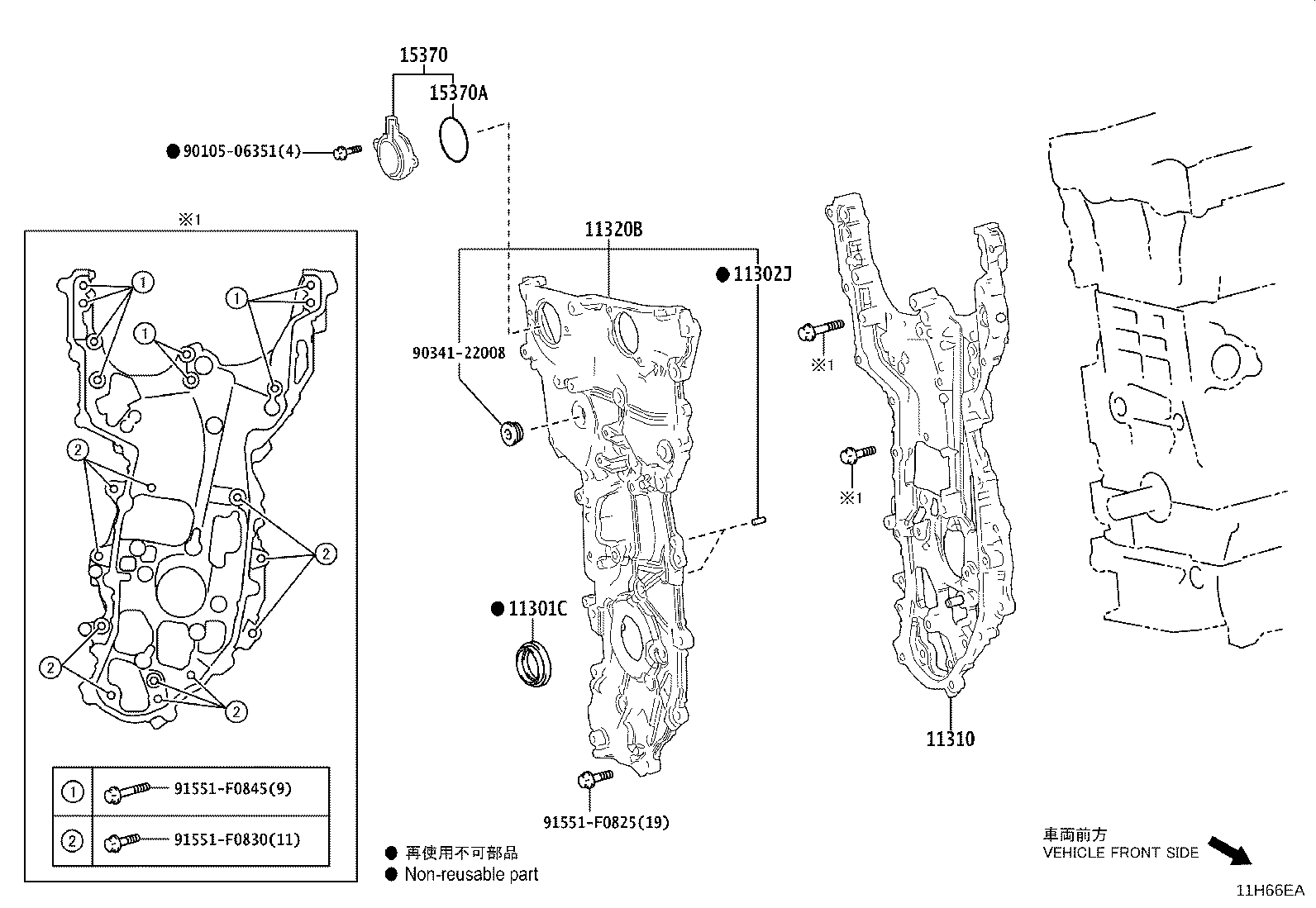

Figure 11H461A 11H461A 2023-06 → — Figure 11H66EA 11H66EA 2023-11 → —

Part groups

PNCDescription
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11302J Pin, Straight(FOR TIMING CHAIN COVER)
11302X Bolt, Flange
11310 Cover Assy, Timing Chain
11320B Cover Assy, Timing Chain, NO.2
15370 Solenoid Assy, Cam Timing Oil Control
15370A Ring, O(FOR CAM TIMING OIL CONTROL SOLENOID)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
