Toyota Lexus LM500H/350H
2023-06 → present · chassis AAWH1#,TAWH15 · catalogue 714320 · Europe
Supported model
Data version 2023-11

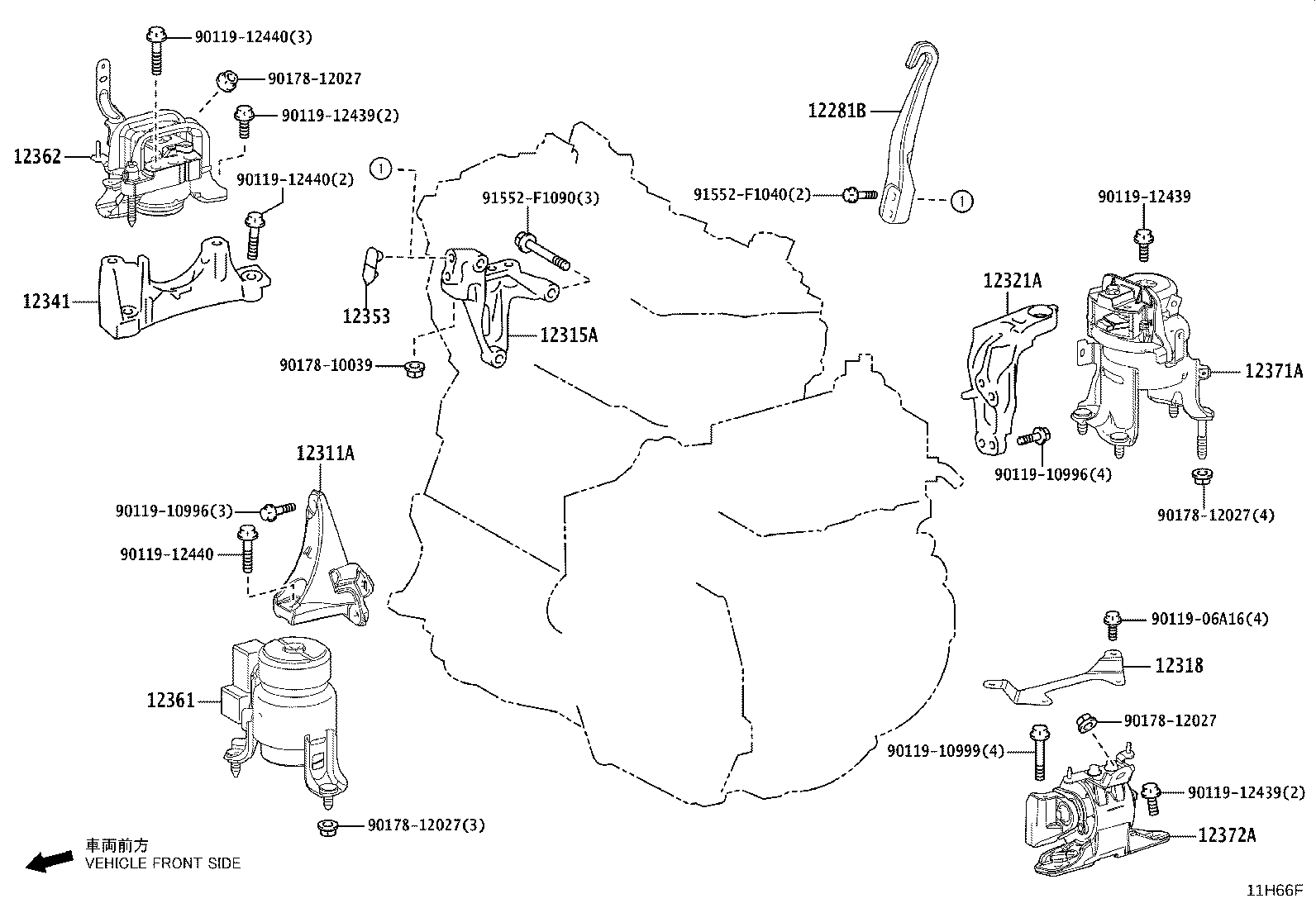

Mounting
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 12281B | Hanger, Engine, NO.1 |
| 12305 | Insulator Sub-assy, Engine Mounting, RH |
| 12306 | Insulator Sub-assy, Engine Mounting, LH |
| 12311A | Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE) |
| 12315A | Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE) |
| 12318 | Stay, Engine Mounting, LH |
| 12321A | Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE) |
| 12341 | Spacer, Engine Mounting |
| 12353 | Cap, Engine Mounting Bracket |
| 12361 | Insulator, Engine Mounting, Front |
| 12362 | Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE) |
| 12362A | Insulator, Engine Mounting, Front LH |
| 12371A | Insulator, Engine Mounting, Rear |
| 12372A | Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE) |
| 23825A | Guard, Fuel Delivery |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
