Toyota Lexus LM500H/350H
2023-06 → present · chassis AAWH1#,TAWH15 · catalogue 714320 · Europe
Supported model
Data version 2023-11

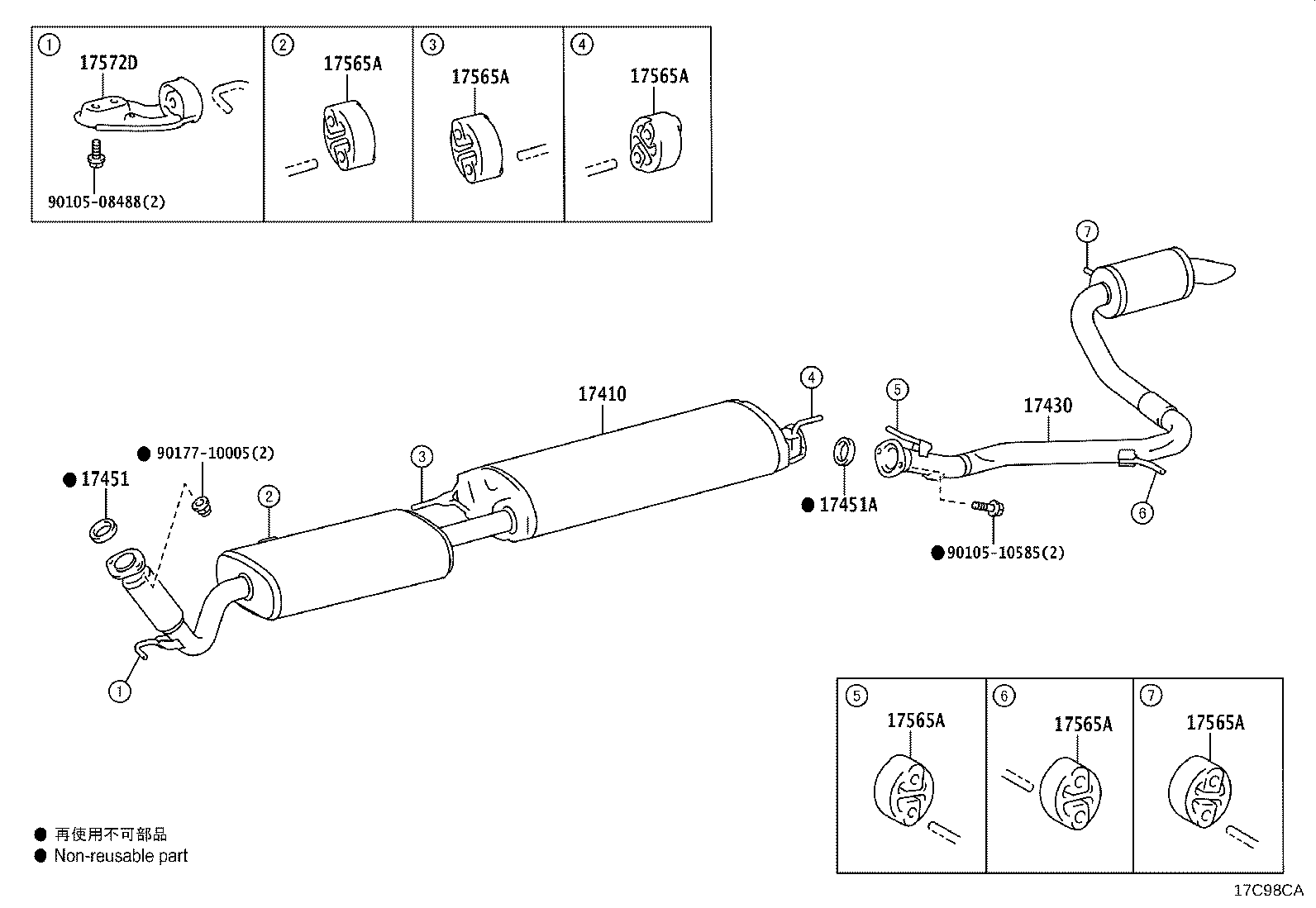

Exhaust Pipe
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17410 | Pipe Assy, Exhaust, Front |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17451 | Gasket, Exhaust Pipe |
| 17451A | Gasket, Exhaust Pipe, NO.2 |
| 17565A | Support, Exhaust Pipe, NO.4 |
| 17572D | Bracket, Exhaust Pipe Support, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
