Toyota Lexus LM500H/350H

2023-06 → present · chassis AAWH1#,TAWH15 · catalogue 714320 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

29 part groups · 3 illustrations

Illustrations

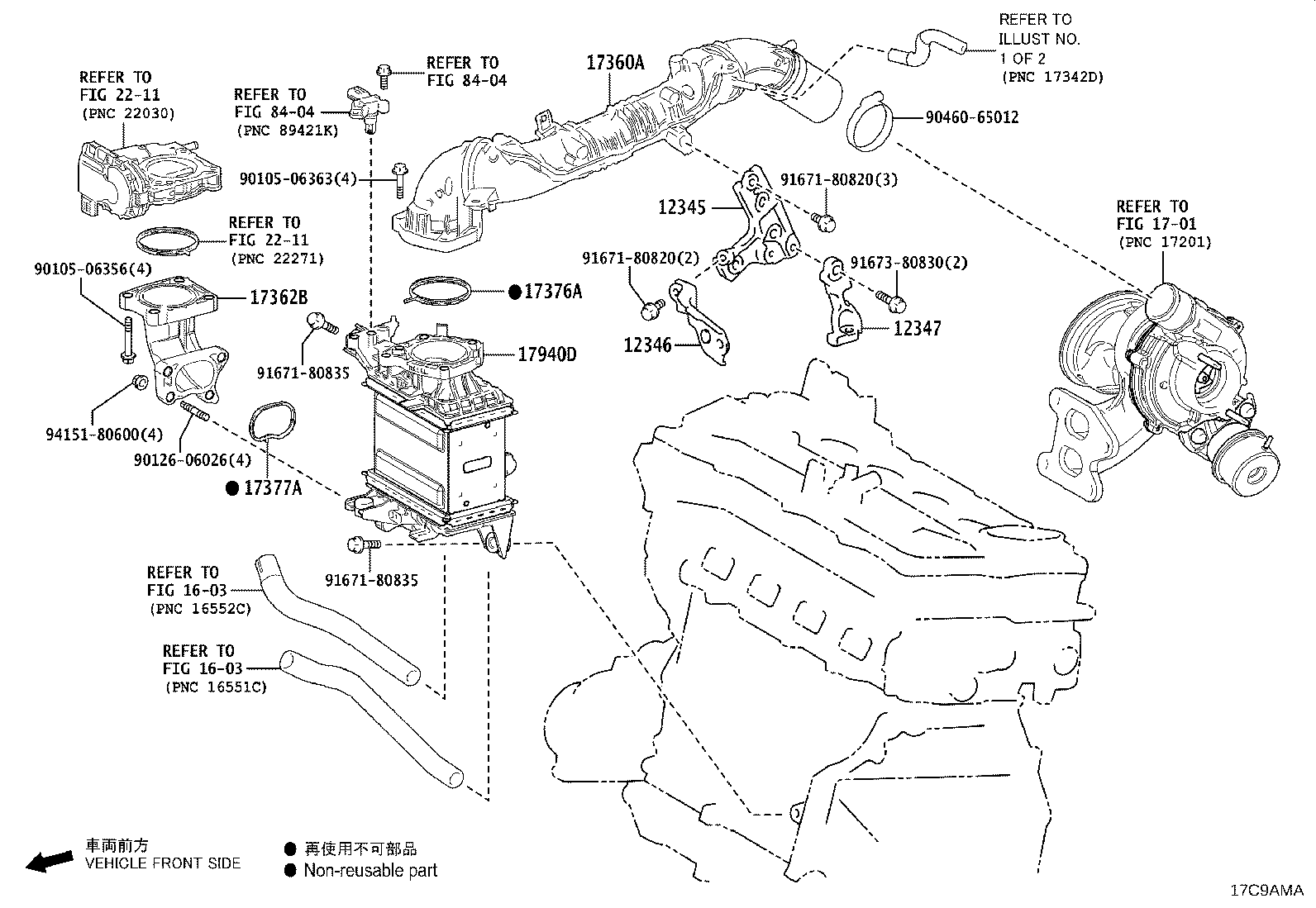

Figure 17C841 17C841 2023-06 → — Figure 17C9ALA 17C9ALA 2023-11 → — Figure 17C9AMA 17C9AMA 2023-11 → —

Part groups

PNCDescription
12345 Bracket, Engine Stiffener Base
12346 Stiffener, Engine & Inverter, NO.1
12347 Stiffener, Engine & Inverter, NO.2
17119A Bracket, Air Cleaner
17342D Hose, Air, NO.2
17342E Clamp OR Clip(FOR AIR HOSE, NO.2)
17360A Tube Assy, Air
17362B Tube, Air, NO.2
17376A Gasket, Air Tube
17377A Gasket, Air Tube, NO.2
17700 Cleaner Assy, Air
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17750A Inlet Assy, Air Cleaner
17765 Stay, Air Cleaner, NO.1
17765A Stay, Air Cleaner, NO.1
17769 Support, Air Cleaner
17769C Support, Air Cleaner, NO.1
17769D Support, Air Cleaner, NO.2
17801 Element Sub-assy, Air Cleaner Filter
17872 Bracket, Intake Air Connector
17880 Hose Assy, Air Cleaner
17880A Clamp, Hose
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17940D Intercooler Assy
22204 Meter Sub-assy, Intake Air Flow
75895Q Tape, Moulding, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
