Toyota Lexus LM500H/350H
2023-06 → present · chassis AAWH1#,TAWH15 · catalogue 714320 · Europe
Supported model
Data version 2023-11
Transaxle Assy(HEV OR BEV OR FCEV)

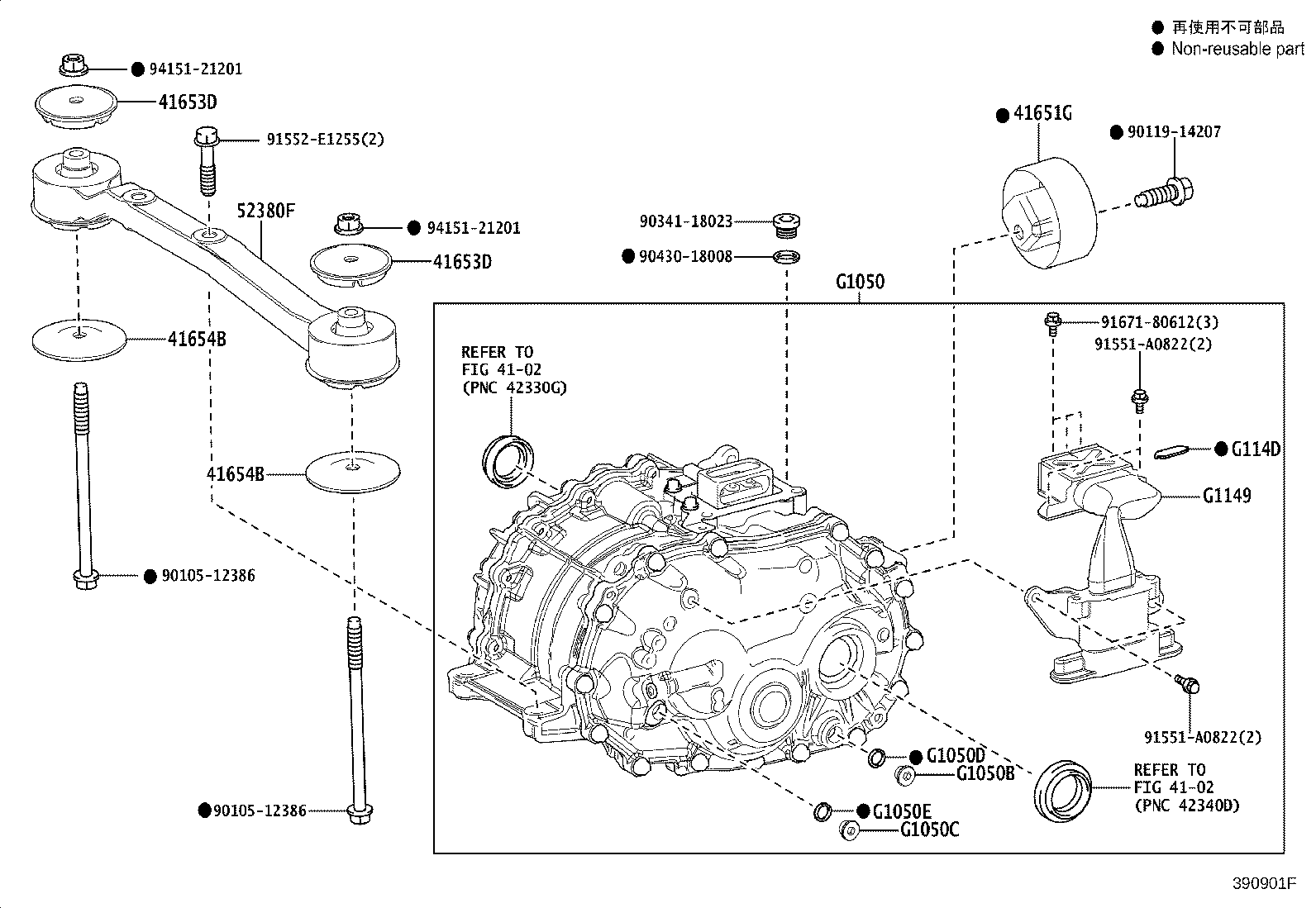

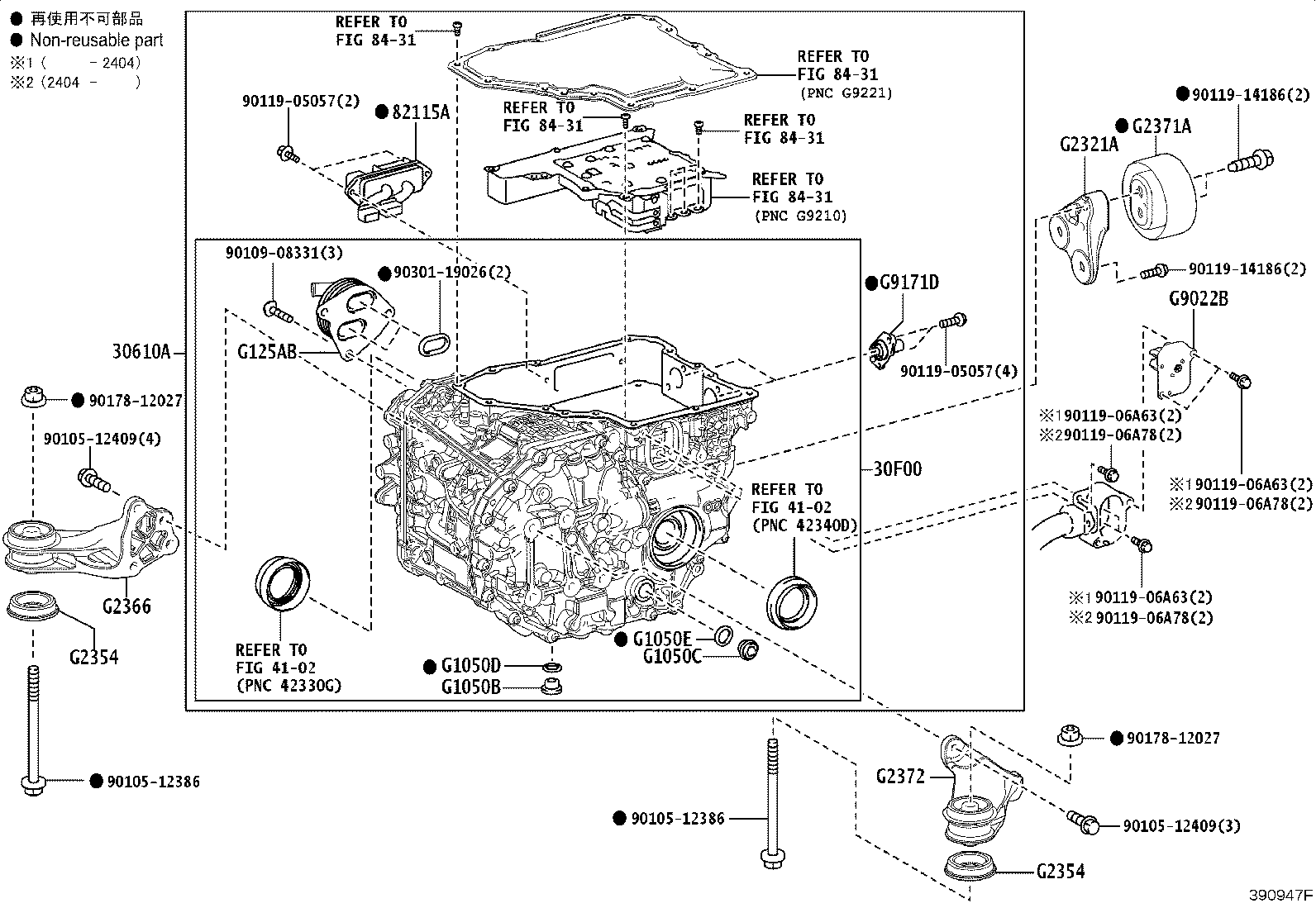

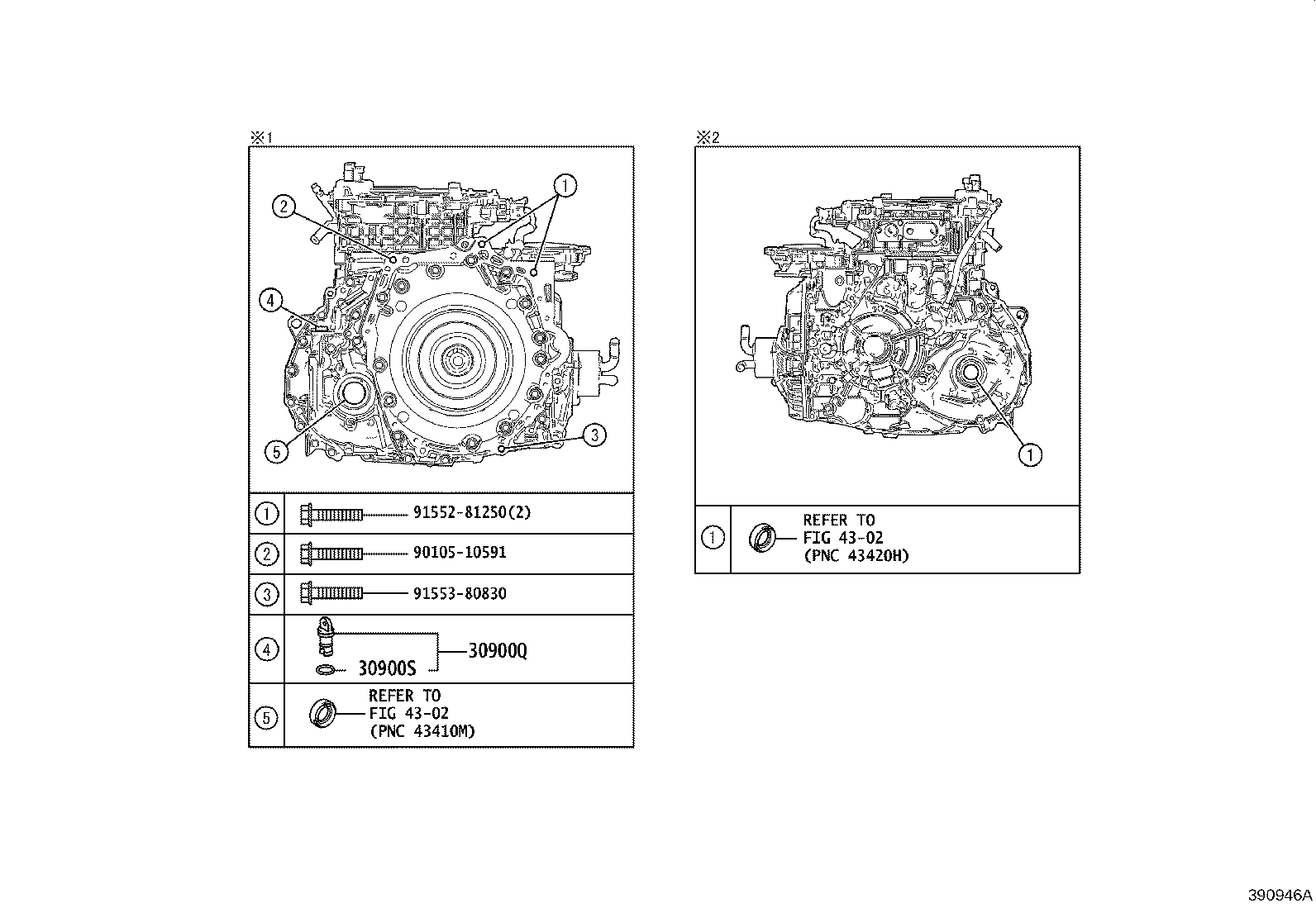

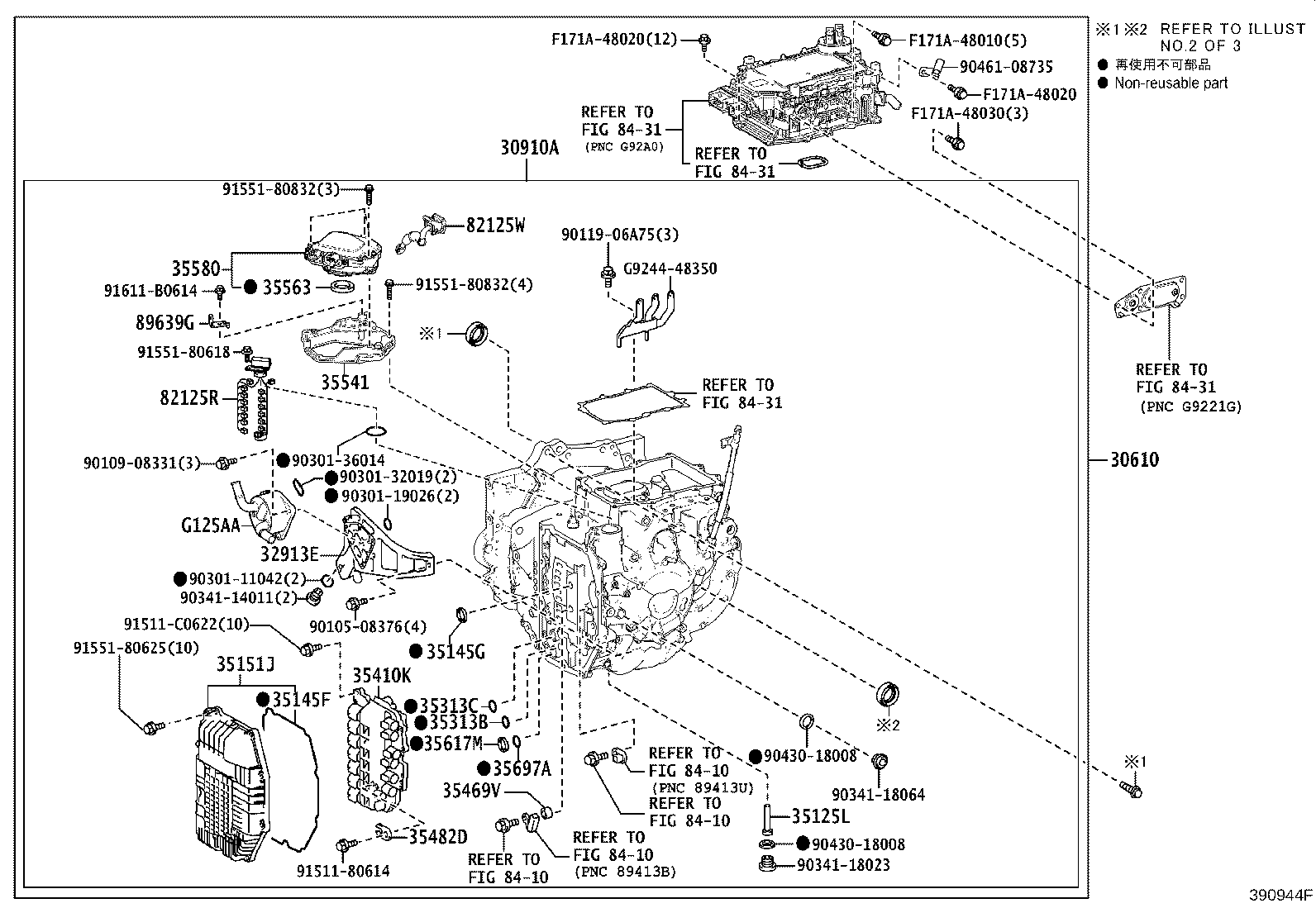

60 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 30610 | Transaxle Assy, W/Motor & Inverter |
| 30610A | Transaxle Assy, Rear W/Motor & Inverter |
| 30900 | Transaxle Assy, Hybrid Vehicle |
| 30900D | Plug, W/Head Straight Screw(FOR TRANSAXLE HOUSING & CASE) |
| 30900E | Gasket(FOR TRANSAXLE HOUSING & CASE) |
| 30900F | Plug, W/Head Straight Screw, NO.2(FOR TRANSAXLE HSG & CASE) |
| 30900G | Gasket, NO.2(FOR TRANSAXLE HOUSING & CASE) |
| 30900K | Connector, Tube(FOR TRANSAXLE HOUSING) |
| 30900N | Plug, Breather(FOR TRANSAXLE) |
| 30900P | Plug, Drain(HEV) |
| 30900Q | Plug, Filler(HEV) |
| 30900R | Gasket, Drain Plug(HEV) |
| 30900S | Gasket, Filler Plug(HEV) |
| 30910A | Transmission Assy, Hybrid Vehicle |
| 30F00 | Rear Transaxle Assy, W/Motor |
| 31270 | Damper Assy, Transmission Input |
| 32913E | Bracket, Transmission Oil Cooler, NO.1 |
| 33185B | Bracket, Transaxle Under Stopper |
| 35125L | Tube, Transmission Oil Filler, NO.1 |
| 35145F | Gasket, Transaxle Case |
| 35145G | Gasket, Transaxle Case, NO.2 |
| 35151J | Cover, Automatic Transmission Case |
| 35313B | Gasket, Front Oil Pump Cover, NO.1 |
| 35313C | Gasket, Front Oil Pump Cover, NO.2 |
| 35410K | Body Assy, Transmission Valve |
| 35469V | Spacer |
| 35482D | Clamp, Temperature Sensor |
| 35541 | Bracket, Shift Control Actuator |
| 35563 | Seal, Shift Control Actuator |
| 35580 | Actuator Assy, Shift Control |
| 35617M | Ring, Clutch Drum Oil Seal |
| 35697A | Ring, Transaxle Oil Seal |
| 35710A | Seal, Type T Oil(FOR INPUT SHAFT) |
| 41651G | Cushion, Differential Mount |
| 41653D | Stopper, Differential Mount,Upper |
| 41654B | Stopper, Differential Mount,Lower |
| 52380F | Support Assy, Differential, Front |
| 82115A | Wire, Motor Compartment, Main (FOR REAR TRANSAXLE) |
| 82125R | Wire, Transmission |
| 82125W | Wire, Transmission, NO.2 |
| 82821T | Cover, Connector |
| 82823M | Cap, Terminal |
| 89639G | Clamp |
| G1050 | Motor Assy, RR Traction W/Transaxle |
| G1050B | Plug, Drain(FOR REAR TRACTION MOTOR) |
| G1050C | Plug, Filler(FOR REAR TRACTION MOTOR) |
| G1050D | Gasket, Drain Plug(FOR REAR TRACTION MOTOR) |
| G1050E | Gasket, Filler Plug(FOR REAR TRACTION MOTOR) |
| G1148 | Cable, Motor |
| G1149 | Cable(FOR REAR TRACTION MOTOR) |
| G114D | Cap, Motor Cable Terminal |
| G125AA | Cooler, Motor Cooling |
| G125AB | Cooler, Motor Cooling (FOR REAR TRANSAXLE) |
| G2321A | Bracket, Motor Mounting, Rear |
| G2354 | Stopper, Motor Mounting, Lower |
| G2366 | Insulator, Rear Motor Mounting, RH |
| G2371A | Insulator, Motor Mounting, Rear |
| G2372 | Insulator, Motor Mounting, LH |
| G9022B | Cover Sub-assy, Inverter, Upper |
| G9171D | Pipe, Inverter Cooling, NO.1 (FOR REAR TRANSAXLE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
