Toyota Lexus LM500H/350H

2023-06 → present · chassis AAWH1#,TAWH15 · catalogue 714320 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Master Cylinder

9 part groups · 2 illustrations

Illustrations

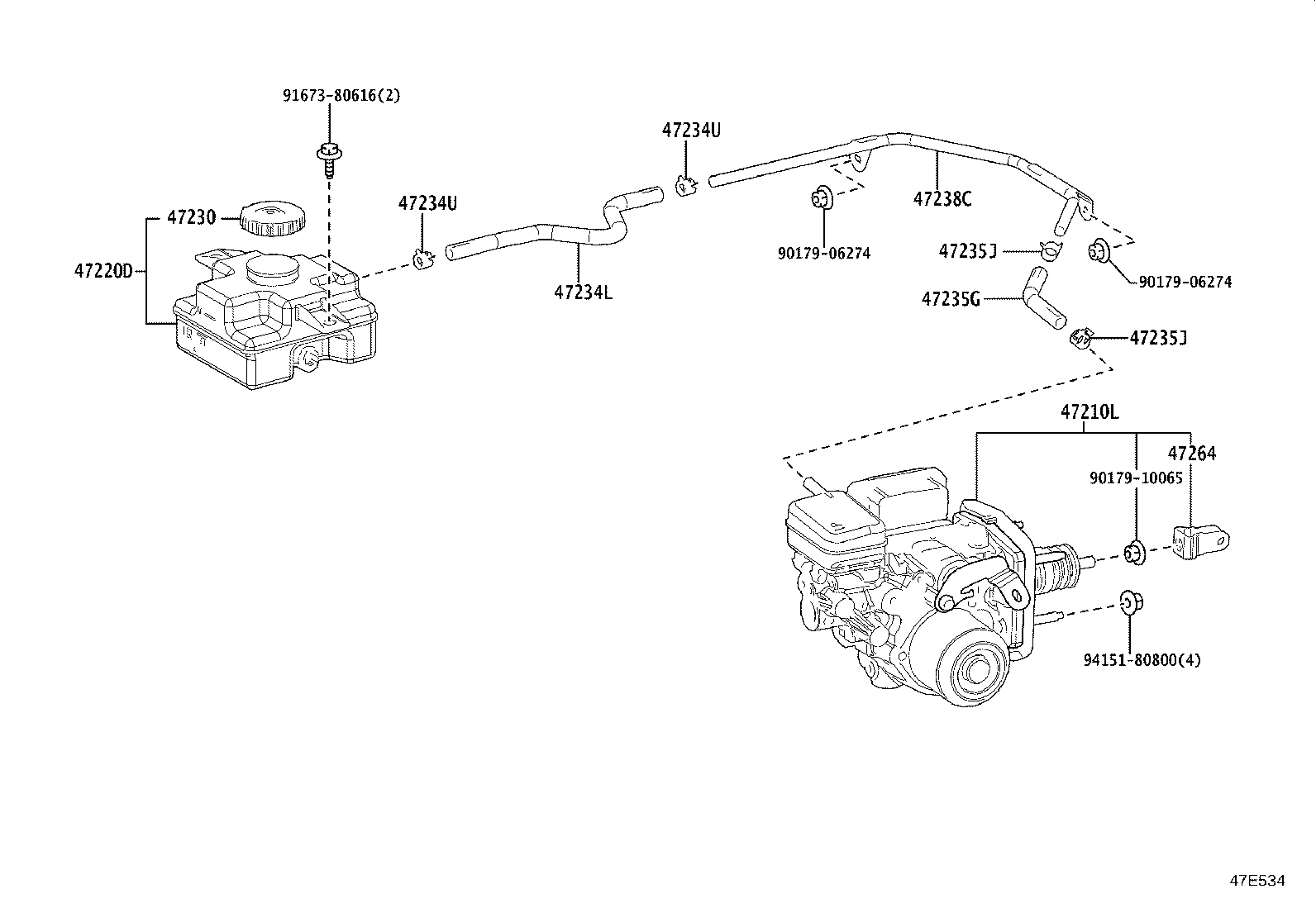

Figure 47E533 47E533 2023-06 → — Figure 47E534 47E534 2023-06 → —

Part groups

PNCDescription
47210L Brake Booster Assy, W/Master Cylinder
47220D Reservoir Assy, Brake Master Cylinder
47230 Cap Assy, Brake Master Cylinder Reservoir Filler
47234L Hose, Reservoir, NO.1
47234U Clip(FOR RESERVOIR HOSE NO.1)
47235G Hose, Reservoir, NO.2
47235J Clip(FOR RESERVOIR HOSE NO.2)
47238C Tube, Reservoir
47264 Clevis, Master Cylinder Push Rod
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
