Toyota Lexus LM500H/350H

2023-06 → present · chassis AAWH1#,TAWH15 · catalogue 714320 · Europe

Supported model Data version 2023-11

Hood & Front Fender

42 part groups · 2 illustrations

PNC	Description
52161F	Piece, Front Bumper
53301	Hood Sub-assy
53341B	Insulator, Hood
53341C	Clip(FOR HOOD INSULATOR)
53351	Panel, Hood Side, RH
53351B	Clip, Hood Side Panel, NO.1
53351C	Clip, Hood Side Panel, NO.2
53352	Panel, Hood Side, LH
53381	Seal, Hood TO Radiator Support
53381A	Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53388D	Seal, Hood TO Front Fender, RH
53388E	Seal, Hood TO Front Fender, RH
53389B	Seal, Hood TO Front Fender, LH
53389C	Seal, Hood TO Front Fender, LH
53801	Fender Sub-assy, Front RH
53802	Fender Sub-assy, Front LH
53807H	Protector Sub-assy, Front Fender, Upper RH
53808H	Protector Sub-assy, Front Fender, Upper LH
53811B	Panel, Front Fender, RH
53812D	Panel, Front Fender, LH
53813D	Extension, Front Fender
53827K	Protector, Front Fender Side Panel, RH
53827S	Protector, Front Fender Side Panel, RH NO.2
53828J	Protector, Front Fender Side Panel, LH
53828Q	Protector, Front Fender Side Panel, LH NO.2
53857	Retainer, Front Wheel Opening Extension, RH
53858	Retainer, Front Wheel Opening Extension, LH

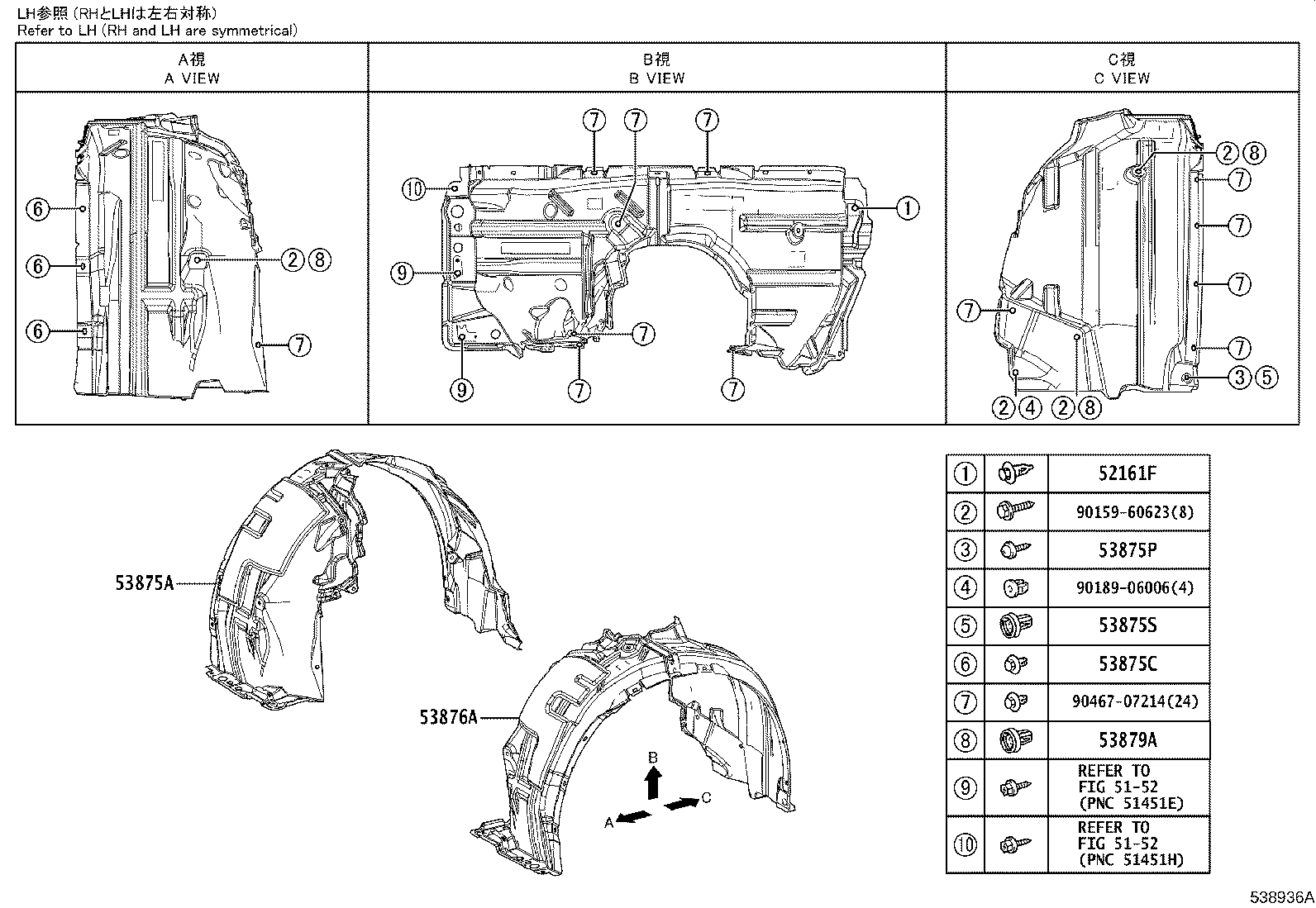

53875A	Liner, Front Fender, RH
53875C	Clip, Front Fender Liner
53875P	Screw, NO.1
53875S	Grommet, NO.1
53876A	Liner, Front Fender, LH
53879A	Retainer, Front Fender Liner
53882K	Seal, Front Fender
53882S	Seal, Front Fender, RH
53883D	Seal, Front Fender, LH
55879C	Seal, Cowl Vent
55879D	Clip(FOR COWL VENT SEAL)
65487	Clip, Corner Protector
65488	Clip, Corner Protector
75881D	Retainer, Front Fender Moulding, NO.1
75882B	Retainer, Front Fender Moulding, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
