Toyota Lexus LM500H/350H

2023-06 → present · chassis AAWH1#,TAWH15 · catalogue 714320 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

41 part groups · 10 illustrations

Illustrations

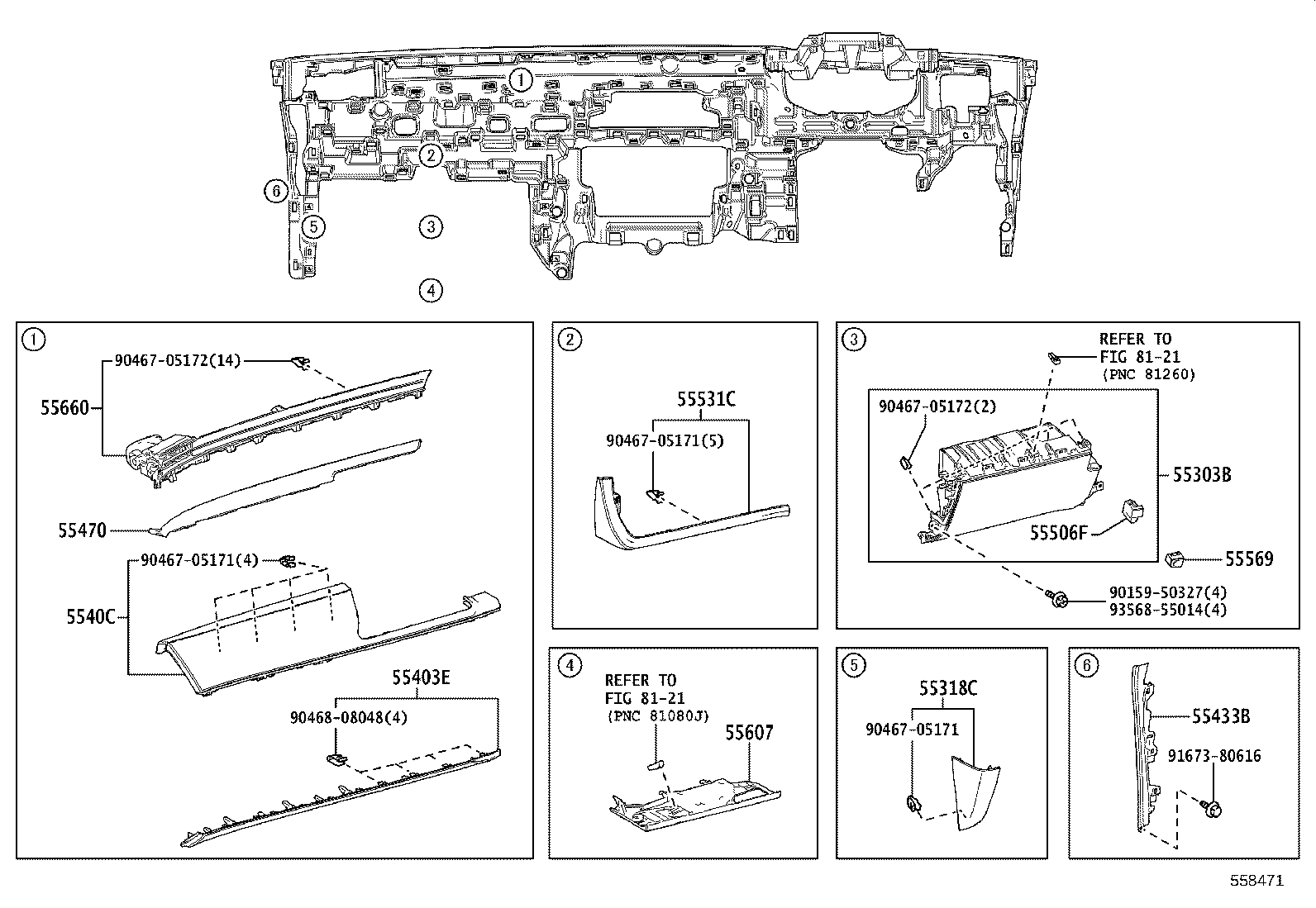

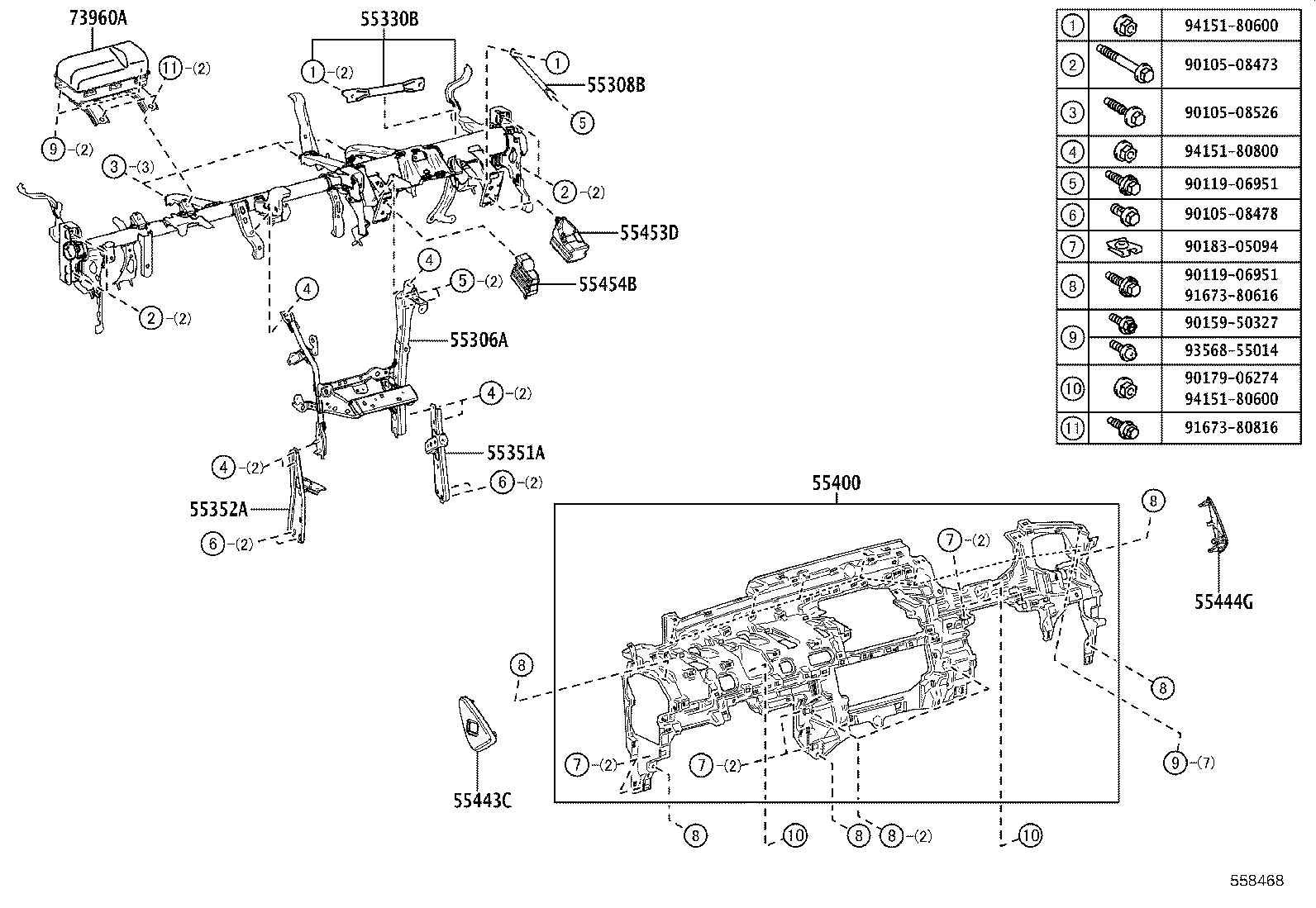

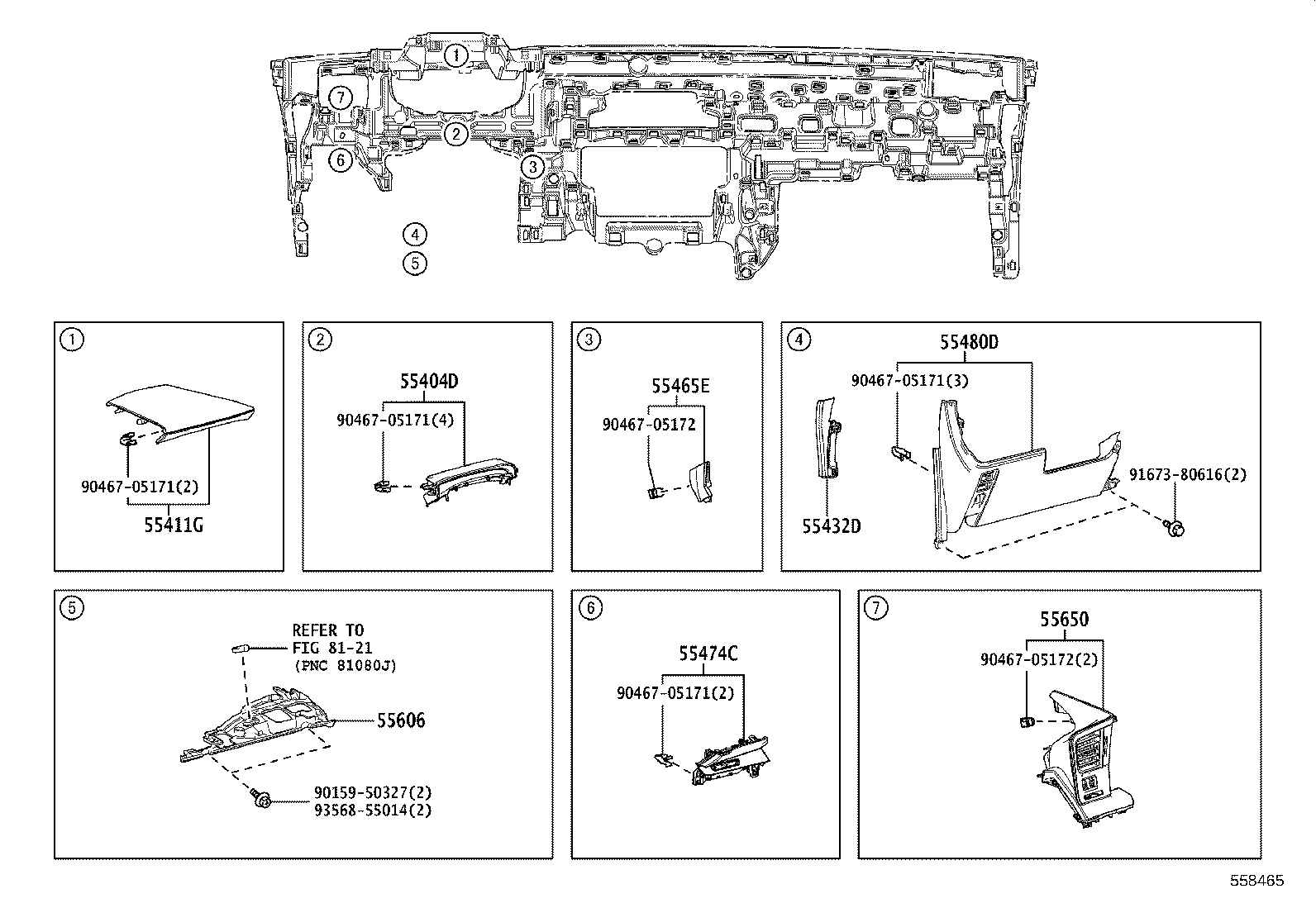

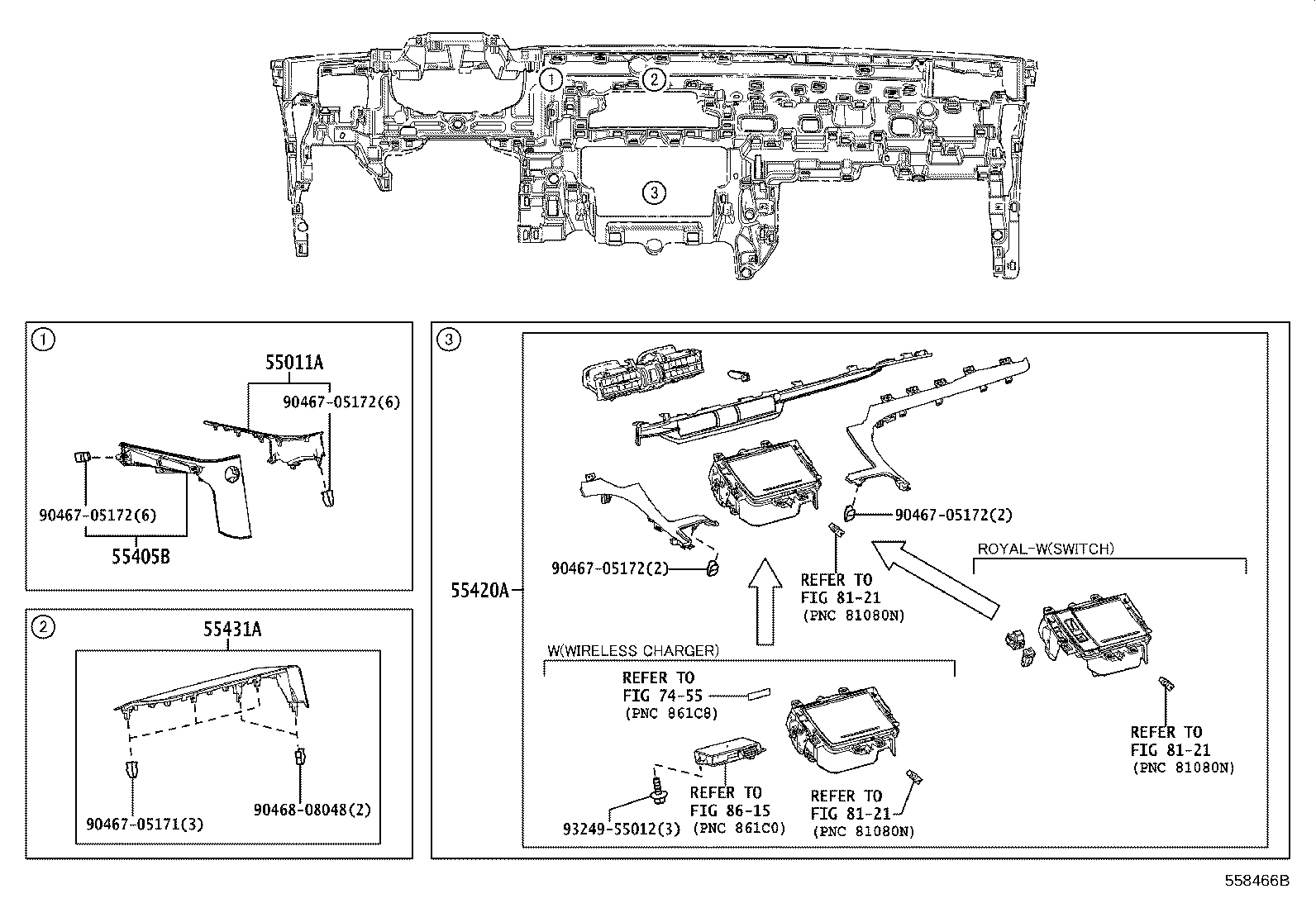

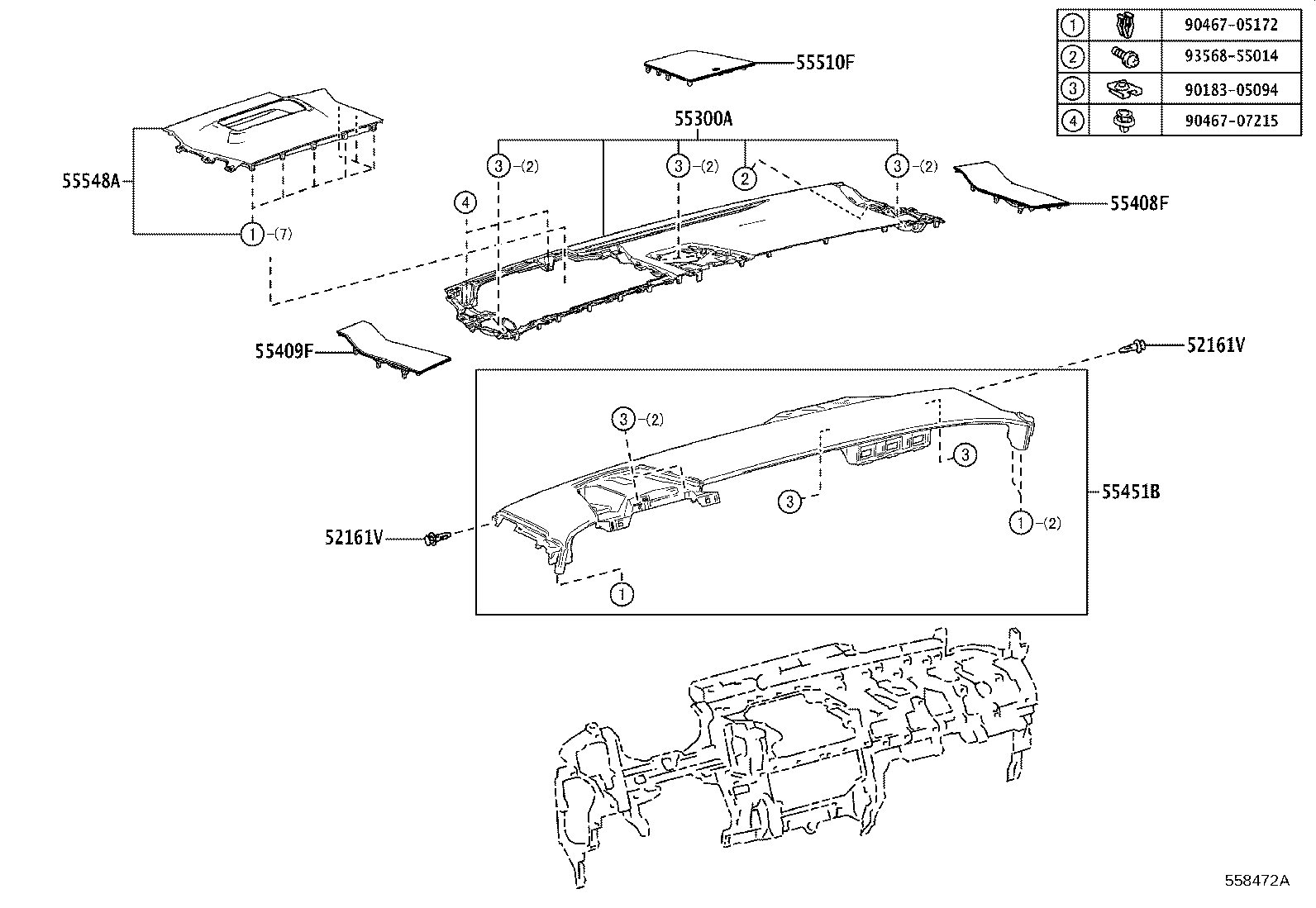

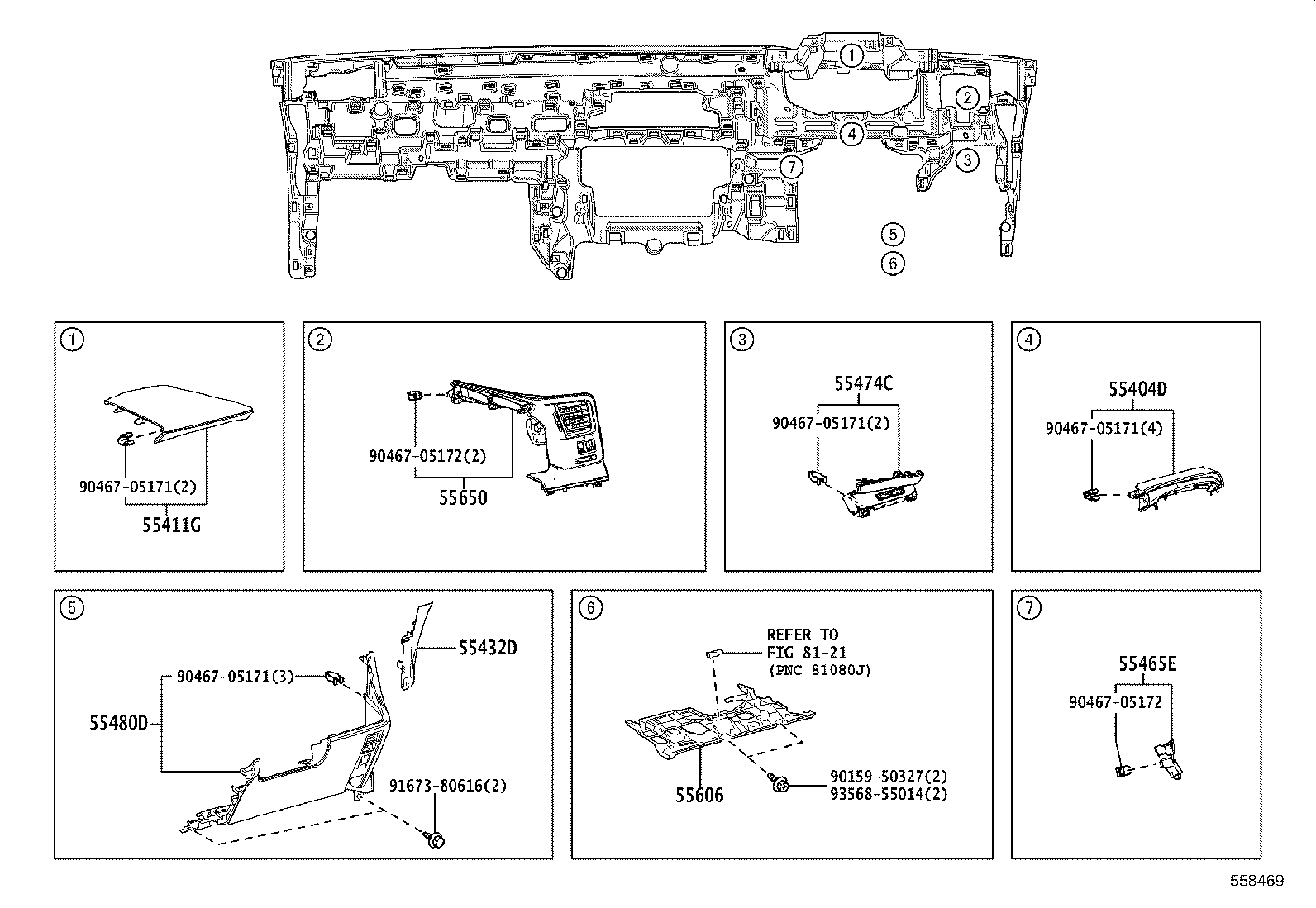

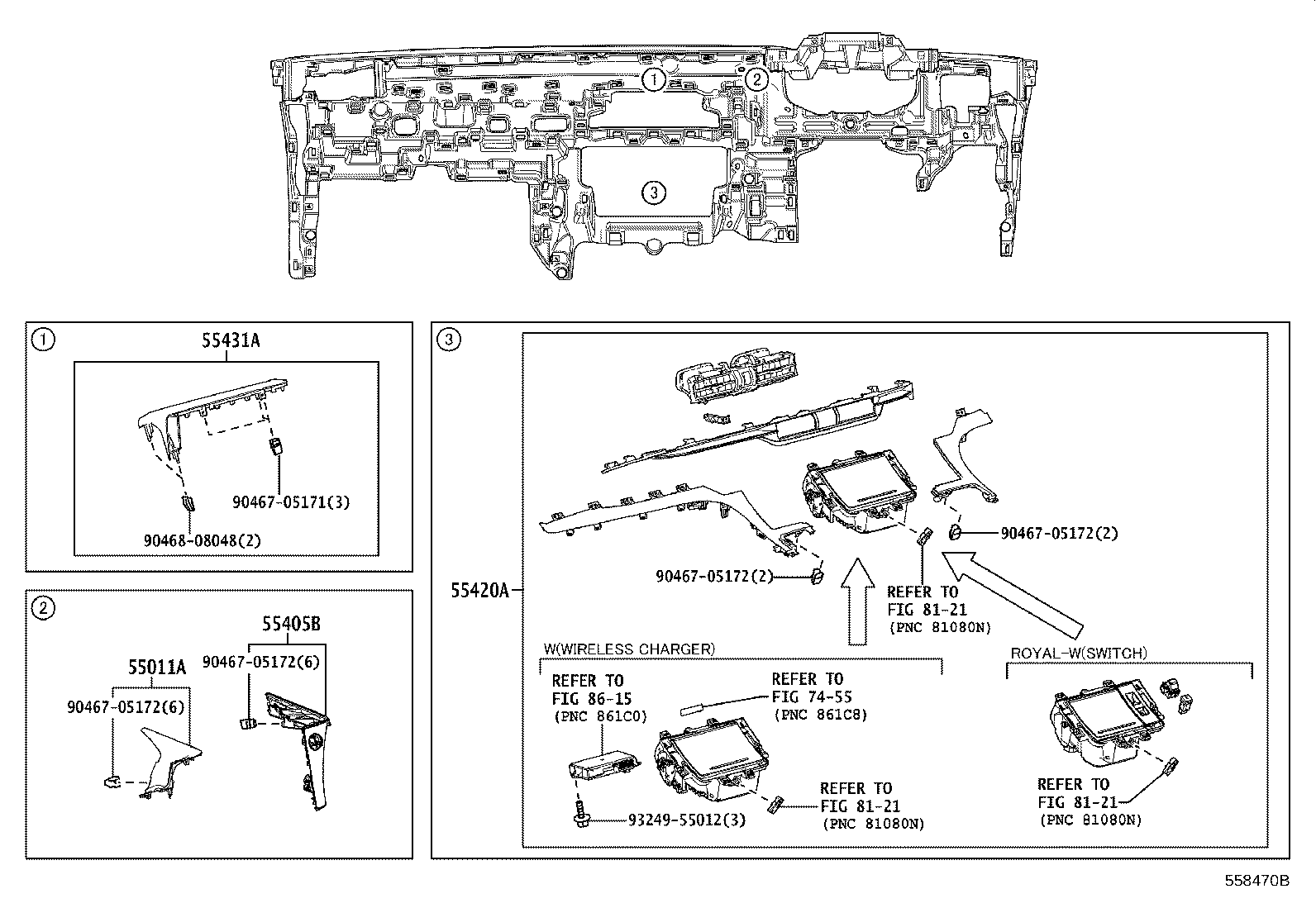

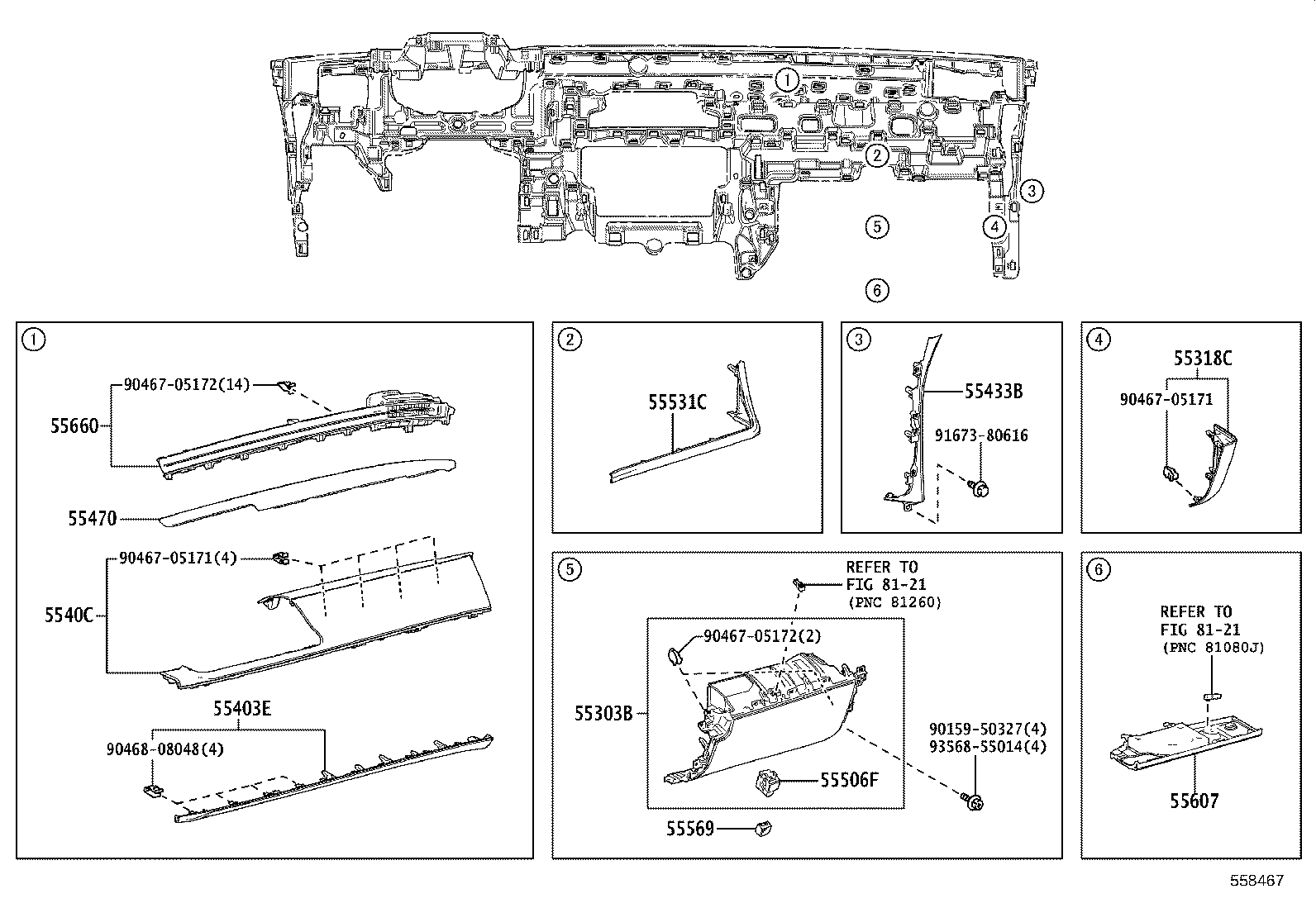

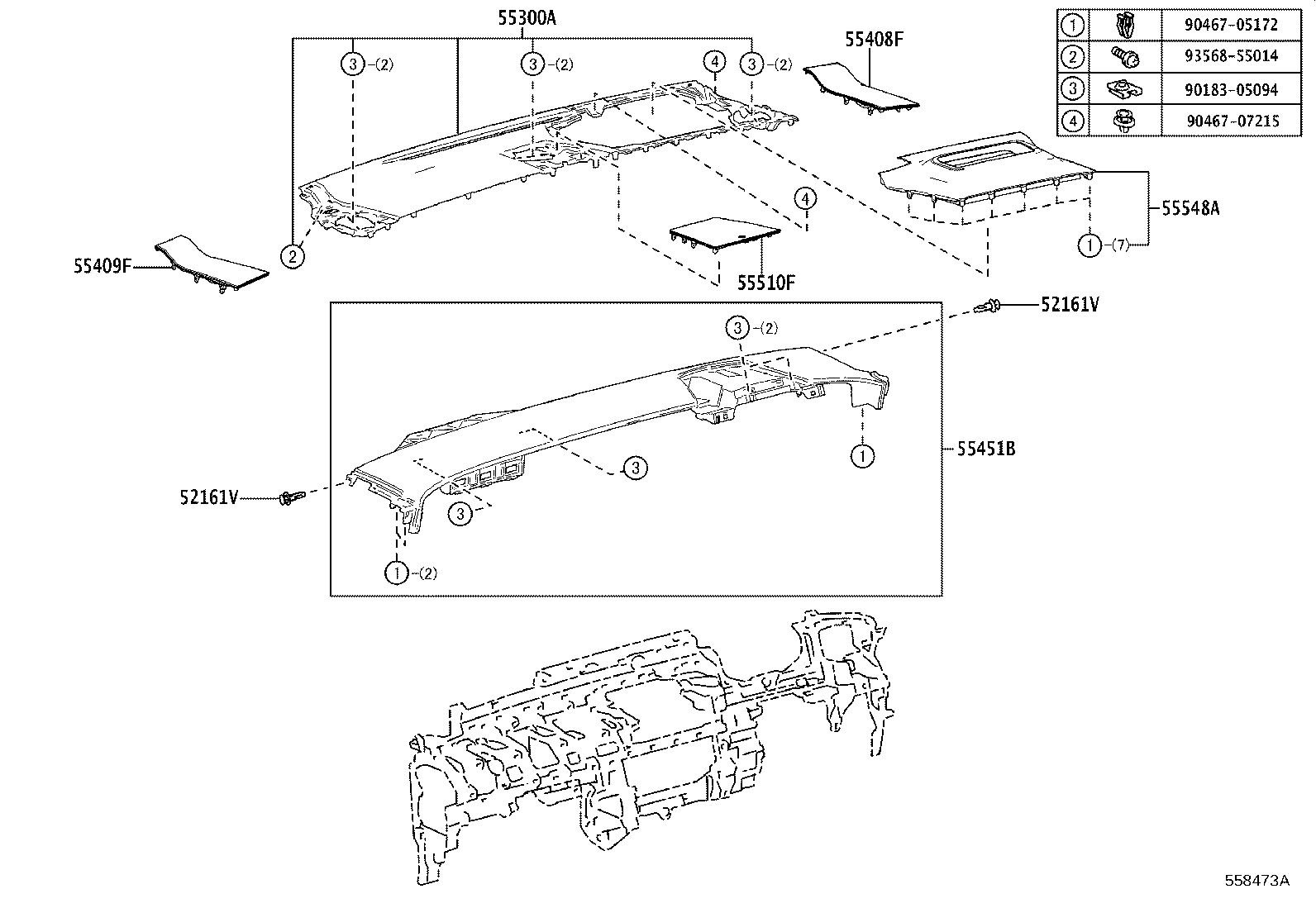

Figure 558464 558464 2023-06 → — Figure 558472A 558472A 2023-06 → — Figure 558465 558465 2023-06 → — Figure 558466B 558466B 2023-06 → — Figure 558467 558467 2023-06 → — Figure 558468 558468 2023-06 → — Figure 558473A 558473A 2023-06 → — Figure 558469 558469 2023-06 → — Figure 558470B 558470B 2023-06 → — Figure 558471 558471 2023-06 → —

Part groups

PNCDescription
52161V Piece, Instrument Panel
55011A Garnish Sub-assy, Instrument Panel, NO.1
55300A Panel Assy, Instrument
55303B Panel Sub-assy, Instrument, Lower
55306A Brace Sub-assy, Instrument Panel, NO.1
55308B Brace Sub-assy, Instrument Panel TO Cowl, NO.3
55318C Panel, Instrument Side, LH
55330B Reinforcement Assy, Instrument Panel
55351A Brace, Instrument Panel TO Floor
55352A Brace, Instrument Panel TO Floor, NO.2
55400 Pad Assy, Instrument Panel Safety
55403E Pad Sub-assy, Instrument Panel Safety, NO.2
55404D Panel Sub-assy, Instrument Cluster Finish
55405B Panel Sub-assy, Instrument Cluster Finish, Center
55408F Panel Sub-assy, Instrument Panel Speaker, NO.1
55409F Panel Sub-assy, Instrument Panel Speaker, NO.2
5540C Pad Sub-assy, Instrument Panel Safety, NO.3
55411G Panel, Instrument Cluster Finish, NO.1
55420A Panel Assy, Instrument Cluster Finish, Center
55431A Panel, Instrument Panel Finish
55432D Panel, Instrument Panel Finish, Lower NO.1
55433B Panel, Instrument Panel Finish, Lower NO.2
55443C Plate, Instrument Panel Safety Pad
55444G Plate, Instrument Panel Safety Pad, NO.2
55451B Cover, Instrument Panel Safety Pad
55453D Pad, Instrument Panel Safety, NO.1
55454B Pad, Instrument Panel Safety, NO.2
55465E Insert, Instrument Panel Safety Pad, Lower
55470 Garnish Assy, Instrument Cluster Finish Panel
55474C Garnish, Instrument Cluster Finish Panel, NO.1
55480D Panel Assy, Instrument Panel Finish, Lwr
55506F Lock Sub-assy, Glove Compartment Door
55510F Cover Assy, Speaker Opening, NO.1
55531C Pin, Glove Door Stopper
55548A Cover, Instrument Panel Hole
55569 Cover, Glove Compartment Door Lock
55606 Cover Sub-assy, Instrument Panel Under, NO.1
55607 Cover Sub-assy, Instrument Panel Under, NO.2
55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
73960A Airbag Assy, Instrument Panel Passenger W/O Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
