Toyota Lexus LM500H/350H
2023-06 → present · chassis AAWH1#,TAWH15 · catalogue 714320 · Europe
Supported model
Data version 2023-11

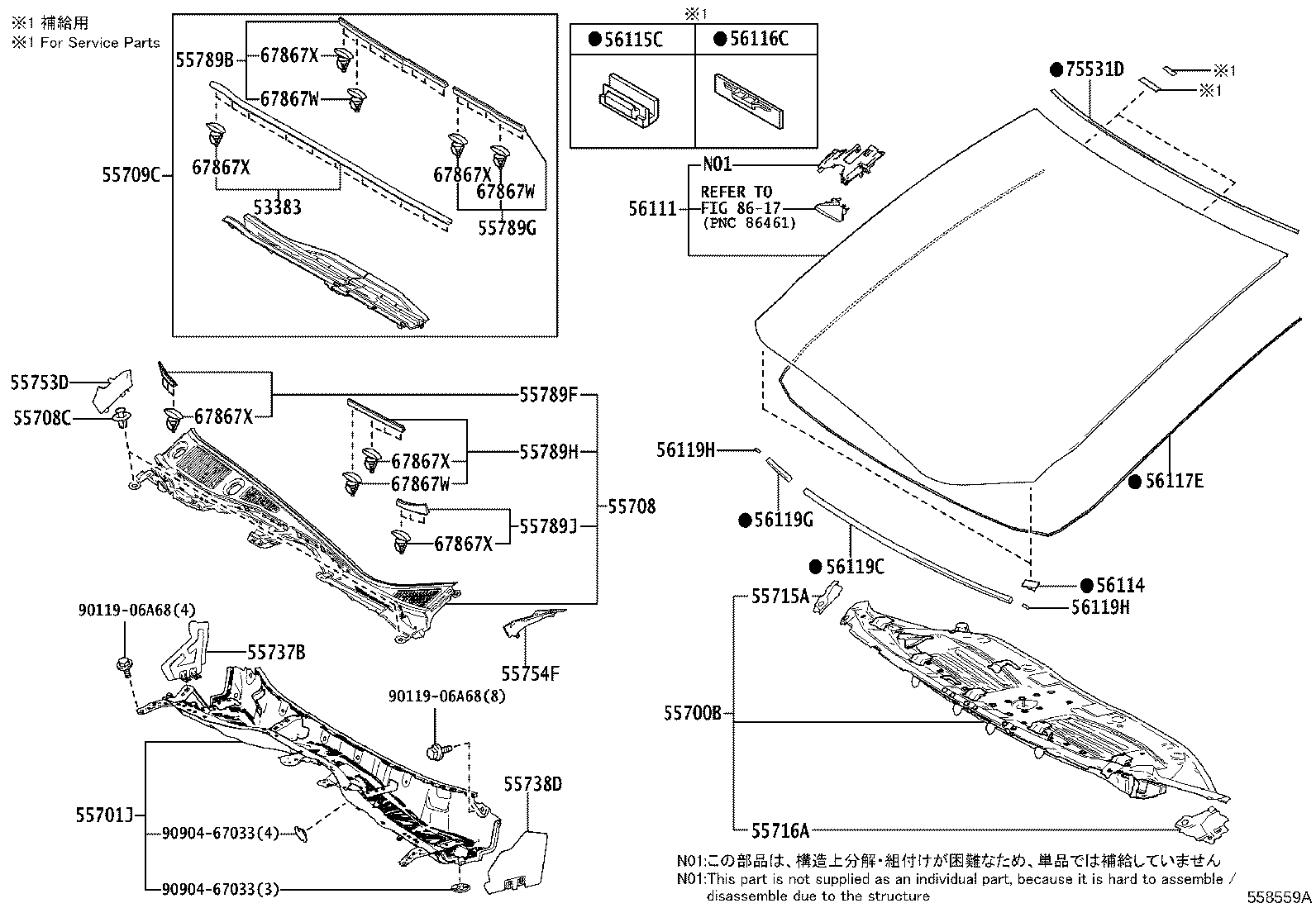

Cowl Panel & Windshield Glass
28 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 53383 | Seal, Hood TO Cowl Top |
| 55700B | Cowl Assy |
| 55701J | Panel Sub-assy, Cowl Top, Outer |
| 55708 | Louver Sub-assy, Cowl Top Ventilator |
| 55708C | Clip, Cowl Top Ventilator Louver |
| 55709C | Cover Sub-assy, Cowl Side Ventilator, LH |
| 55715A | Brace, Cowl Top TO Apron, RH |
| 55716A | Brace, Cowl Top TO Apron, LH |
| 55737B | Seal, Heater Air Duct Splash Shield, NO.1 |
| 55738D | Seal, Heater Air Duct Splash Shield, NO.2 |
| 55753D | Shield, Cowl Water Extract, RH |
| 55754F | Shield, Cowl Water Extract, LH |
| 55789B | Protector, Cowl Top Venttinator Louver, NO.2 |
| 55789F | Protector, Cowl Top Venttinator Louver, NO.1 |
| 55789G | Protector, Cowl Top Venttinator Louver, NO.3 |
| 55789H | Protector, Cowl Top Venttinator Louver, NO.4 |
| 55789J | Protector, Cowl Top Venttinator Louver, NO.5 |
| 56111 | Glass, Windshield |
| 56114 | Retainer, Windshield Glass |
| 56115C | Stopper, Windshield Glass |
| 56116C | Stopper, Windshield Glass, NO.2 |
| 56117E | Dam, Window Glass Adhesive |
| 56119C | Seal, Windshield Glass |
| 56119G | Seal, Windshield Glass, NO.2 |
| 56119H | Seal, Windshield Glass, NO.3 |
| 67867W | Retainer, Cowl Top Venttinator Louver Protector, NO.1 |
| 67867X | Retainer, Cowl Top Venttinator Louver Protector, NO.2 |
| 75531D | Moulding, Windshield, Outside Upper |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
