Toyota Lexus LM500H/350H

2023-06 → present · chassis AAWH1#,TAWH15 · catalogue 714320 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Insulator

3 part groups · 2 illustrations

Illustrations

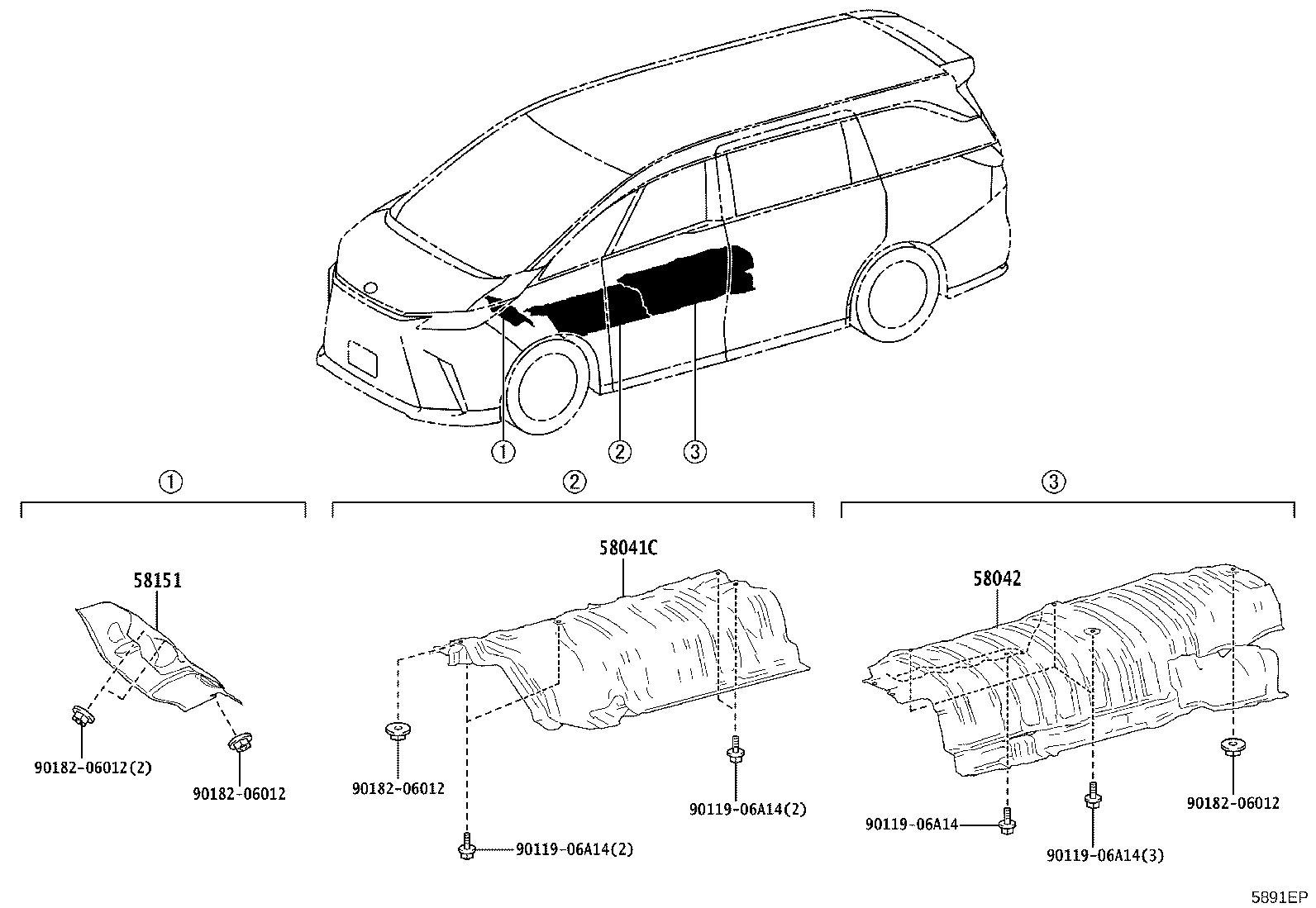

Figure 589079 589079 2023-06 → — Figure 5891EP 5891EP 2023-11 → —

Part groups

PNCDescription
58041C Insulator Sub-assy, Front Floor Heat, NO.1
58042 Insulator Sub-assy, Front Floor Heat, NO.2
58151 Insulator, Front Floor Heat, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
