Toyota Lexus LM500H/350H

2023-06 → present · chassis AAWH1#,TAWH15 · catalogue 714320 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

13 part groups · 4 illustrations

Illustrations

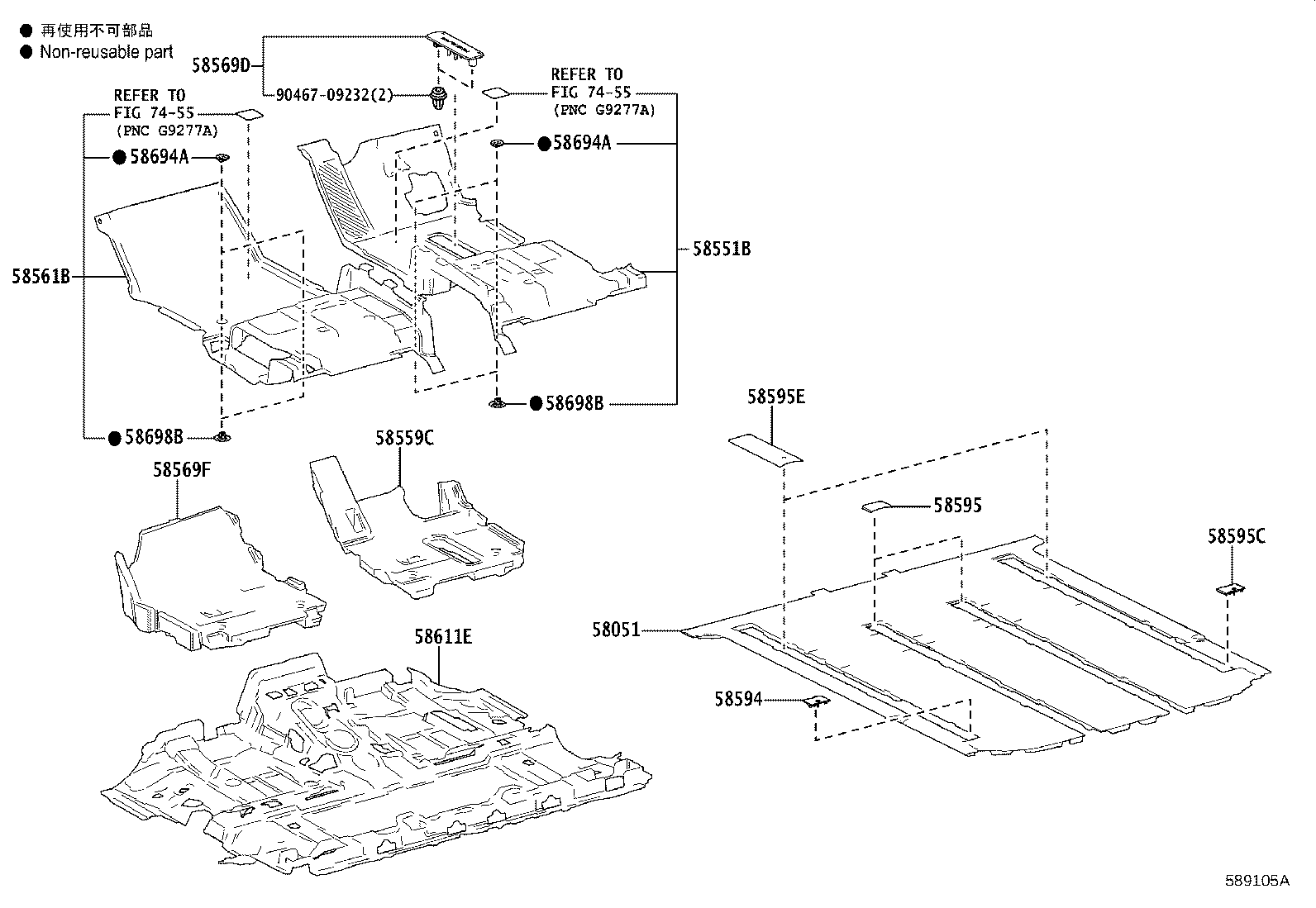

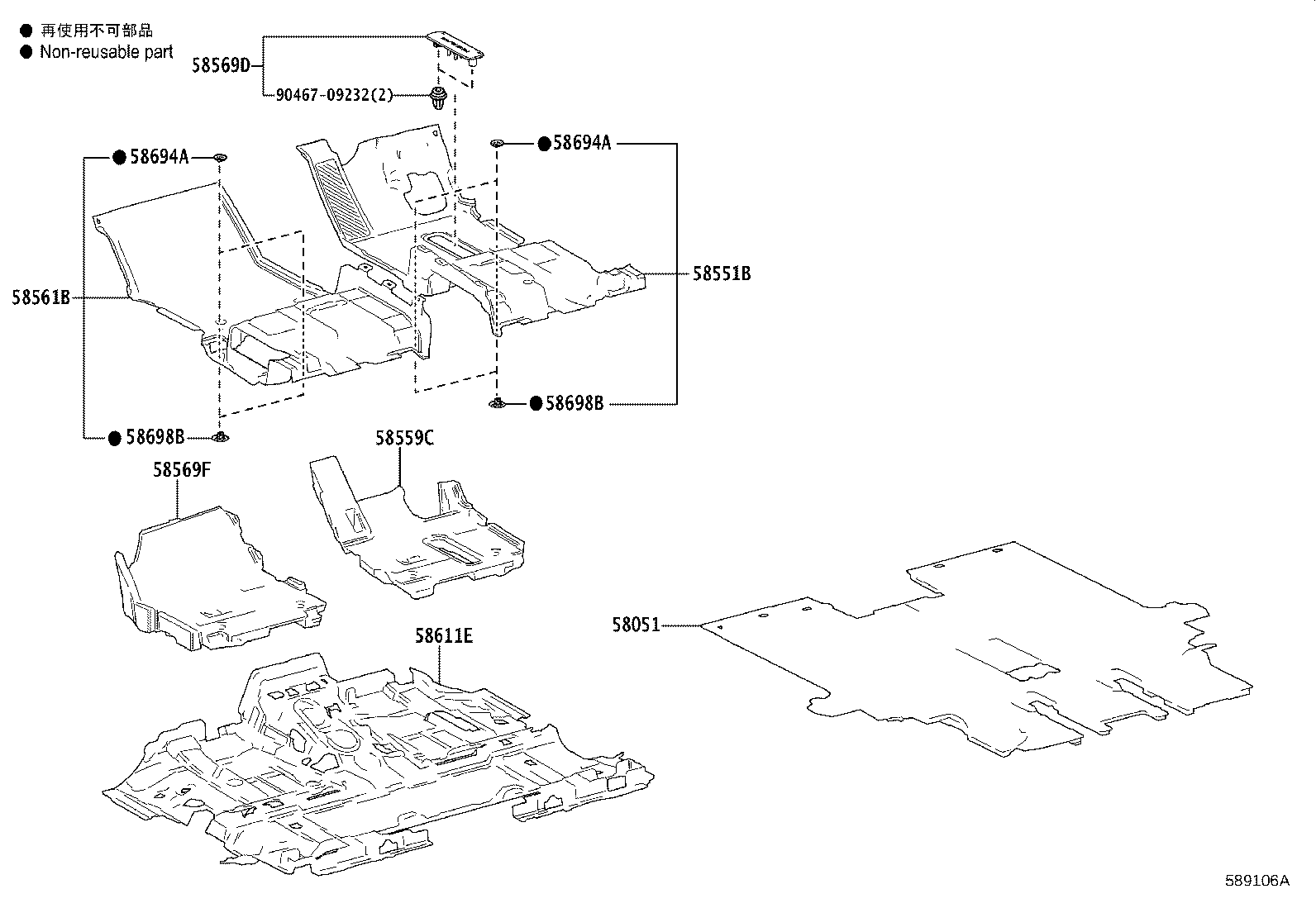

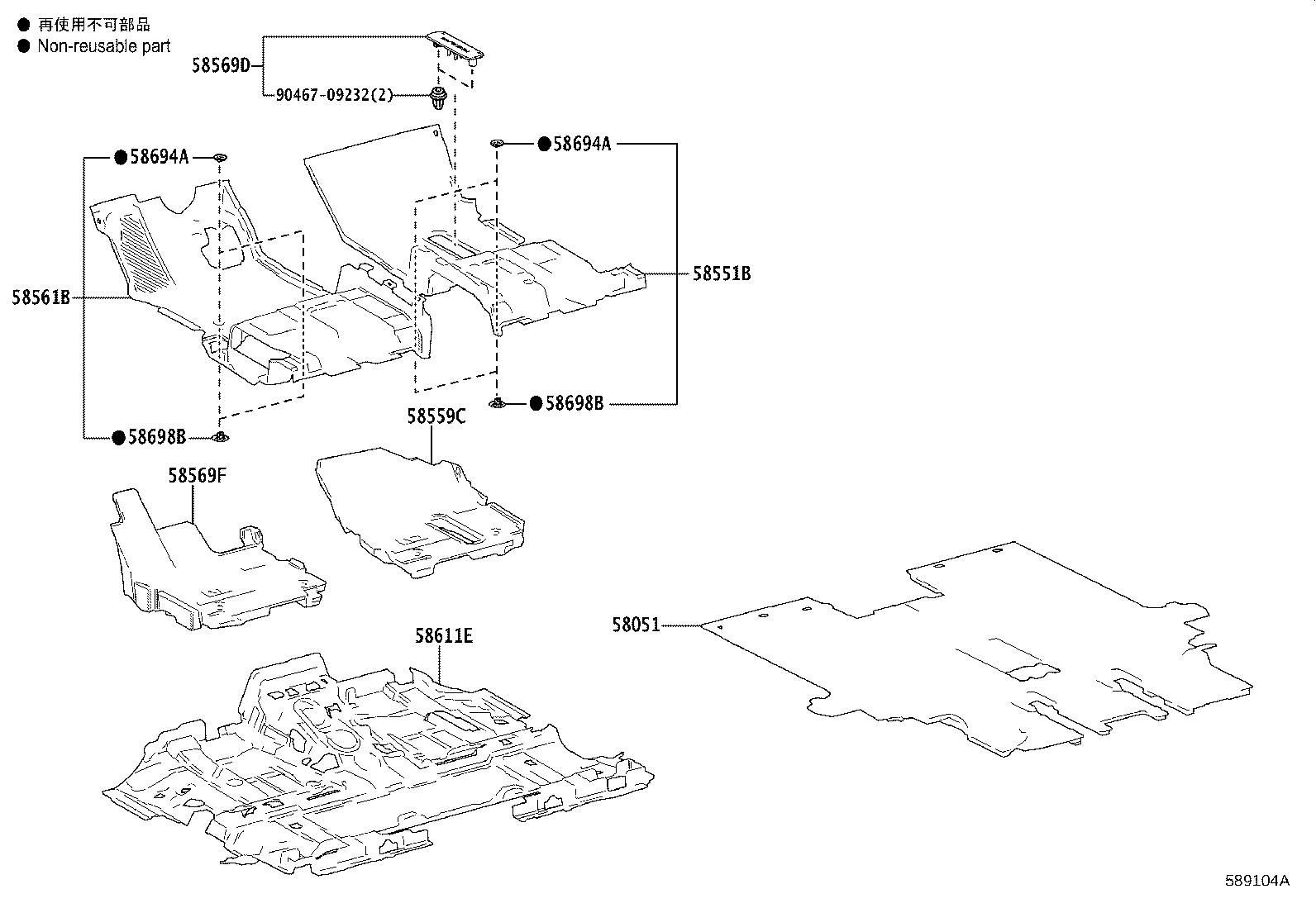

Figure 589103A 589103A 2023-06 → — Figure 589104A 589104A 2023-06 → — Figure 589105A 589105A 2023-06 → — Figure 589106A 589106A 2023-06 → —

Part groups

PNCDescription
58051 Mat Set, Floor
58551B Carpet, Front Floor Side, RH
58559C Pad, Front Floor Side, RH
58561B Carpet, Front Floor Side, LH
58569D Cover, Front Floor Caution Plate
58569F Pad, Front Floor Side, LH
58594 Moulding, Floor Carpet, NO.2
58595 Moulding, Floor Carpet, NO.3
58595C Moulding, Floor Carpet, NO.1
58595E Moulding, Floor Carpet, NO.4
58611E Sheet, Front Floor Silencer
58694A Plate, Mat Set, Upper
58698B Plate, Mat Set, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
