Toyota Lexus LM500H/350H
2023-06 → present · chassis AAWH1#,TAWH15 · catalogue 714320 · Europe
Supported model
Data version 2023-11

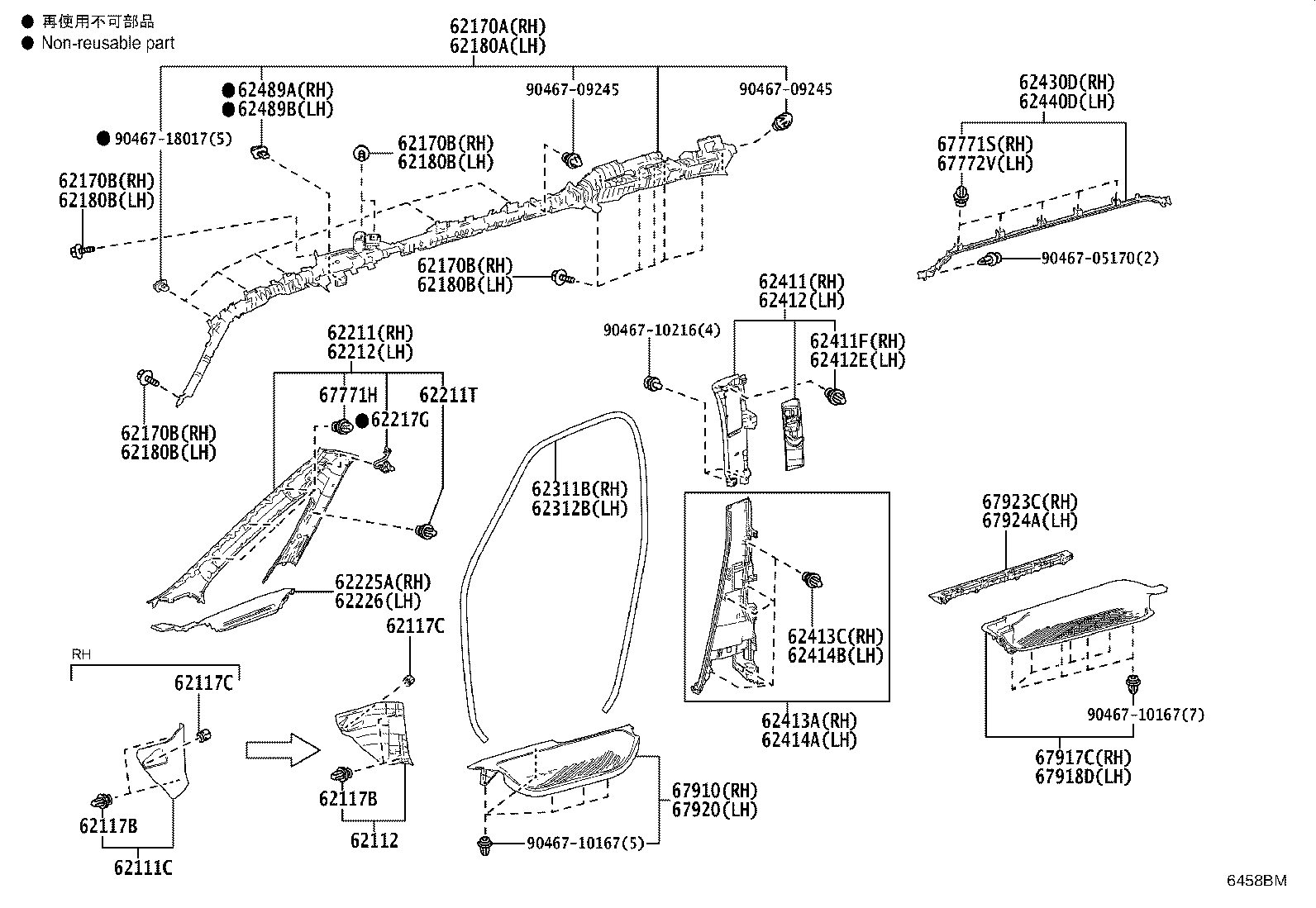

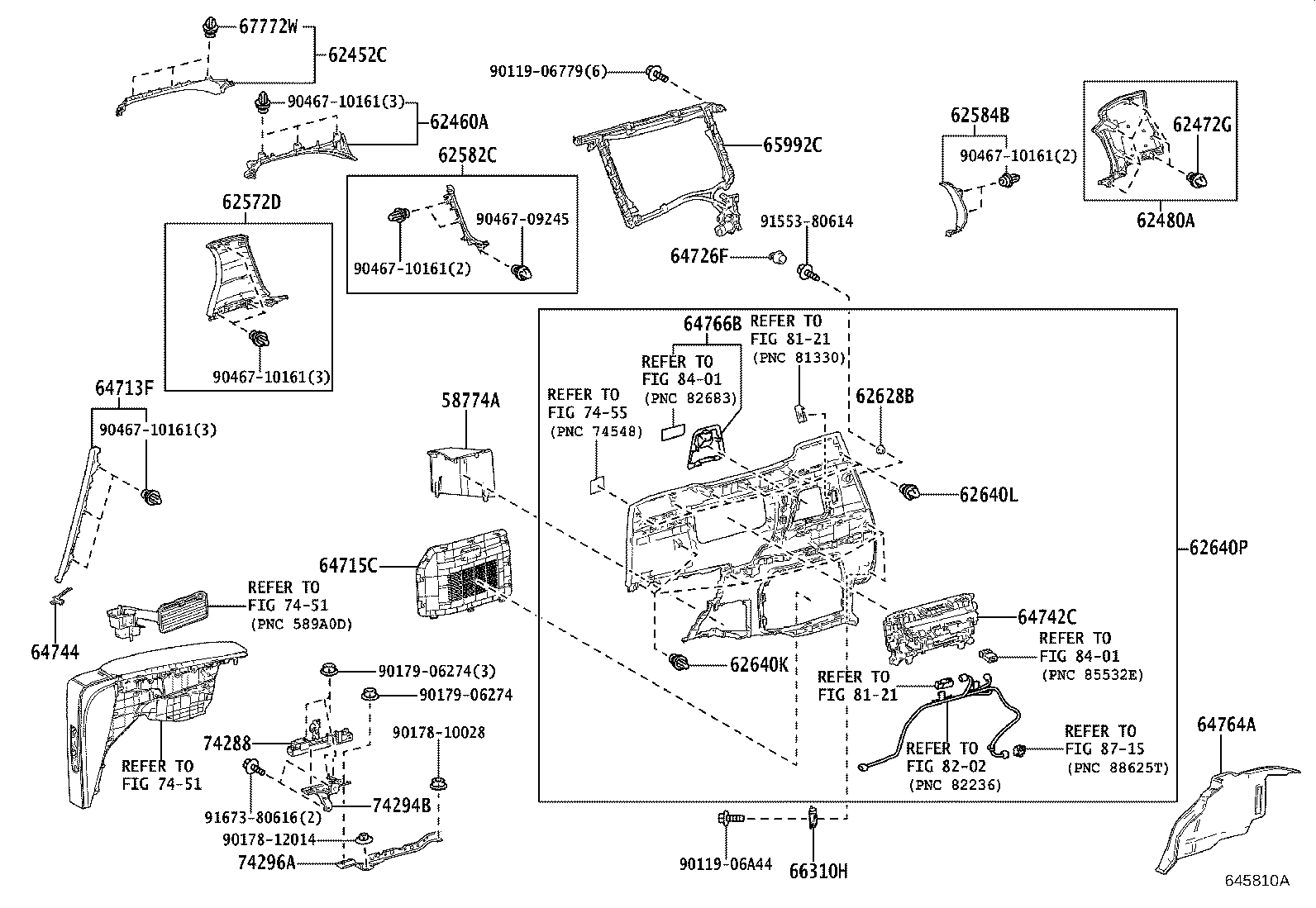

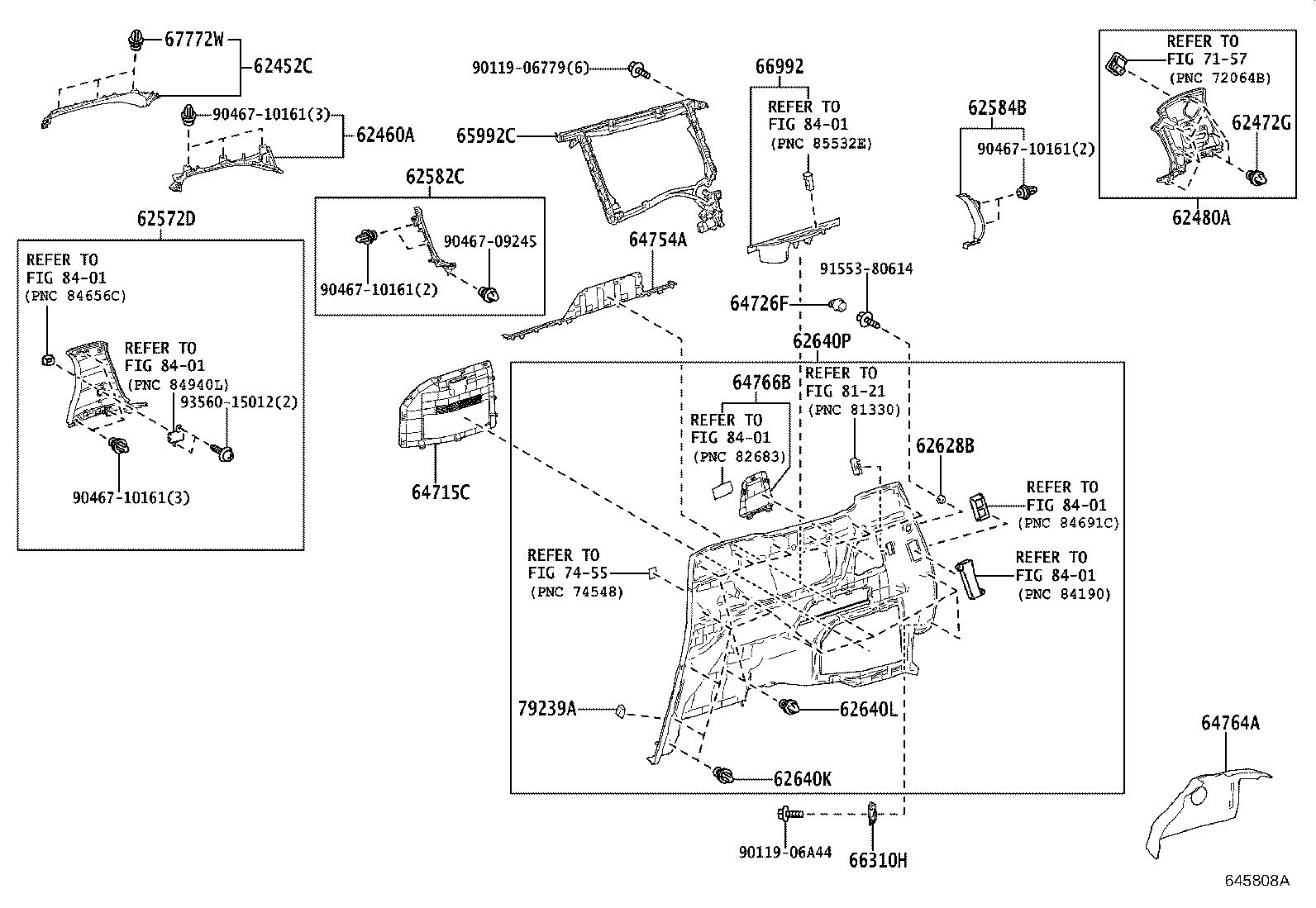

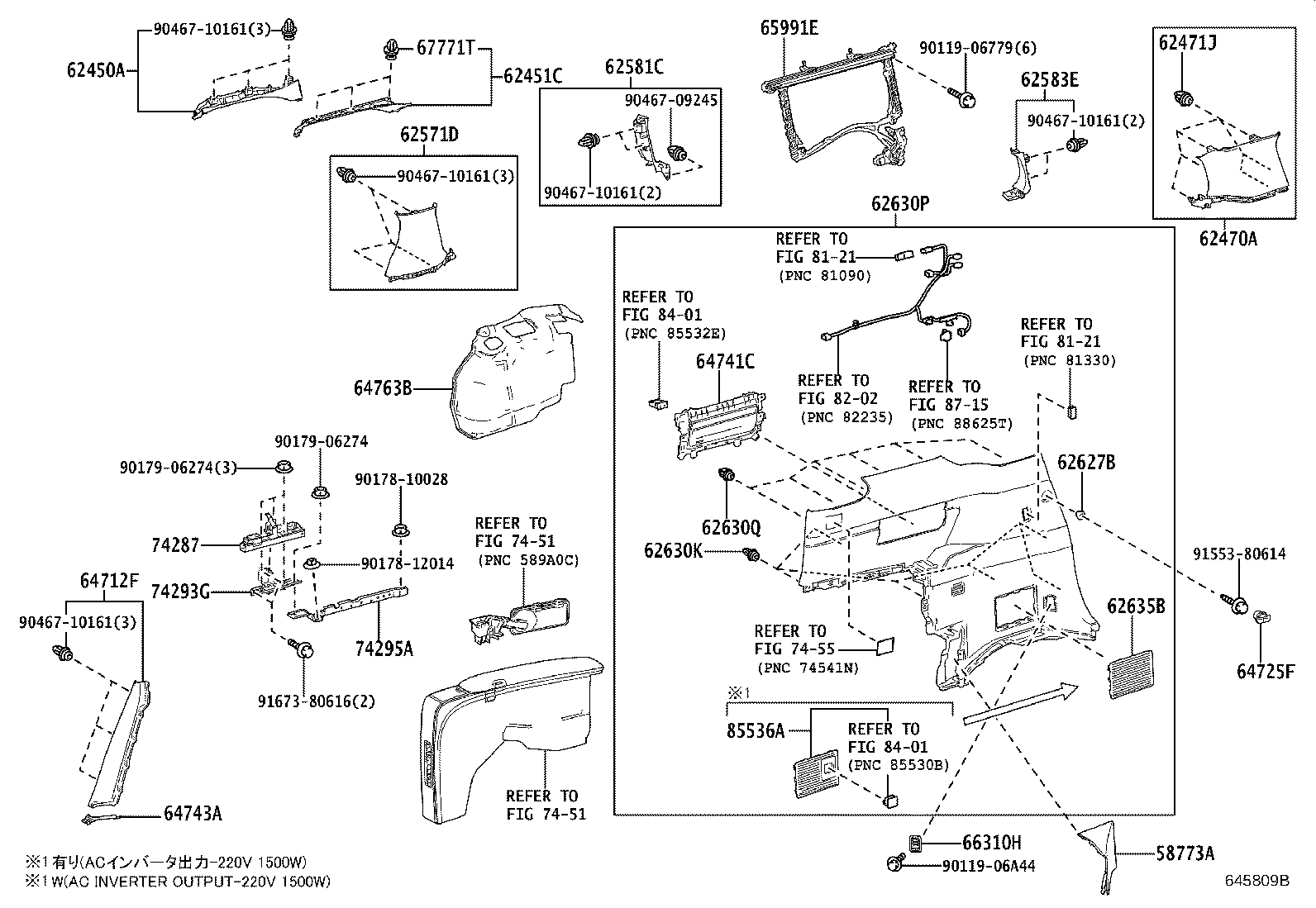

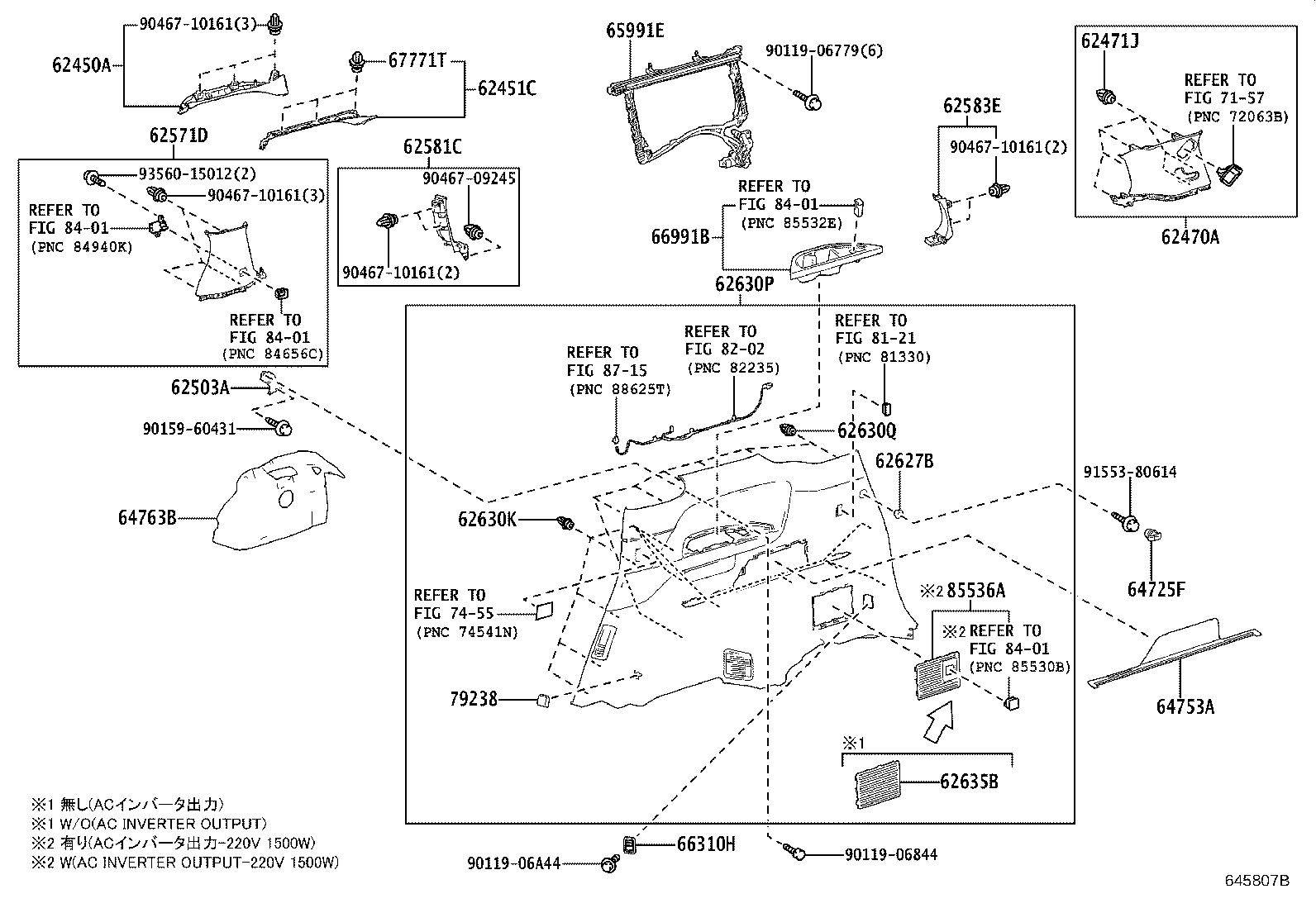

Inside Trim Board
93 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 58773A | Cover, Luggage Compartment Side, RH |
| 58774A | Cover, Luggage Compartment Side, LH |
| 62111C | Board, Cowl Side Trim, RH |
| 62112 | Board, Cowl Side Trim, LH |
| 62117B | Clip, NO.1(FOR COWL SIDE TRIM) |
| 62117C | Clip, NO.2(FOR COWL SIDE TRIM) |
| 62170A | Airbag Assy, Curtain Shield, RH |
| 62170B | Bolt, W/Washer |
| 62180A | Airbag Assy, Curtain Shield, LH |
| 62180B | Bolt, W/Washer |
| 62211 | Garnish, Front Pillar, RH |
| 62211T | Clip(FOR FRONT PILLAR GARNISH) |
| 62212 | Garnish, Front Pillar, LH |
| 62217G | Clip, Front Pillar Garnish |
| 62225A | Garnish, Front Pillar, Lower RH |
| 62226 | Garnish, Front Pillar, Lower LH |
| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62312B | Weatherstrip, Front Door Opening Trim, LH |
| 62411 | Garnish, Center Pillar, RH |
| 62411F | Clip, Center Pillar Garnish, RH |
| 62412 | Garnish, Center Pillar, LH |
| 62412E | Clip, Center Pillar Garnish, LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62413C | Clip (FOR CENTER LOWER GARNISH) |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62414B | Clip (FOR CENTER LOWER GARNISH) |
| 62430D | Garnish Assy, Roof Side Rail, Front RH |
| 62440D | Garnish Assy, Roof Side Rail, Front LH |
| 62450A | Garnish Assy, Roof Side Rail, Rear RH |
| 62451C | Garnish, Roof Side Rail, Rear RH |
| 62452C | Garnish, Roof Side Rail, Rear LH |
| 62460A | Garnish Assy, Roof Side Rail, Rear LH |
| 62470A | Garnish Assy, Roof Side, Inner RH |
| 62471J | Clip (FOR ROOF SIDE GARNISH) |
| 62472G | Clip (FOR ROOF SIDE GARNISH) |
| 62480A | Garnish Assy, Roof Side, Inner LH |
| 62489A | Clip, Roof Side Inner Garnish |
| 62489B | Clip, Roof Side Inner Garnish |
| 62503A | Bracket Sub-assy, Side Trim |
| 62571D | Garnish, Quarter Lock Pillar, RH |
| 62572D | Garnish, Quarter Lock Pillar, LH |
| 62581C | Garnish, Rear Window Side, RH |
| 62582C | Garnish, Rear Window Side, LH |
| 62583E | Garnish, Rear Window Side, NO.2 RH |
| 62584B | Garnish, Rear Window Side, NO.2 LH |
| 62627B | Cover, Quarter Trim |
| 62628B | Cover, Quarter Trim, LH |
| 62630K | Clip(FOR QUARTER TRIM REAR PANEL) |
| 62630P | Panel Assy, Quarter Trim, Rear RH |
| 62630Q | Clip (FOR QUARTER TRIM) |
| 62635B | Cover, Quarter Trim Base, Rear RH |
| 62640K | Clip(FOR QUARTER TRIM REAR PANEL) |
| 62640L | Clip(FOR QUARTER TRIM) |
| 62640P | Panel Assy, Quarter Trim, Rear LH |
| 64712F | Cover, Deck Side Trim, Front RH |
| 64713F | Cover, Deck Side Trim, Front LH |
| 64715C | Cover, Deck Side Trim, LH |
| 64725F | Hook, Luggage Compartment Trim, NO.1 |
| 64726F | Hook, Luggage Compartment Trim, NO.2 |
| 64741C | Box, Deck Side Trim, RH |
| 64742C | Box, Deck Side Trim, LH |
| 64743A | Board, Deck Trim Side, Lower RH |
| 64744 | Board, Deck Trim Side, Lower LH |
| 64753A | Garnish, Deck Side, Rear, RH |
| 64754A | Garnish, Deck Side, Rear, LH |
| 64763B | Silencer, Deck Side Trim, RH |
| 64764A | Silencer, Deck Side Trim, LH |
| 64766B | Cover, Quarter Trim Jack |
| 65991E | Curtain, Rear Window, RH |
| 65992C | Curtain, Rear Window, LH |
| 66310H | Hook Assy, Rope |
| 66991B | Holder, Cup, NO.1 |
| 66992 | Holder, Cup, NO.2 |
| 67771H | Retainer, Door Trim |
| 67771S | Retainer, Roof Side Rail Garnish, Front RH |
| 67771T | Retainer, Roof Side Rail Garnish, Rear RH |
| 67772V | Retainer, Roof Side Rail Garnish, Front LH |
| 67772W | Retainer, Roof Side Rail Garnish, Rear LH |
| 67910 | Plate Assy, Door Scuff, RH |
| 67917C | Plate, Rear Door Scuff, RH |
| 67918D | Plate, Rear Door Scuff, LH |
| 67920 | Plate Assy, Door Scuff, LH |
| 67923C | Clamp, Door Scuff Plate, NO.1 |
| 67924A | Clamp, Door Scuff Plate, NO.2 |
| 74287 | Reinforcement, Quarter Armrest, RH |
| 74288 | Reinforcement, Quarter Armrest, LH |
| 74293G | Bracket, Quarter Armrest, NO.1 RH |
| 74294B | Bracket, Quarter Armrest, NO.1 LH |
| 74295A | Bracket, Quarter Armrest, NO.2 RH |
| 74296A | Bracket, Quarter Armrest, NO.2 LH |
| 79238 | Stopper, NO.2 Seat Leg, RH |
| 79239A | Stopper, NO.2 Seat Leg, LH |
| 85536A | Bezel, Power Outlet Socket |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
