Toyota Lexus LM500H/350H
2023-06 → present · chassis AAWH1#,TAWH15 · catalogue 714320 · Europe
Supported model
Data version 2023-11

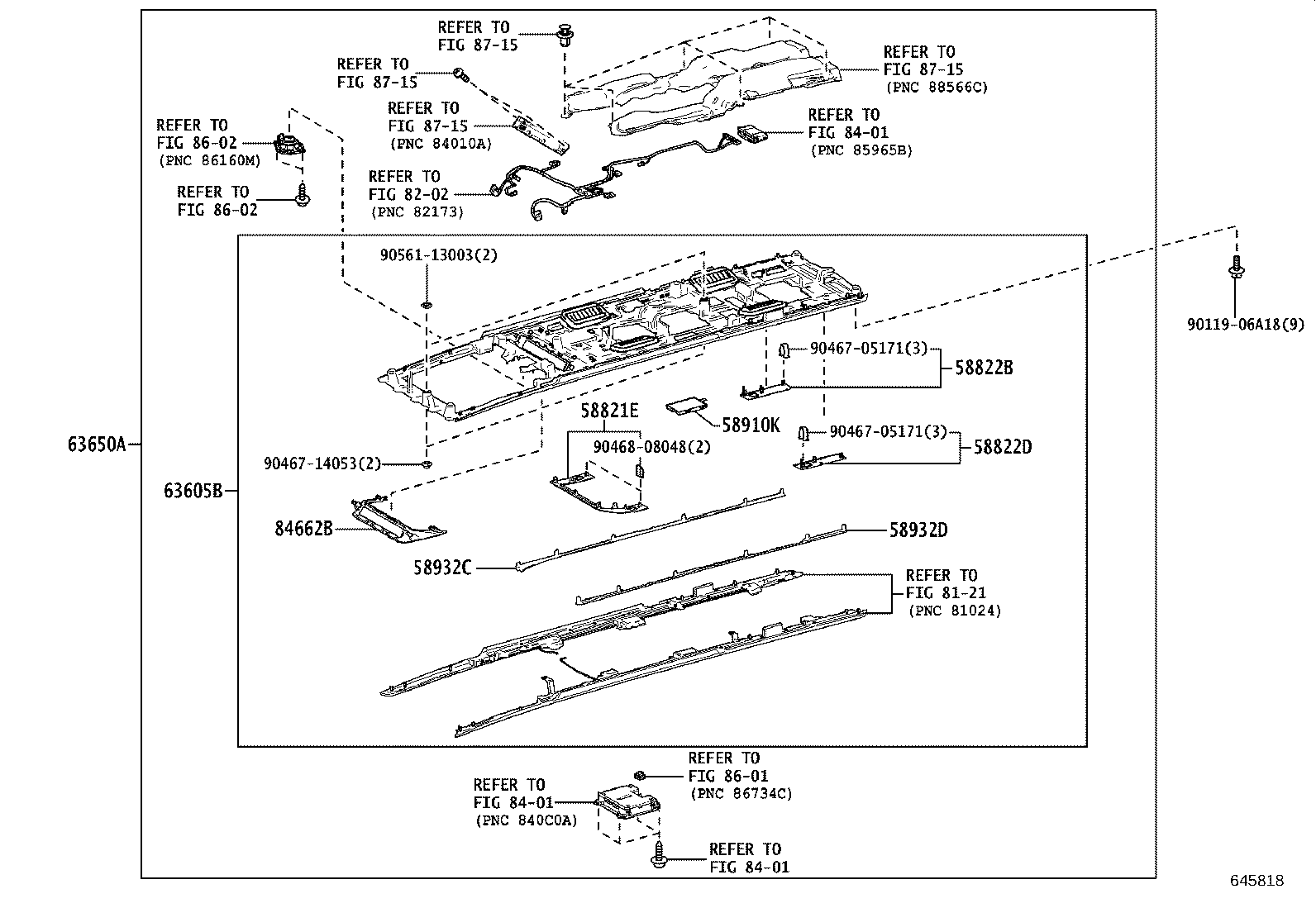

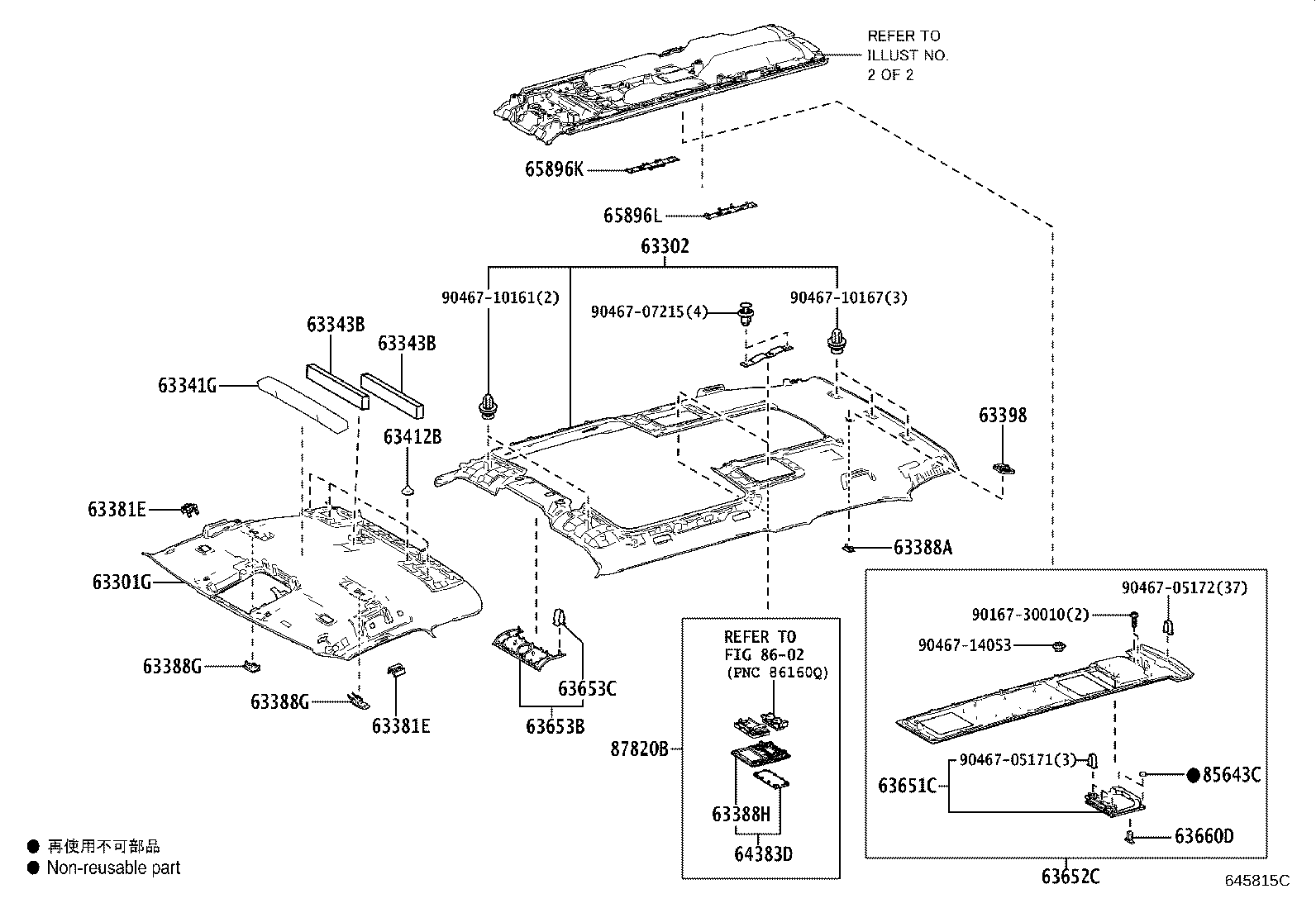

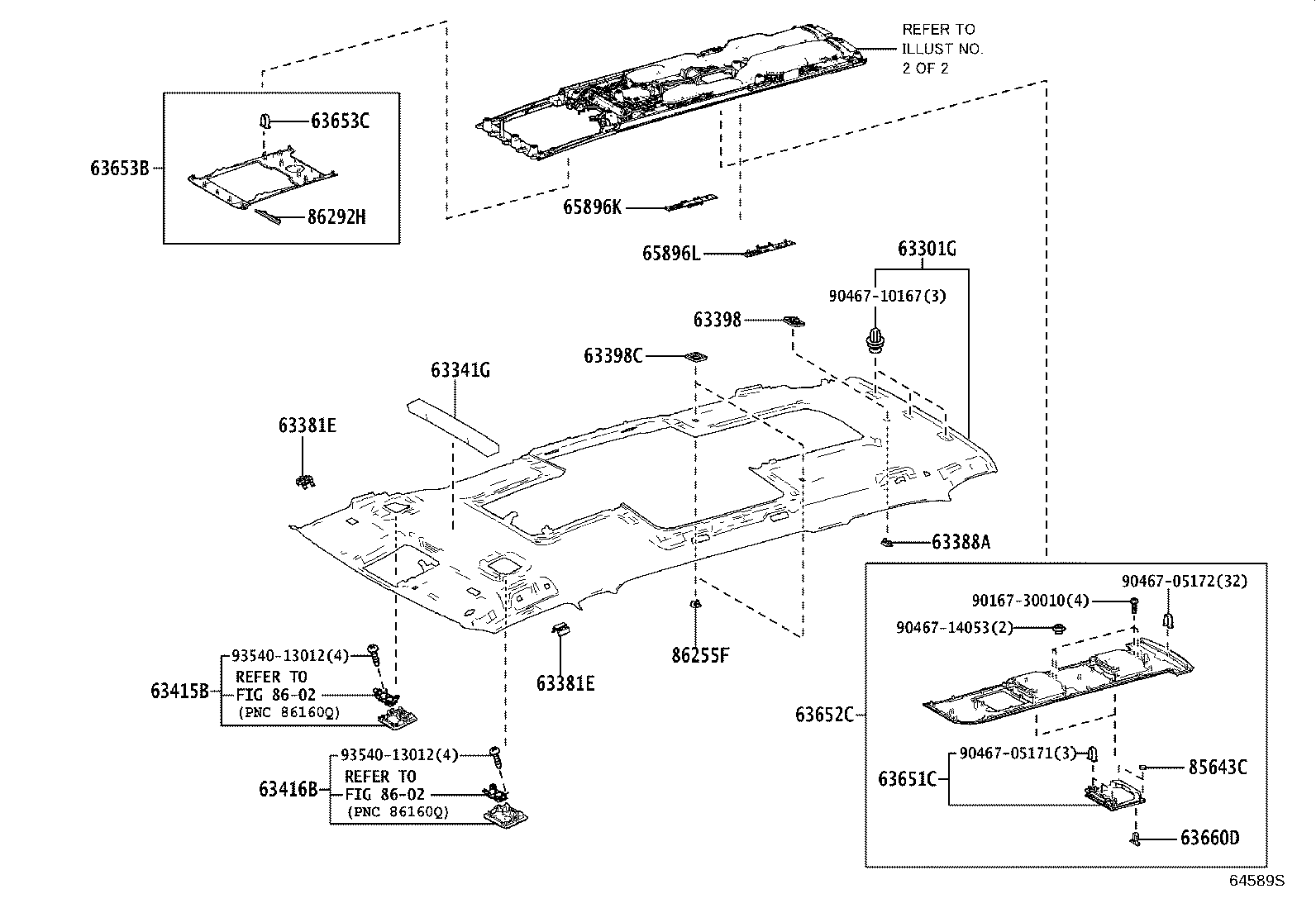

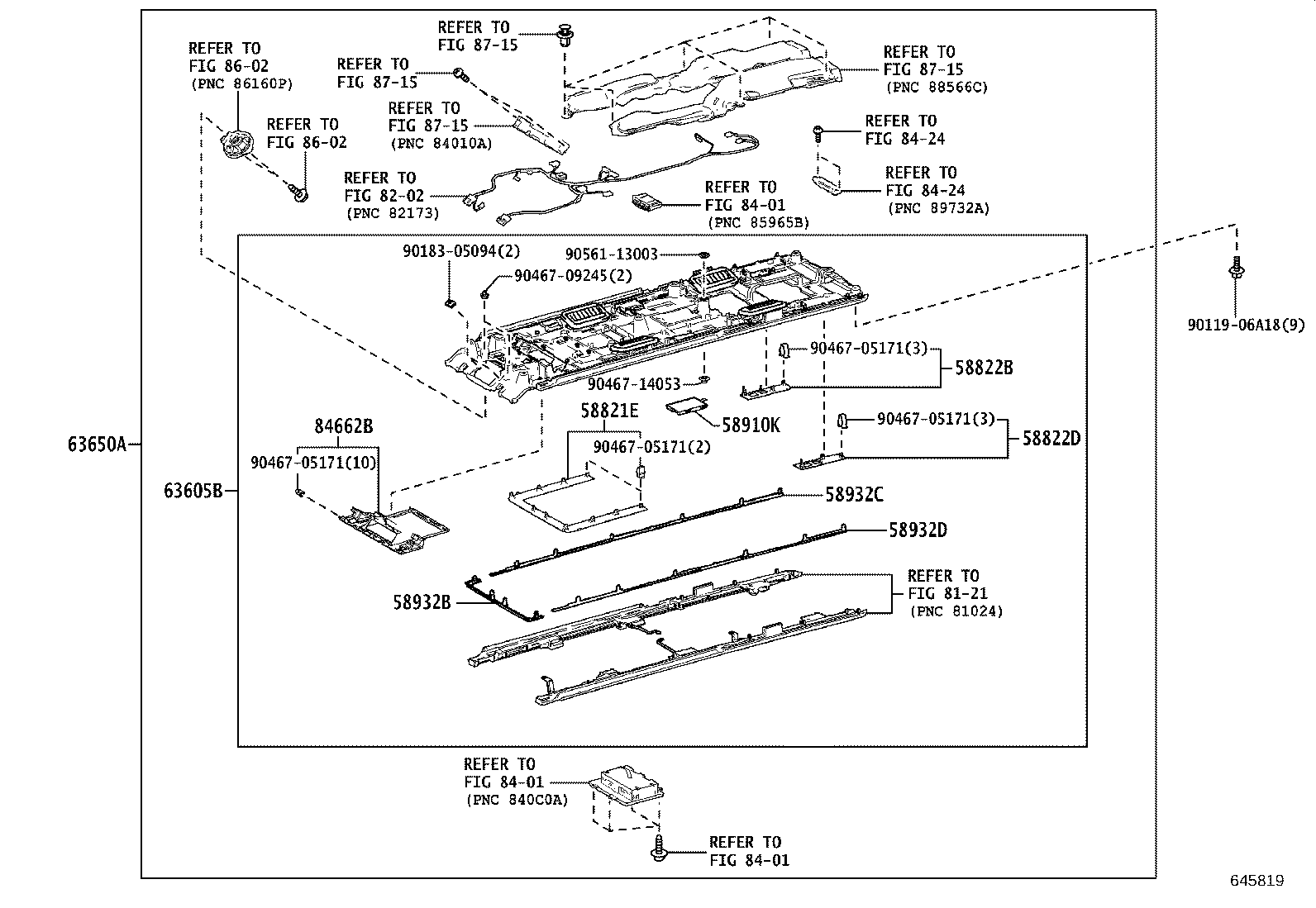

Roof Headlining & Silencer Pad
35 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 58821E | Panel, Console, Upper Front |
| 58822B | Panel, Console, Upper Rear RH |
| 58822D | Panel, Console, Upper Rear LH |
| 58910K | Box Assy |
| 58932B | Garnish, Rear Console Box |
| 58932C | Garnish, Rear Console Box, RH |
| 58932D | Garnish, Rear Console Box, LH |
| 63301G | Headlining Sub-assy, Roof, Front |
| 63302 | Headlining Sub-assy, Roof, Rear |
| 63341G | Pad, Roof Silencer |
| 63343B | Pad, Roof Silencer, Rear |
| 63381E | Retainer, Roof Headlining Trim, Front |
| 63388A | Cover, Roof Headlining Holder |
| 63388G | Cover, Roof Headlining Holder, NO.2 |
| 63388H | Cover, Roof Headlining Holder, NO.3 |
| 63398 | Plate, Roof Headlining Support |
| 63398C | Plate, Roof Headlining Support, NO.2 |
| 63412B | Retainer, Roof Console |
| 63415B | Grille, Roof Speaker, RH |
| 63416B | Grille, Roof Speaker, LH |
| 63605B | Box Sub-assy, Roof Console |
| 63650A | Box Assy, Roof Console |
| 63651C | Box, Roof Console |
| 63652C | Cover, Roof Console Box |
| 63653B | Cover, Roof Console Box, Front |
| 63653C | Clip (FOR ROOF CONSOLE BOX COVER) |
| 63660D | Lock Assy, Roof Console |
| 64383D | Grille, Rear Speaker |
| 65896K | Cap, Cover Top Set Bolt, RH |
| 65896L | Cap, Cover Top Set Bolt, LH |
| 84662B | Panel, Cooler Control Switch |
| 85643C | Cushion, Stopper |
| 86255F | Case, Microphone |
| 86292H | Cover, Television Set |
| 87820B | Mirror Assy, Vanity |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
