Toyota Lexus LM500H/350H
2023-06 → present · chassis AAWH1#,TAWH15 · catalogue 714320 · Europe
Supported model
Data version 2023-11

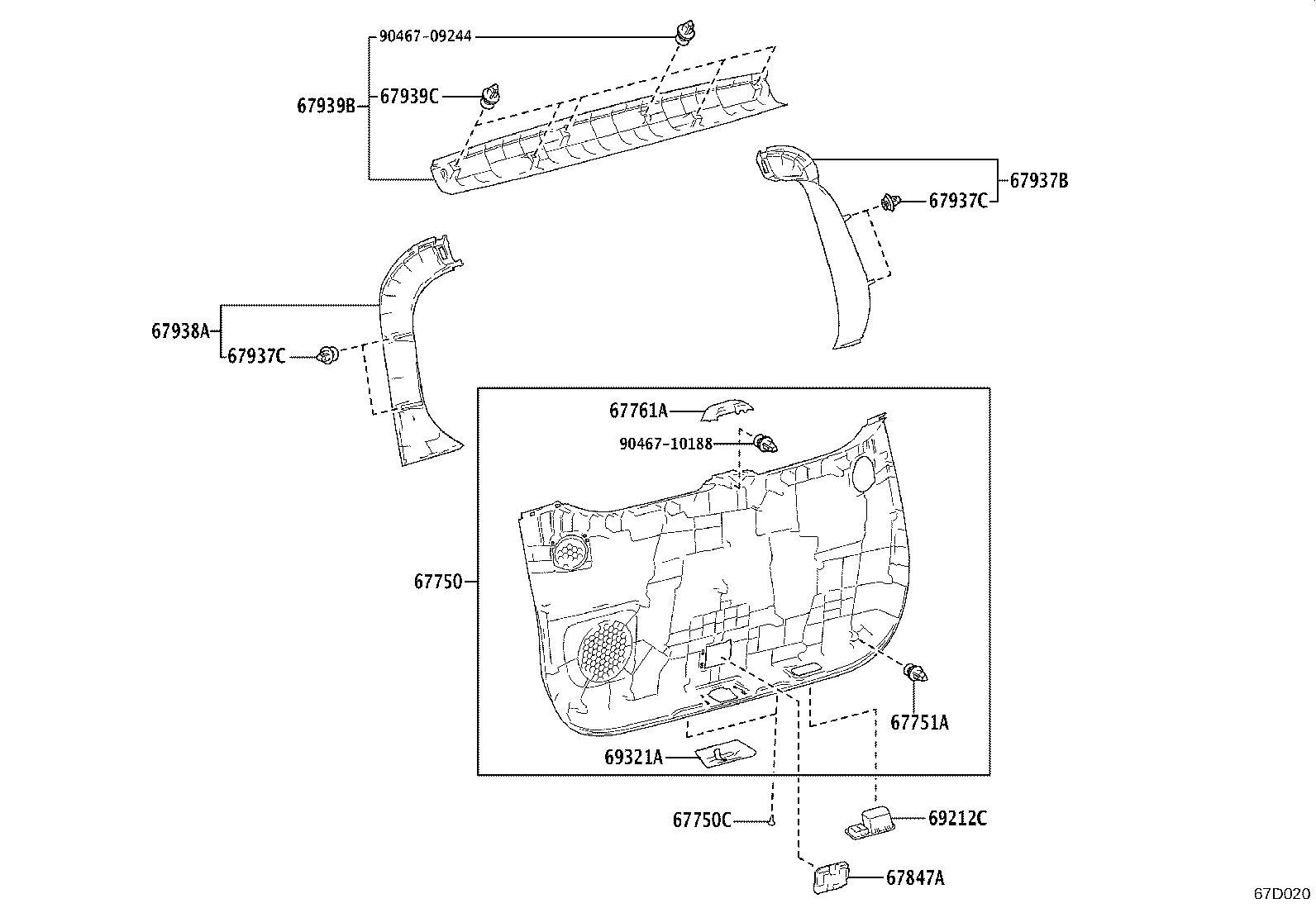

Back Door Panel & Glass
51 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52599A | Stopper, Rear Bumper, Upper |
| 64455A | Cushion, Back Door Side, RH |
| 64455B | Clip, Back Door Side Cushion |
| 64456A | Cushion, Back Door Side, LH |
| 64457C | Cover, Back Door Stopper Cushion, RH |
| 64457D | Clip, Back Door Stopper Cushion Cover |
| 64458C | Cover, Back Door Stopper Cushion, LH |
| 64818C | Spacer, Back Window Glass, NO.1 |
| 64819C | Spacer, Back Door Glass, NO.2 |
| 64827A | Clip, Back Window Glass, RH |
| 64828 | Clip, Back Window Glass, LH |
| 67005 | Panel Sub-assy, Back Door |
| 67005B | Cushion(FOR BACK DOOR PANEL) |
| 67281B | Stopper, Back Door, Lower |
| 67293C | Cushion, Back Door Stopper |
| 67372A | Weight, Back Door |
| 67750 | Board Assy, Back Door Trim |
| 67750C | Clip(FOR BACK DOOR TRIM BOARD) |
| 67751A | Clip(FOR BACK DOOR TRIM BOARD) |
| 67761A | Cover, Back Door Trim |
| 67837L | Seal, Door Dust Proof |
| 67837N | Seal, Back Door Dust Proof |
| 67847A | Cover, Back Door Service Hole |
| 67881A | Weatherstrip, Back Door |
| 67937B | Garnish, Back Door Side, RH |
| 67937C | Clip(FOR BACK DOOR SIDE GARNISH) |
| 67938A | Garnish, Back Door Side, LH |
| 67939B | Garnish, Back Door, Center |
| 67939C | Clip(FOR BACK DOOR CENTER GARNISH) |
| 68131 | Glass, Back Door |
| 68294B | Dam, Back Door Glass Adhesive |
| 69212C | Handle, Back Door Inside |
| 69321A | Cover, Back Door Lock |
| 75126A | Plate, Rear License Plate Bracket Support |
| 75129C | Cushion, Rear Licence Plate |
| 75573C | Moulding, Back Window, Outside |
| 76801D | Garnish Sub-assy, Back Door, Outside |
| 76802E | Garnish Sub-assy, Back Door, Outside Lower |
| 76811A | Garnish, Back Door, Outside |
| 76812A | Garnish, Back Door, Outside NO.2 |
| 76813C | Garnish, Back Door, Outside NO.3 |
| 76817 | Clip, Back Door Outside Garnish |
| 76821B | Protector, Back Door Garnish Side, RH |
| 76822B | Protector, Back Door Garnish Side, LH |
| 76826A | Retainer, Back Door Garnish, NO.1 |
| 76827A | Retainer, Back Door Garnish, NO.2 |
| 76828A | Retainer, Back Door Garnish, NO.3 |
| 76831A | Cover, Back Door Finish Panel, RH |
| 76832A | Cover, Back Door Finish Panel, LH |
| 76835A | Protector, Back Door Finish Panel, NO.1 |
| 76839C | Cover, Back Door Garnish |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
