Toyota Lexus LM500H/350H

2023-06 → present · chassis AAWH1#,TAWH15 · catalogue 714320 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

30 part groups · 4 illustrations

Illustrations

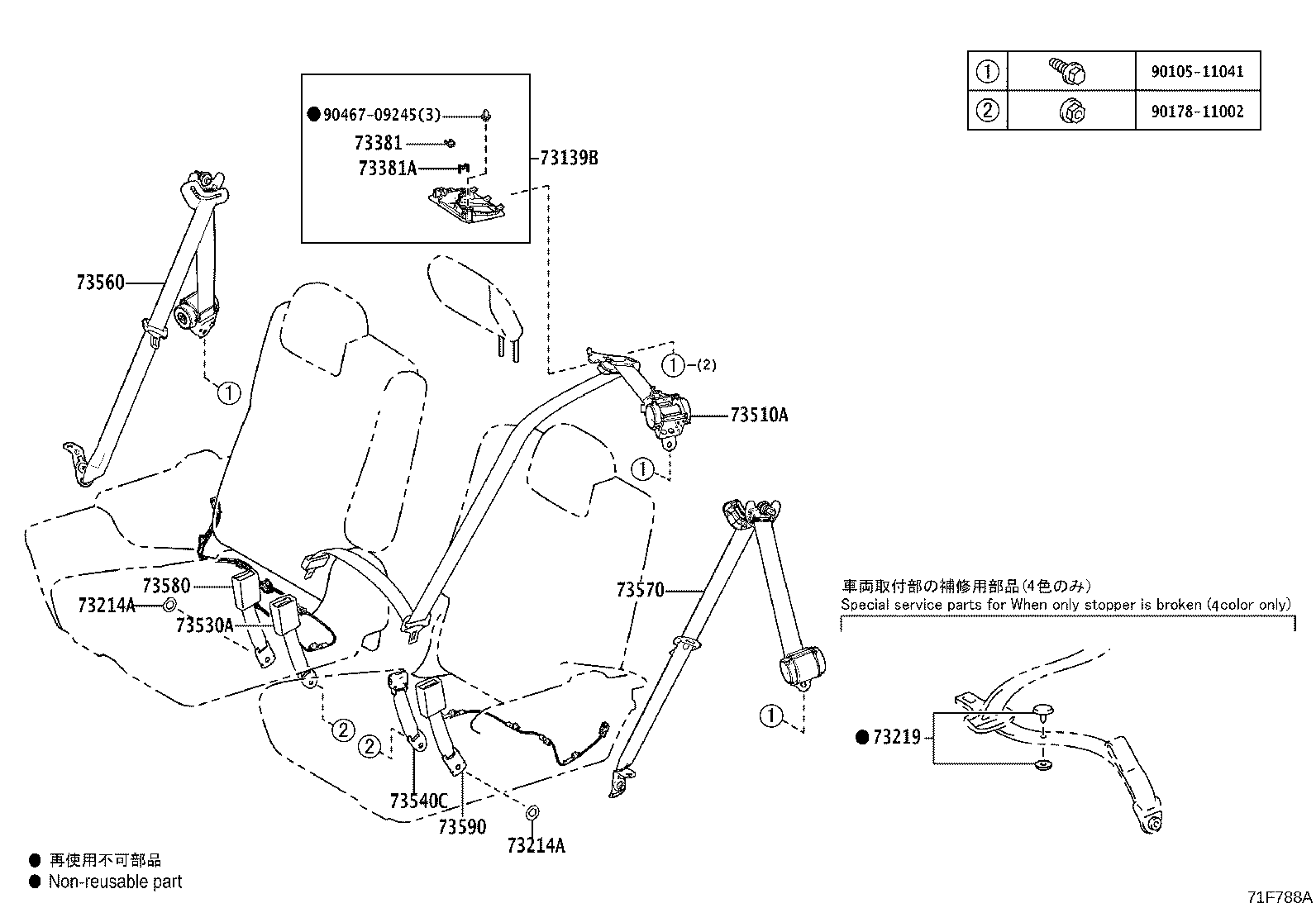

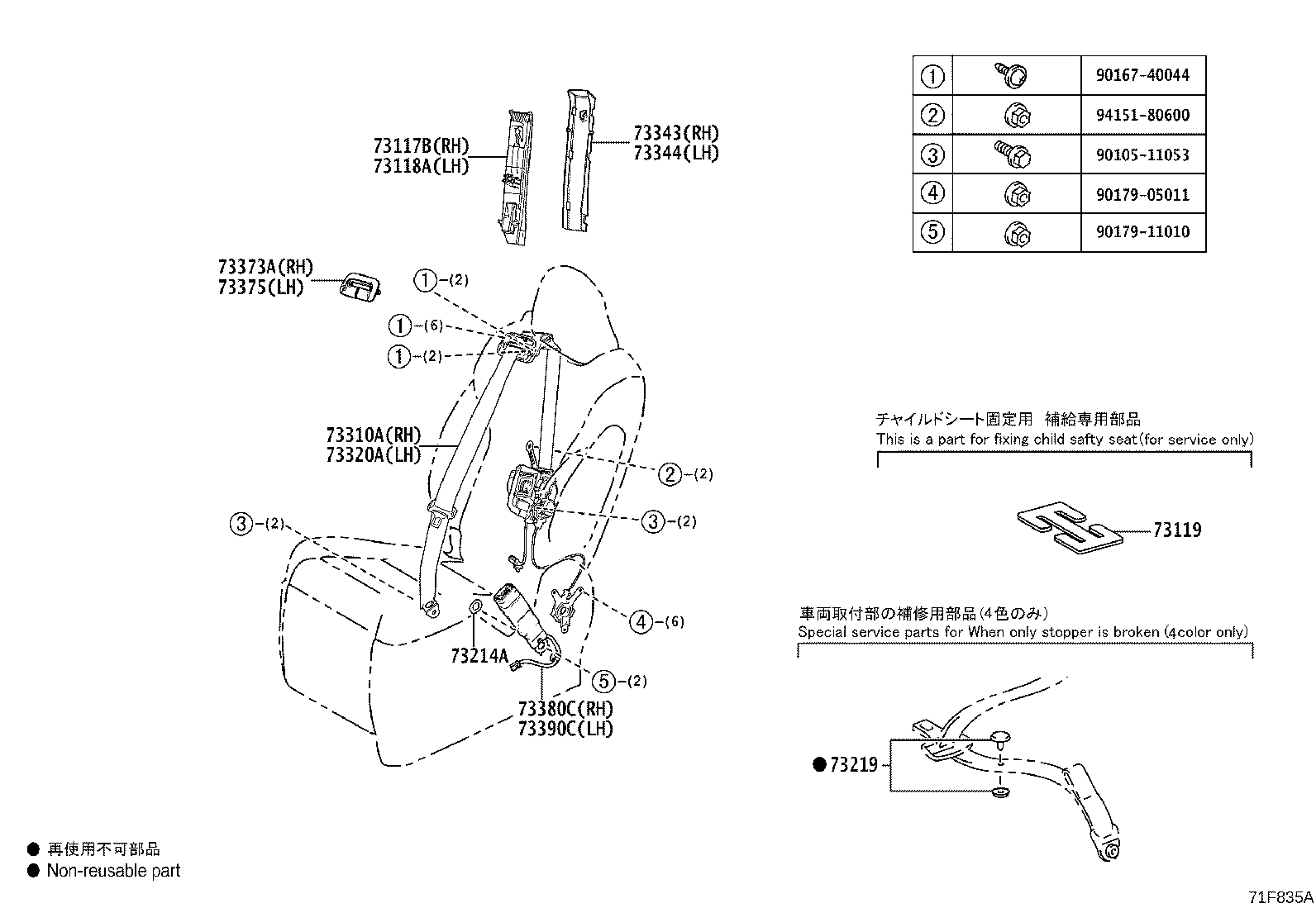

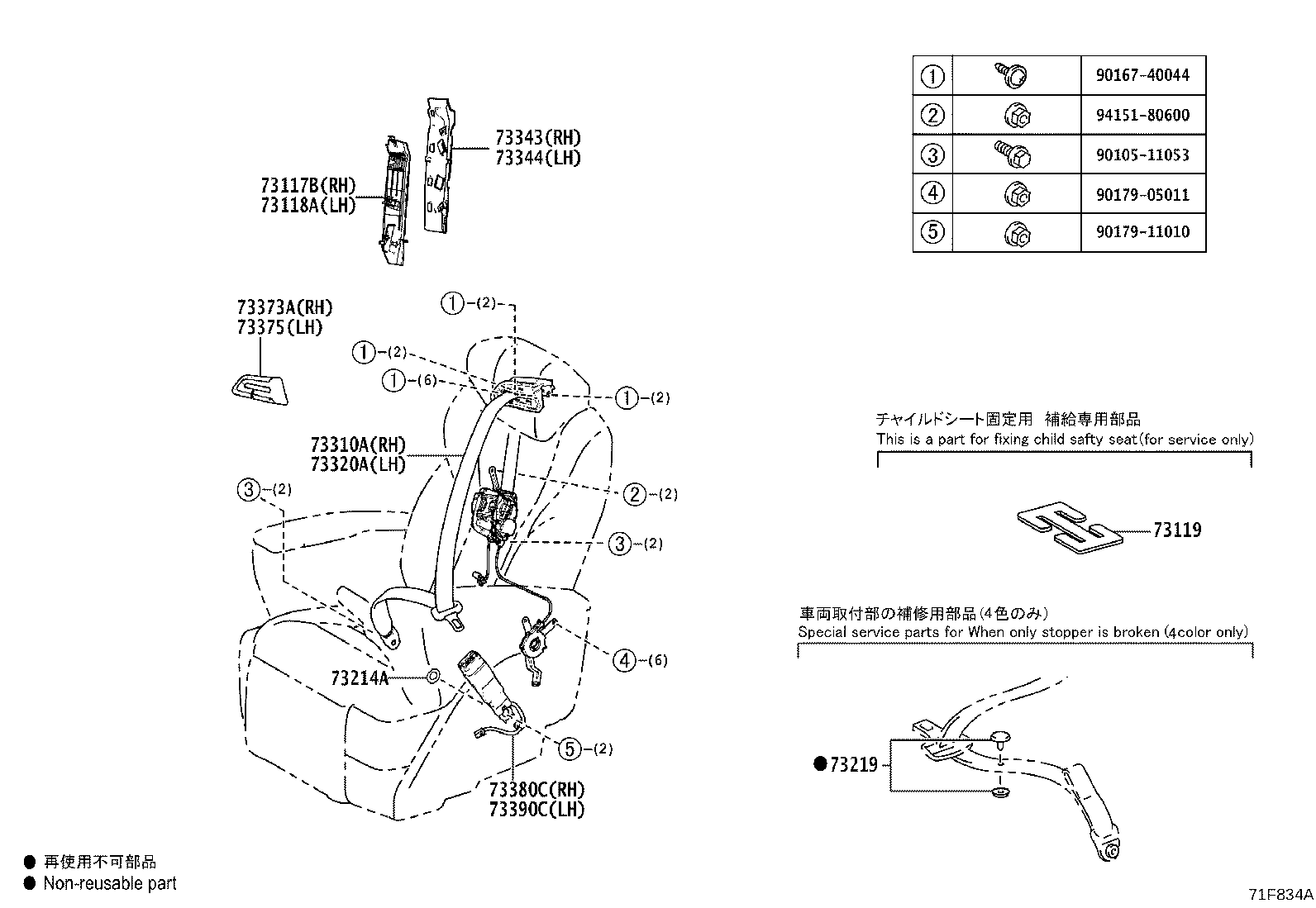

Figure 71F785A 71F785A 2023-06 → — Figure 71F834A 71F834A 2023-06 → — Figure 71F835A 71F835A 2023-06 → — Figure 71F788A 71F788A 2023-06 → —

Part groups

PNCDescription
73117B Protector, Seat Belt Webbing, RH
73118A Protector, Seat Belt Webbing, LH
73119 Plate, Seat Belt Webbing Clip
73139B Cover, Seat Belt Anchor
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73214 Plate, Front Seat Belt Anchor
73214A Plate, Front Seat Belt Anchor, NO.2
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73233 Cover, Lap Belt Outer Anchor
73240 Belt Assy, Front Seat Inner, LH
73310A Belt Assy, NO.1 Seat 3 Point Type, RH
73320A Belt Assy, NO.1 Seat 3 Point Type, LH
73343 Guide, Rear Seat Shoulder Belt, RH
73344 Guide, Rear Seat Shoulder Belt, LH
73373A Cover, Rear Seat Shoulder Belt, RH
73375 Cover, Rear Seat Shoulder Belt, LH
73380C Belt Assy, Rear NO.1 Seat, Inner RH
73381 Holder, Rear Seat Belt
73381A Holder, Rear Seat Belt NO.2
73390C Belt Assy, Rear NO.1 Seat, Inner LH
73510A Belt Assy, Rear NO.2 Seat, 3 Point Type
73530A Belt Assy, Rear NO.2 Seat Lap Type, RH
73540C Belt Assy, Rear NO.2 Seat Lap Type
73560 Belt Assy, Rear NO.2 Seat, Outer RH
73570 Belt Assy, Rear NO.2 Seat, Outer LH
73580 Belt Assy, Rear NO.2 Seat, Inner RH
73590 Belt Assy, Rear NO.2 Seat, Inner LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
