Toyota Lexus LM500H/350H

2023-06 → present · chassis AAWH1#,TAWH15 · catalogue 714320 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

85 part groups · 9 illustrations

Illustrations

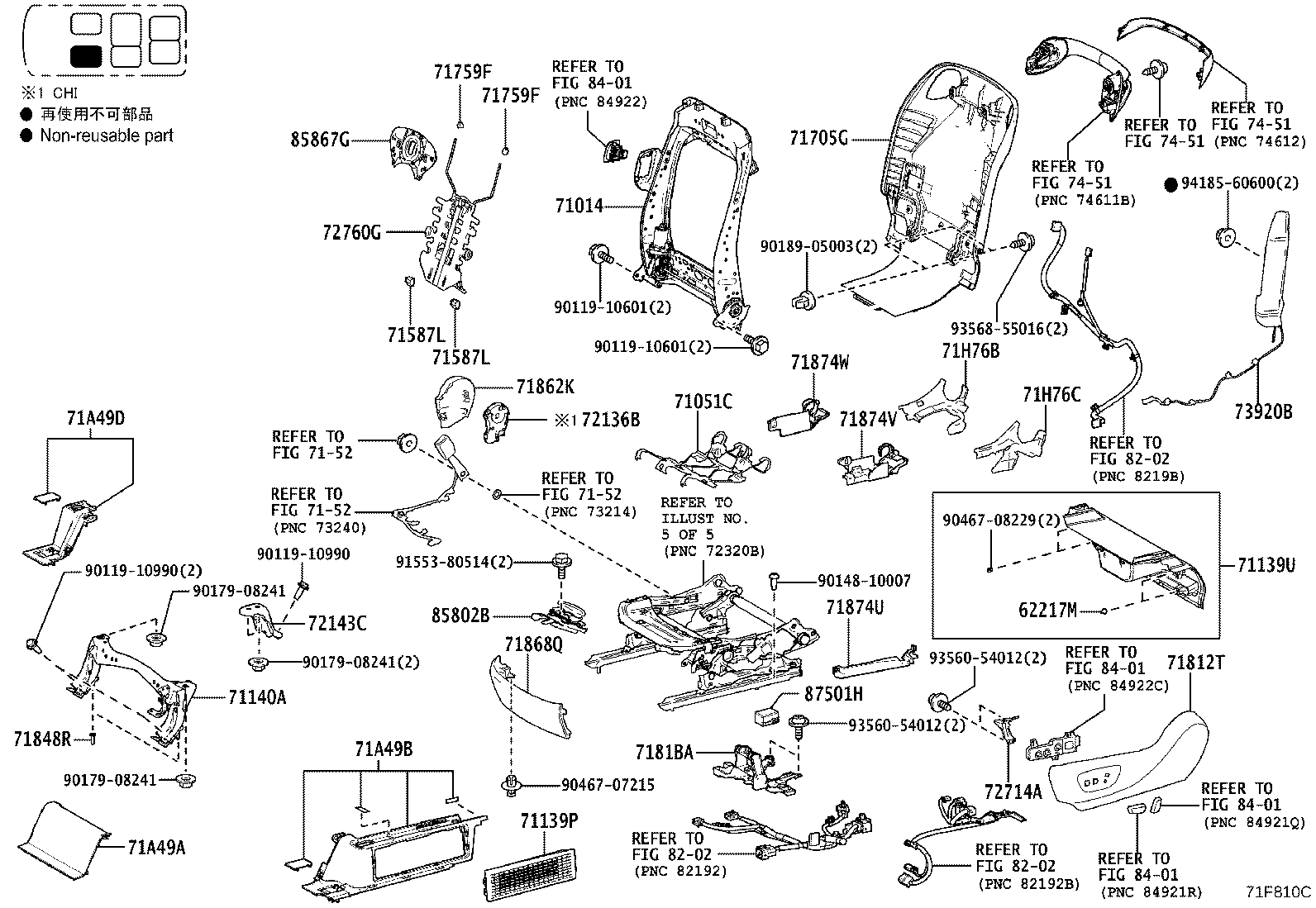

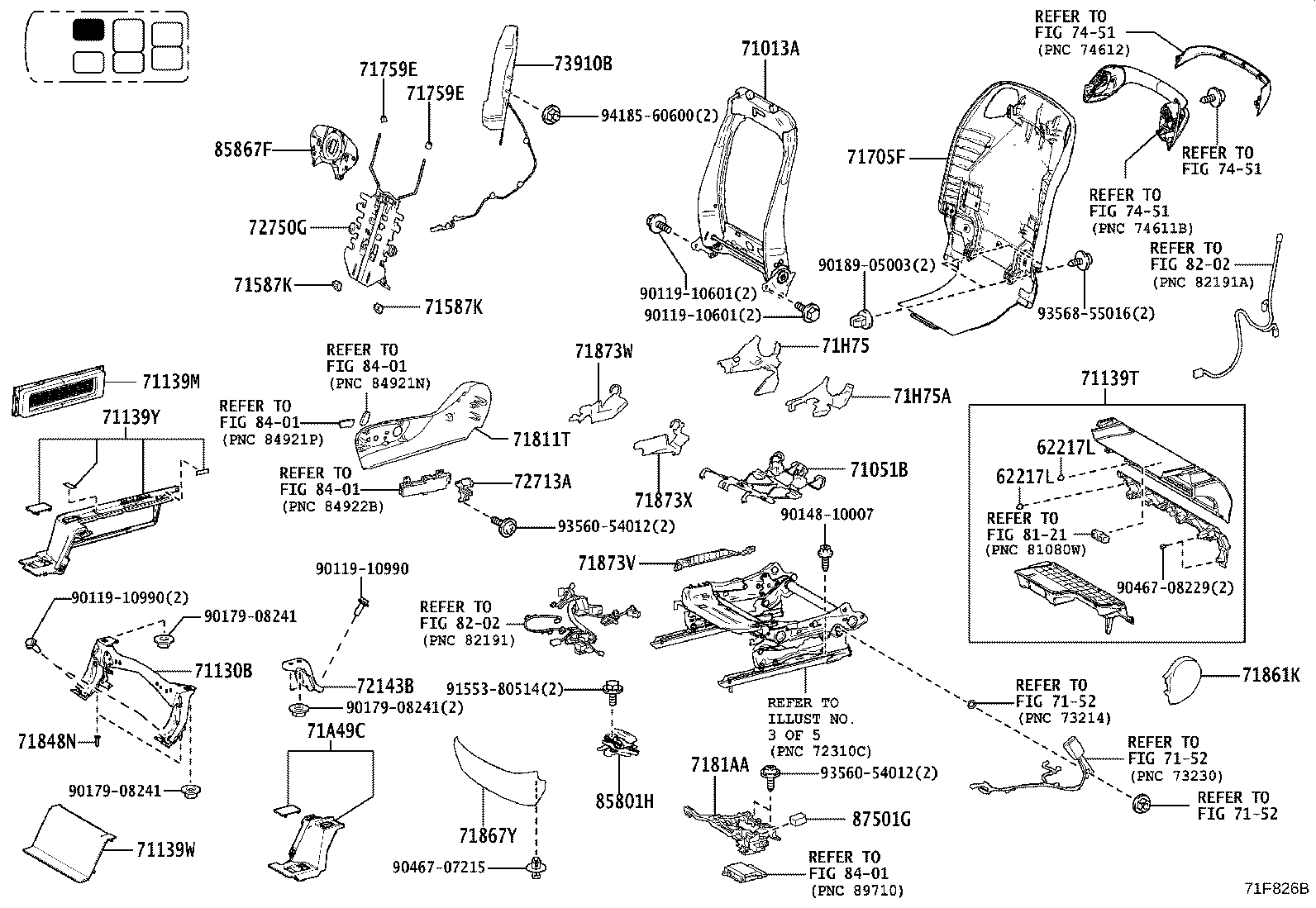

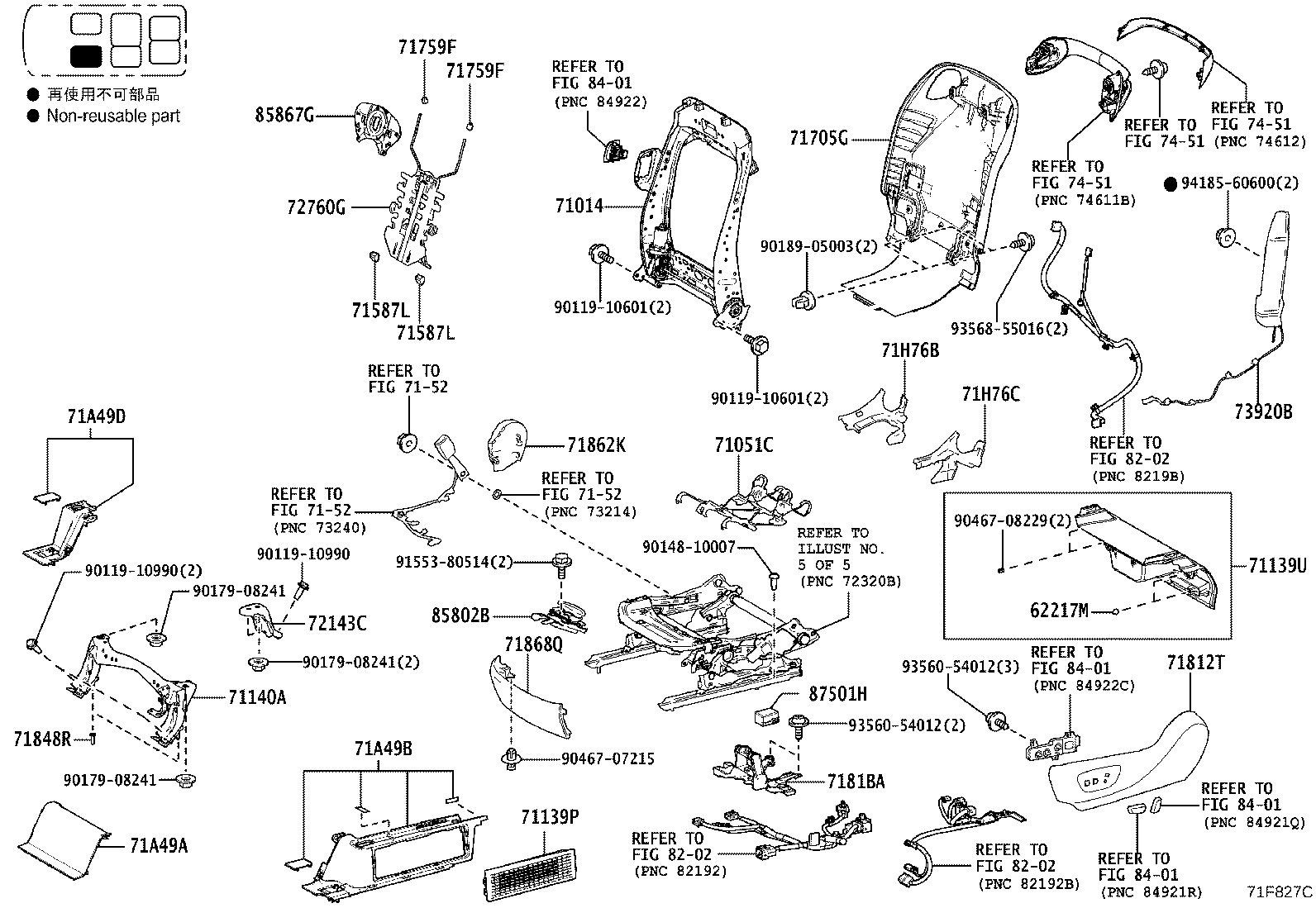

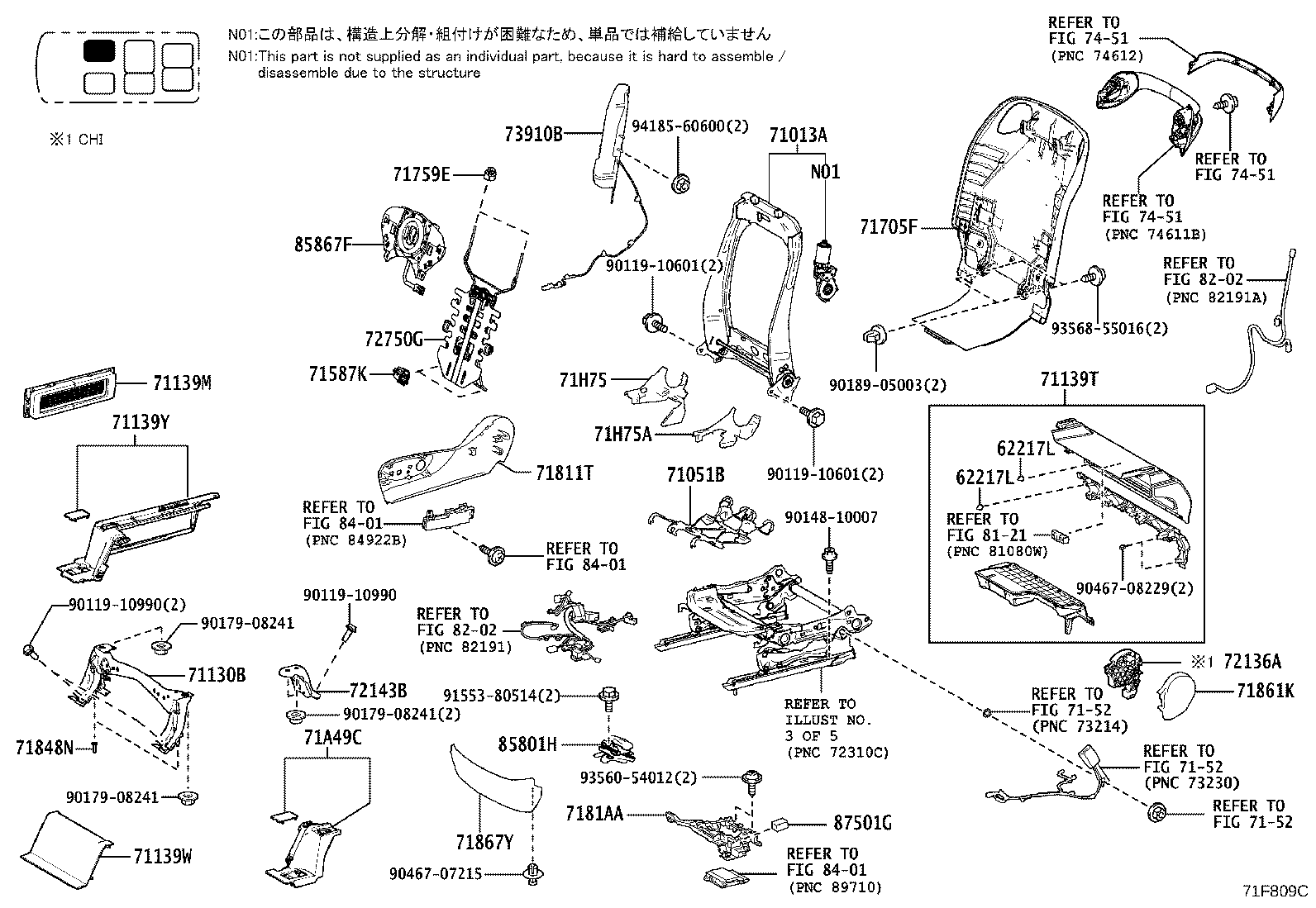

Figure 71F808B 71F808B 2023-06 → — Figure 71F809C 71F809C 2023-06 → — Figure 71F826B 71F826B 2023-06 → — Figure 71F95Y 71F95Y 2023-06 → — Figure 71F95Z 71F95Z 2023-06 → — Figure 71F810C 71F810C 2023-06 → — Figure 71F827C 71F827C 2023-06 → — Figure 71F960 71F960 2023-06 → — Figure 71F961 71F961 2023-06 → —

Part groups

PNCDescription
62217L Clip, Front Seat Leg Cover, RH
62217M Clip, Front Seat Leg Cover, LH
71013A Frame Sub-assy, Front Seatback, RH
71014 Frame Sub-assy, Front Seatback, LH
71051B Spring Sub-assy, Front Seat Cushion, RH
71051C Spring Sub-assy, Front Seat Cushion, LH
71071 Cover Sub-assy, Front Seat Cushion, RH
71072 Cover Sub-assy, Front Seat Cushion, LH
71073A Cover Sub-assy, Front Seatback, RH
71074A Cover Sub-assy, Front Seatback, LH
71130B Leg Assy, Front Seat, RH
71139M Cover, Front Seat Leg, RH Outer
71139P Cover, Front Seat Leg, LH Outer
71139T Cover, Front Seat Leg, Rear RH
71139U Cover, Front Seat Leg, Rear LH
71139W Cover, Front Seat Leg(FOR RH SEAT)
71139Y Cover, Front Seat Leg, RH
71140A Leg Assy, Front Seat, LH
71587K Protector, Front Seatback Edge, RH
71587L Protector, Front Seatback Edge, LH
71705F Board Sub-assy, Front Seatback, RH
71705G Board Sub-assy, Front Seatback, LH
71759E Hook, Front Seatback, RH
71759F Hook, Front Seatback, LH
71811T Shield, Front Seat Cushion, RH
71812T Shield, Front Seat Cushion, LH
7181AA Holder, Front Seat Cushion Wire Harness, RH
7181BA Holder, Front Seat Cushion Wire Harness, LH
71848N Cap, Front Seat Adjuster Cover, RH NO.1
71848R Cap, Front Seat Adjuster Cover, LH NO.1
71861K Shield, Front Seat Cushion, Inner RH
71862K Shield, Front Seat Cushion, Inner LH
71867Y Shield, Front Seat Cushion, Inner NO.1 RH(FOR RH SEAT)
71868Q Shield, Front Seat Cushion, Inner NO.1 LH(FOR LH SEAT)
71873V Shield, Front Seat Cushion, Lower RH
71873W Shield, Front Seat Cushion, Lower RH, Outer
71873X Shield, Front Seat Cushion, Lower RH, Inner
71874U Shield, Front Seat Cushion, Lower LH
71874V Shield, Front Seat Cushion, Lower LH, Outer
71874W Shield, Front Seat Cushion, Lower LH, Inner
71910E Headrest Assy, Front Seat, RH
71910F Headrest Assy, Front Seat, LH
71930E Support Assy, Front Seat Headrest, RH
71930F Support Assy, Front Seat Headrest, LH
71A49A Cover, Front Seat Leg(FOR LH SEAT)
71A49B Cover, Front Seat Leg, LH
71A49C Cover, Front Seat Leg, Inner NO.1(FOR RH SEAT)
71A49D Cover, Front Seat Leg, Inner NO.1(FOR LH SEAT)
71H75 Cover, Reclining Adjuster Inside, RH Outer(FOR RH SEAT)
71H75A Cover, Reclining Adjuster Inside, RH Inner(FOR RH SEAT)
71H76B Cover, Reclining Adjuster Inside, LH Inner(FOR LH SEAT)
71H76C Cover, Reclining Adjuster Inside, LH Outer(FOR LH SEAT)
72106D Rail Sub-assy, Seat Track, Upper RH
72108A Rail Sub-assy, Seat Track, Upper LH
72125U Cover, Seat Track, Upper Rear RH
72125V Cover, Seat Track, Upper Rear LH
72136A Spacer, Seat Track, Lower NO.2
72136B Spacer, Seat Track, Lower NO.3
72143B Bracket, Front Seat Track, Lower Rear RH(FOR RH SEAT)
72143C Bracket, Front Seat Track, Lower Rear(FOR LH SEAT)
72265M Cover, Seat Track Upper Rail, RH
72265N Cover, Seat Track Upper Rail, LH
72310C Adjuster Assy, Front Seat Vertical, RH
72320B Adjuster Assy, Front Seat Vertical, LH
72713A Bracket, Seat Adjuster Shield Clamp, RH
72714A Bracket, Seat Adjuster Shield Clamp, LH
72750G Adjuster Assy, Lumbar Support, RH
72760G Adjuster Assy, Lumbar Support, LH
73910B Airbag Assy, Front Seat, RH
73920B Airbag Assy, Front Seat, LH
74061 Bag Sub-assy, Seat Cushion Pad, RH
74062 Bag Sub-assy, Seat Cushion Pad, LH
74063A Bag Sub-assy, Seatback Pad, RH
74064A Bag Sub-assy, Seatback Pad, LH
82F66 Holder, Connector
85801H Blower Sub-assy, Seat Cushion Climate, RH
85802B Blower Sub-assy, Seat Cushion Climate, LH
85821R Motor Assy, Power Seat Tilt, RH
85821S Motor Assy, Power Seat Lifter, RH
85822G Motor Assy, Power Seat Tilt, LH
85822H Motor Assy, Power Seat Lifter, LH
85867F Blower, Seatback Climate Control, RH
85867G Blower, Seatback Climate Control, LH
87501G Control Sub-assy, Seat Heater, RH
87501H Control Sub-assy, Seat Heater, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
