Toyota Lexus LM500H/350H
2023-06 → present · chassis AAWH1#,TAWH15 · catalogue 714320 · Europe
Supported model
Data version 2023-11

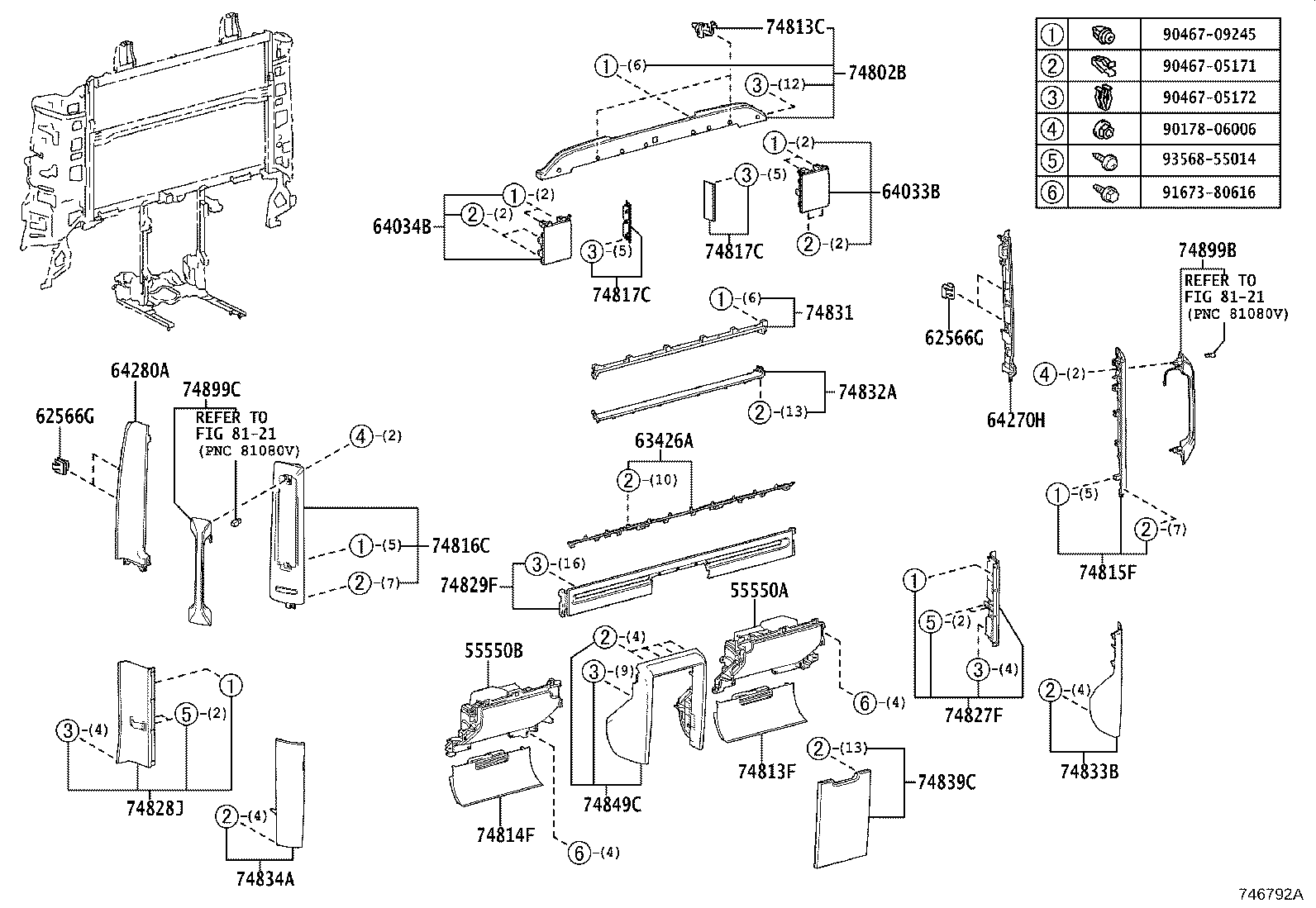

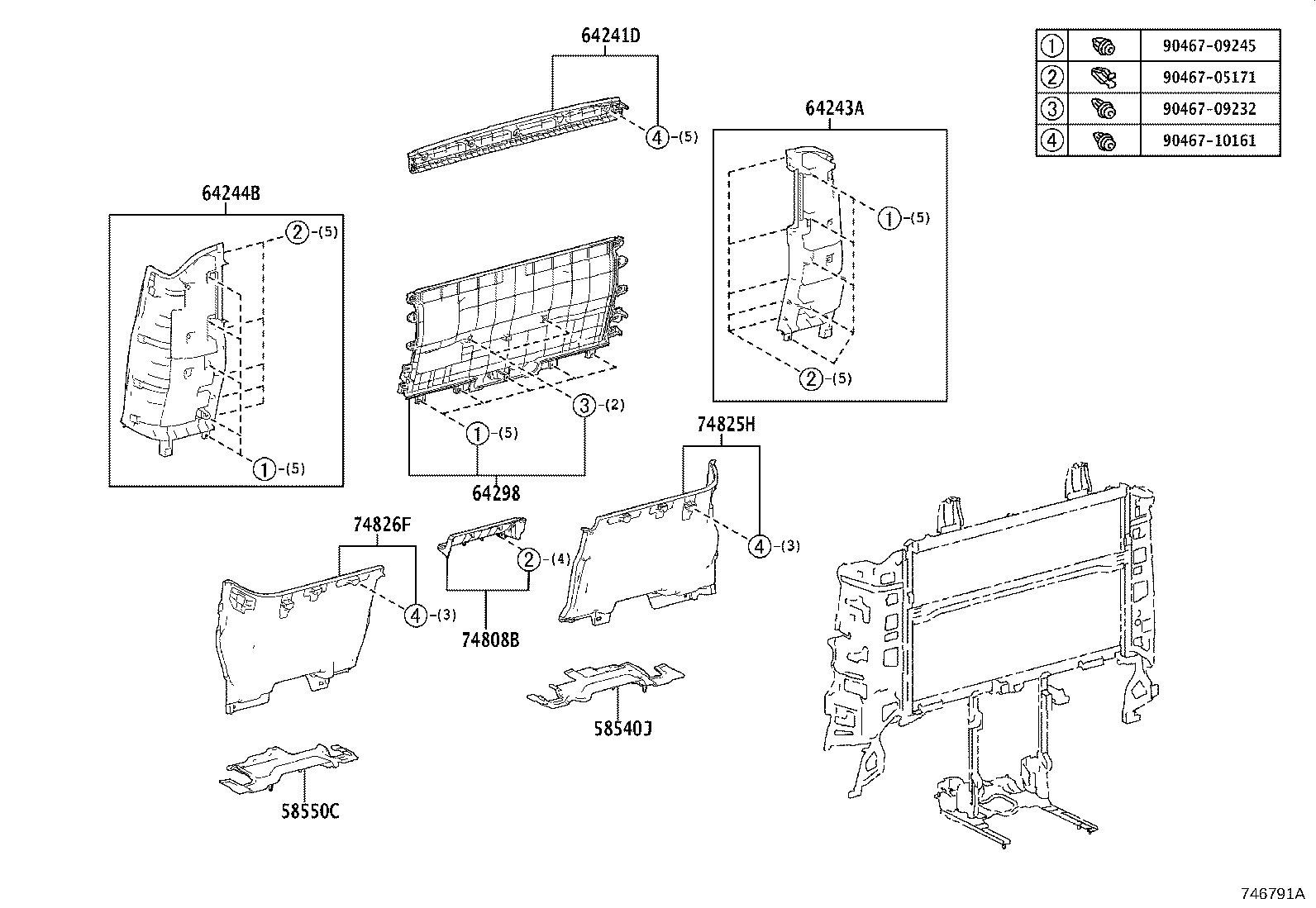

Separator & Separator Curtain
47 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 55550A | Door Assy, Glove Compartment, RH |
| 55550B | Door Assy, Glove Compartment, LH |
| 58540J | Carpet Assy, Floor, Rear RH |
| 58550C | Carpet Assy, Floor, Rear LH |
| 62566G | Clamp, Room Partition Board, NO.1 |
| 63426A | Cover, Television Garnish |
| 64033B | Grille Sub-assy, Rear Speaker, RH |
| 64034B | Grille Sub-assy, Rear Speaker, LH |
| 64241D | Panel, Room Partition |
| 64243A | Panel, Room Partition, NO.2 RH |
| 64244B | Panel, Room Partition, NO.2 LH |
| 64270H | Board Assy, Room Partition, RH |
| 64280A | Board Assy, Room Partition, LH |
| 64298 | Panel, Room Partition Center |
| 68500A | Window Assy, Separation |
| 68513 | Run, Separation Window |
| 68513A | Run, Separation Window, NO.2 |
| 68521A | Weatherstrip, Separation Door Window |
| 69801C | Regulator Sub-assy, Separator Window |
| 74802B | Trim Sub-assy, Separator, Upper Rear |
| 74803L | Guard Sub-assy, Separator Window |
| 74805 | Separator Sub-assy |
| 74808B | Board Sub-assy, Separator |
| 74813C | Clip |
| 74813F | Panel, Separator Board Side, RH |
| 74814F | Panel, Separator Board Side, LH |
| 74815F | Plate, Separator, RH |
| 74816C | Plate, Separator, LH |
| 74817C | Cover, Separator Board, RH |
| 74819D | Bracket, Separator Board, RH |
| 74819E | Bracket, Separator Board, LH |
| 74824A | Plate, Separator Board |
| 74825H | Board, Separator Trim, Lwr FR NO.1 |
| 74826F | Board, Separator Trim, Lwr FR NO.2 |
| 74827F | Board, Separator Trim, Lwr RR NO.1 |
| 74828J | Board, Separator Trim, Lwr RR NO.2 |
| 74829F | Board, Separator Trim |
| 74831 | Frame, Separator Window Guard, Upper |
| 74832A | Frame, Separator Window Guard, Lower |
| 74833B | Panel, Separator Board Side, Lower RH |
| 74834A | Panel, Separator Board Side, Lower LH |
| 74839C | Board, Separator, Ctr NO.2 |
| 74849C | Trim, Separator, Center Rear |
| 74850C | Bar Assy, Separator |
| 74899B | Grip, Separator Panel, RH |
| 74899C | Grip, Separator Panel, LH |
| 85710K | Motor Assy, Power Window Regulator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
