Toyota Lexus LM500H/350H

2023-06 → present · chassis AAWH1#,TAWH15 · catalogue 714320 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

33 part groups · 3 illustrations

Illustrations

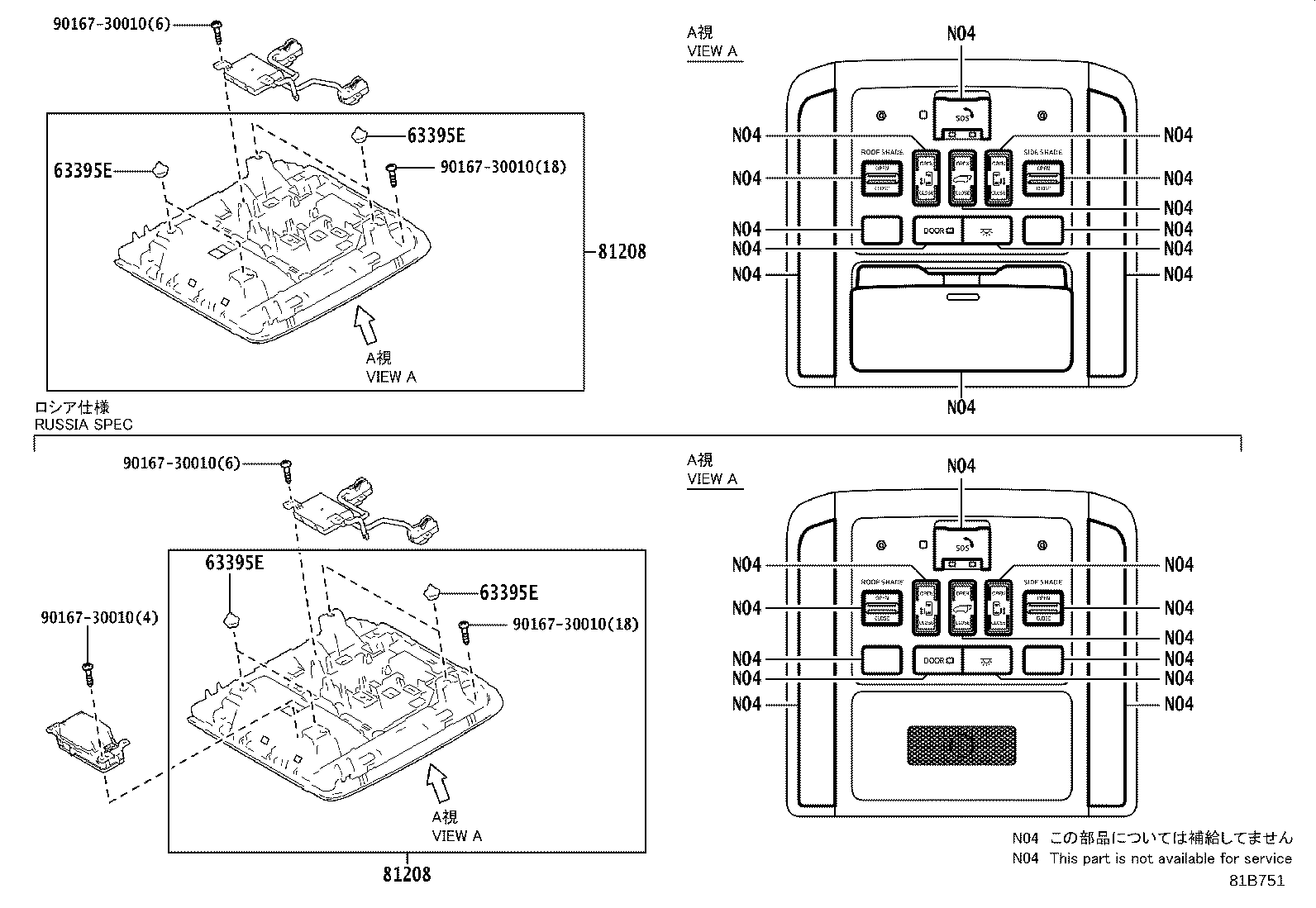

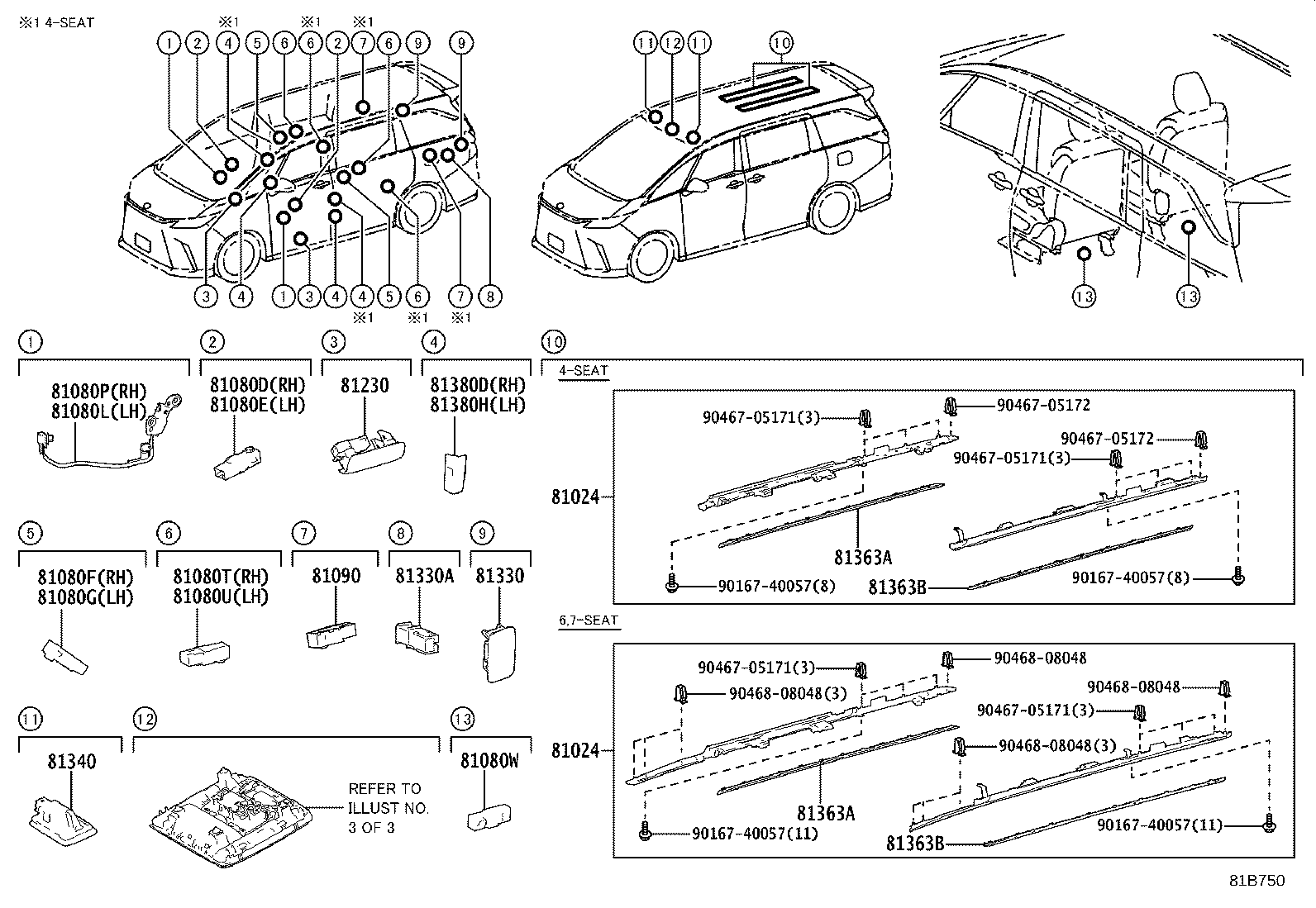

Figure 81B749 81B749 2023-06 → — Figure 81B750 81B750 2023-06 → — Figure 81B751 81B751 2023-06 → —

Part groups

PNCDescription
63395E Clip(FOR MAP LAMP)
81024 Lamp Set, Room
81080D Lamp Assy, Front Door Inside Handle Illumination, RH
81080E Lamp Assy, Front Door Inside Handle Illumination, LH
81080F Lamp Assy, Rear Door Inside Handle Illumination, RH
81080G Lamp Assy, Rear Door Inside Handle Illumination, LH
81080J Lamp Assy, Interior Illumination, NO.1
81080K Lamp Assy, Console Box Illumination
81080L Lamp Assy, Interior Illumination, NO.1 LH
81080M Lamp Assy, Interior Illumination, NO.1
81080N Lamp Assy, Interior Illumination, NO.1
81080P Lamp Assy, Interior Illumination, NO.1 RH
81080R Lamp Assy, Interior Illumination, NO.1 RH
81080S Lamp Assy, Interior Illumination, NO.1 LH
81080T Lamp Assy, Interior Illumination, NO.2 RH
81080U Lamp Assy, Interior Illumination, NO.2 LH
81080V Lamp Assy, Interior Illumination, NO.2
81080W Lamp Assy, Interior Illumination, NO.3
81081 Lamp Sub-assy, Interior Illumination
81081A Lamp Sub-assy, Interior Illumination, NO.2
81090 Lamp Assy, Interior Illumination, NO.2
81206A Lamp Sub-assy, Console Box
81208 Lamp Sub-assy, Map
81230 Lamp Assy, Courtesy
81260 Lamp Assy, Glove Box
81330 Lamp Assy, Luggage Compartment, NO.1
81330A Lamp Assy, Luggage Compartment, NO.2
81340 Lamp Assy, Vanity
81363A Lens, Room Lamp, Outer RH
81363B Lens, Room Lamp, Outer LH
81380D Lamp Assy, Step
81380F Lamp Assy, Console Box
81380H Lamp Assy, Step
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
