Toyota Lexus LM500H/350H

2023-06 → present · chassis AAWH1#,TAWH15 · catalogue 714320 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

178 part groups · 38 illustrations

Illustrations

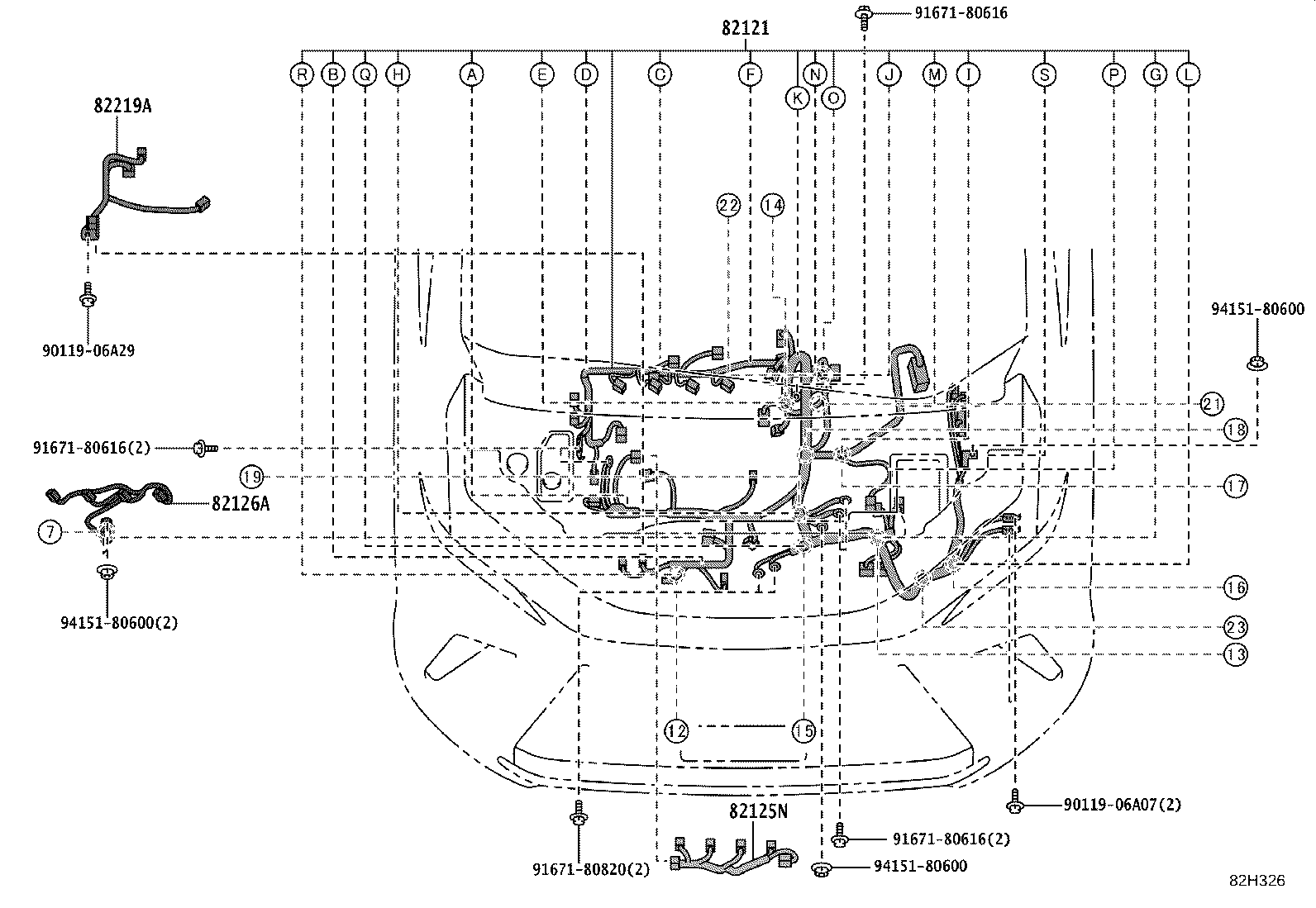

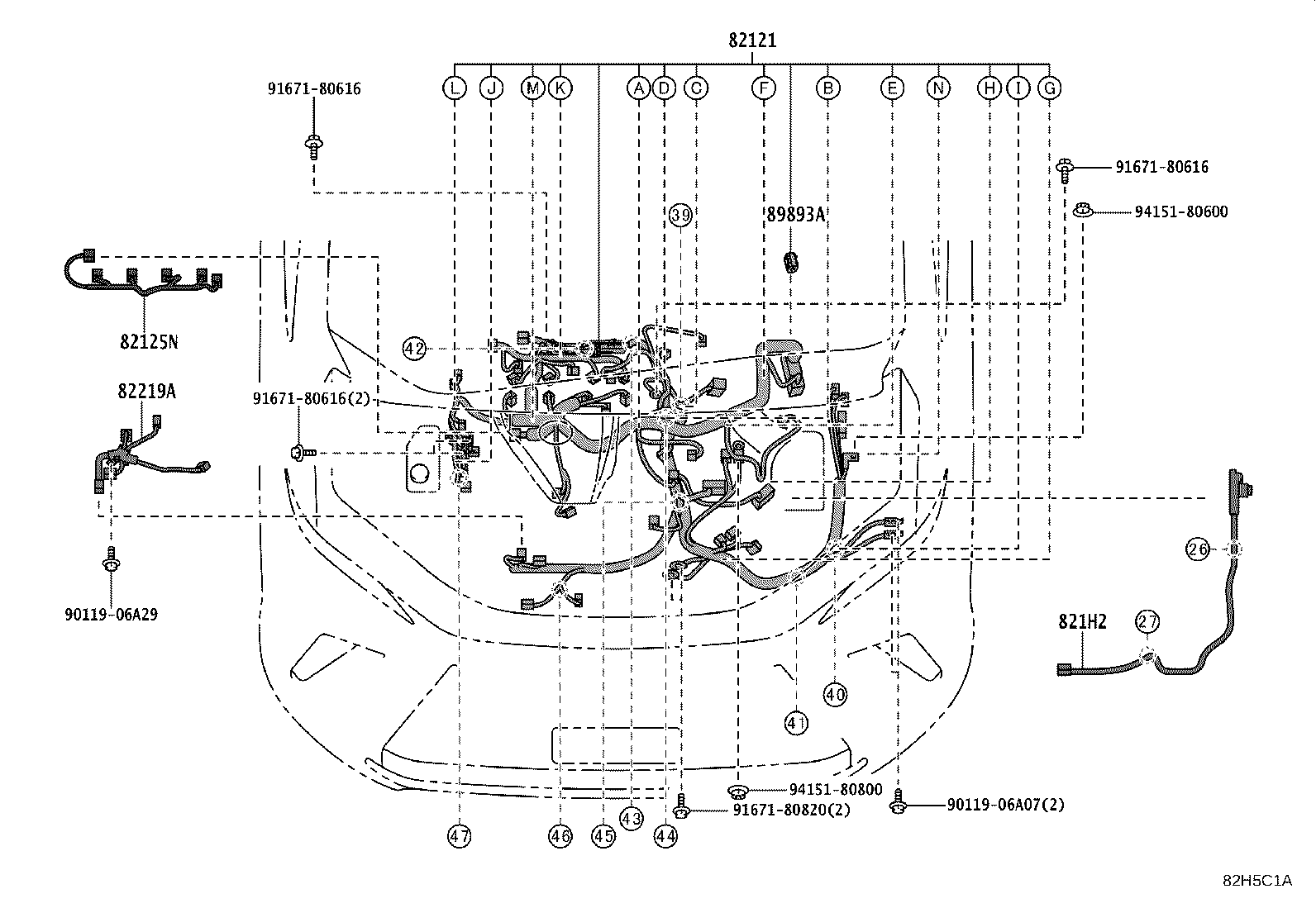

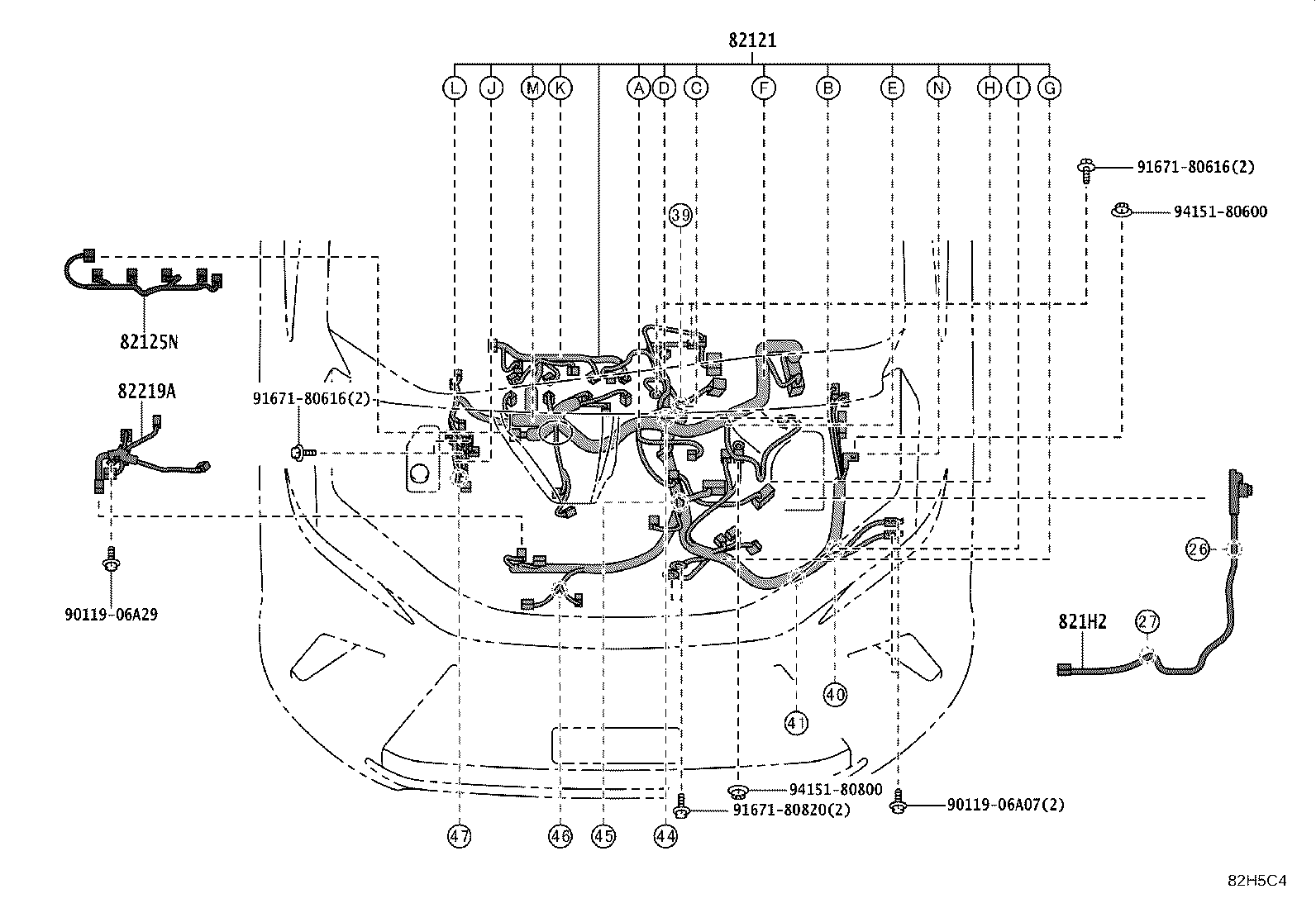

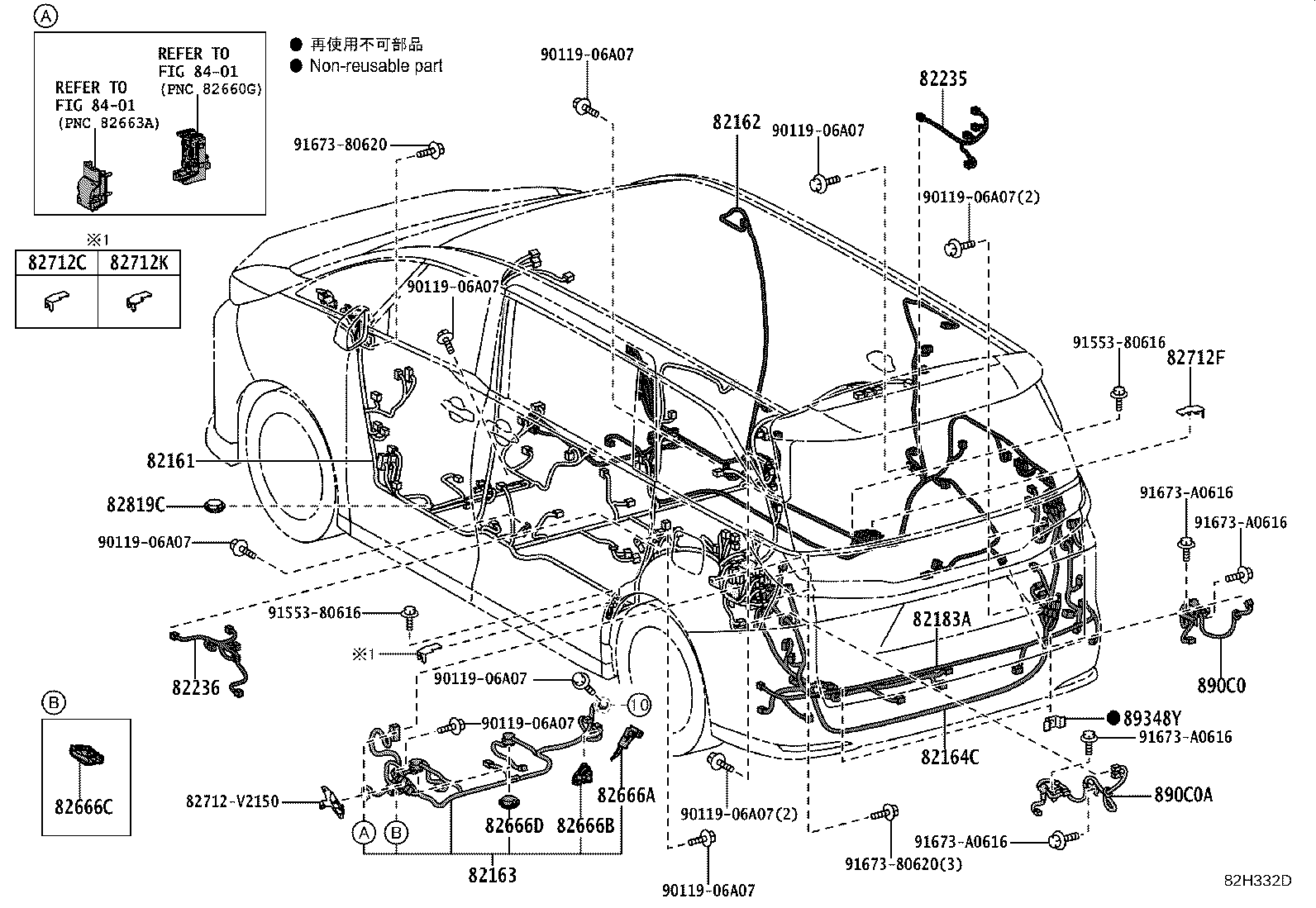

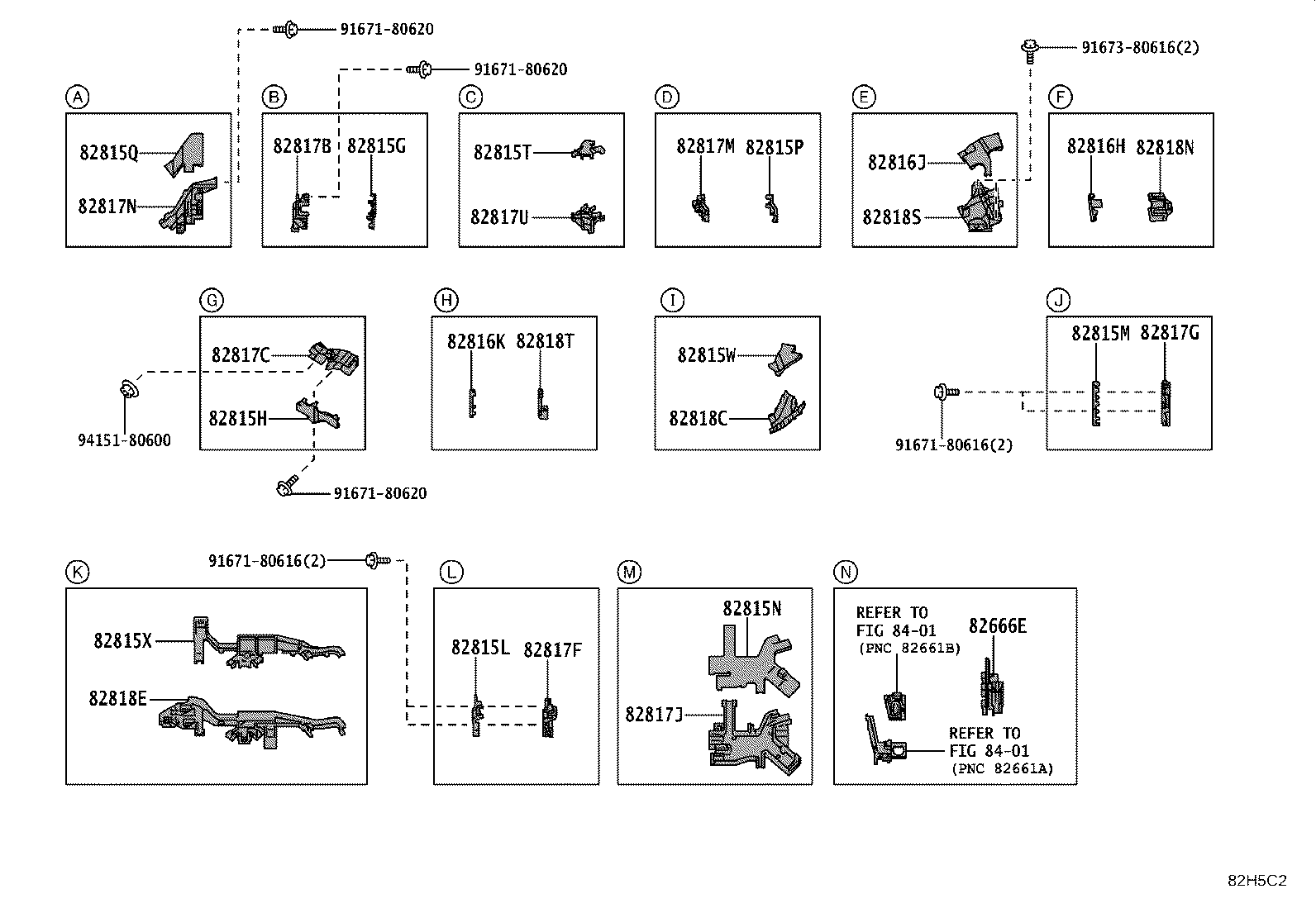

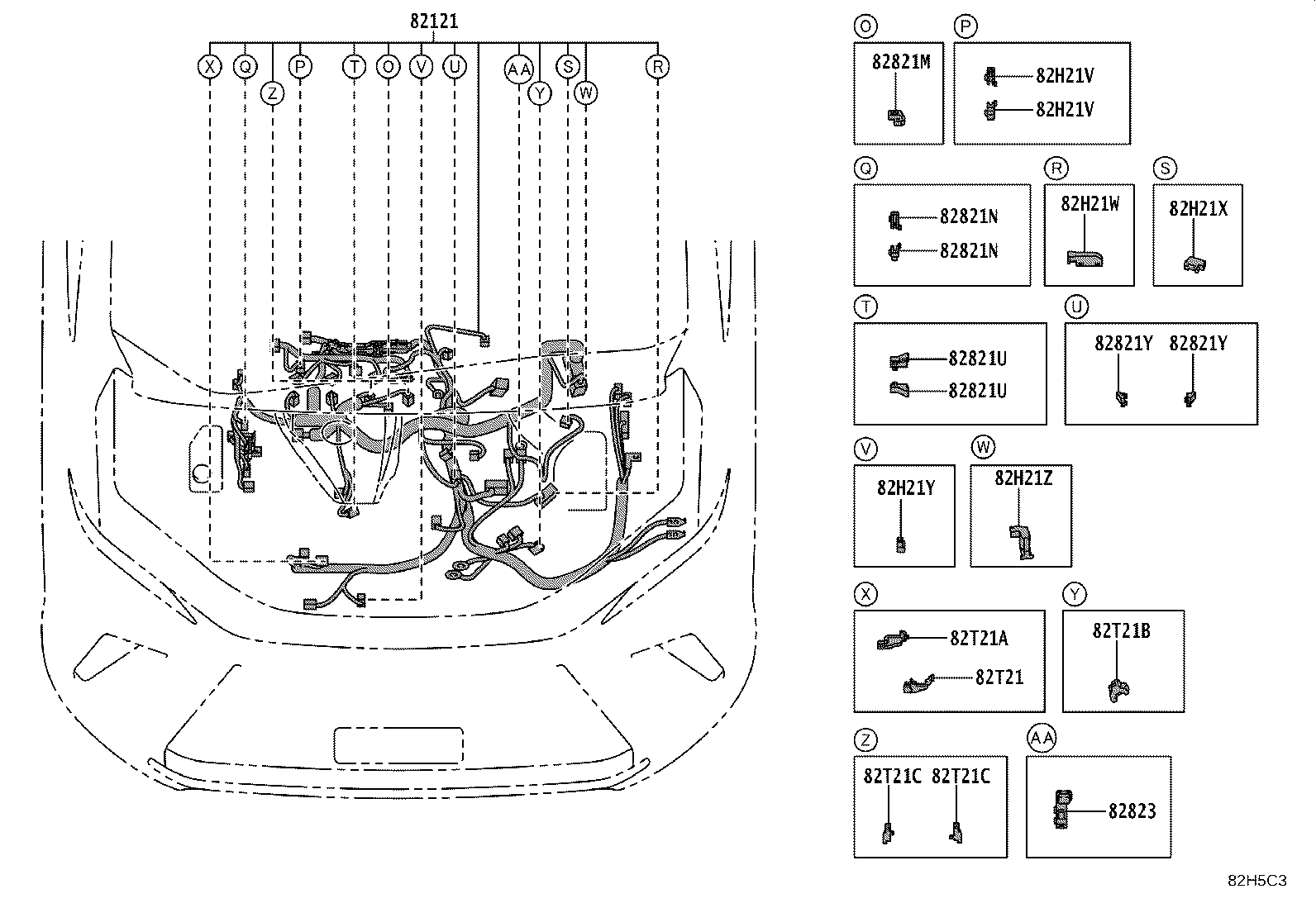

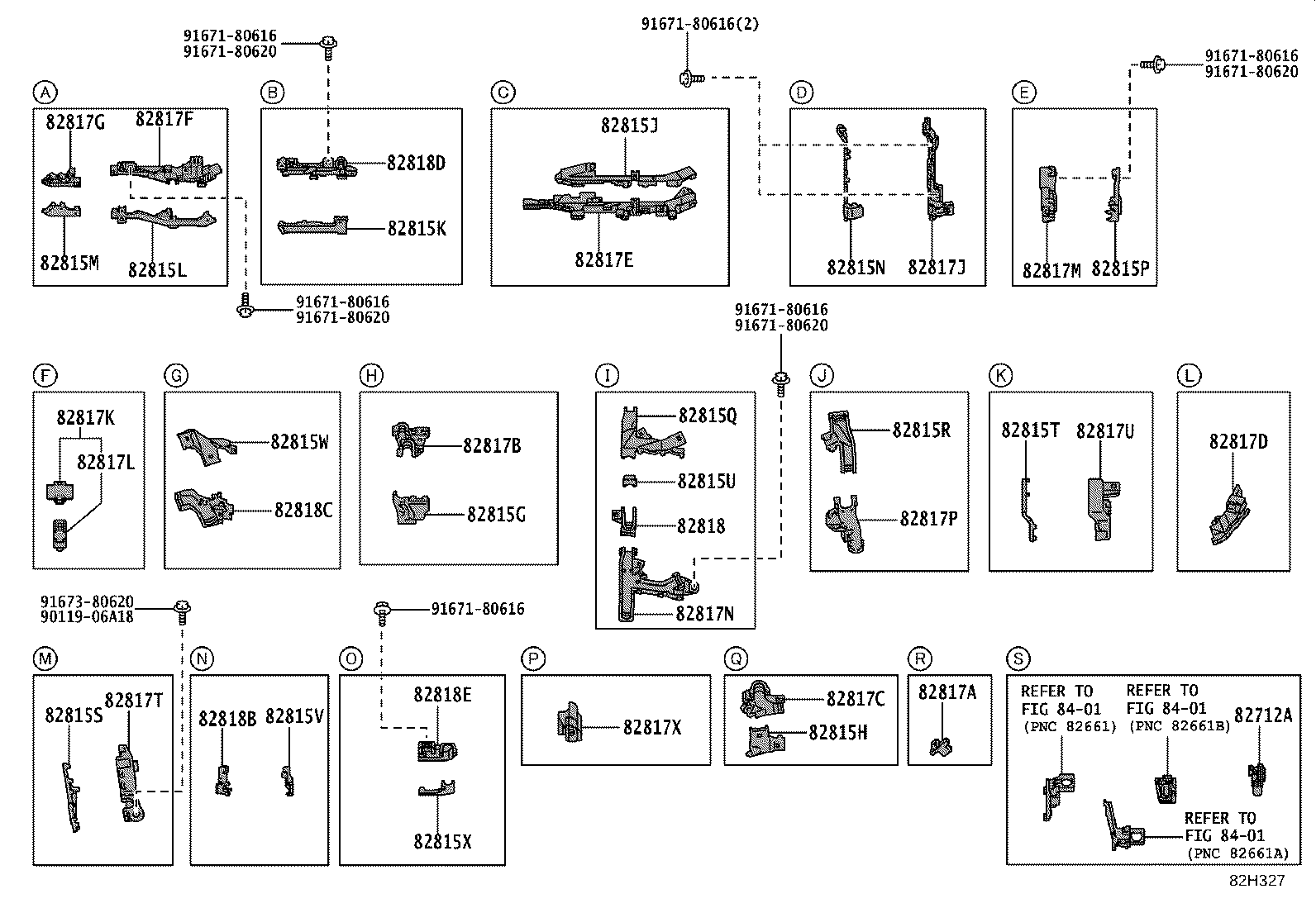

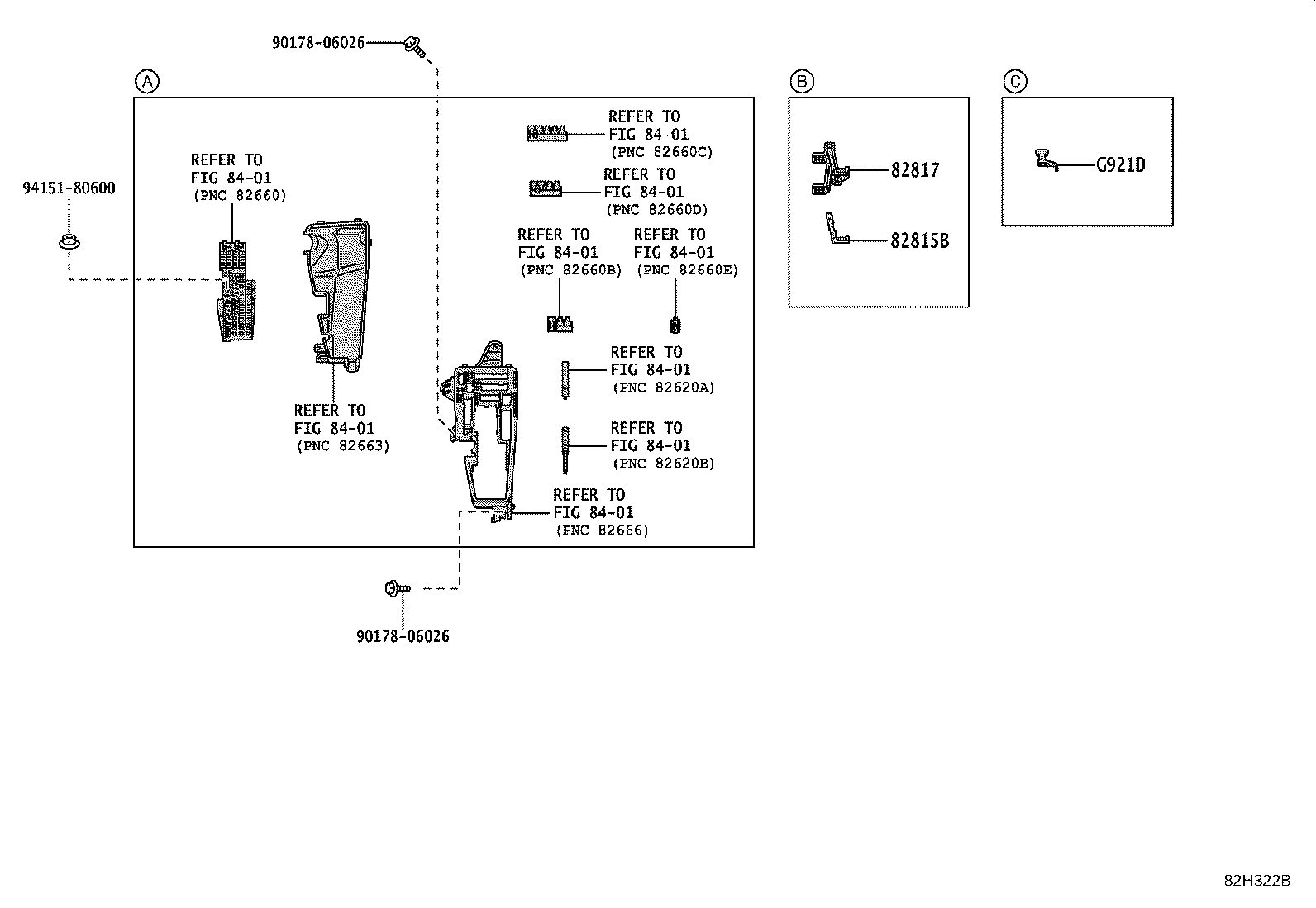

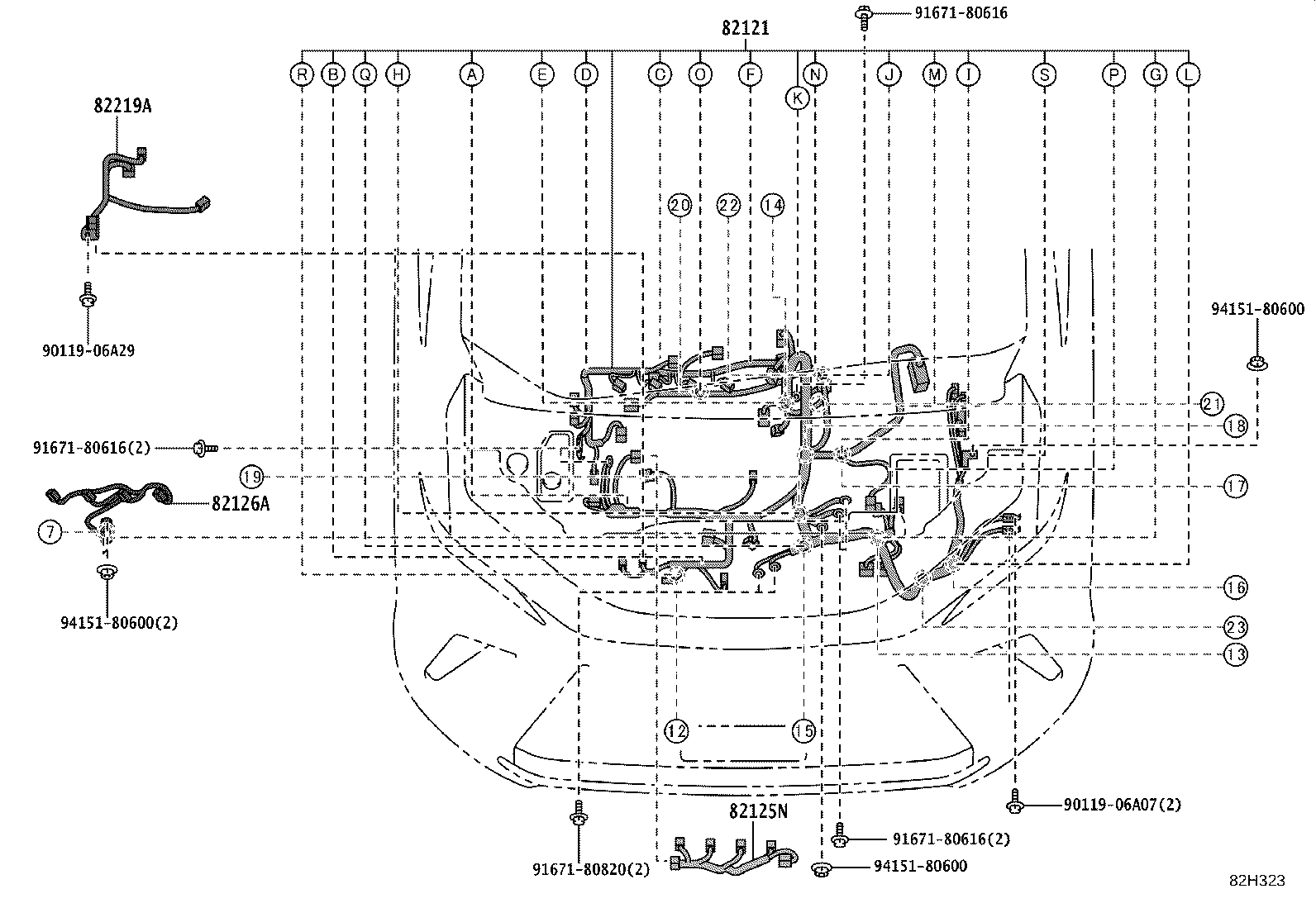

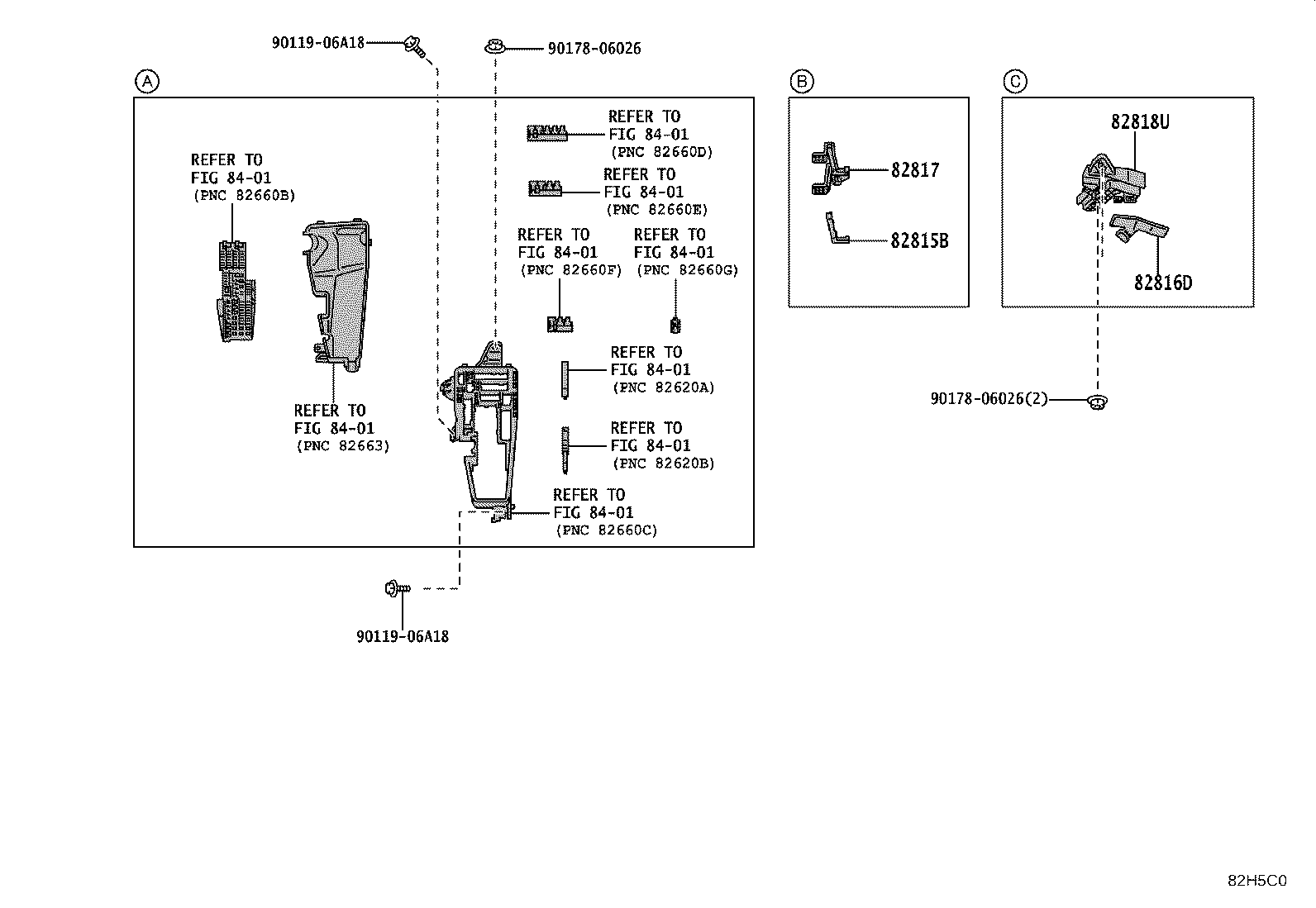

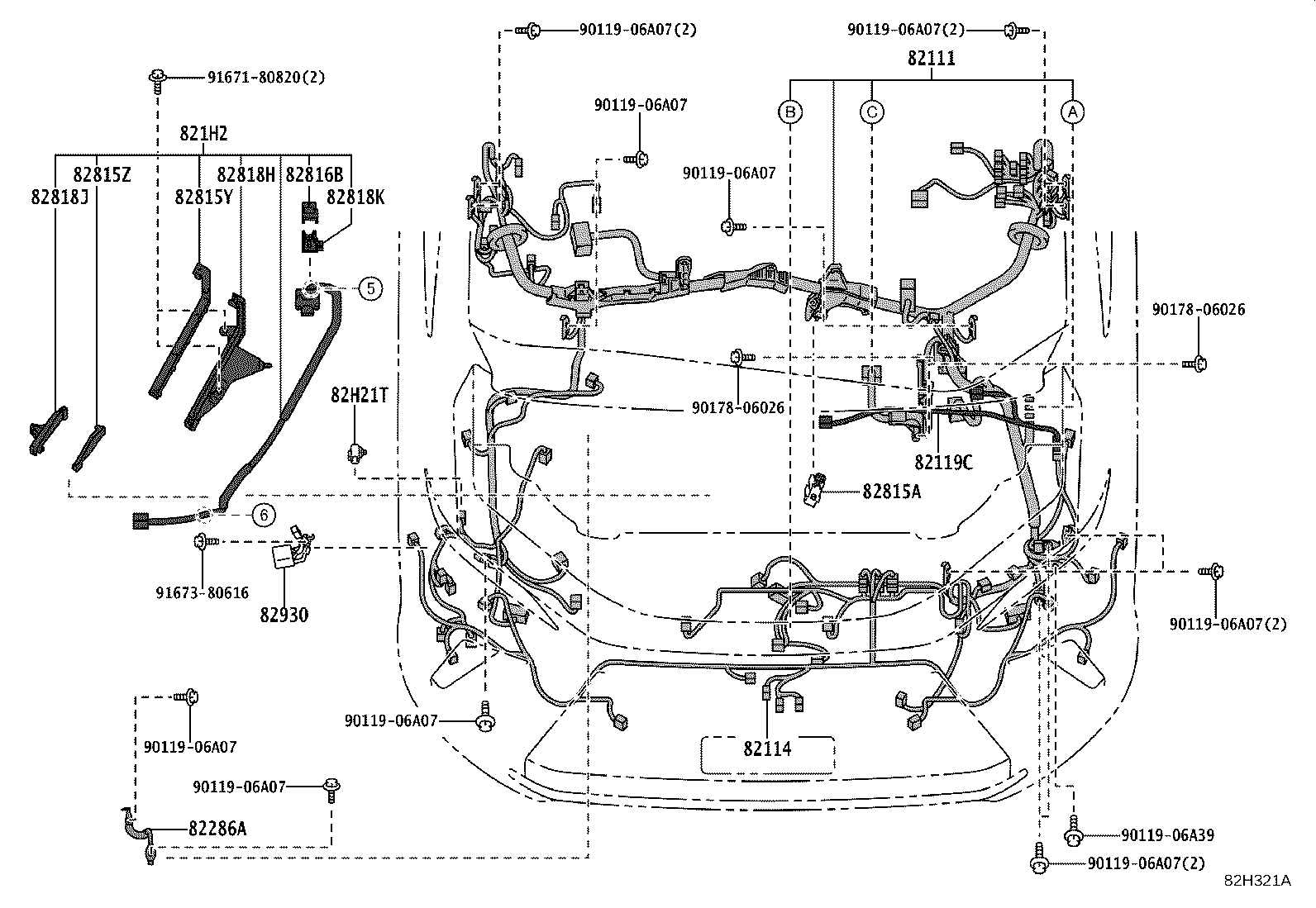

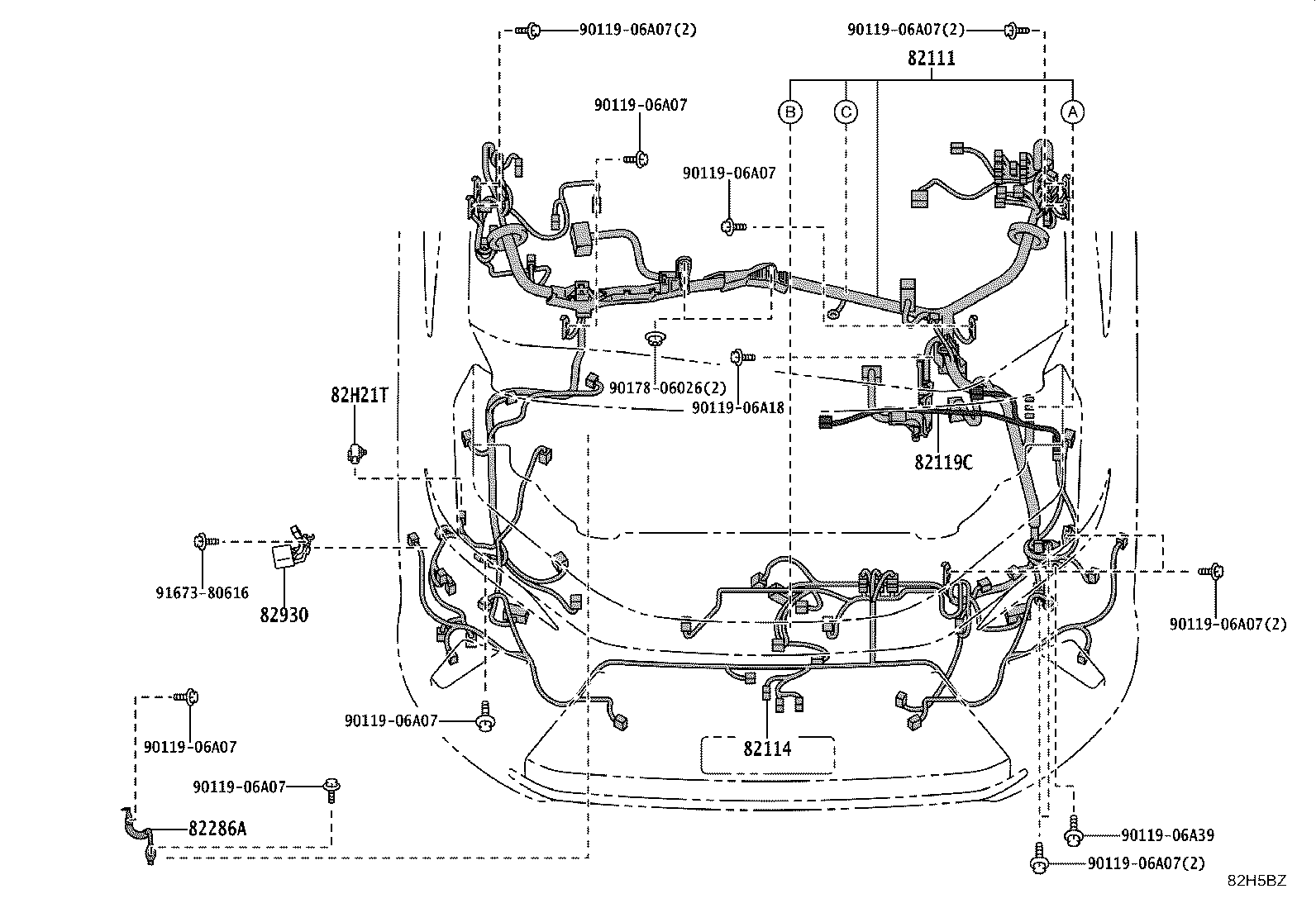

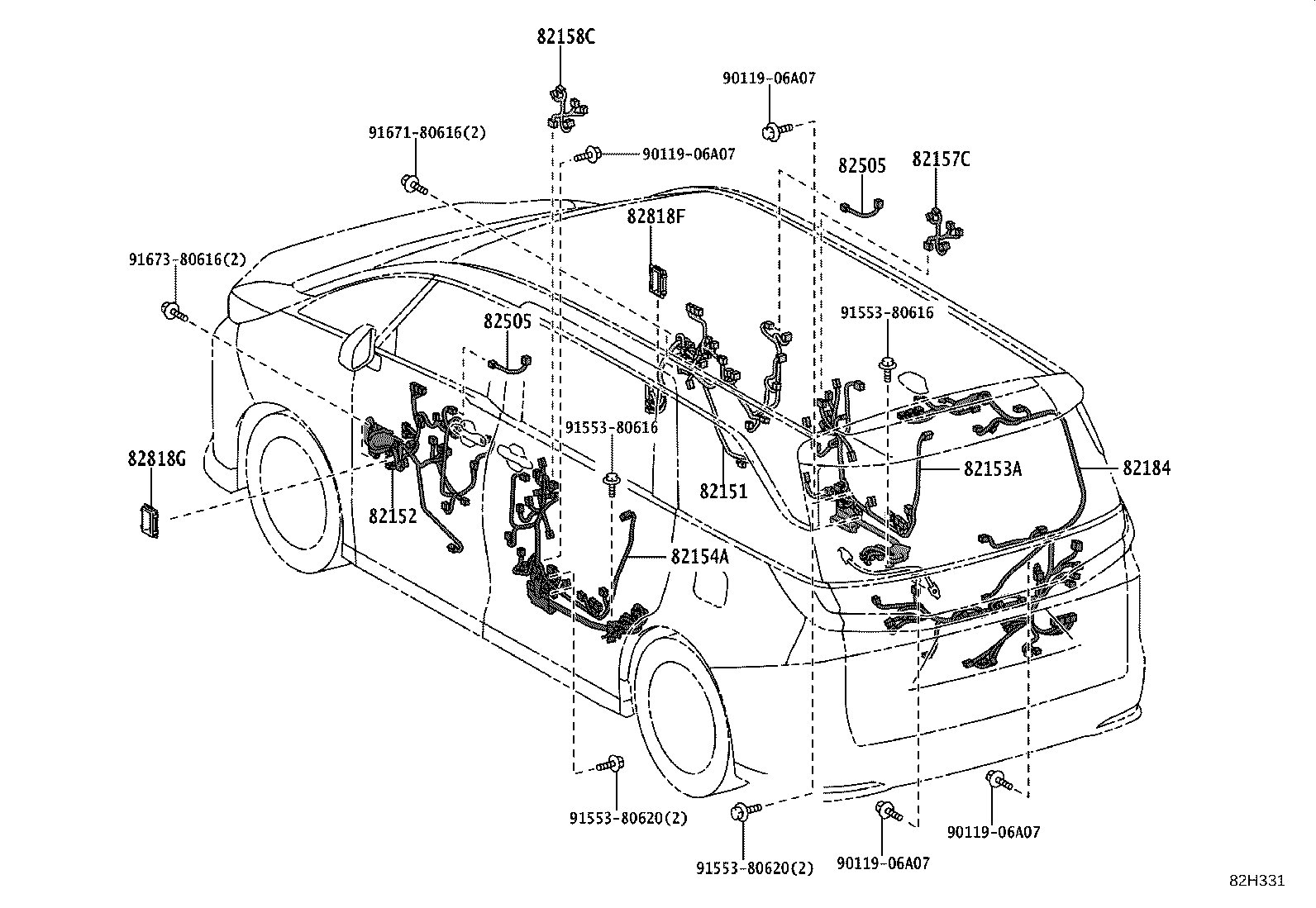

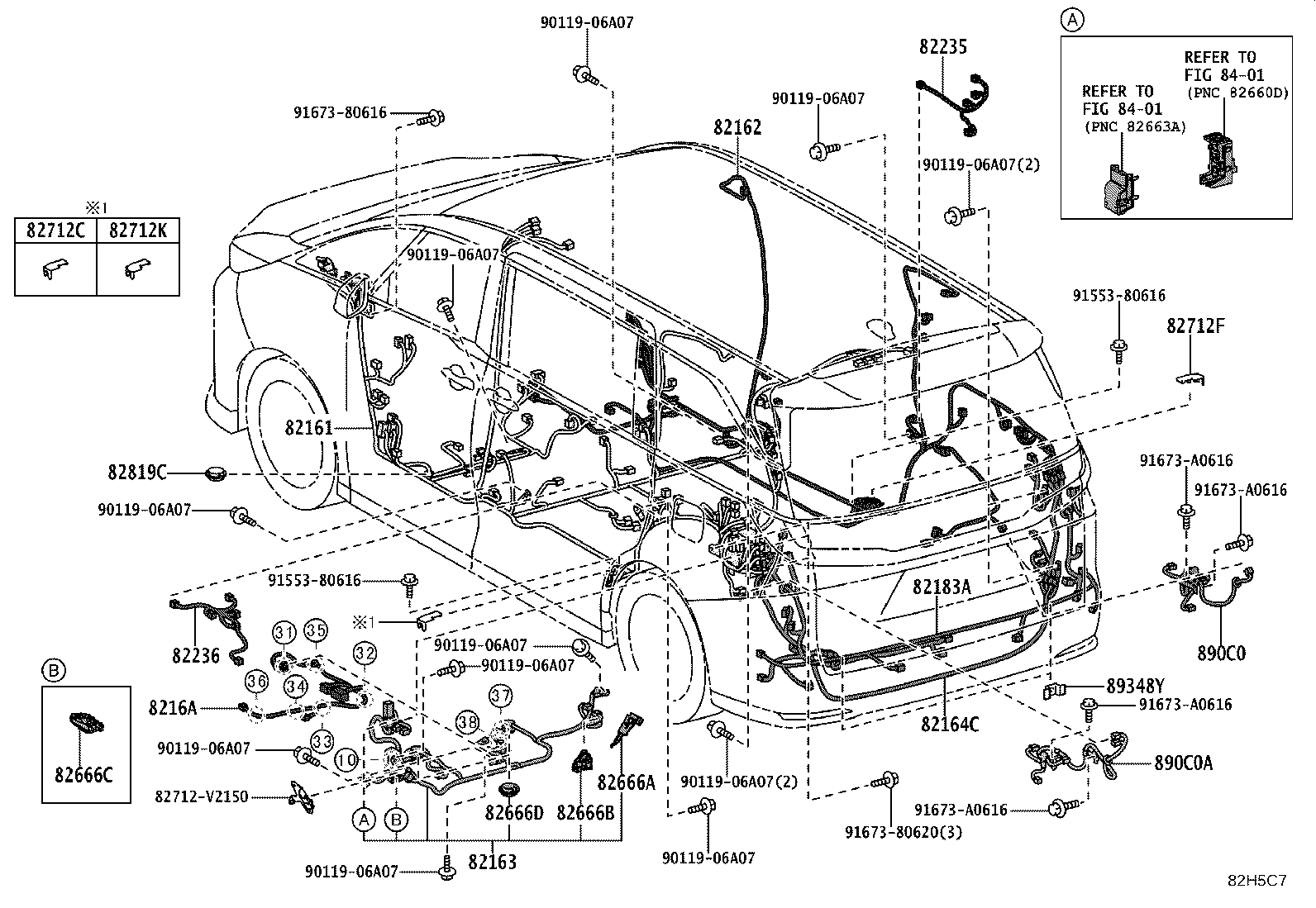

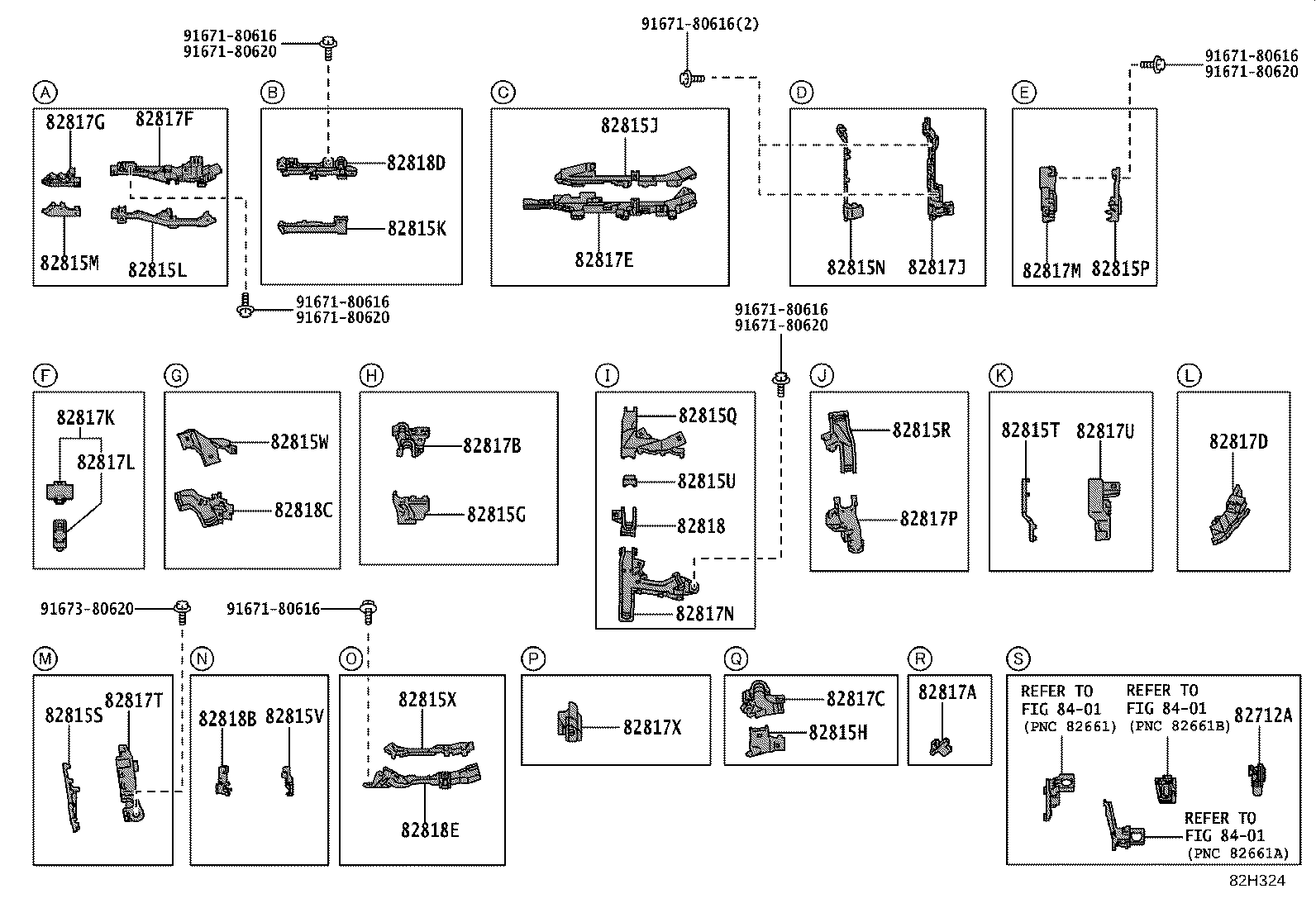

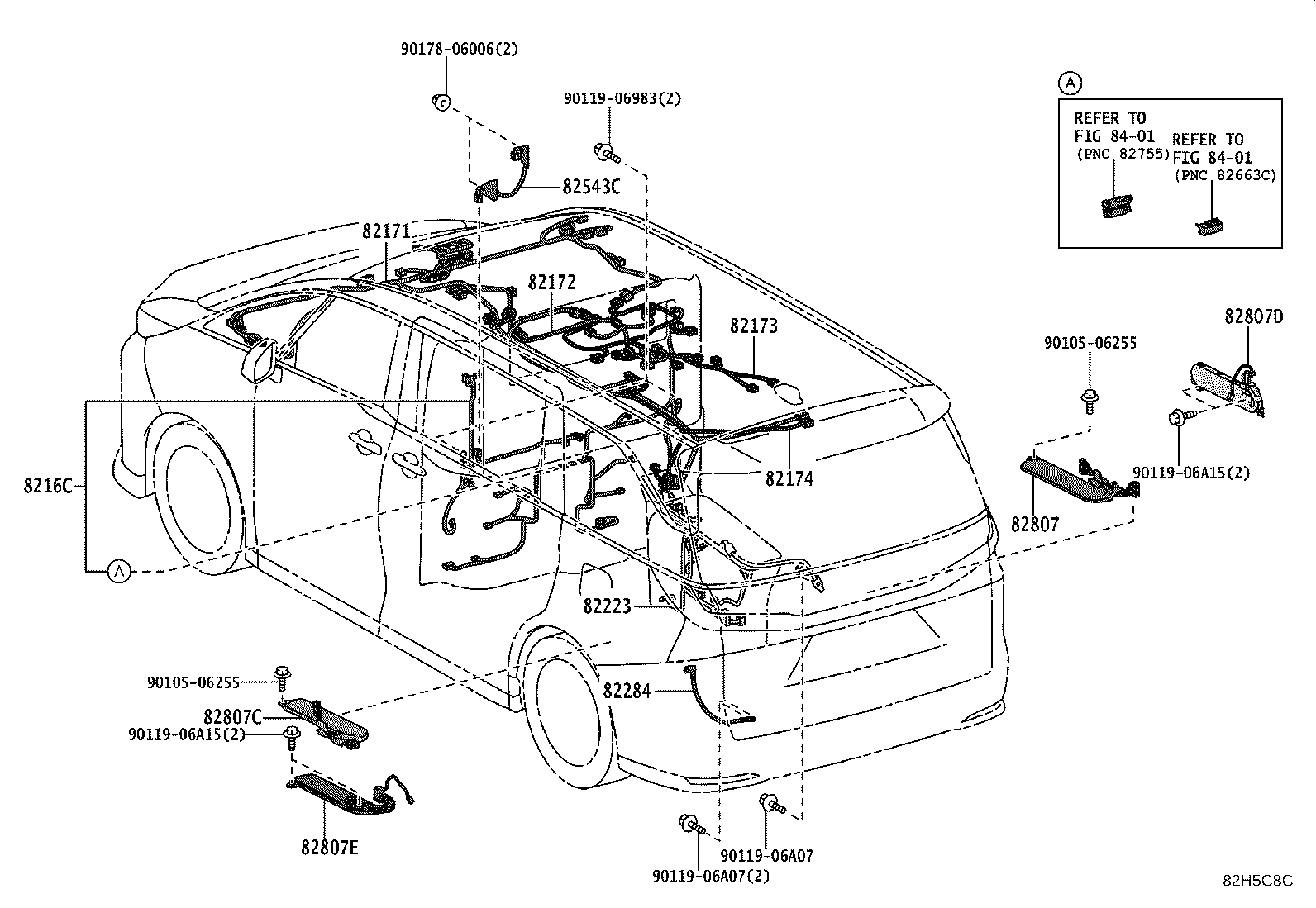

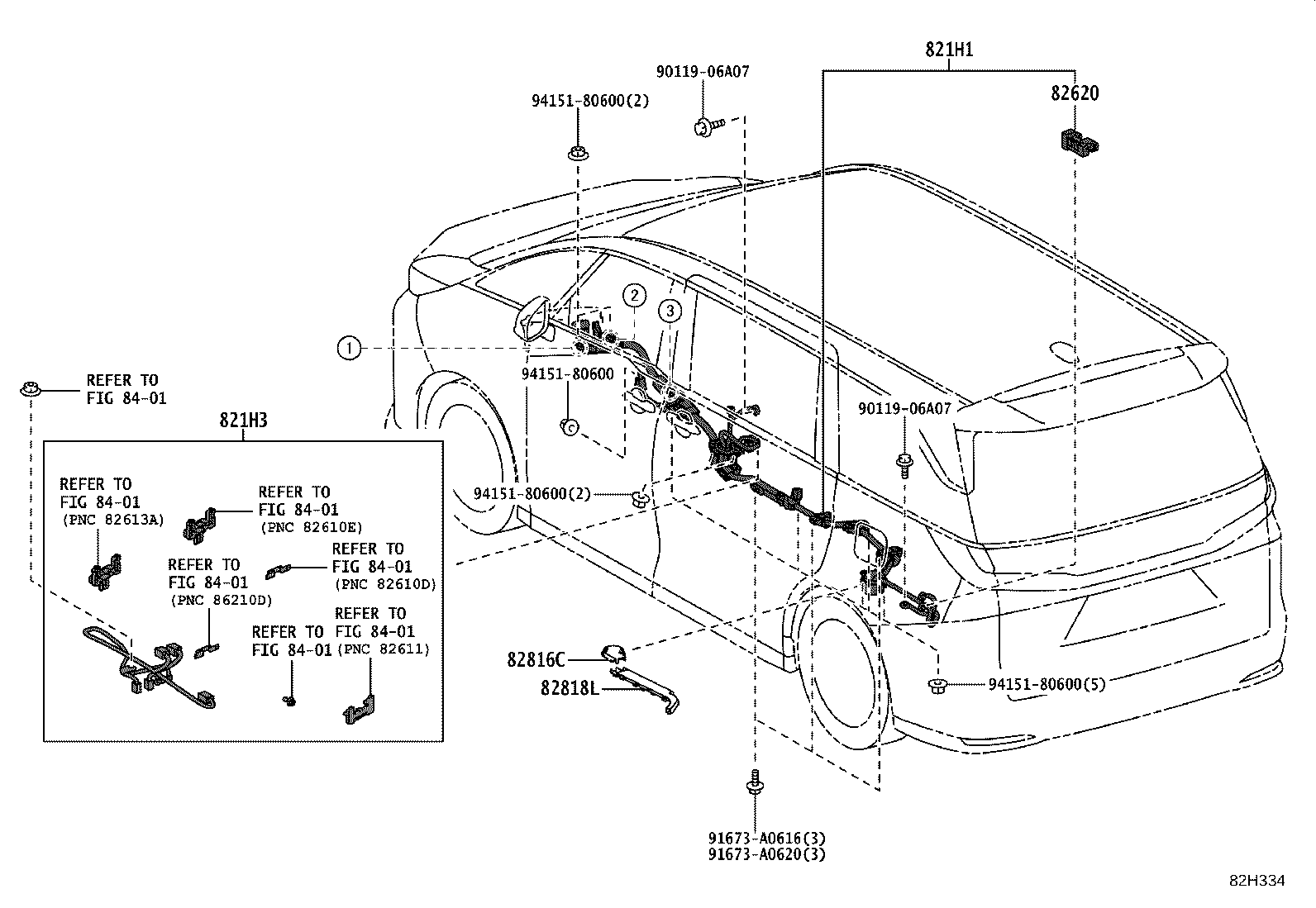

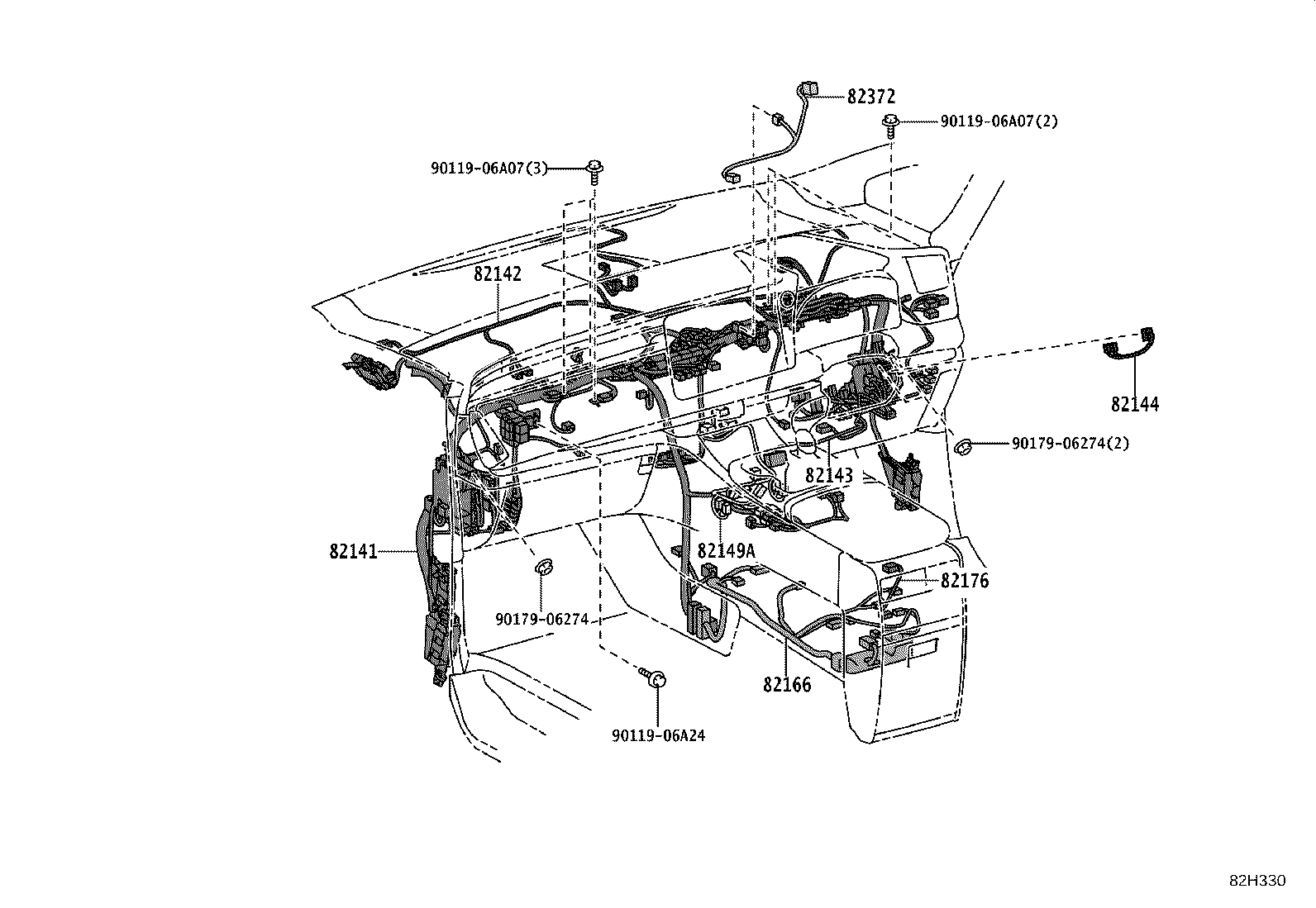

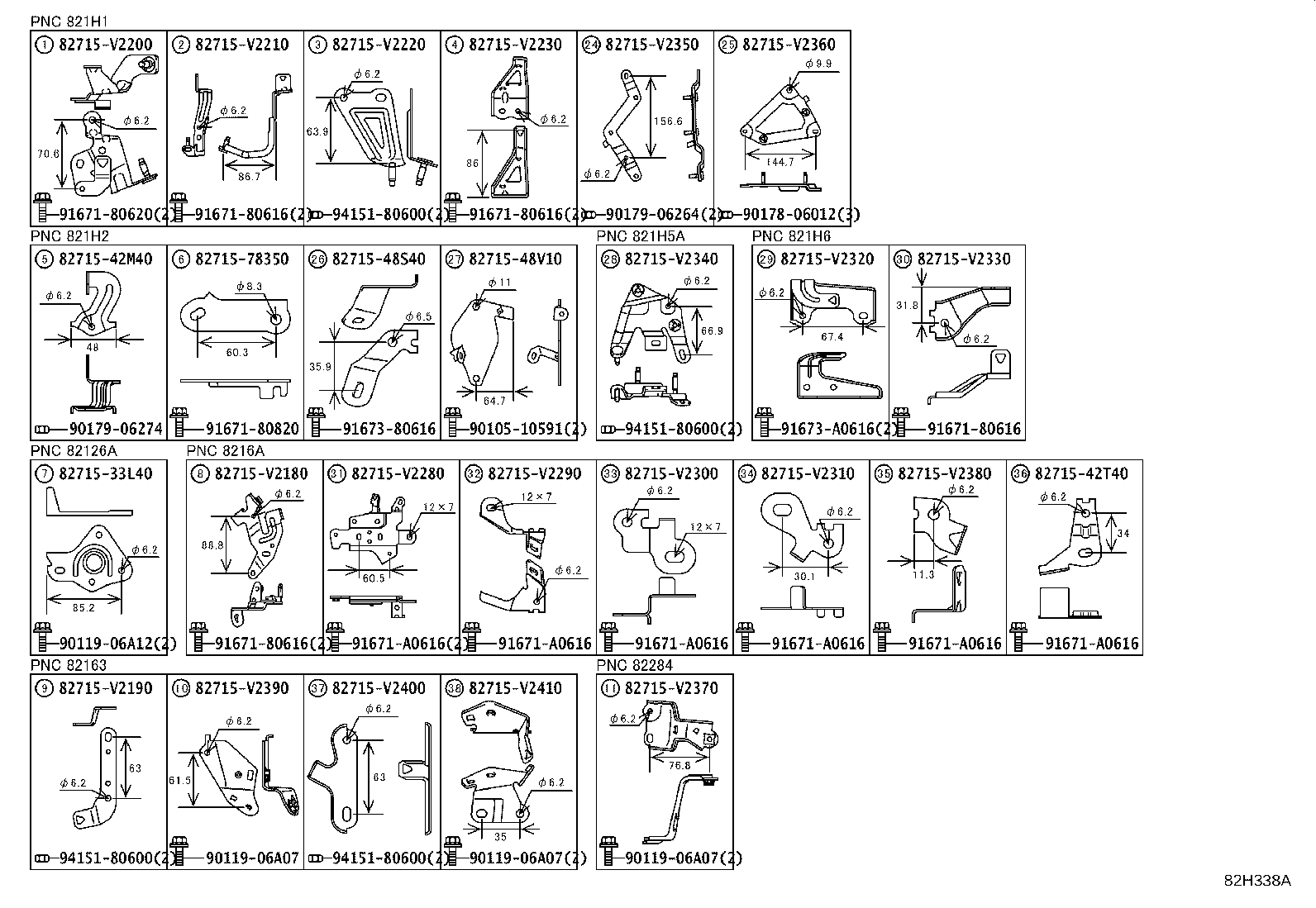

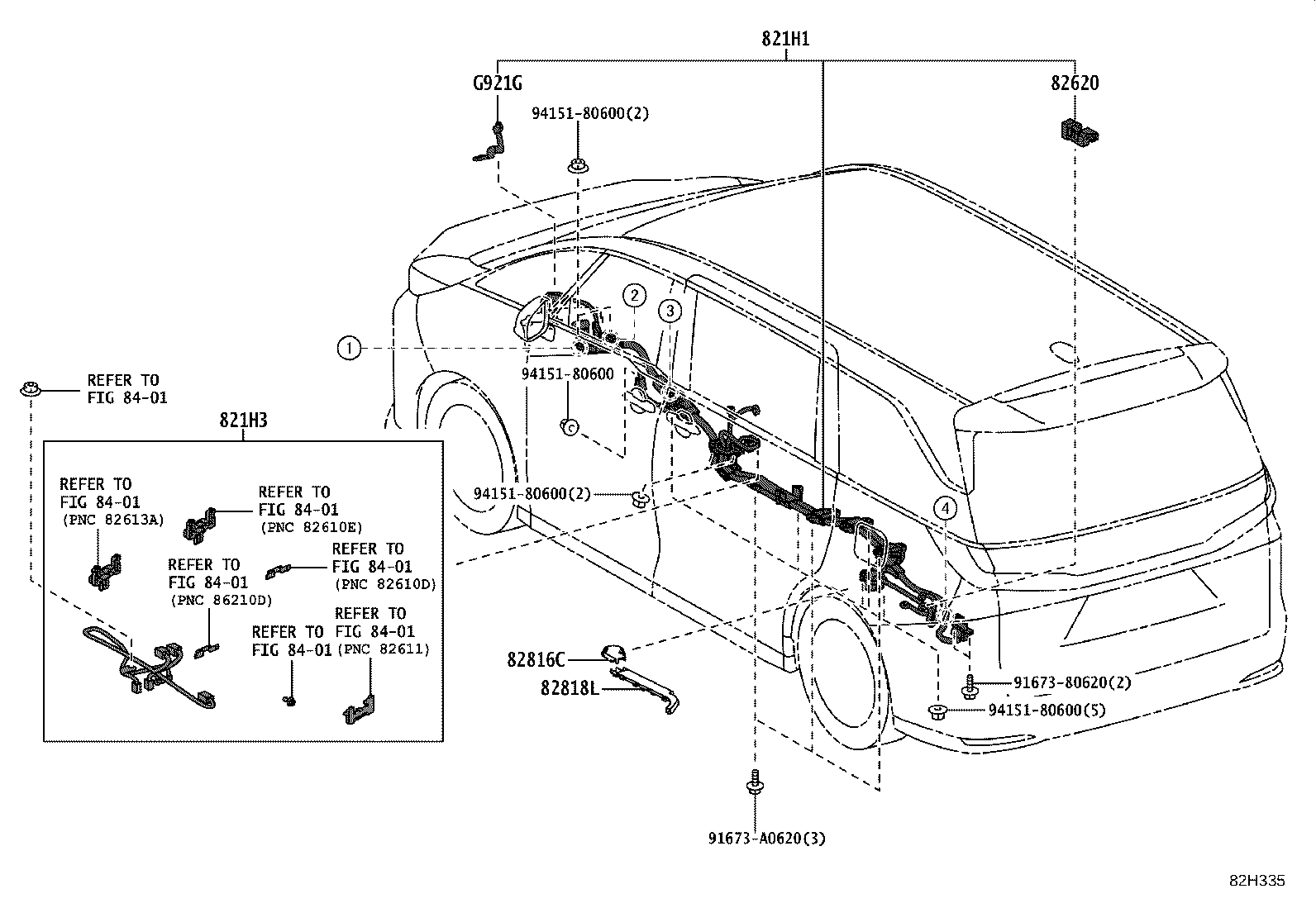

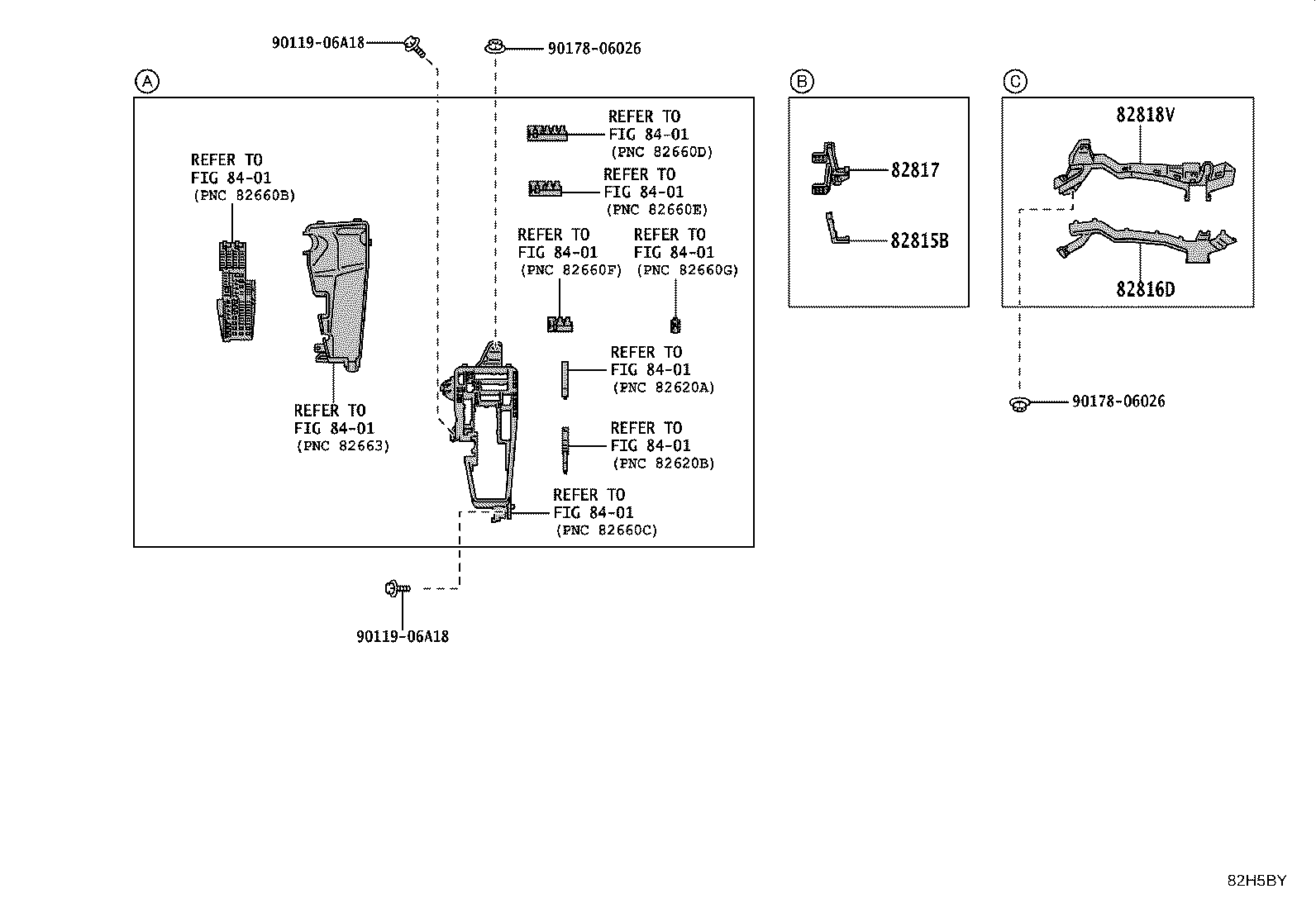

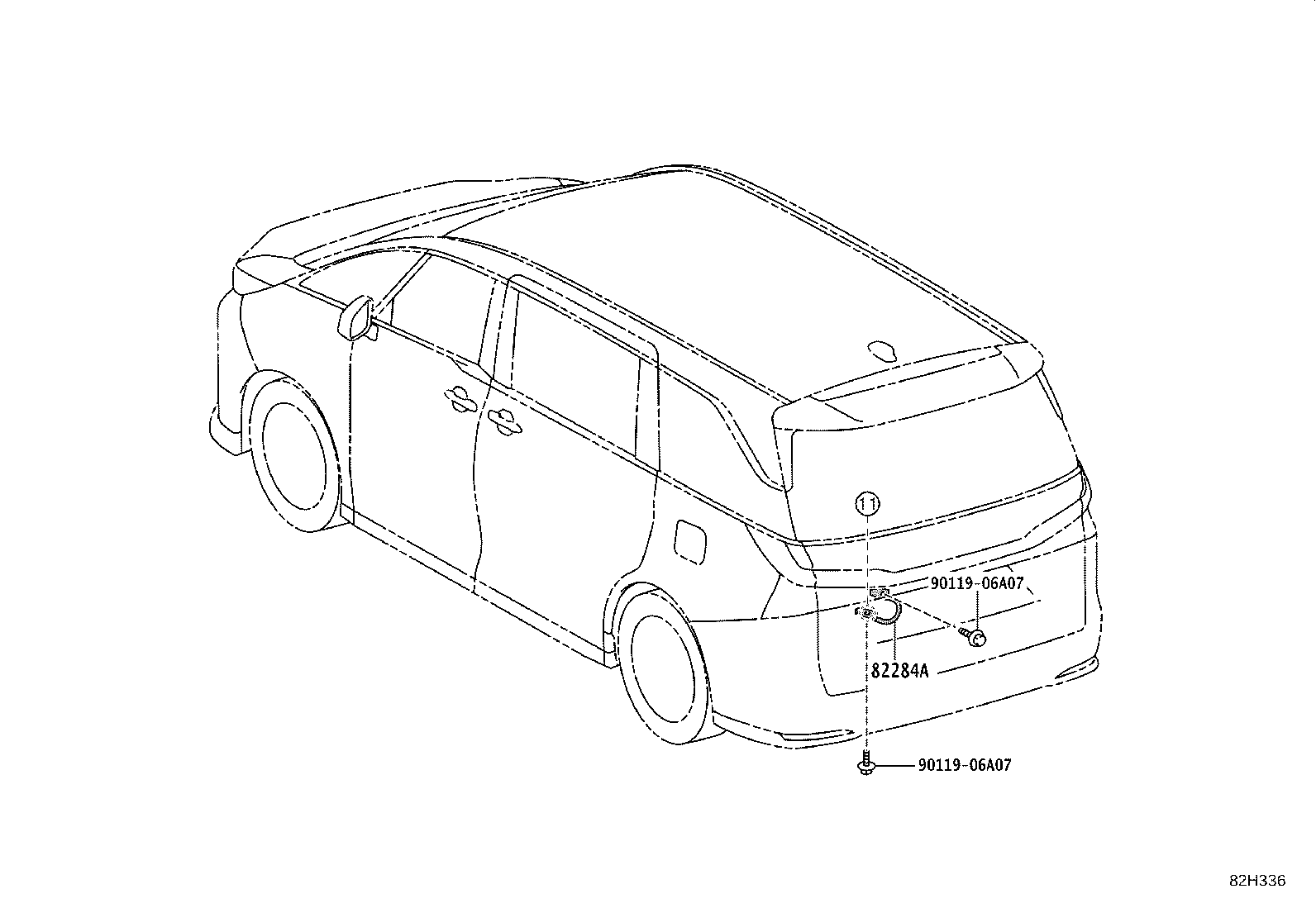

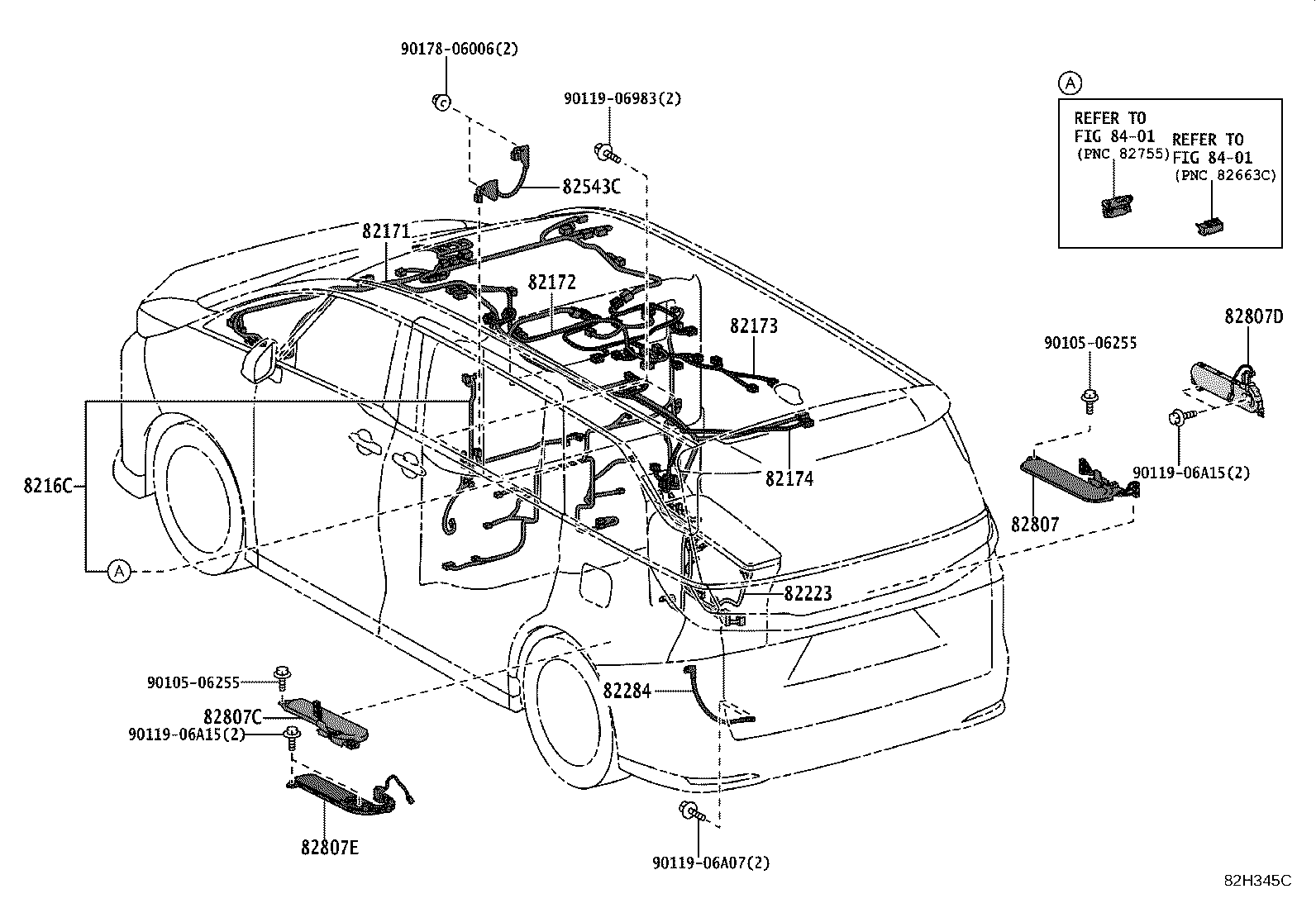

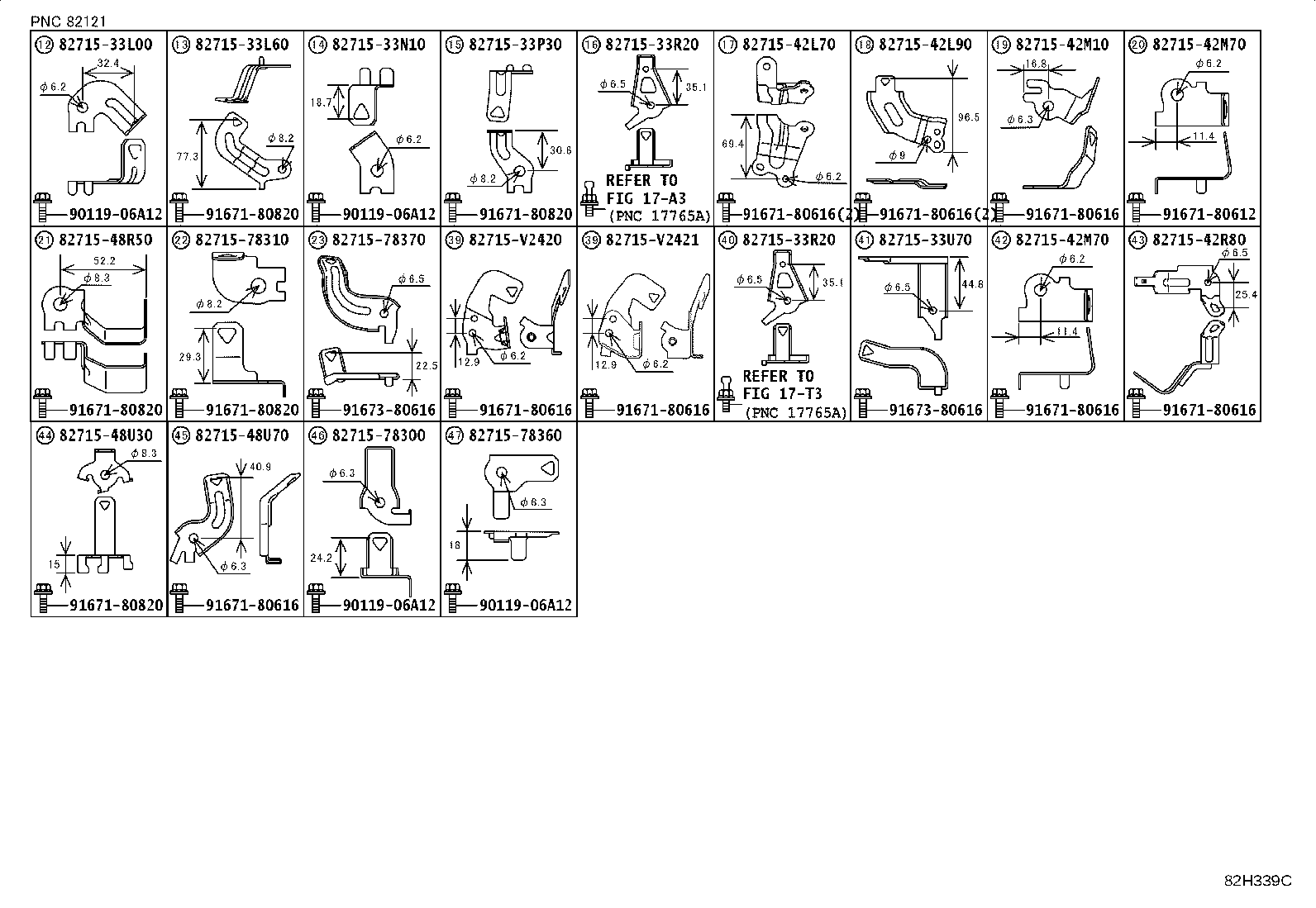

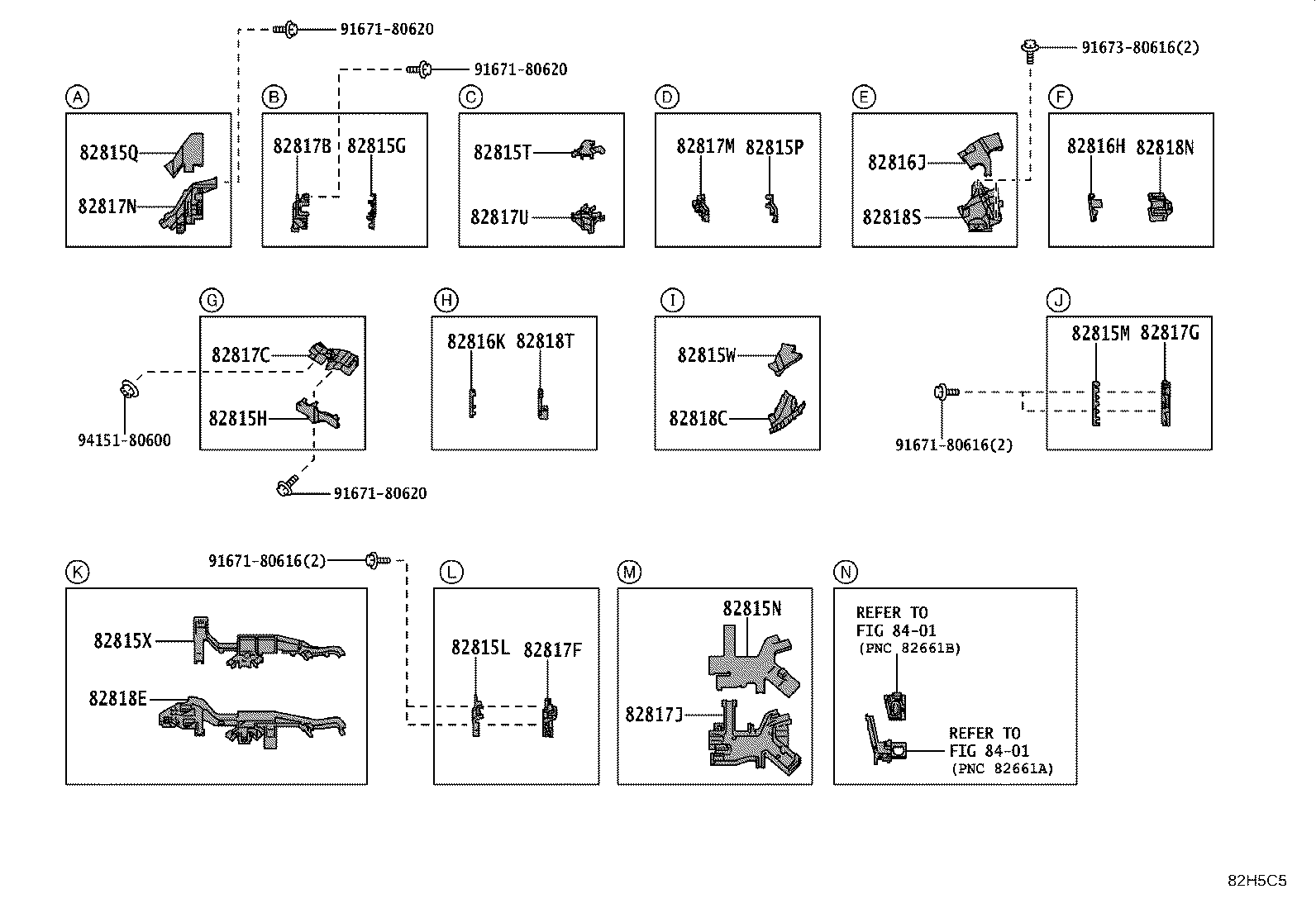

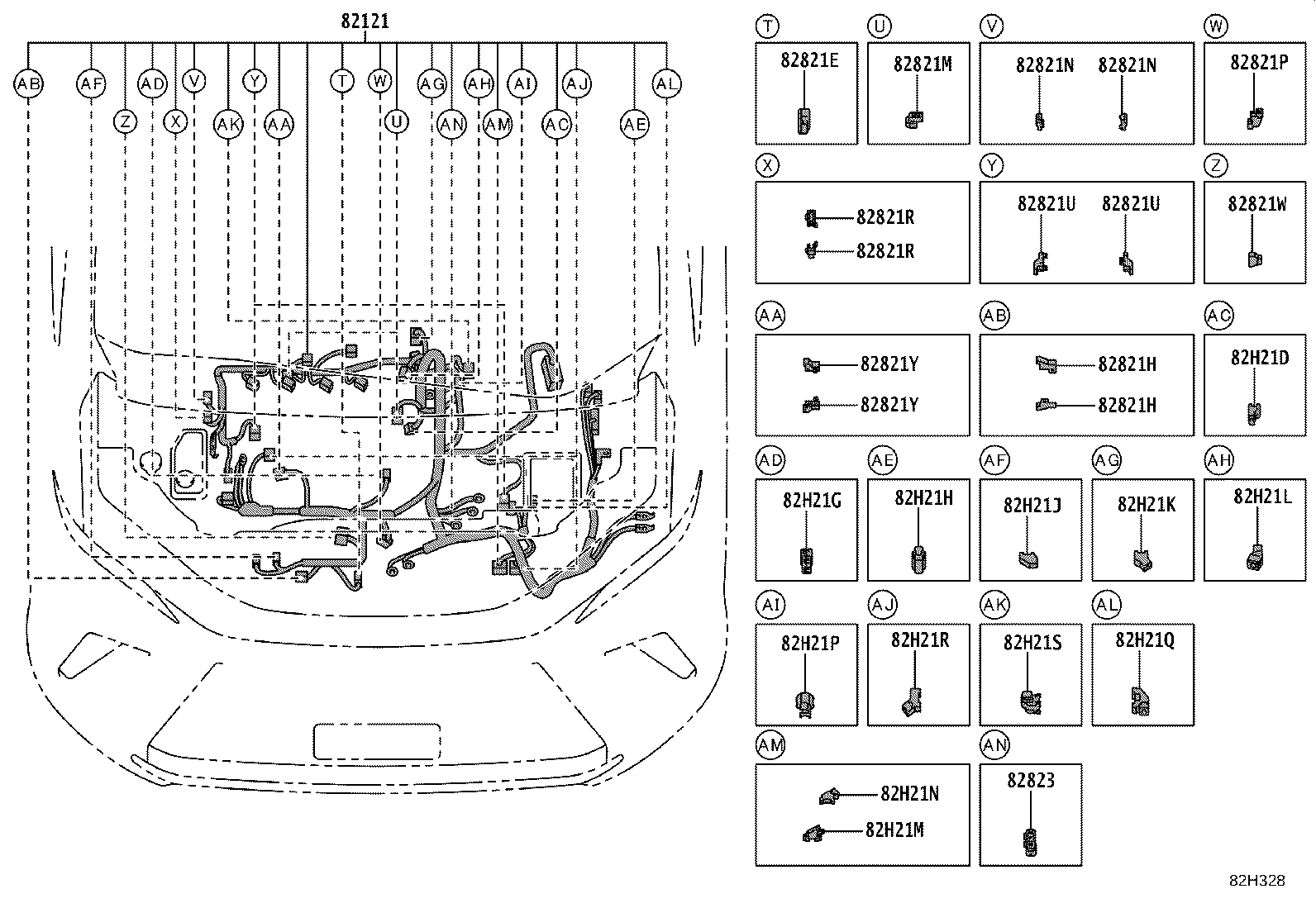

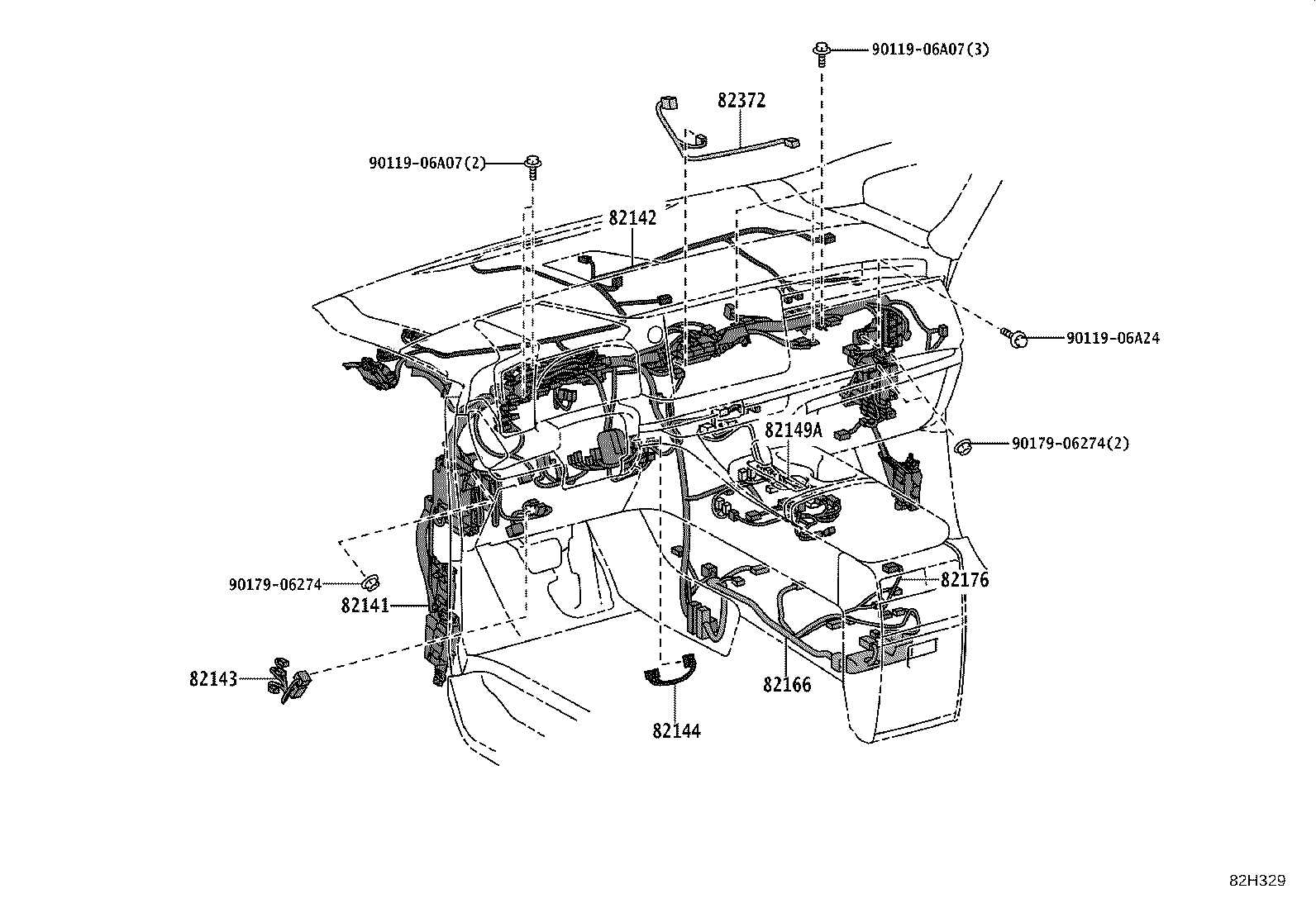

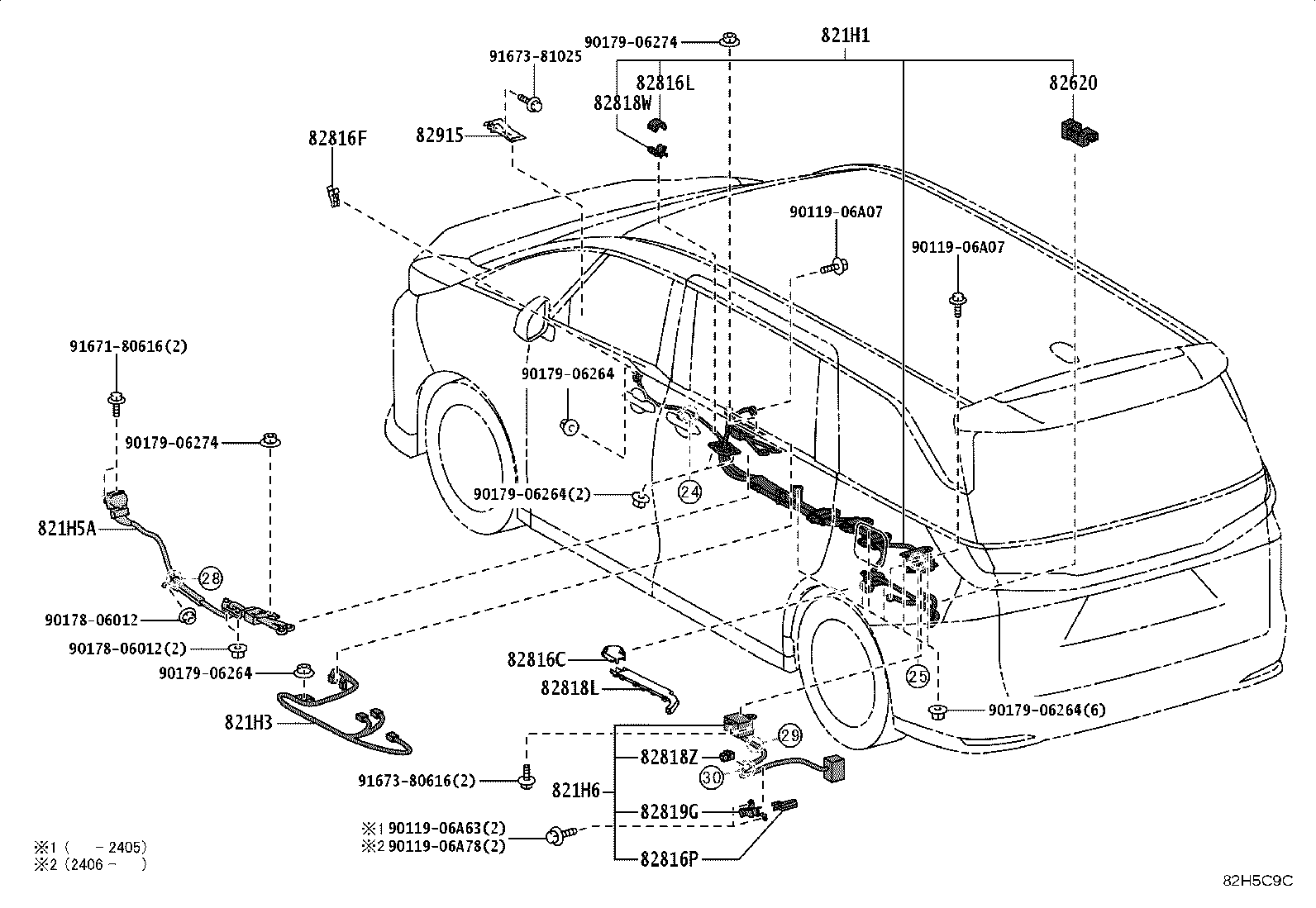

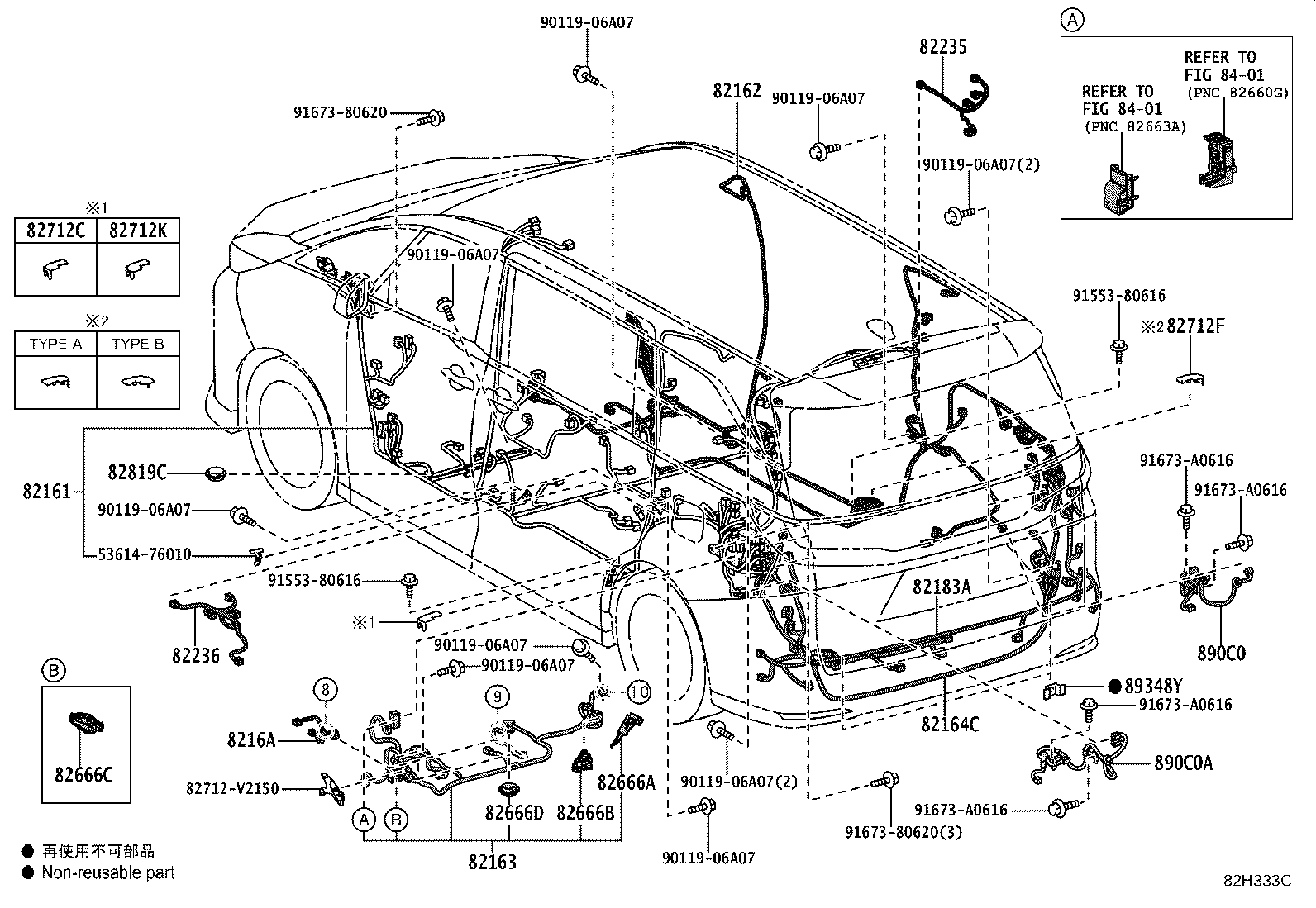

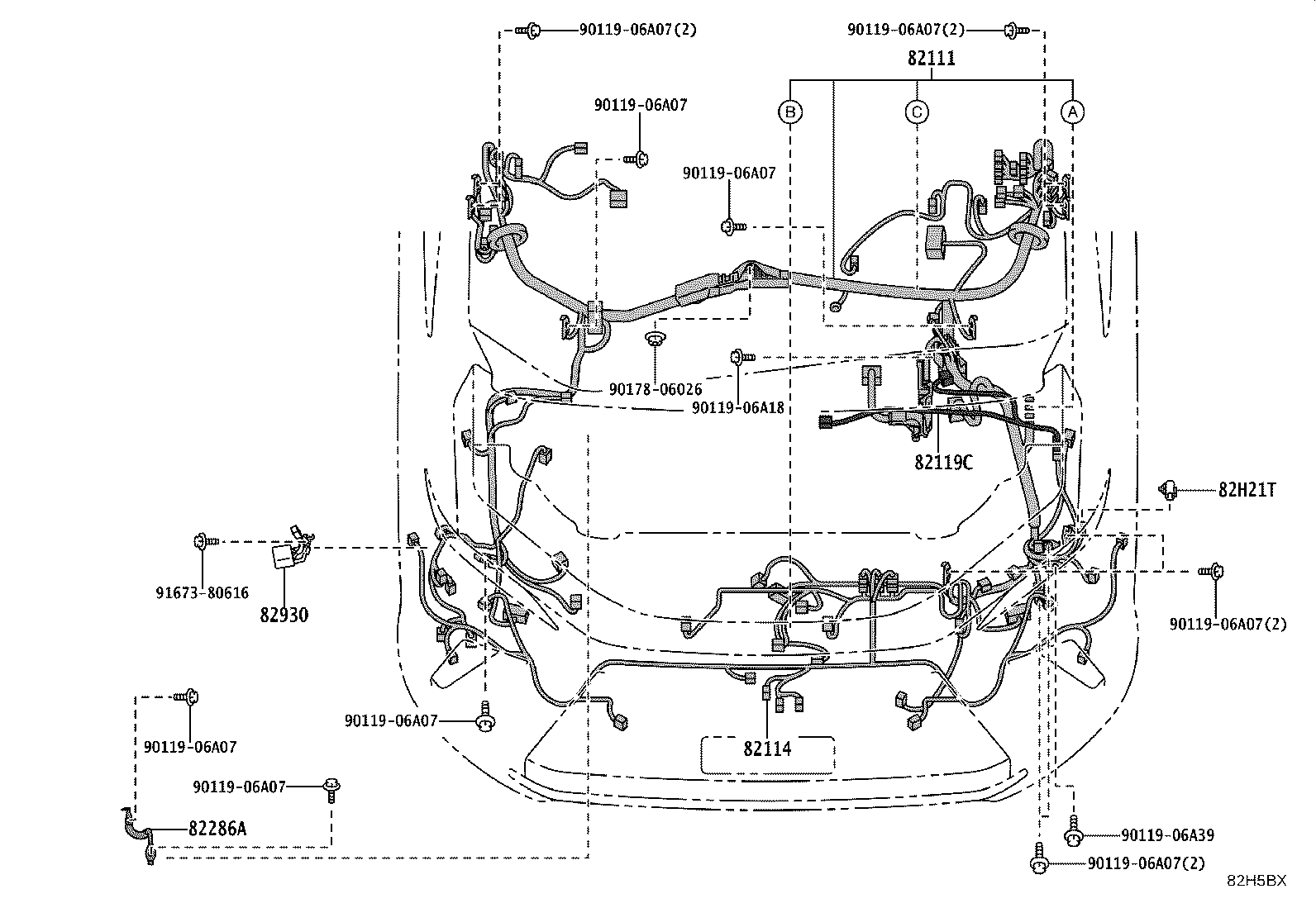

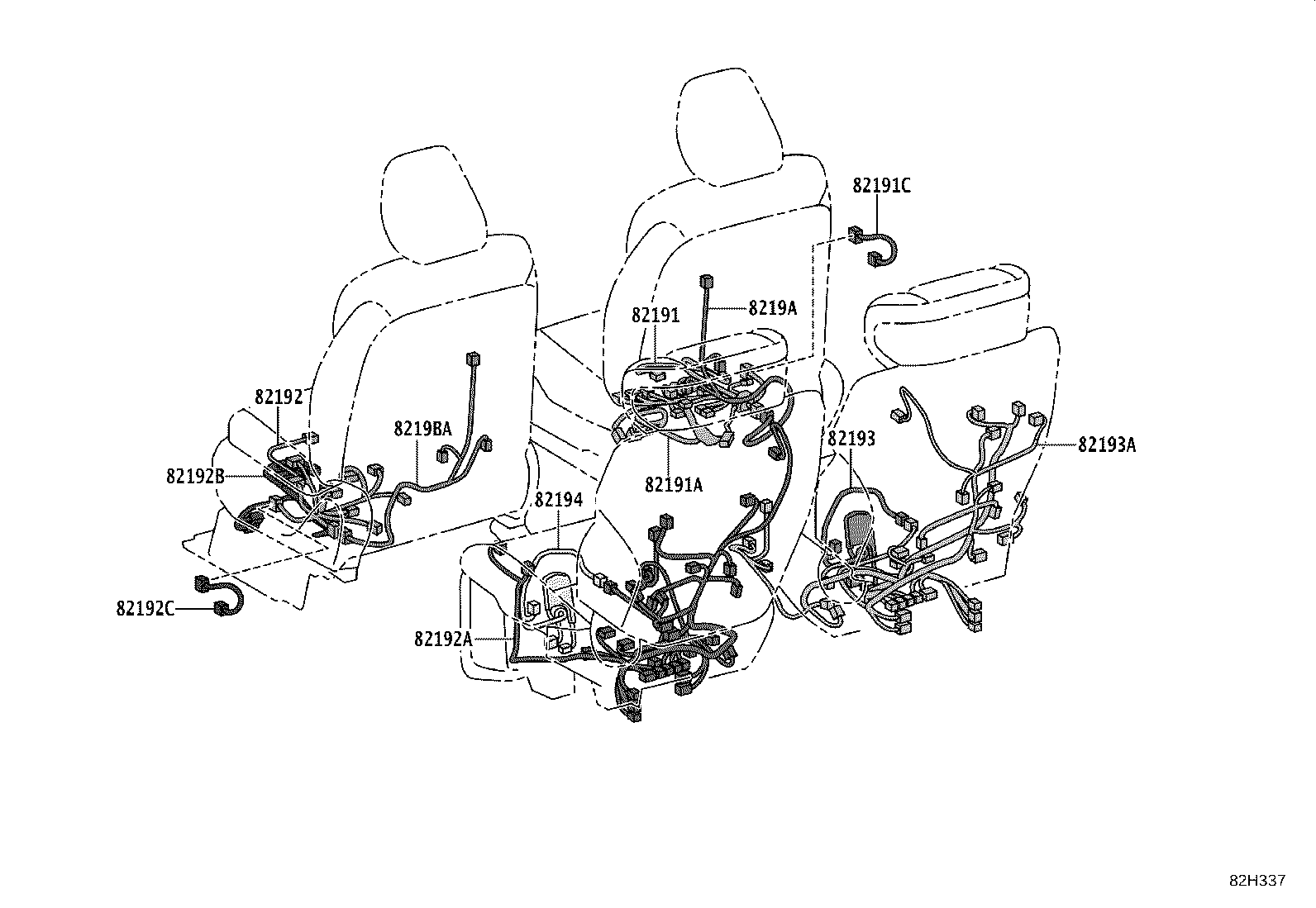

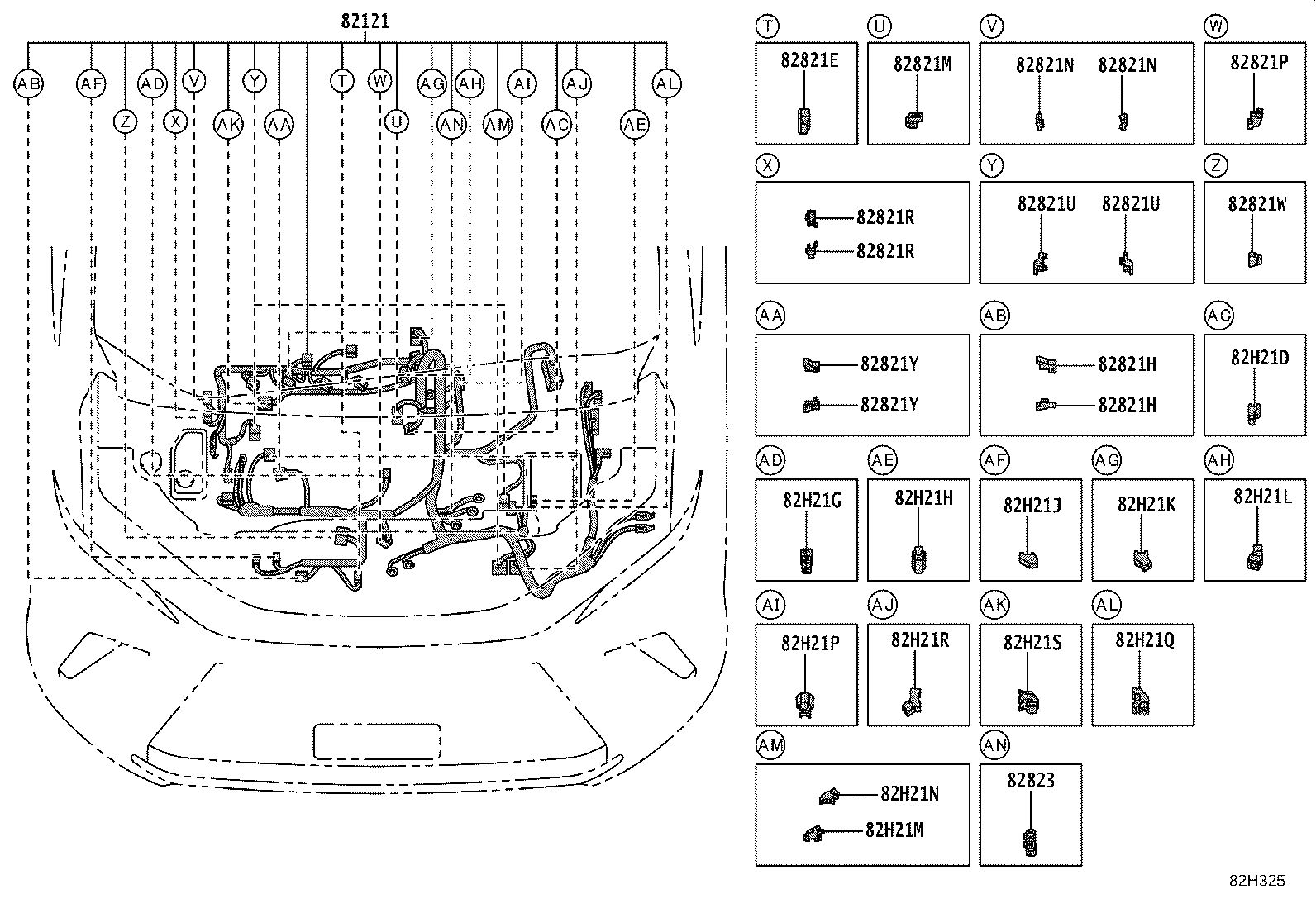

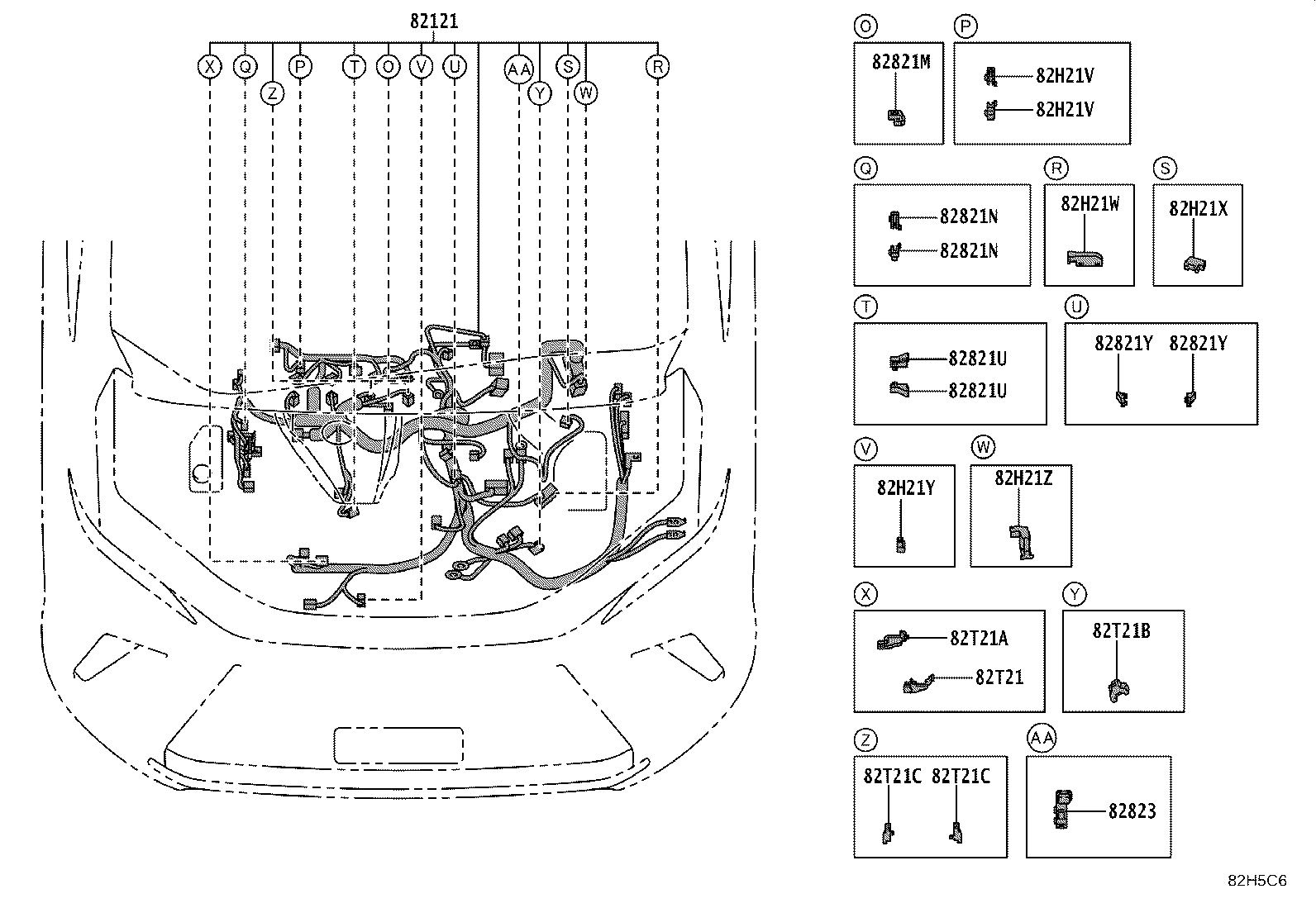

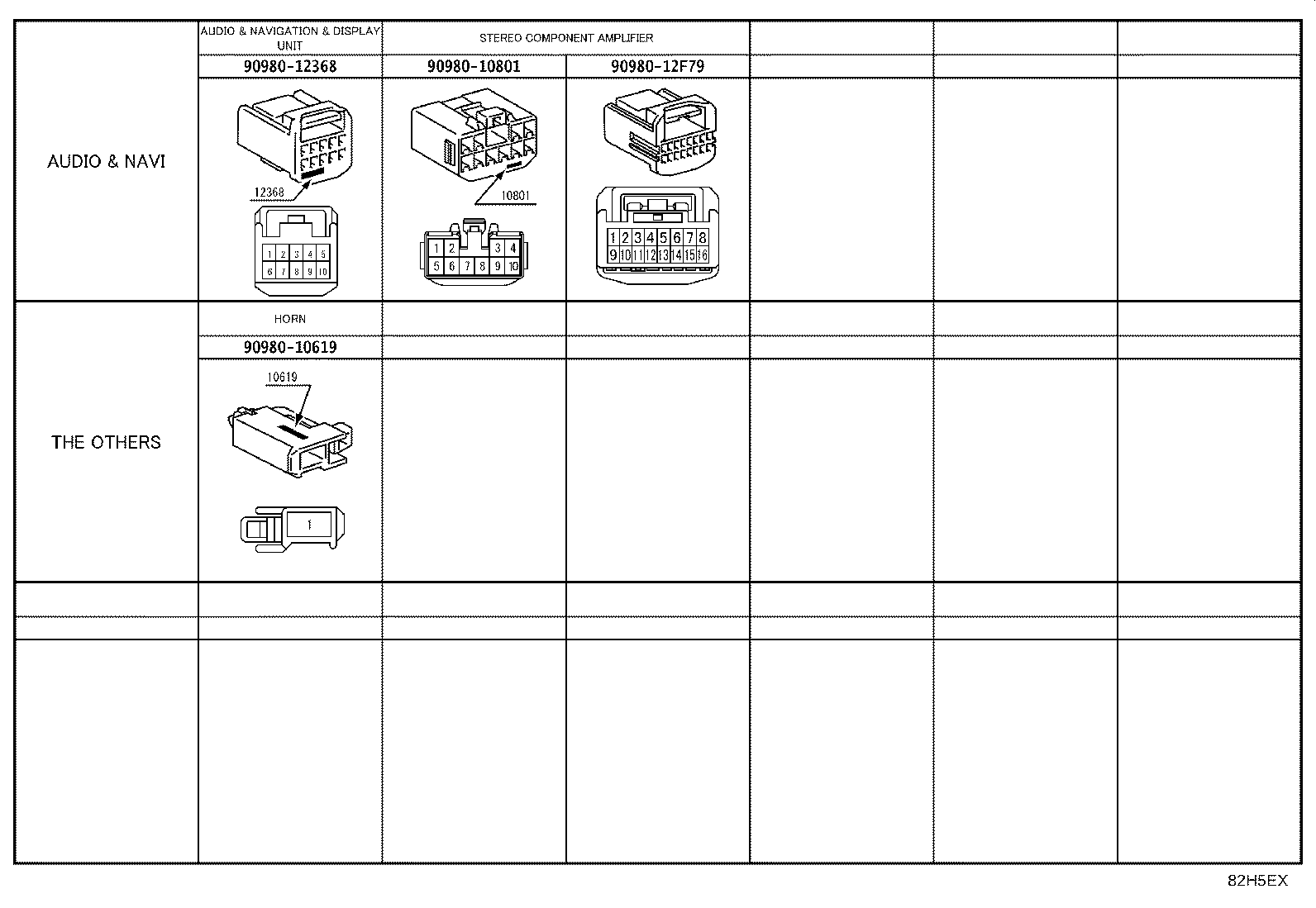

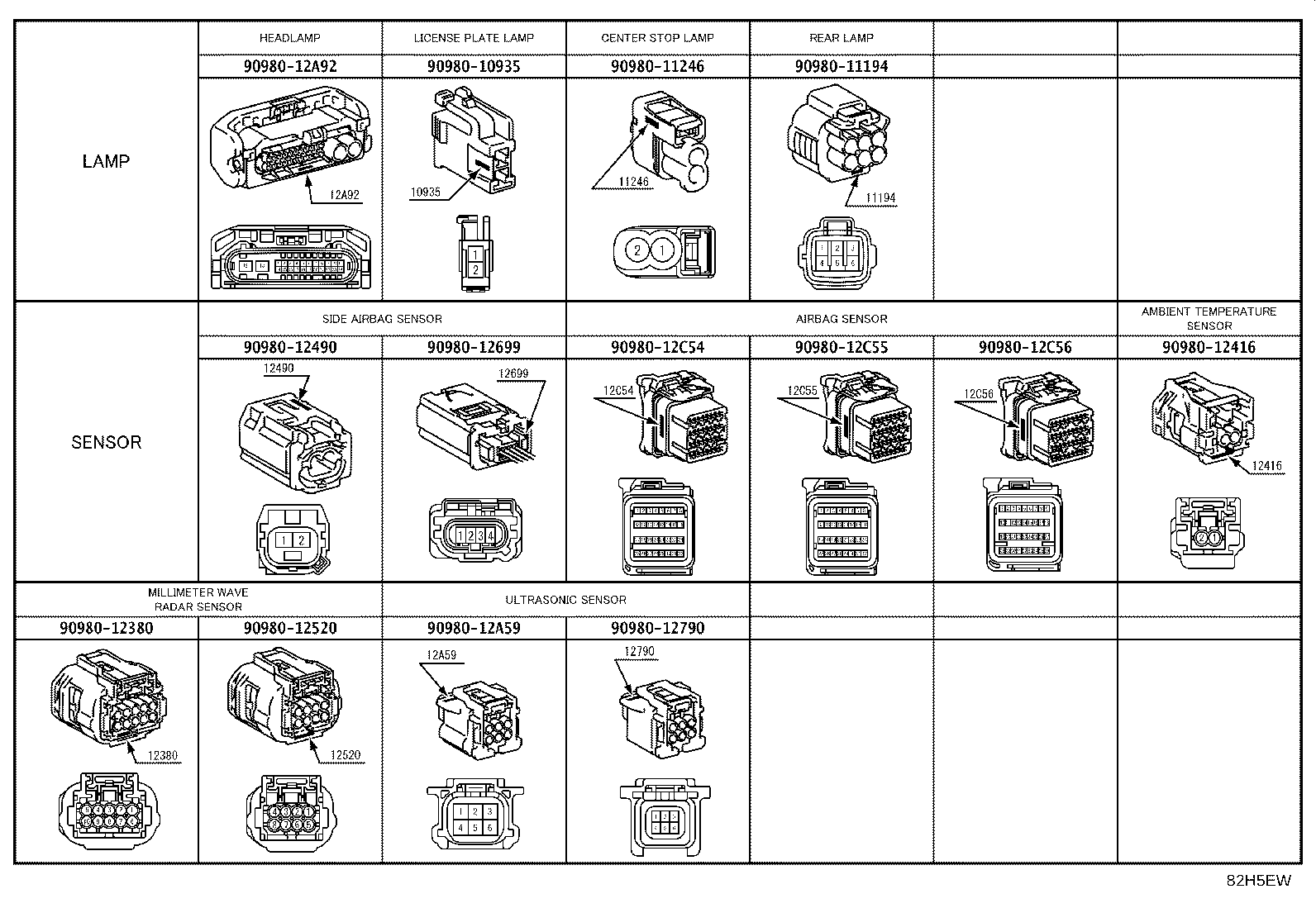

Figure 82H319A 82H319A 2023-06 → — Figure 82H320A 82H320A 2023-06 → — Figure 82H321A 82H321A 2023-06 → — Figure 82H322B 82H322B 2023-06 → — Figure 82H5BX 82H5BX 2023-11 → — Figure 82H5BY 82H5BY 2023-11 → — Figure 82H5BZ 82H5BZ 2023-11 → — Figure 82H5C0 82H5C0 2023-11 → — Figure 82H323 82H323 2023-06 → — Figure 82H324 82H324 2023-06 → — Figure 82H325 82H325 2023-06 → — Figure 82H326 82H326 2023-06 → — Figure 82H327 82H327 2023-06 → — Figure 82H328 82H328 2023-06 → — Figure 82H5C1A 82H5C1A 2023-11 → — Figure 82H5C2 82H5C2 2023-11 → — Figure 82H5C3 82H5C3 2023-11 → — Figure 82H5C4 82H5C4 2023-11 → — Figure 82H5C5 82H5C5 2023-11 → — Figure 82H5C6 82H5C6 2023-11 → — Figure 82H329 82H329 2023-06 → — Figure 82H330 82H330 2023-06 → — Figure 82H331 82H331 2023-06 → — Figure 82H332D 82H332D 2023-06 → — Figure 82H345C 82H345C 2023-06 → — Figure 82H333C 82H333C 2023-06 → — Figure 82H346D 82H346D 2023-06 → — Figure 82H5C7 82H5C7 2023-11 → — Figure 82H5C8C 82H5C8C 2023-11 → — Figure 82H334 82H334 2023-06 → — Figure 82H335 82H335 2023-06 → — Figure 82H5C9C 82H5C9C 2023-11 → — Figure 82H337 82H337 2023-06 → — Figure 82H336 82H336 2023-06 → — Figure 82H338A 82H338A 2023-06 → — Figure 82H339C 82H339C 2023-06 → — Figure 82H5EW 82H5EW 2023-06 → — Figure 82H5EX 82H5EX 2023-06 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82114 Wire, Engine Room, NO.4
82119C Wire, Engine Room, NO.5
82121 Wire, Engine
82125N Wire, Engine, NO.5
82126A Wire, Engine, NO.6
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3
82144 Wire, Instrument Panel, NO.4
82149A Wire, Instrument Panel, NO.5
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153A Wire, Rear Door, RH
82154A Wire, Rear Door, LH
82157C Wire, Rear Door, RH NO.2
82158C Wire, Rear Door, LH NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164C Wire, Floor, NO.4
82166 Wire, Console Box
8216A Wire, Floor NO.7
8216C Wire, Floor, NO.9
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82173 Wire, Roof, NO.3
82174 Wire, Roof, NO.4
82176 Wire, Rear Console Box
82183A Wire, Rear Bumper
82184 Wire, Back Door, NO.1
82191 Wire, Front Seat, RH
82191A Wire, Front Seat, RH
82191C Wire, Front Seat, RH NO.4
82192 Wire, Front Seat, LH
82192A Wire, Rear Seat, LH
82192B Wire, Front Seat, LH NO.2
82192C Wire, Front Seat, LH NO.3
82193 Wire, Rear Seat, RH
82193A Wire, Rear Seat, NO.1
82194 Wire, Rear Seat, LH
8219A Wire, Front Seat, RH NO.2
8219BA Wire, Front Seat, LH NO.3
821H1 Wire, Floor Under
821H2 Wire, HV Air Conditioner
821H3 Wire, HV Battery Pack
821H5A Wire, HV Battery Charger
821H6 Wire, HV Floor Under, NO.2
82219A Wire, Sensor
82223 Wire, Switch
82235 Wire, Room
82236 Wire, Room, NO.2
82284 Wire, Earth
82284A Wire, Earth NO.2
82286A Wire, Earth, NO.2
82372 Wire, Radio Installation
82505 Wiring Sub-assy, Front Door, RH
82543C Wire, Power Window
82620 Block Assy, Fusible Link
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82712A Support, Wiring Harness
82712C Support, Wiring Harness, NO.1
82712F Support, Wiring Harness
82712K Support, Wiring Harness
82807 Protector Set, Wiring Harness
82807C Protector Set, Wiring Harness, NO.2
82807D Protector Set, Wiring Harness, NO.3
82807E Protector Set, Wiring Harness, NO.4
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815K Cover, Wiring Harness Protector, NO.8
82815L Cover, Wiring Harness Protector, NO.9
82815M Cover, Wiring Harness Protector, NO.10
82815N Cover, Wiring Harness Protector, NO.11
82815P Cover, Wiring Harness Protector, NO.12
82815Q Cover, Wiring Harness Protector, NO.13
82815R Cover, Wiring Harness Protector, NO.14
82815S Cover, Wiring Harness Protector, NO.15
82815T Cover, Wiring Harness Protector, NO.16
82815U Cover, Wiring Harness Protector, NO.17
82815V Cover, Wiring Harness Protector, NO.1
82815W Cover, Wiring Harness Protector, NO.2
82815X Cover, Wiring Harness Protector, NO.3
82815Y Cover, Wiring Harness Protector, NO.4
82815Z Cover, Wiring Harness Protector, NO.18
82816B Cover, Wiring Harness Protector, NO.1
82816C Cover, Wiring Harness Protector, NO.2
82816D Cover, Wiring Harness Protector, NO.3
82816F Cover, Wiring Harness Protector, NO.4
82816H Cover, Wiring Harness Protector, NO.6
82816J Cover, Wiring Harness Protector, NO.7
82816K Cover, Wiring Harness Protector, NO.8
82816L Cover, Wiring Harness Protector, NO.9
82816P Cover, Wiring Harness Protector, NO.12
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82817X Protector, Wiring Harness, NO.17
82818 Protector, Wiring Harness, NO.2
82818B Protector, Wiring Harness, NO.3
82818C Protector, Wiring Harness, NO.4
82818D Protector, Wiring Harness, NO.5
82818E Protector, Wiring Harness, NO.6
82818F Protector, Wiring Harness, NO.7
82818G Protector, Wiring Harness, NO.8
82818H Protector, Wiring Harness, NO.9
82818J Protector, Wiring Harness, NO.10
82818K Protector, Wiring Harness, NO.11
82818L Protector, Wiring Harness, NO.12
82818N Protector, Wiring Harness, NO.14
82818S Protector, Wiring Harness, NO.15
82818T Protector, Wiring Harness, NO.16
82818U Protector, Wiring Harness, NO.17
82818V Protector, Wiring Harness, NO.18
82818W Protector, Wiring Harness, NO.19
82818Z Protector, Wiring Harness, NO.22
82819C Grommet, Wiring Harness
82819G Protector, Wiring Harness, NO.23
82821E Cover, Connector
82821H Cover, Connector
82821M Cover, Connector
82821N Cover, Connector
82821P Cover, Connector
82821R Cover, Connector
82821U Cover, Connector
82821W Cover, Connector
82821Y Cover, Connector
82823 Cap, Terminal, NO.1
82915 Insulator, Wiring Harness Heat, NO.1
82930 Condenser Assy, Wiring Harness, NO.1
82H21D Cover, Connector
82H21G Cover, Connector
82H21H Cover, Connector
82H21J Cover, Connector
82H21K Cover, Connector
82H21L Cover, Connector
82H21M Cover, Connector
82H21N Cover, Connector
82H21P Cover, Connector
82H21Q Cover, Connector
82H21R Cover, Connector
82H21S Cover, Connector
82H21T Cover, Connector
82H21V Cover, Connector
82H21W Cover, Connector
82H21X Cover, Connector
82H21Y Cover, Connector
82H21Z Cover, Connector
82T21 Cover, Connector
82T21A Cover, Connector
82T21B Cover, Connector
82T21C Cover, Connector
890C0 Wire Assy, Parking Brake, NO.1
890C0A Wire Assy, Parking Brake, NO.2
89348Y Clip, Ultrasonic Sensor, Rear
89893A Filter, Battery Noise
G921D Protector, Inverter Connector Cover
G921G Protector, Inverter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
