Toyota Lexus LM500H/350H

2023-06 → present · chassis AAWH1#,TAWH15 · catalogue 714320 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Inverter Cooling

24 part groups · 3 illustrations

Illustrations

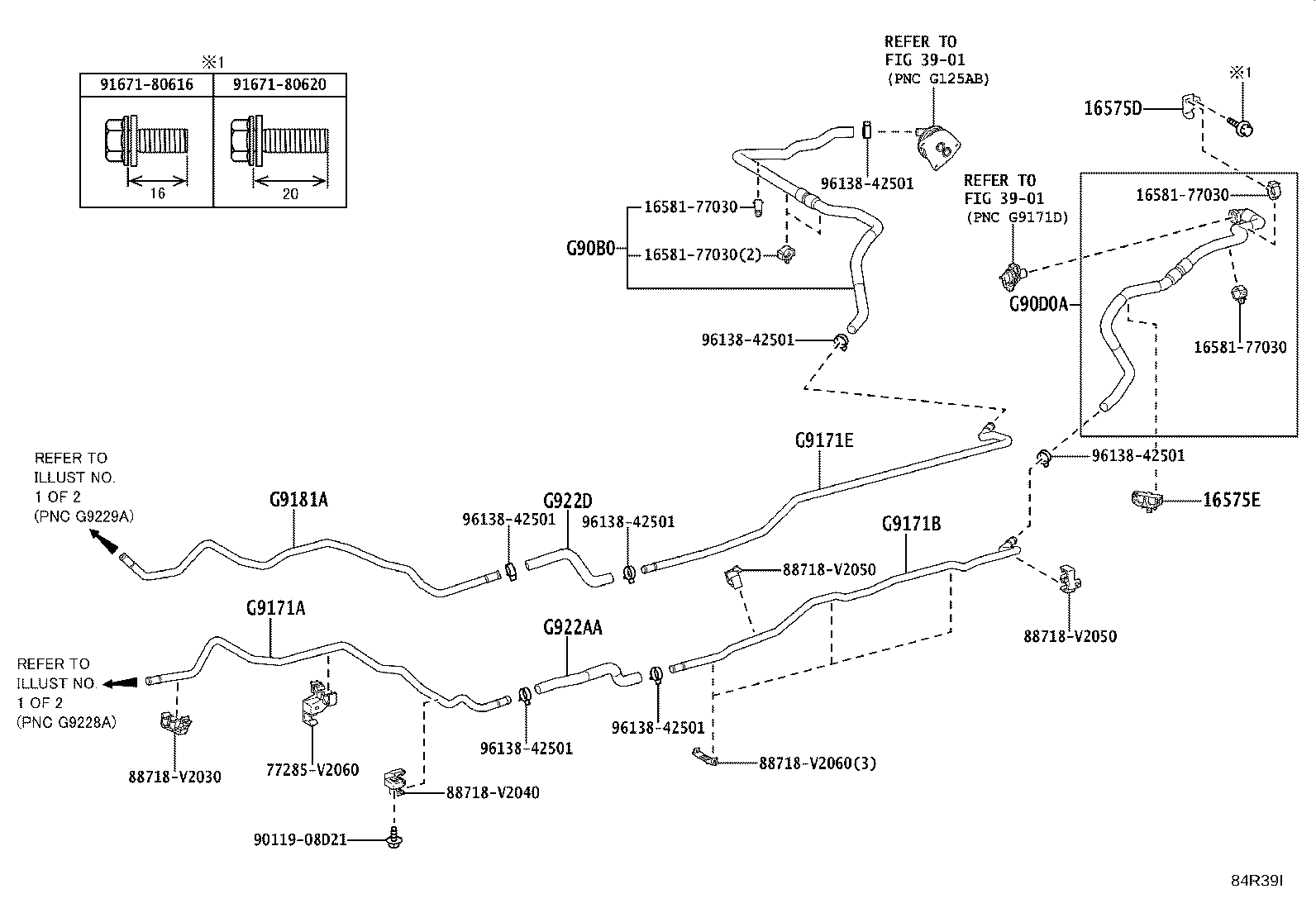

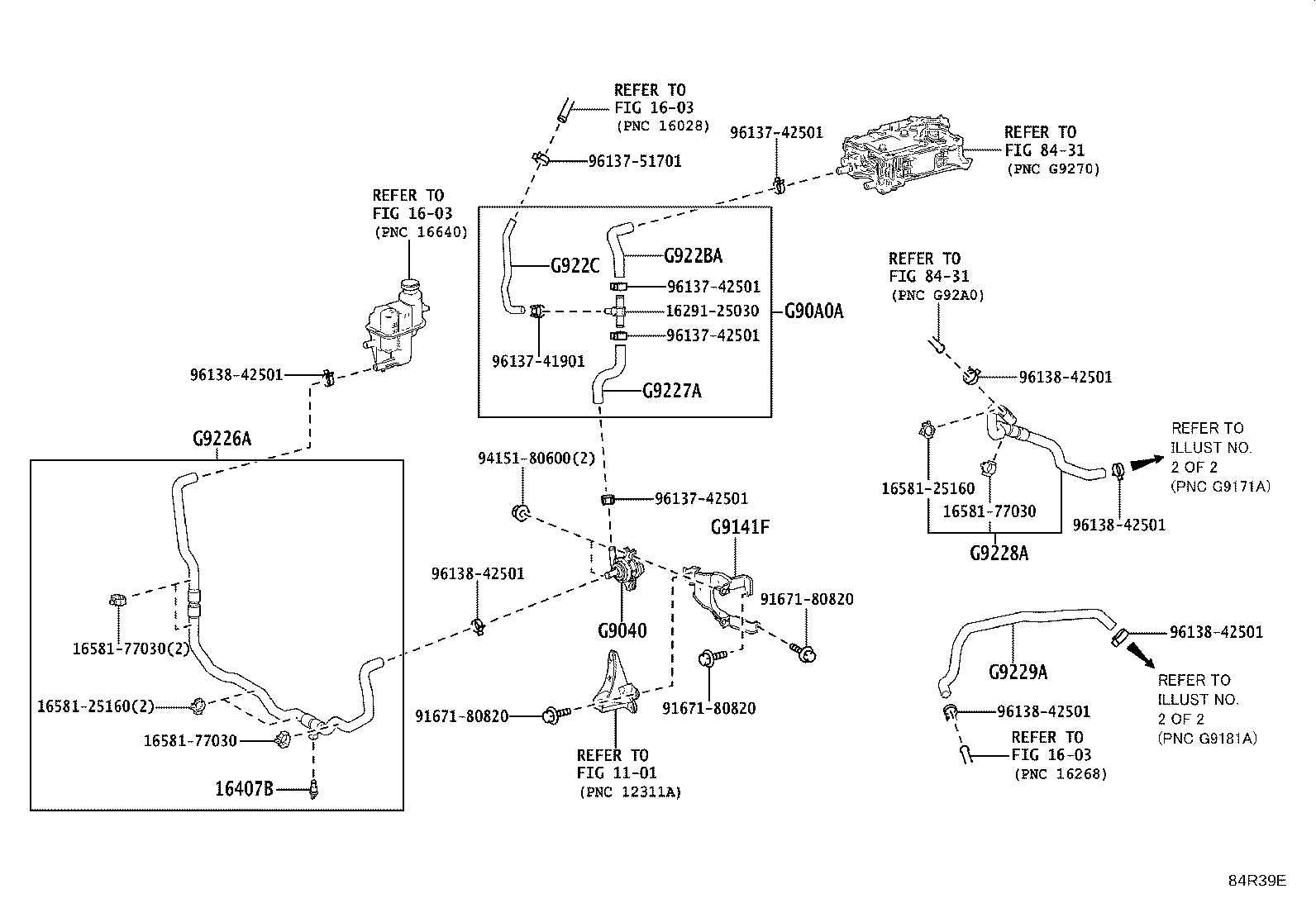

Figure 84Q909A 84Q909A 2023-06 → — Figure 84R39E 84R39E 2023-11 → — Figure 84R39I 84R39I 2023-11 → —

Part groups

PNCDescription
16407B Cock Sub-assy, Radiator Drain
16475 Cap, Reserve Tank
16575D Bracket, Water Hose Clamp, NO.1
16575E Bracket, Water Hose Clamp, NO.2
G9040 Inverter Water Pump Assy(W/MOTOR)
G90A0A Hose Assy, Inverter Cooling, NO.1
G90B0 Hose Assy, Inverter Cooling, NO.2
G90D0A Hose Assy, Inverter Cooling, NO.4
G910GB Tank Sub-assy, Inverter Reserve W/O Cap
G9141F Bracket, HV Water Pump
G9171A Pipe, Inverter Cooling, NO.1
G9171B Pipe, Inverter Cooling, NO.3
G9171E Pipe, Inverter Cooling, NO.4
G9181A Pipe, Inverter Cooling, NO.2
G921A Bracket, Inverter Reserve Tank, NO.1
G9225K Hose, Inverter Cooling, NO.1
G9226A Hose, Inverter Cooling, NO.2
G9227A Hose, Inverter Cooling, NO.3
G9228A Hose, Inverter Cooling, NO.4
G9229A Hose, Inverter Cooling, NO.5
G922AA Hose, Inverter Cooling Inlet, NO.1
G922BA Hose, Inverter Cooling Inlet, NO.2
G922C Hose, Inverter Cooling Outlet, NO.1
G922D Hose, Inverter Cooling Outlet, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
