Toyota Lexus LM500H/350H

2023-06 → present · chassis AAWH1#,TAWH15 · catalogue 714320 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

7 part groups · 3 illustrations

Illustrations

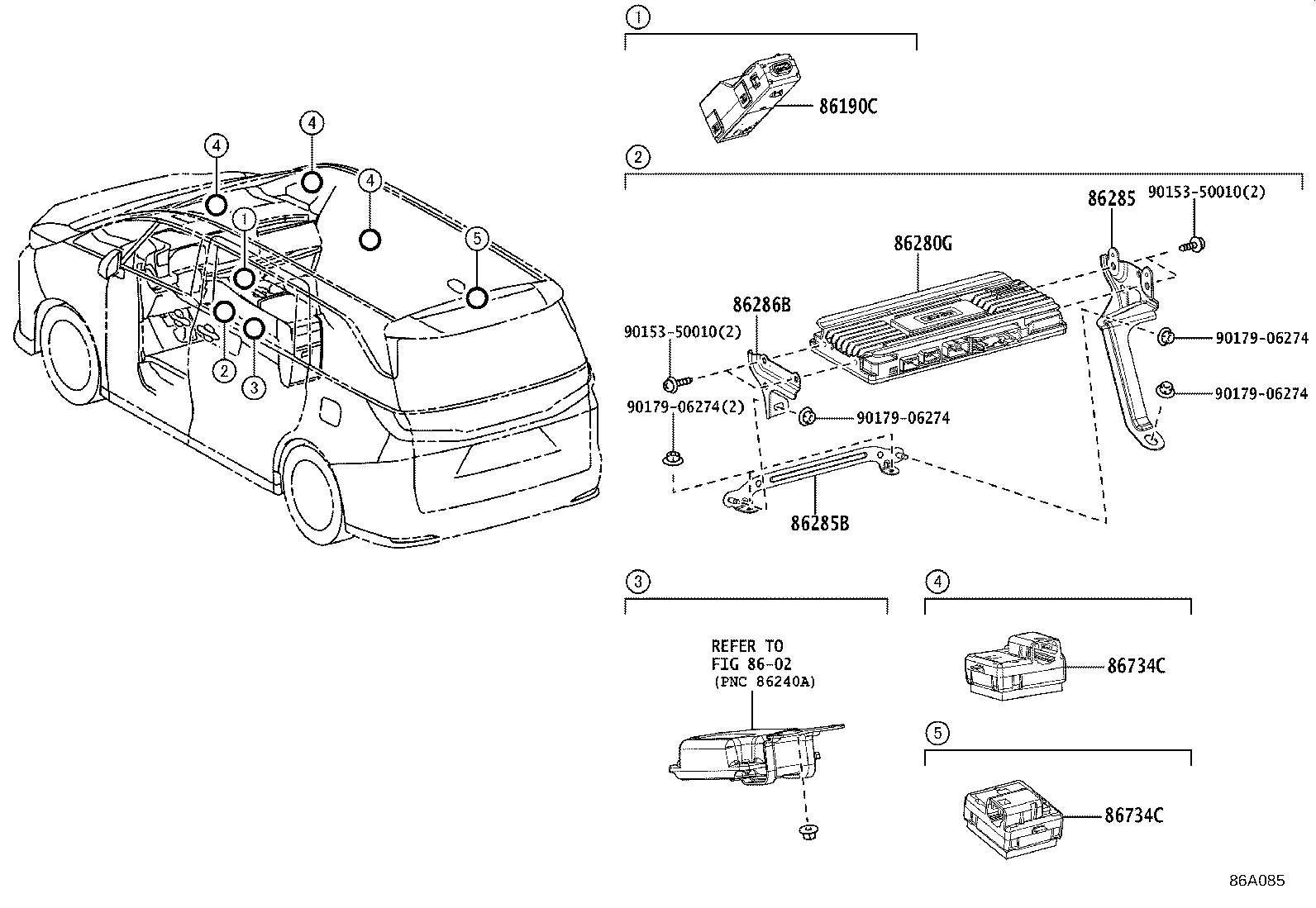

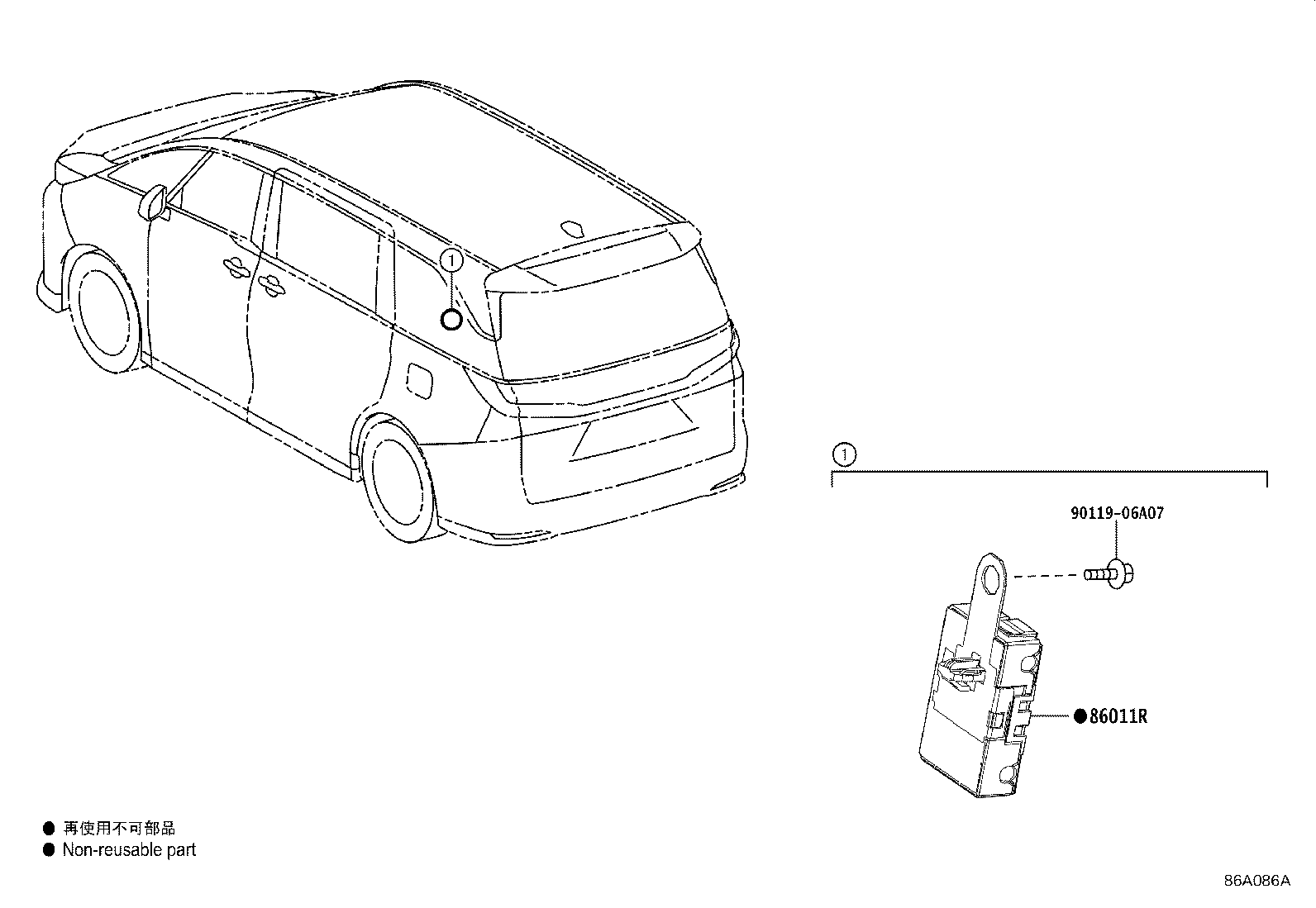

Figure 86A084 86A084 2023-06 → — Figure 86A085 86A085 2023-06 → — Figure 86A086A 86A086A 2023-06 → —

Part groups

PNCDescription
86011R Condenser, Radio Setting
86190C Adapter Assy, Stereo Jack, NO.1
86280G Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
86285B Bracket, Amplifier, NO.1
86286B Bracket, Amplifier, NO.2
86734C Microphone, Active Noise Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
