Toyota Lexus LM500H/350H
2023-06 → present · chassis AAWH1#,TAWH15 · catalogue 714320 · Europe
Supported model
Data version 2023-11

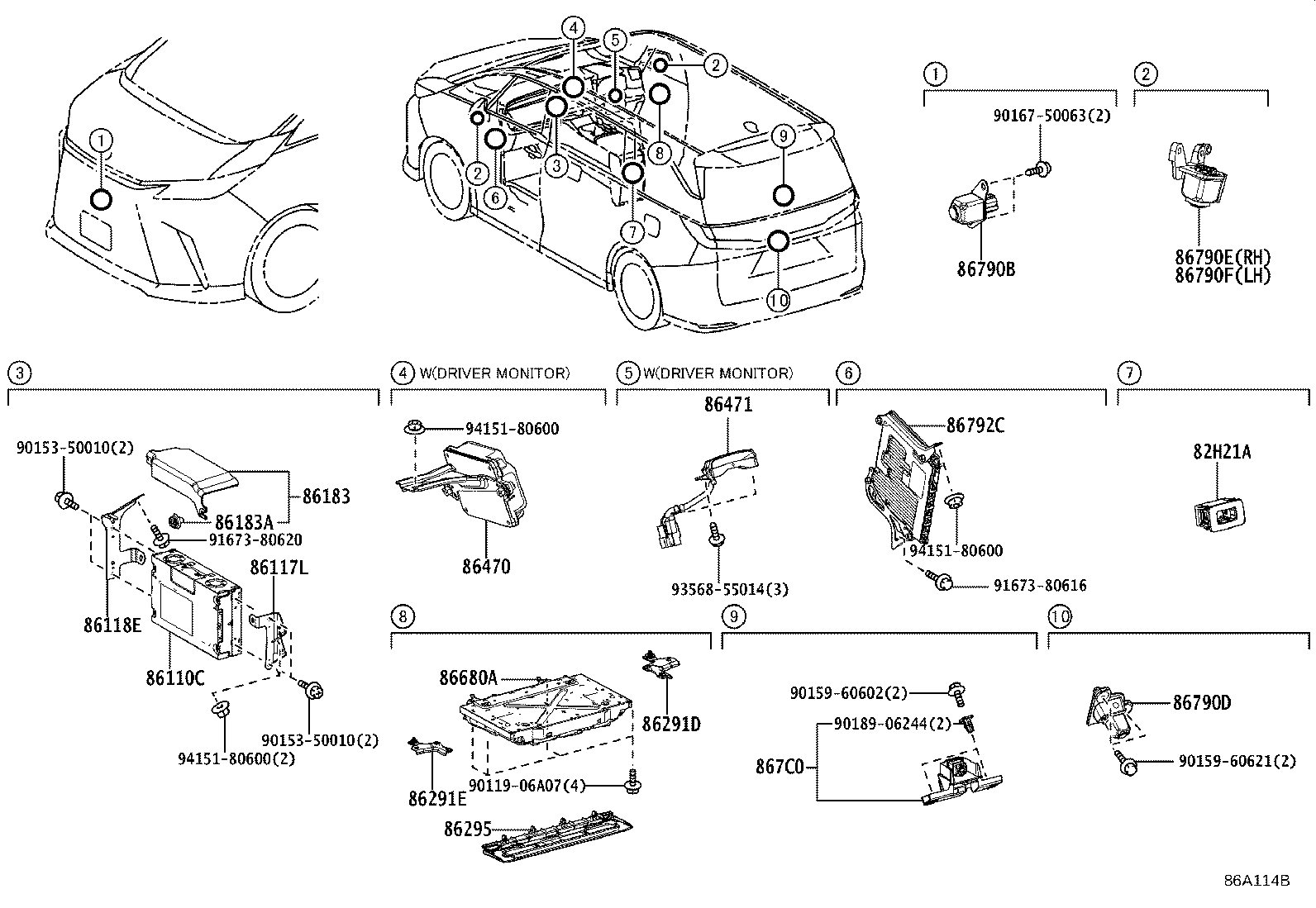

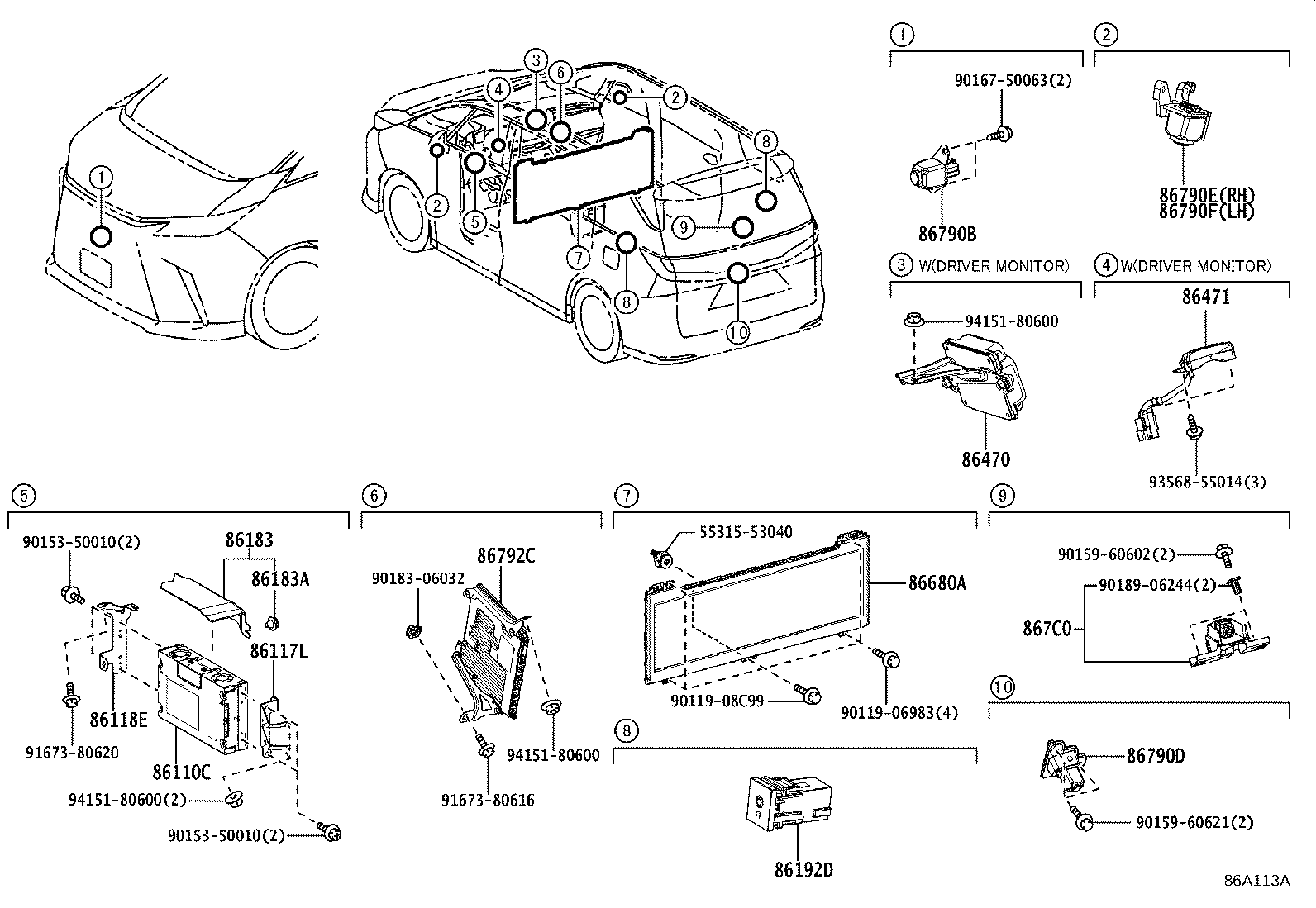

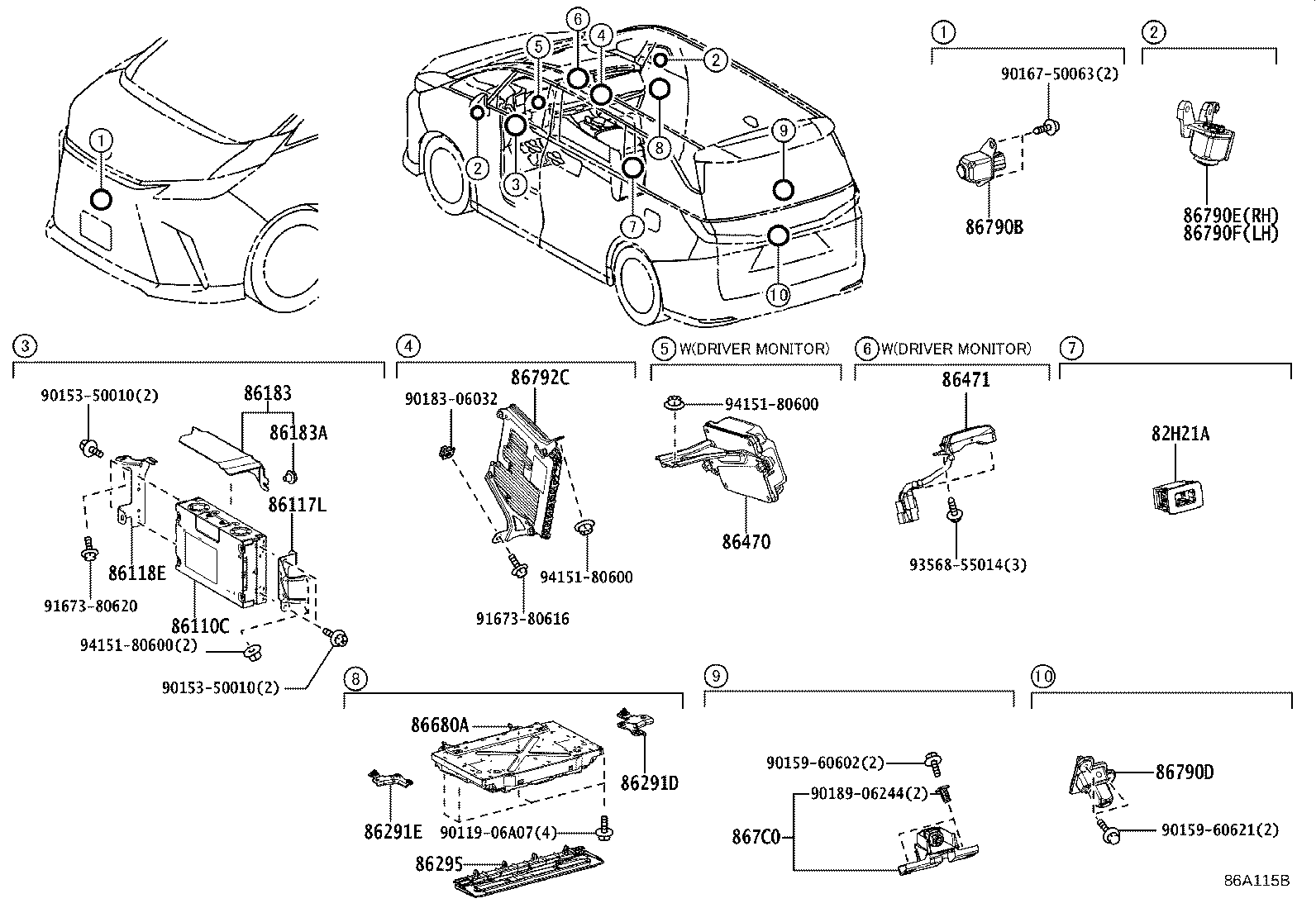

Camera & Rear Monitor Display
19 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 82H21A | Cover, Connector |
| 86110C | Controller Assy, Multi-display |
| 86117L | Bracket, Multi-display Controller, NO.1 |
| 86118E | Bracket, Multi-display Controller, NO.2 |
| 86183 | Cover, Audio Rack |
| 86183A | Clip(FOR AUDIO RACK COVER) |
| 86192D | Terminal, Headphone, LH |
| 86291D | Bracket, Television, NO.3 |
| 86291E | Bracket, Television, NO.4 |
| 86295 | Base, Television |
| 86470 | Computer Assy, Driver Monitor |
| 86471 | Camera, Driver Monitor |
| 86680A | Display Assy, Television |
| 86790B | Camera Assy, Television, FR |
| 86790D | Camera Assy, Television, RR |
| 86790E | Camera Assy, Television, Side RH |
| 86790F | Camera Assy, Television, Side LH |
| 86792C | Computer, Parking Assist |
| 867C0 | Camera Assy, Inner Mirror |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
