Toyota Lexus LM500H/350H
2023-06 → present · chassis AAWH1#,TAWH15 · catalogue 714320 · Europe
Supported model
Data version 2023-11
Heating & Air Conditioning - Control & Air Duct
39 part groups · 10 illustrations
Part groups
| PNC | Description |
|---|---|

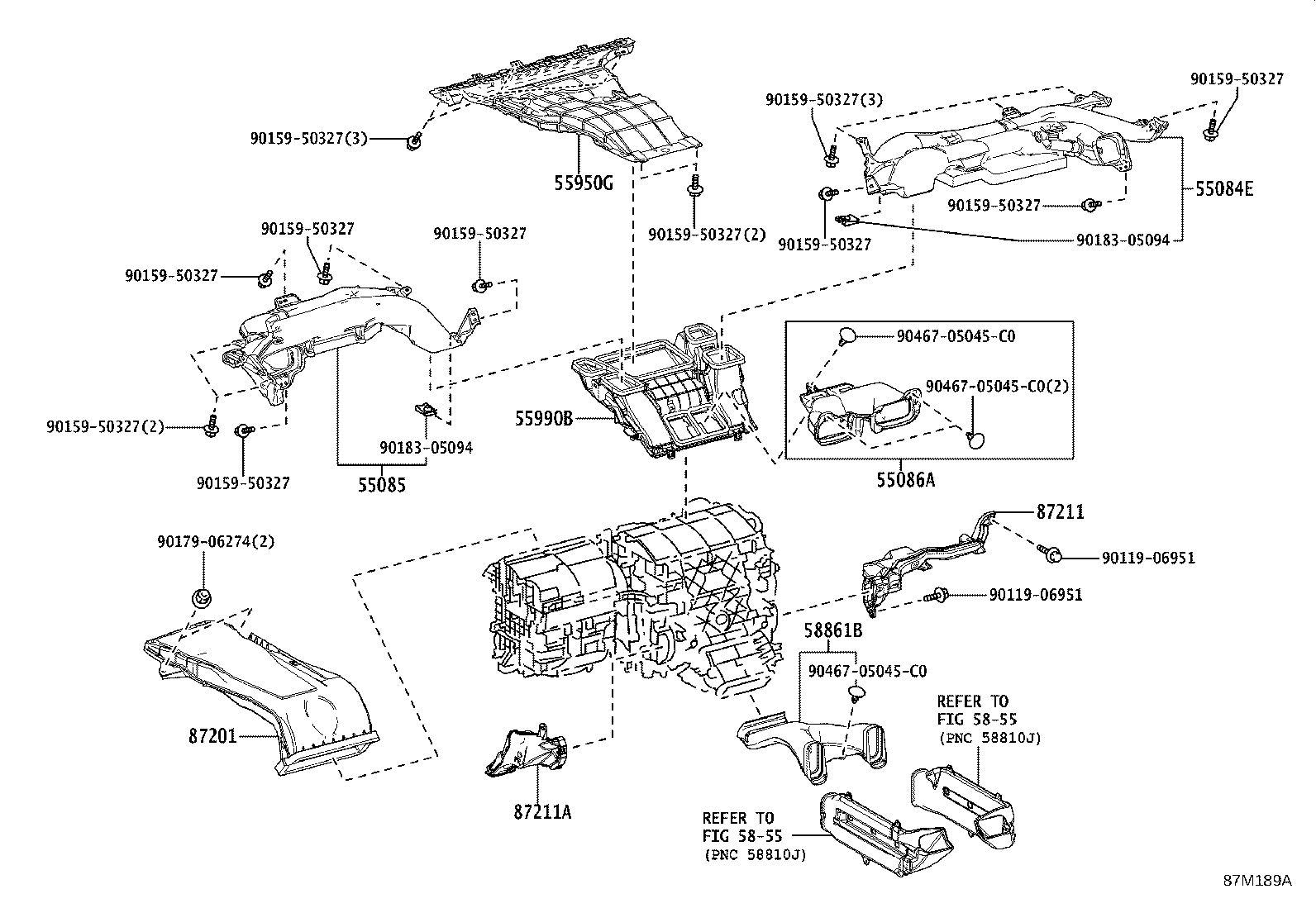

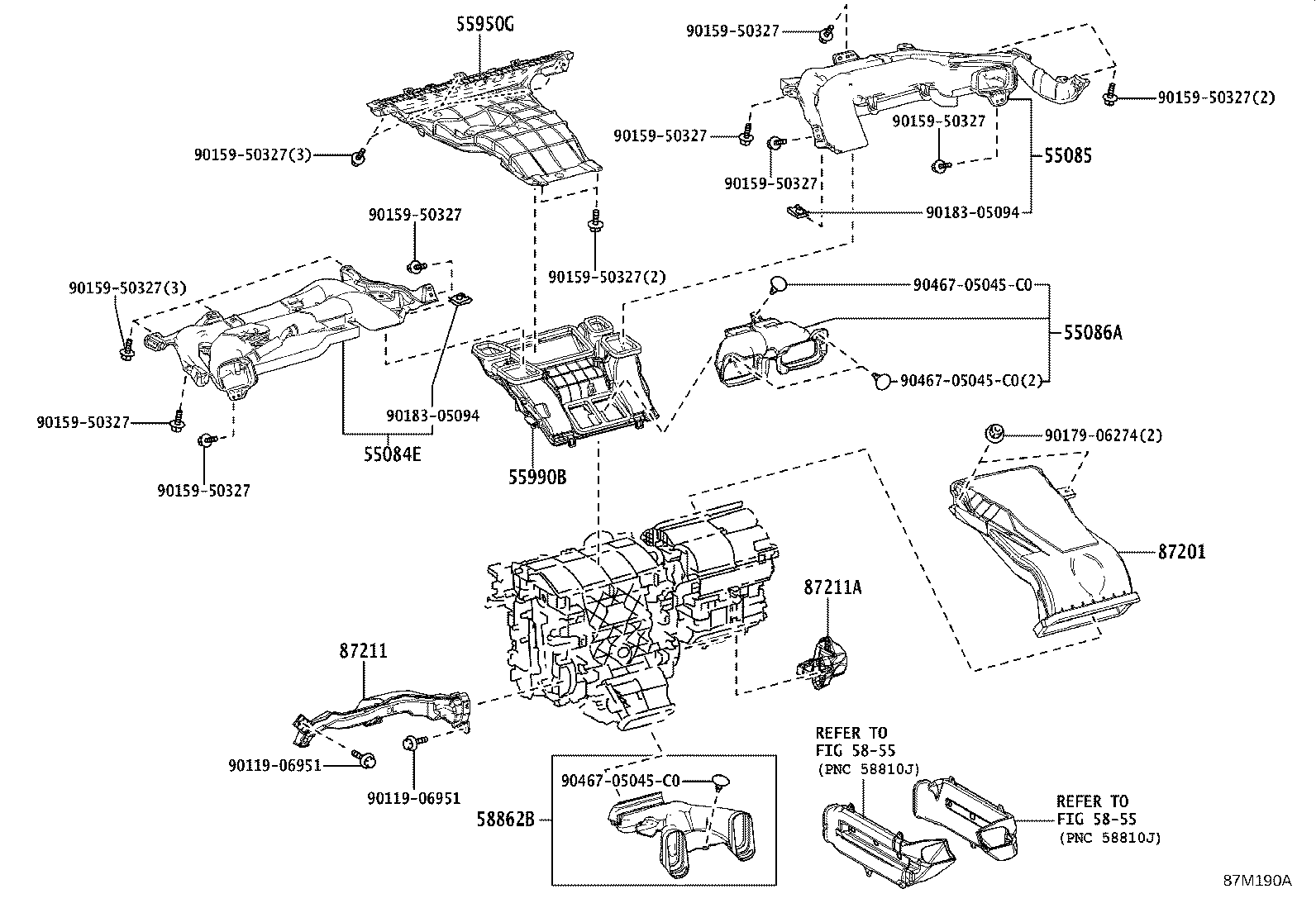

| 55084E | Duct Sub-assy, Heater TO Register, NO.1 |
| 55085 | Duct Sub-assy, Heater TO Register, NO.2 |
| 55086A | Duct Sub-assy, Heater TO Register, Center |
| 55950G | Nozzle Assy, Defroster |
| 55990B | Nozzle Assy, Defroster, Lower |
| 58861B | Duct, Console Box, NO.1 |
| 58862B | Duct, Console Box, NO.2 |
| 84010A | Control & Panel Assy, Integration |
| 87106E | Servo Sub-assy, Heater Damper |
| 87201 | Duct Sub-assy, Air, NO.1 |
| 87201K | Clip (FOR AIR DUCT) |

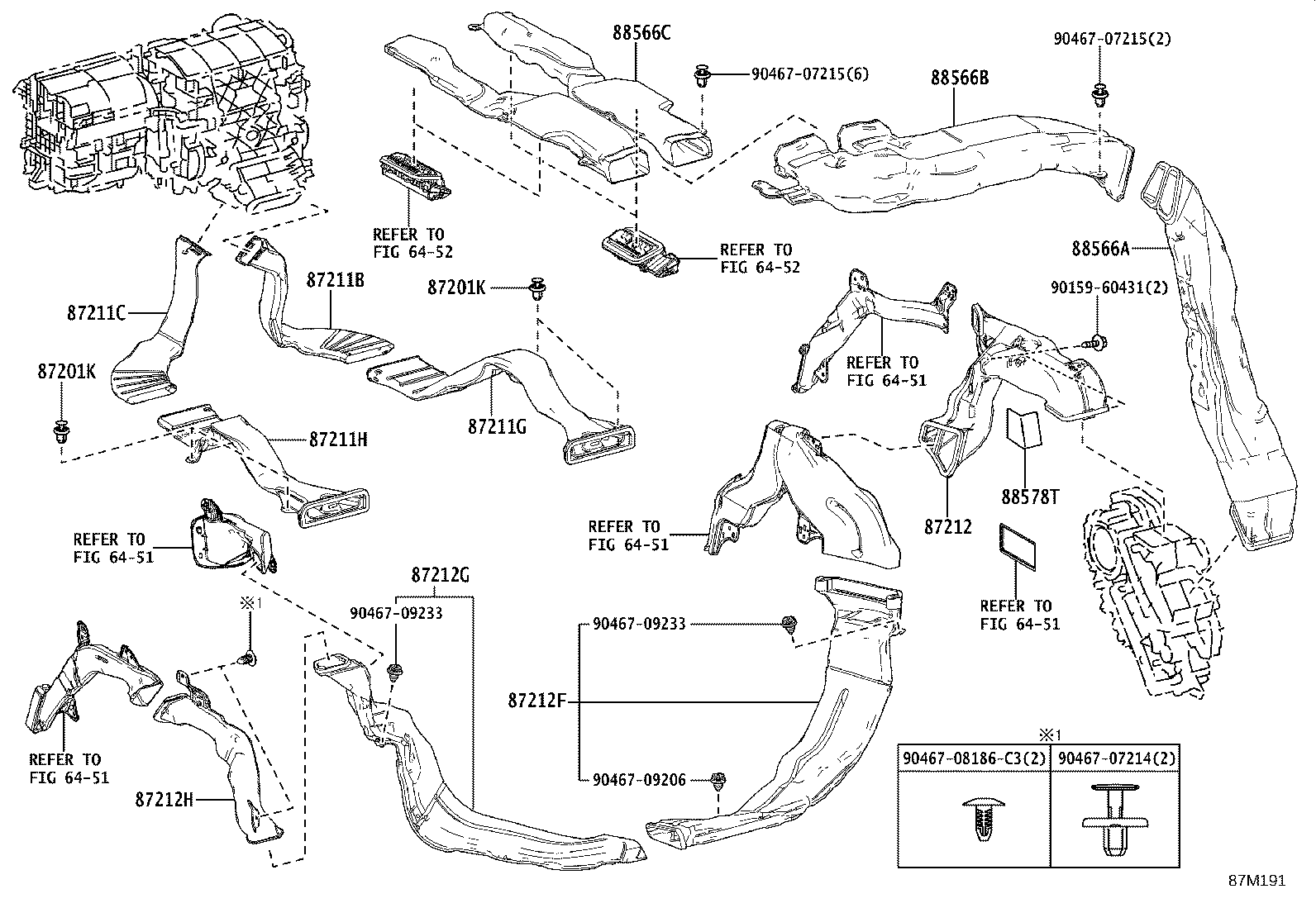

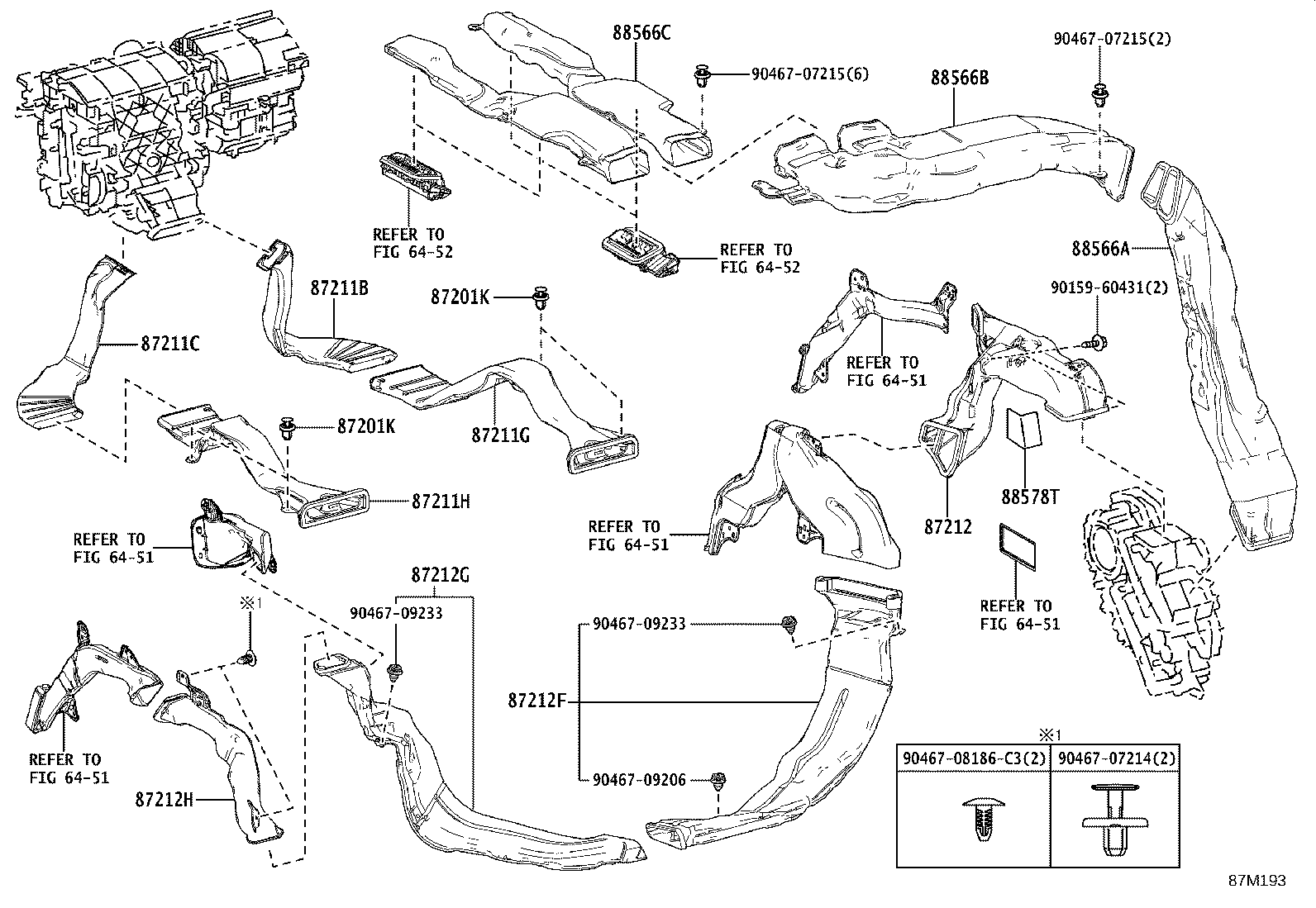

| 87211 | Duct, Air, NO.1 |
| 87211A | Duct, Air, NO.2 |
| 87211B | Duct, Air, NO.3 |
| 87211C | Duct, Air, NO.4 |
| 87211G | Duct, Air, NO.5 |
| 87211H | Duct, Air, NO.6 |

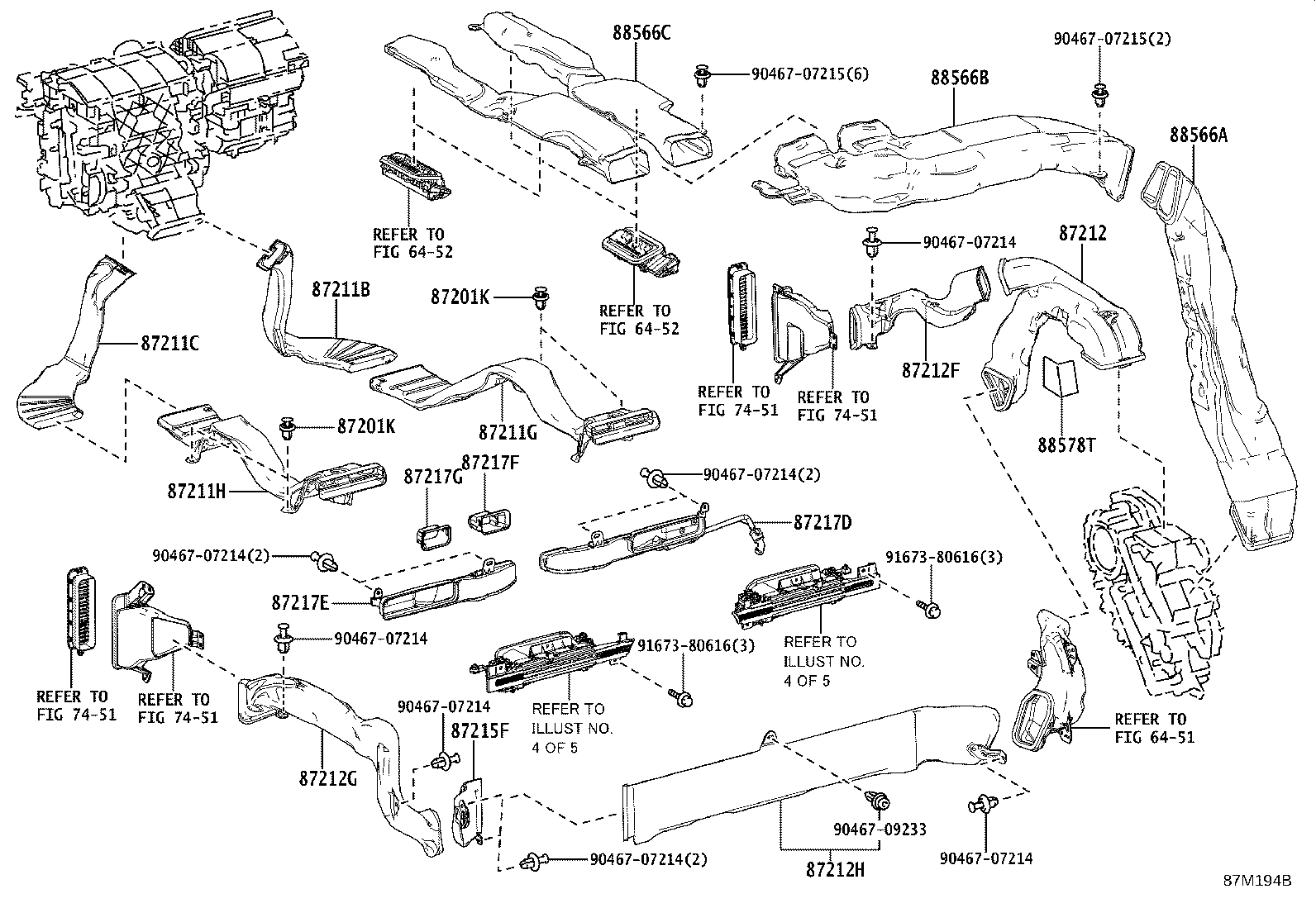

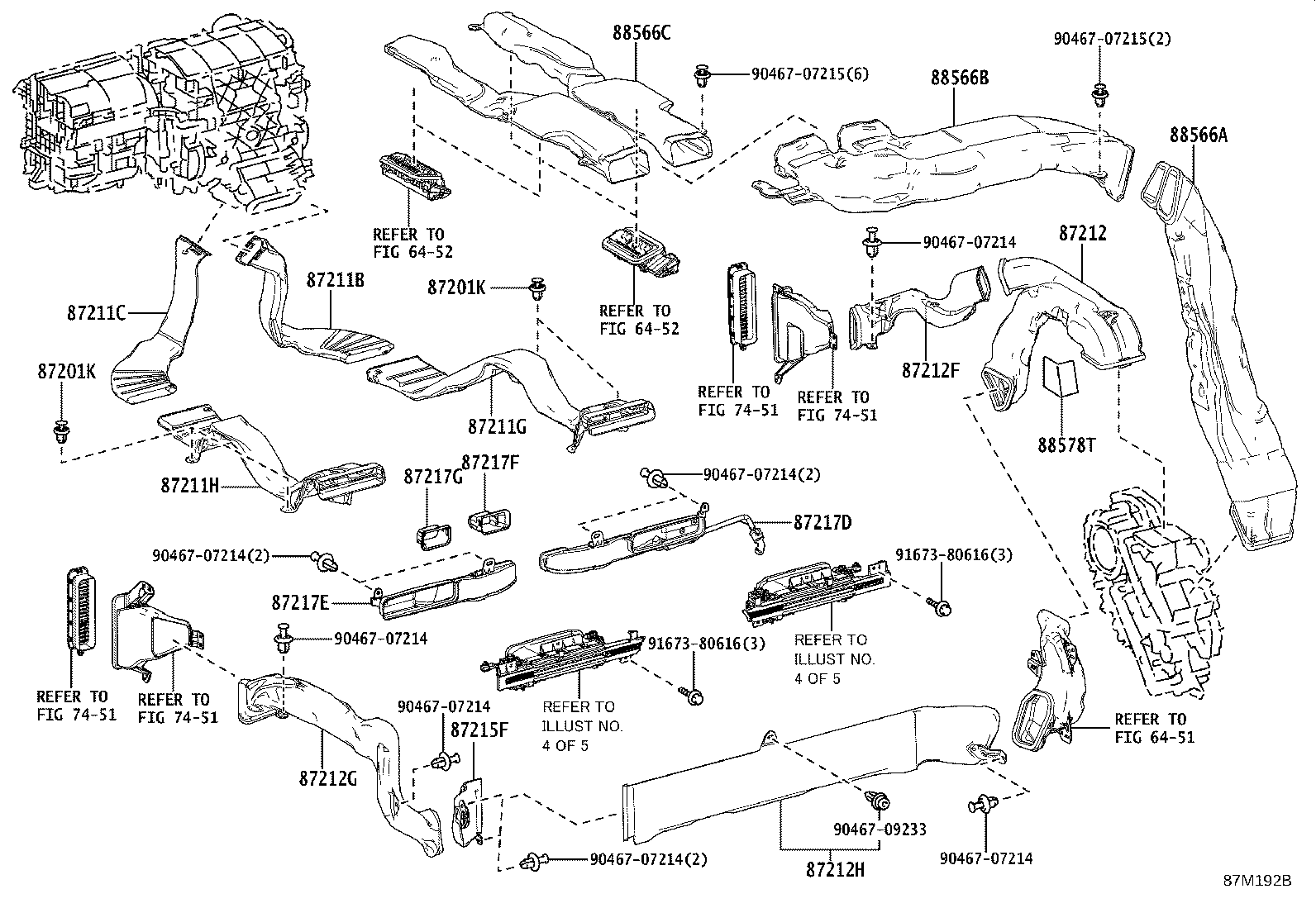

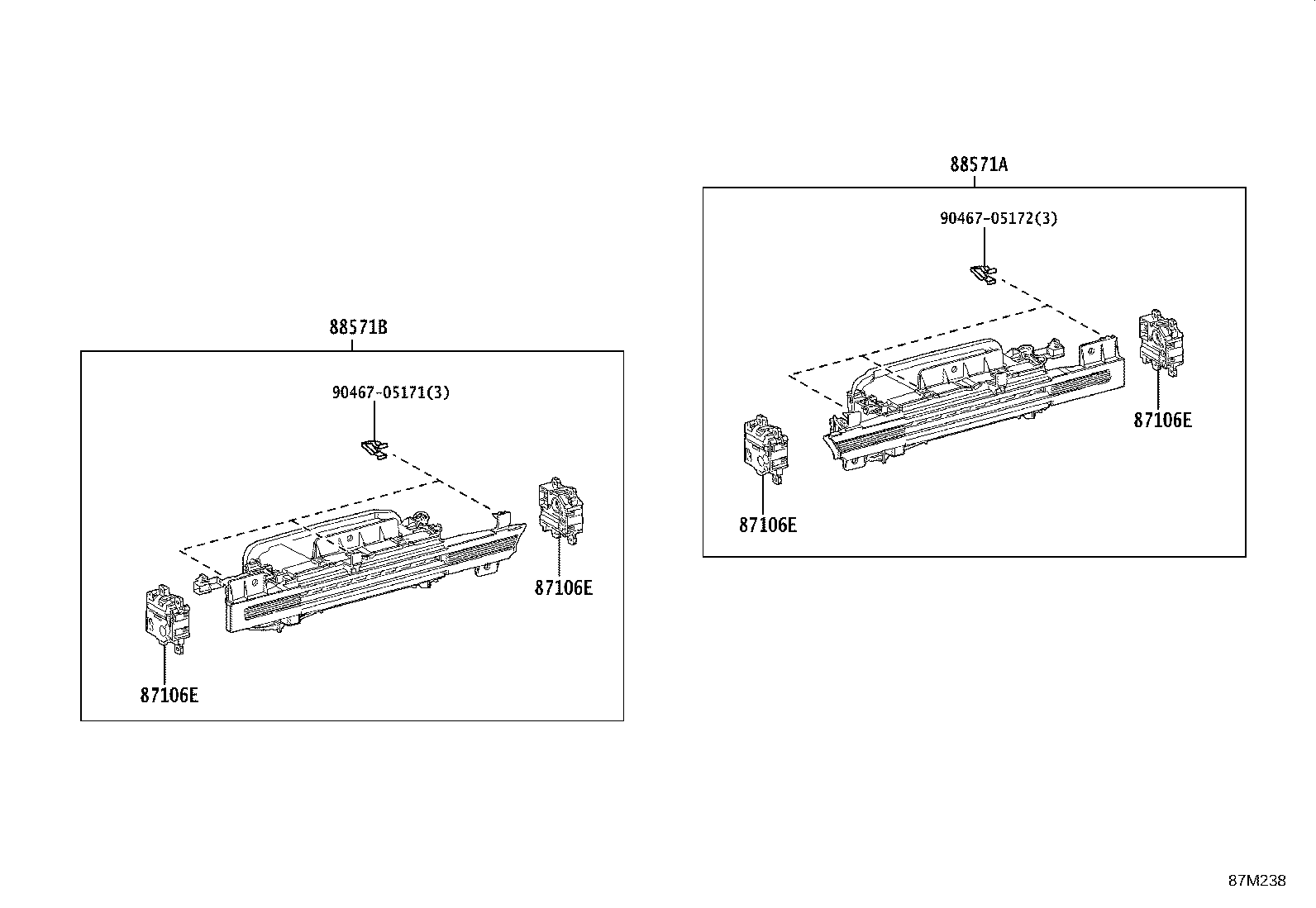

| 87212 | Duct, Air, Rear NO.1 |
| 87212F | Duct, Air, Rear NO.2 |
| 87212G | Duct, Air, Rear NO.3 |
| 87212H | Duct, Air, Rear NO.4 |
| 87215F | Duct, Air, Rear NO.3 |
| 87217D | Duct, Air, Rear Side NO.1 |
| 87217E | Duct, Air, Rear Side NO.2 |
| 87217F | Duct, Air, Rear Side NO.3 |
| 87217G | Duct, Air, Rear Side NO.4 |
| 88505 | Duct Sub-assy,Air Conditioner |
| 88566A | Duct, Cooler Air, NO.1 |
| 88566B | Duct, Cooler Air, NO.2 |
| 88566C | Duct, Cooler Air, NO.3 |
| 88571A | Grille, Air Outlet |
| 88571B | Grille, Air Outlet |
| 88578T | Packing, Cooler, NO.1 |
| 88625Q | Thermistor, Cooler (ROOM TEMP. SENSOR) |
| 88625T | Thermistor, Cooler (ROOM TEMP. SENSOR NO.2) |

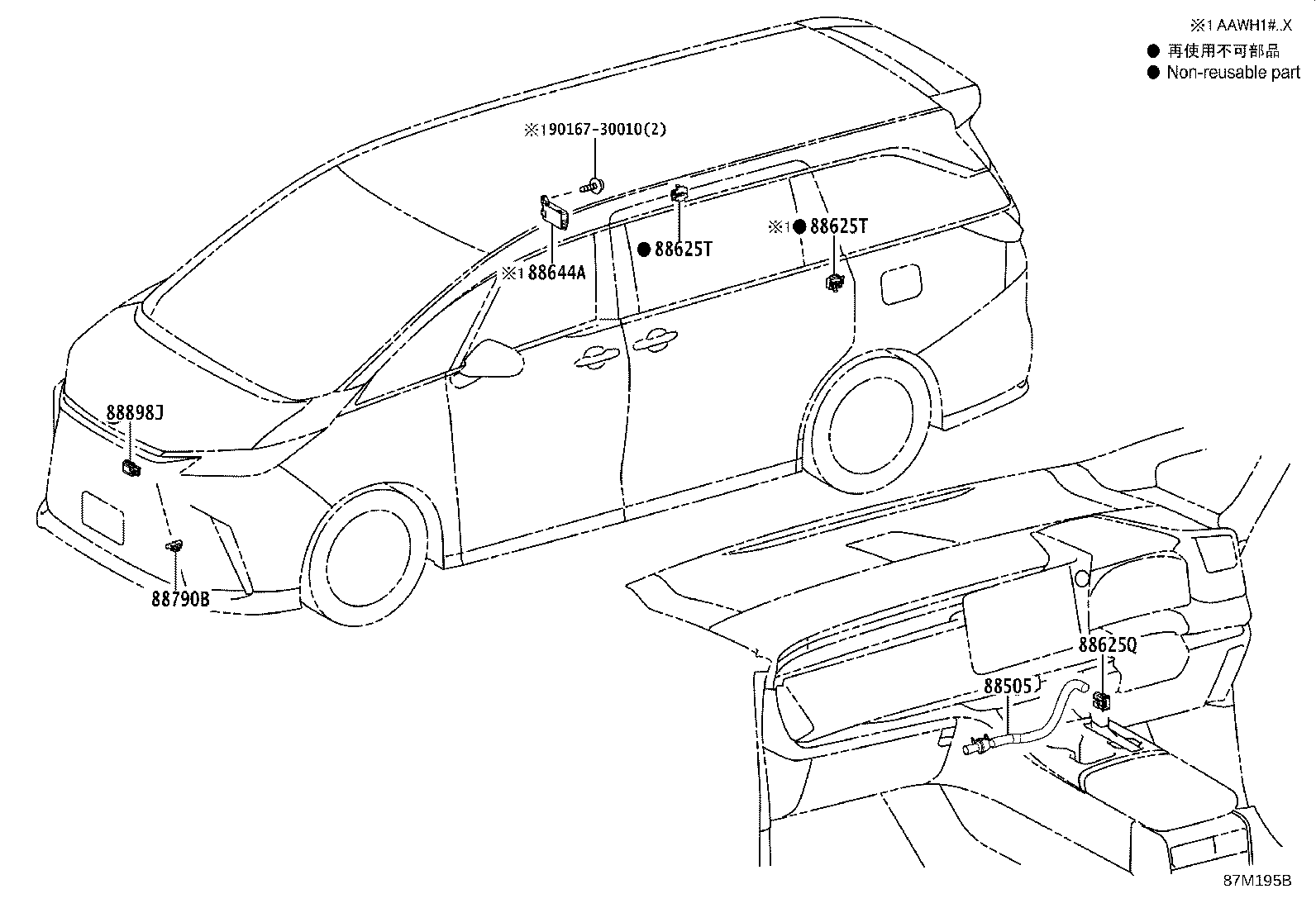

| 88644A | Sensor, Air Conditioner Infrared Rays |

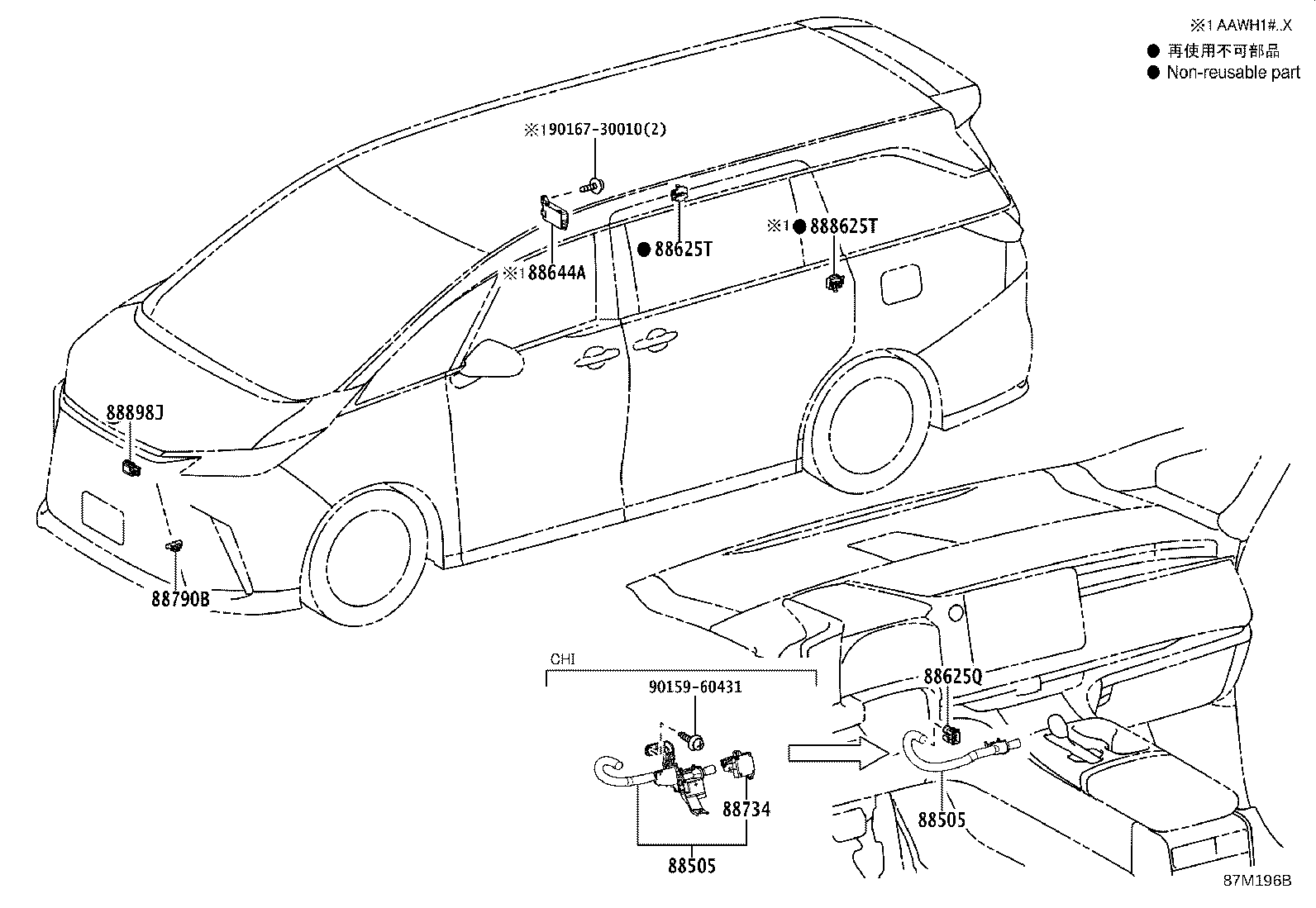

| 88734 | Sensor, Air Conditioner Particulate Matter |
| 88790B | Thermistor Assy |
| 88898J | Sensor, Smog Ventilation |
