Heating & Air Conditioning - Water Piping

37 part groups · 5 illustrations

Illustrations

Figure 87M202

87M202 2023-06 → —

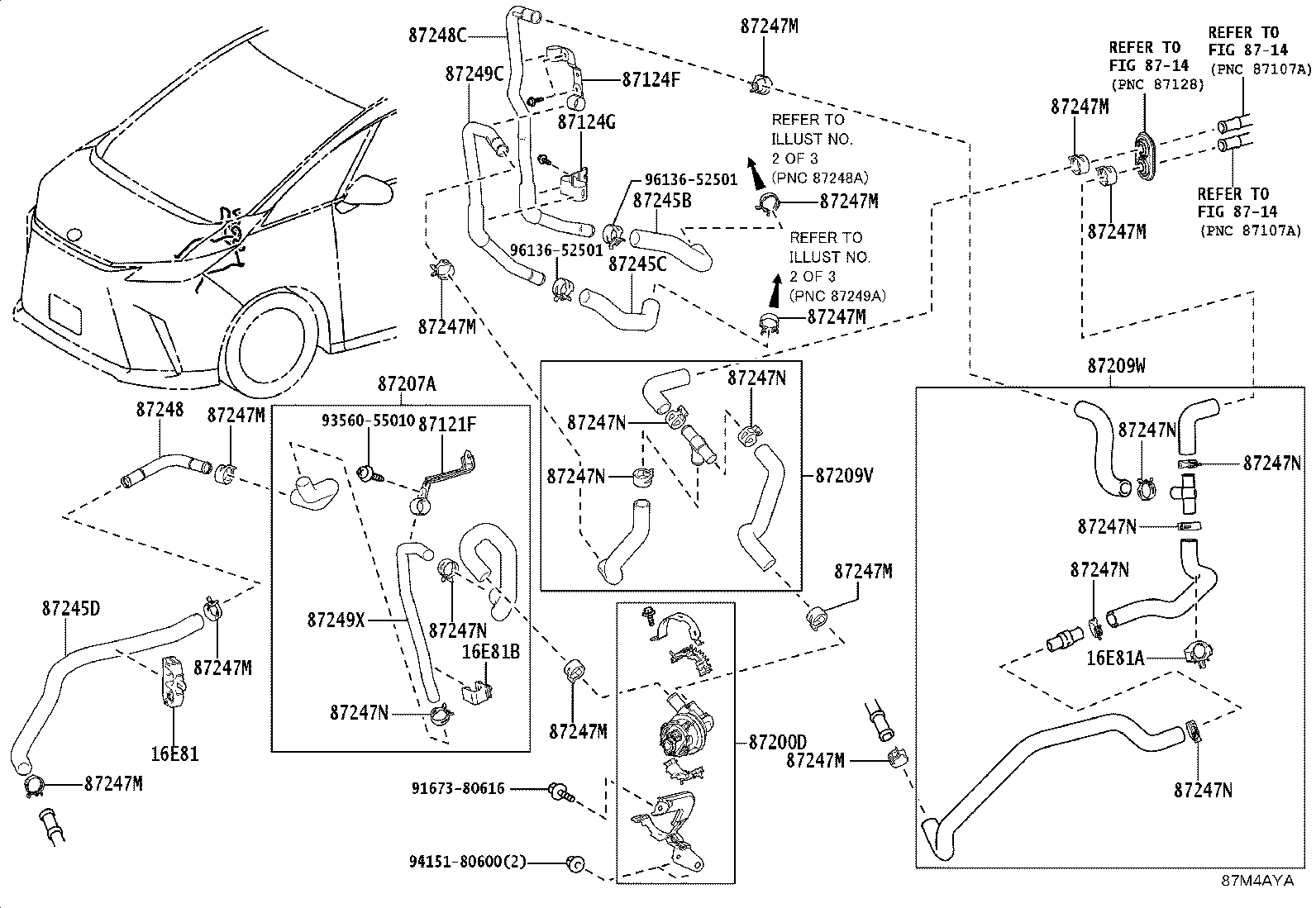

Figure 87M4AYA

87M4AYA 2023-11 → —

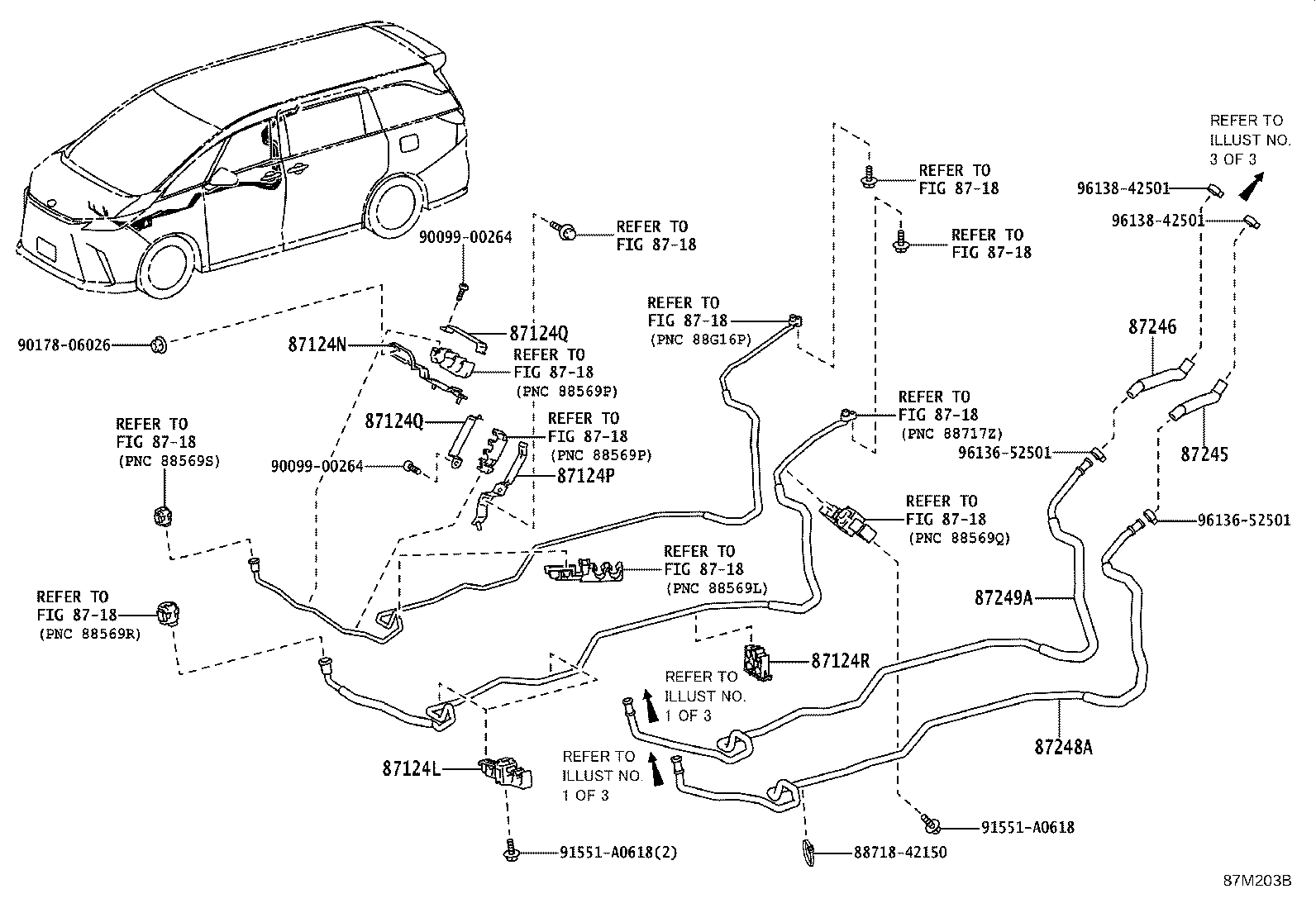

Figure 87M203B

87M203B 2023-06 → —

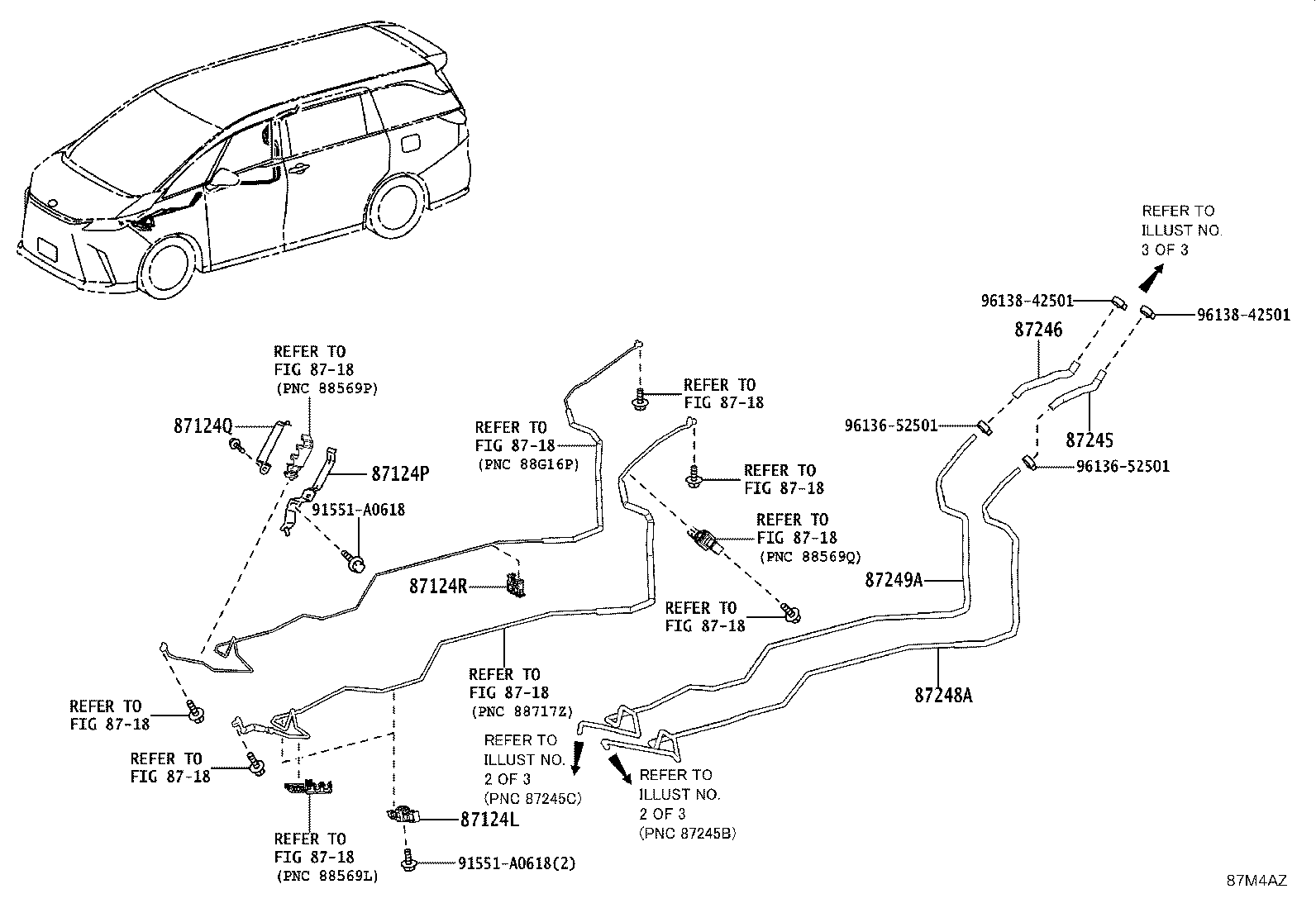

Figure 87M4AZ

87M4AZ 2023-11 → —

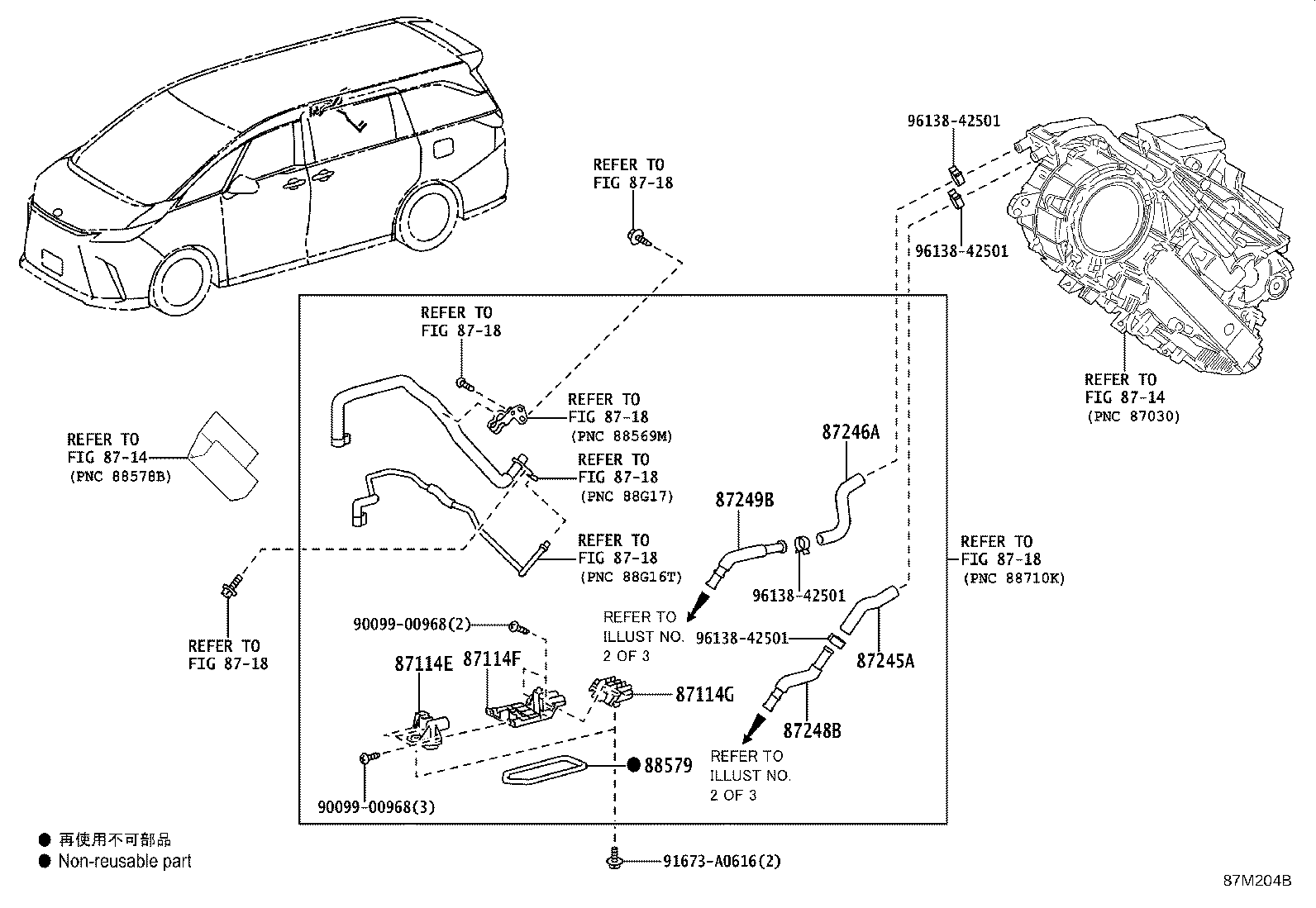

Figure 87M204A

87M204A 2023-06 → —

Part groups

PNC	Description
16E81	Clamp, Hose(FOR WATER HOSE)
16E81A	Clamp, Hose (FOR WATER HOSE), NO.2
16E81B	Clamp, Hose (FOR WATER HOSE), NO.3
87114E	Cover, Heater, NO.1
87114F	Cover, Heater, NO.2
87114G	Cover, Heater, NO.3
87121F	Bracket, Heater
87124F	Clamp, Heater Hose, NO.1
87124G	Clamp, Heater Hose, NO.2
87124L	Clamp, Heater Hose, NO.4
87124N	Clamp, Heater Hose, NO.5
87124P	Clamp, Heater Hose, NO.6
87124Q	Clamp, Heater Hose, NO.7
87124R	Clamp, Heater Hose, NO.8
87200D	Accessory Assy, Heater
87207A	Pipe & Hose Sub-assy, Water A
87209	Hose Sub-assy, Water
87209V	Hose Sub-assy, Water, NO.2
87209W	Hose Sub-assy, Water, NO.3
87245	Hose, Heater Water, Inlet
87245A	Hose, Heater Water, Inlet A
87245B	Hose, Heater Water, Inlet B
87245C	Hose, Heater Water ,Inlet C
87245D	Hose, Heater Water, Inlet D
87246	Hose, Heater Water, Outlet
87246A	Hose, Heater Water, Outlet A
87247M	Clip, Hose
87247N	Clip, Hose
87248	Pipe Sub-assy, Water
87248A	Pipe, Heater Water Inlet, A
87248B	Pipe, Heater Water Inlet, B
87248C	Pipe, Heater Water Inlet, C
87249A	Pipe, Heater Water Outlet, A
87249B	Pipe, Heater Water Outlet, B
87249C	Pipe, Heater Water Outlet, C
87249X	Pipe, Water
88579	Packing, Cooler, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
