Toyota Toyoace
1971-09 → 1979-02 · chassis RY1#,JY16 · catalogue 731220 · Europe
Discontinued model
Data version 1979-02

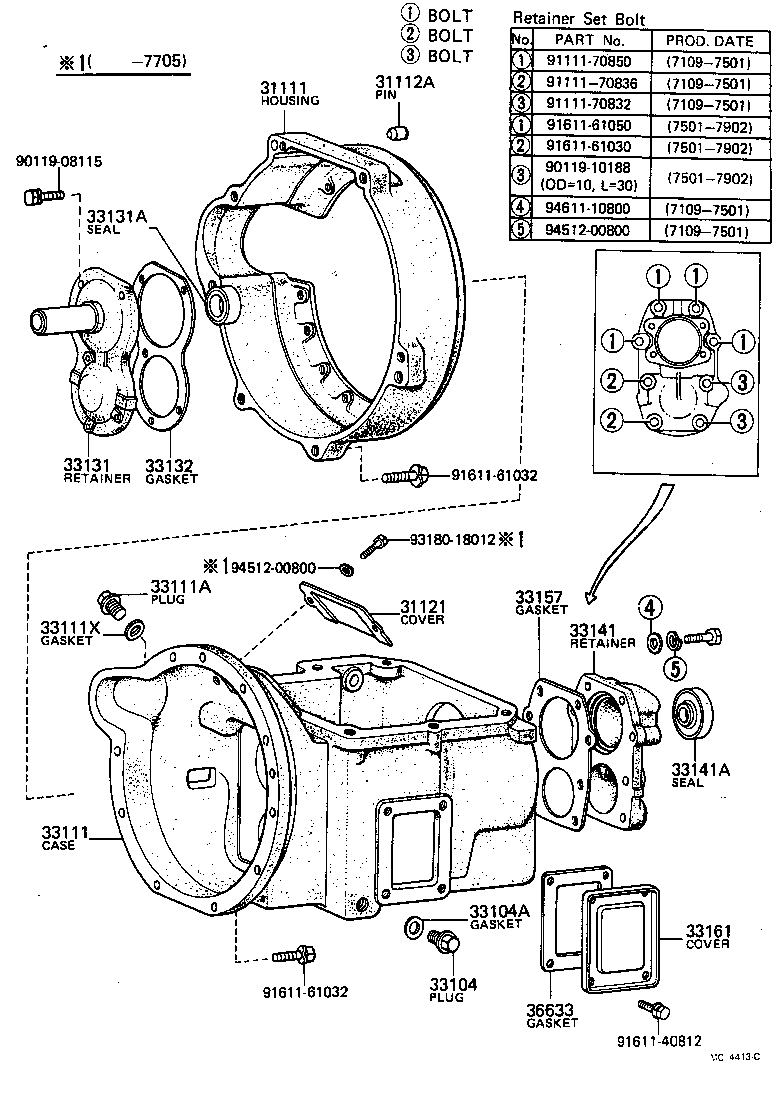

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 31111 — Housing, Clutch | ||||
| 31011-36011 |
Housing, Clutch
1972-07 → 1977-05
ended
|
RY16 | — | |
| 31111-36022 note |
Housing, Clutch
1972-07 → 1977-05
ended
|
JY16 | — | |
| 31111-36023 note |
Housing, Clutch
1977-05 → 1979-02
ended
|
JY16 | — | |
| 31112-36012 note |
Housing, Clutch
1972-07 → 1977-05
ended
|
JY16 | — | |
| 31112-36013 note |
Housing, Clutch
1977-05 → 1979-02
ended
|
JY16 | — | |
| 31112-36023 |
Housing, Clutch
1977-05 → 1979-02
ended
|
RY16 | — | |
| 31112A — Pin, Dowel Clutch Housing | ||||
| 90250-10052 note |
Pin, Dowel Clutch Housing
1972-07 → 1979-02
ended
|
JY16,RY16 | — | |
| 31121 — Cover, Clutch Housing, NO.1 | ||||
| 31121-25010 |
Cover, Clutch Housing, NO.1
1974-10 → 1977-05
ended
|
RY10,12 | — | |
| 31121-35010 |
Cover, Clutch Housing, NO.1
1971-09 → 1974-10
ended
|
RY1# | — | |
| 31121-35010 |
Cover, Clutch Housing, NO.1
1974-10 → 1977-05
ended
|
RY16 | — | |
| 31121-36010 |
Cover, Clutch Housing, NO.1
1972-07 → 1979-02
ended
|
JY16 | — | |
| 33104 — Plug Sub-assy, Drain(MTM) | ||||
| 90341-18057 |
Plug Sub-assy, Drain(MTM)
1972-07 → 1979-02
ended
|
JY16 | — | |
| 90341-18081 |
Plug Sub-assy, Drain(MTM)
1971-09 → 1979-02
ended
|
RY1# | — | |
| 33104A — Gasket, Drain Plug(MTM) | ||||
| 12157-10010 |
Gasket, Drain Plug(MTM)
1971-09 → 1979-02
ended
|
JY16,RY1# | — | |
| 33111 — Case, Manual Transmission | ||||
| 33111-25030 |
Case, Manual Transmission
1975-01 → 1979-02
ended
|
RY1# | — | |
| 33111-35010 |
Case, Manual Transmission
1971-09 → 1975-01
ended
|
RY10,12 | — | |
| 33111-36010 |
Case, Manual Transmission
1972-07 → 1975-01
ended
|
RY16 | — | |
| 33111-36040 |
Case, Manual Transmission
1972-07 → 1972-08
ended
|
JY16 | — | |
| 33111-36041 |
Case, Manual Transmission
1972-08 → 1975-09
ended
|
JY16 | — | |
| 33111-36042 |
Case, Manual Transmission
1975-09 → 1979-01
ended
|
JY16 | — | |
| 33111-36043 |
Case, Manual Transmission
1979-01 → 1979-02
ended
|
JY16 | — | |
| 33111A — Plug, Manual Transmission Case | ||||
| 90341-18002 |
Plug, Manual Transmission Case
1971-09 → 1979-02
ended
|
JY16,RY1# | — | |
| 33111X — Gasket, Transmission Case Plug | ||||
| 12157-10010 |
Gasket, Transmission Case Plug
1971-09 → 1979-02
ended
|
JY16,RY1# | — | |
| 33131 — Retainer, Bearing, Front(MTM) | ||||
| 33131-35010 |
Retainer, Bearing, Front(MTM)
1971-09 → 1975-01
ended
|
RY1# | — | |
| 33131-35011 |
Retainer, Bearing, Front(MTM)
1975-01 → 1979-02
ended
|
RY1# | — | |
| 33131-36020 |
Retainer, Bearing, Front(MTM)
1972-07 → 1972-08
ended
|
JY16 | — | |
| 33131-36021 |
Retainer, Bearing, Front(MTM)
1972-08 → 1975-09
ended
|
JY16 | — | |
| 33131-36022 |
Retainer, Bearing, Front(MTM)
1975-09 → 1979-02
ended
|
JY16 | — | |
| 33131A — Seal, Oil(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-25001 |
Seal, Oil(FOR TRANSMISSION FRONT BEARING RETAINER)
1971-09 → 1973-08
ended
|
RY1# | — | |
| 90311-25141 |
Seal, Oil(FOR TRANSMISSION FRONT BEARING RETAINER)
1973-08 → 1975-01
ended
|
RY1# | — | |
| 90311-28003 |
Seal, Oil(FOR TRANSMISSION FRONT BEARING RETAINER)
1975-01 → 1975-06
ended
|
RY1# | — | |
| 90311-28004 |
Seal, Oil(FOR TRANSMISSION FRONT BEARING RETAINER)
1975-06 → 1979-02
ended
|
RY1# | — | |
| 90311-32106 |
Seal, Oil(FOR TRANSMISSION FRONT BEARING RETAINER)
1972-07 → 1979-02
ended
|
JY16 | — | |
| 33132 — Gasket, Front Bearing Retainer(MTM) | ||||
| 33132-35010 |
Gasket, Front Bearing Retainer(MTM)
1971-09 → 1979-02
ended
|
RY1# | — | |
| 33132-36020 |
Gasket, Front Bearing Retainer(MTM)
1972-07 → 1972-08
ended
|
JY16 | — | |
| 33132-36021 |
Gasket, Front Bearing Retainer(MTM)
1972-08 → 1975-09
ended
|
JY16 | — | |
| 33132-36022 |
Gasket, Front Bearing Retainer(MTM)
1975-09 → 1979-02
ended
|
JY16 | — | |
| 33141 — Retainer, Transmission Bearing, Rear | ||||
| 33141-35020 |
Retainer, Transmission Bearing, Rear
1971-09 → 1975-01
ended
|
RY1# | — | |
| 33141-35021 |
Retainer, Transmission Bearing, Rear
1975-01 → 1979-02
ended
|
RY1# | — | |
| 33141-36030 |
Retainer, Transmission Bearing, Rear
1972-07 → 1977-08
ended
|
JY16 | — | |
| 33141-36060 |
Retainer, Transmission Bearing, Rear
1977-08 → 1979-02
ended
|
JY16 | — | |
| 33141A — Seal, Oil(FOR TRANSMISSION REAR BEARING RETAINER) | ||||
| 90311-38093 |
Seal, Oil(FOR TRANSMISSION REAR BEARING RETAINER)
1971-09 → 1979-02
ended
|
RY1# | — | |
| 90311-45018 |
Seal, Oil(FOR TRANSMISSION REAR BEARING RETAINER)
1972-07 → 1979-02
ended
|
JY16 | — | |
| 33157 — Gasket, Transmission Case, NO.2 | ||||
| 33142-35010 |
Gasket, Transmission Case, NO.2
1971-09 → 1975-01
ended
|
RY1# | — | |
| 33142-35011 |
Gasket, Transmission Case, NO.2
1975-01 → 1979-02
ended
|
RY1# | — | |
| 33142-36020 |
Gasket, Transmission Case, NO.2
1972-07 → 1979-02
ended
|
JY16 | — | |
| 33161 — Cover, Manual Transmission Power Take-off | ||||
| 33161-35010 |
Cover, Manual Transmission Power Take-off
1971-09 → 1975-01
ended
|
RY1# | — | |
| 33161-36010 |
Cover, Manual Transmission Power Take-off
1972-07 → 1979-02
ended
|
JY16 | — | |
| 36633 — Gasket, Power Take-off | ||||
| 33162-35010 |
Gasket, Power Take-off
1971-09 → 1975-01
ended
|
RY1# | — | |
| 33162-36010 |
Gasket, Power Take-off
1972-07 → 1975-04
ended
|
JY16 | — | |
| 33162-36020 |
Gasket, Power Take-off
1975-04 → 1979-02
ended
|
JY16 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
