Toyota Toyoace

1971-09 → 1979-02 · chassis RY1#,JY16 · catalogue 731220 · Europe

Discontinued model Data version 1979-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Standard Tool

11 part groups · 2 illustrations

Illustrations

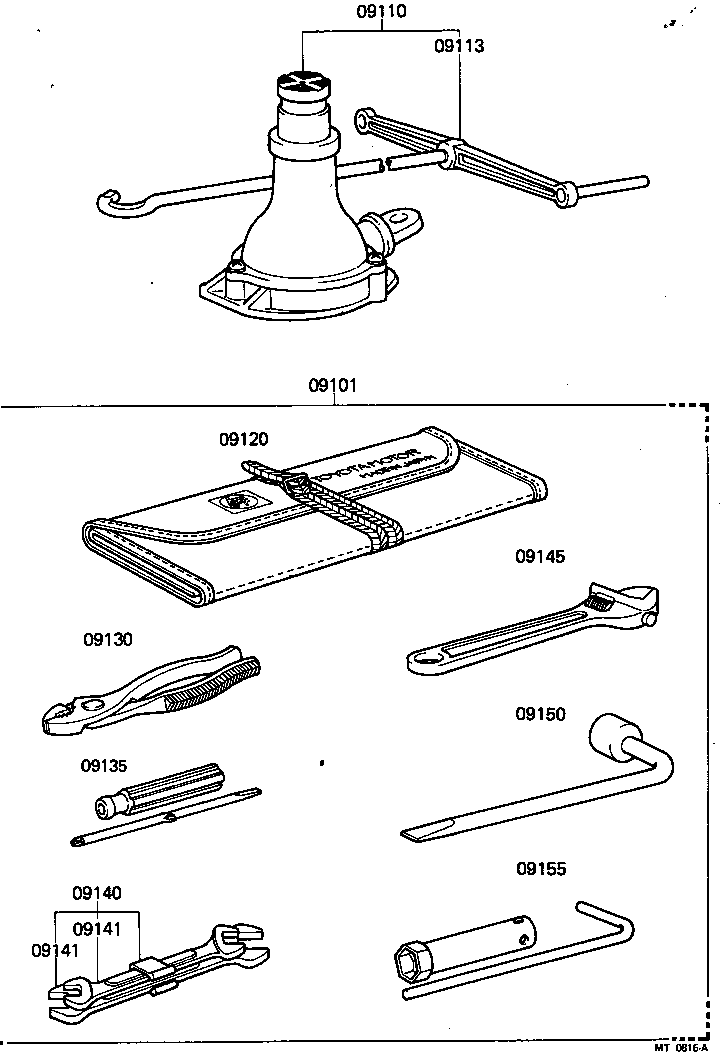

Figure MT0814 MT0814 1971-09 → 1975-10 Figure MT0815A MT0815A 1975-10 → 1979-02

Part groups

PNCDescription
09101 Tool Set, Standard W/O Jack
09110 Jack Assy
09113 Handle, Jack
09120 Bag, Tool
09130 Pliers
09135 Driver, Screw
09140 Spanner Set
09141 Spanner
09145 Wrench, Monkey
09150 Wrench, Hub Nut Box
09155 Wrench, Spark Plug
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
