Toyota Toyoace

1971-09 → 1979-02 · chassis RY1#,JY16 · catalogue 731220 · Europe

Discontinued model Data version 1979-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

18 part groups · 4 illustrations

Illustrations

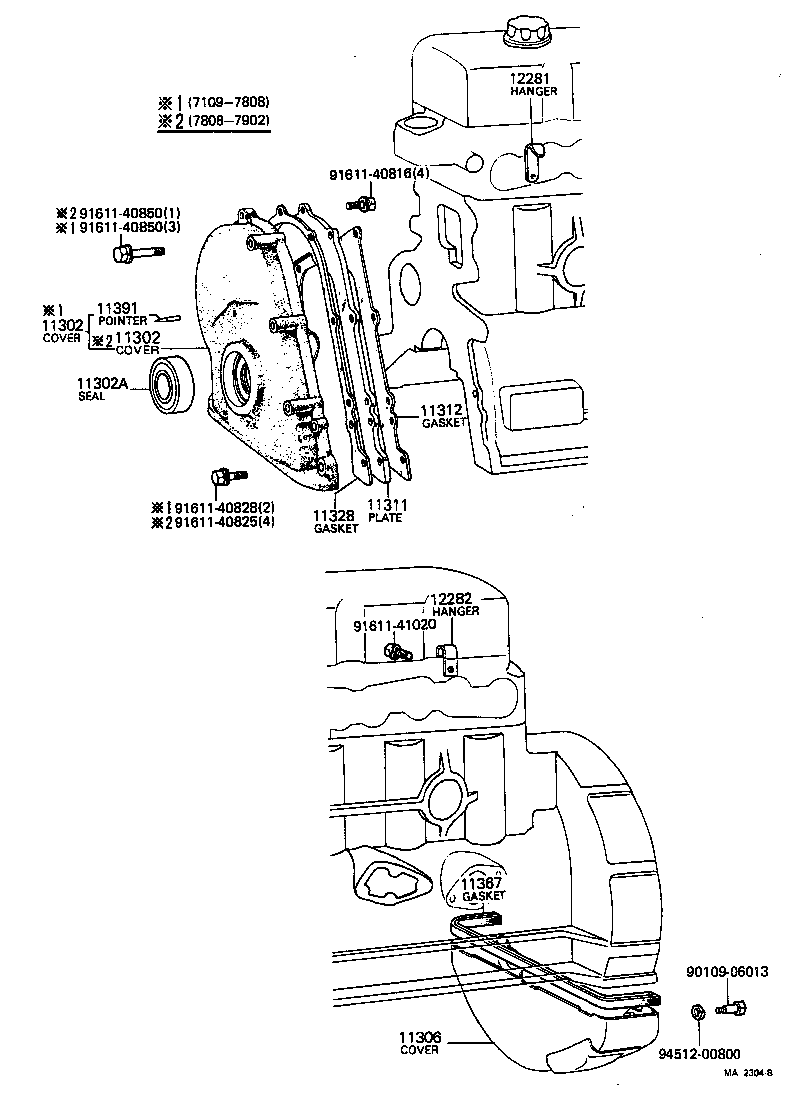

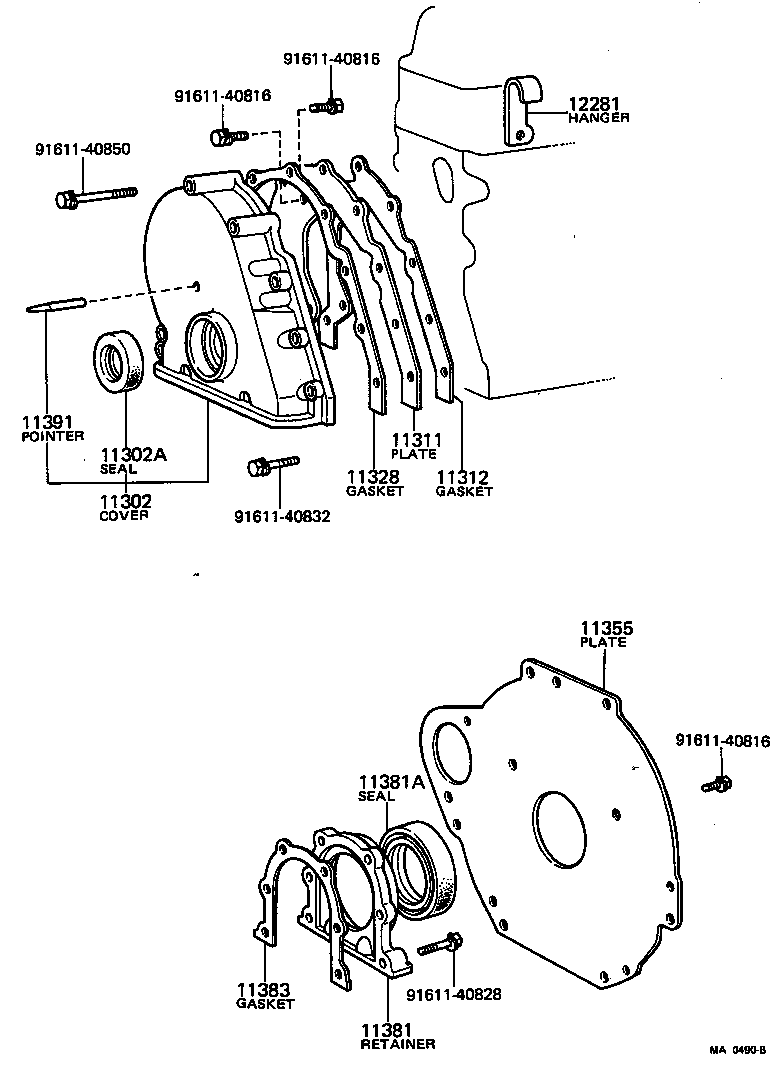

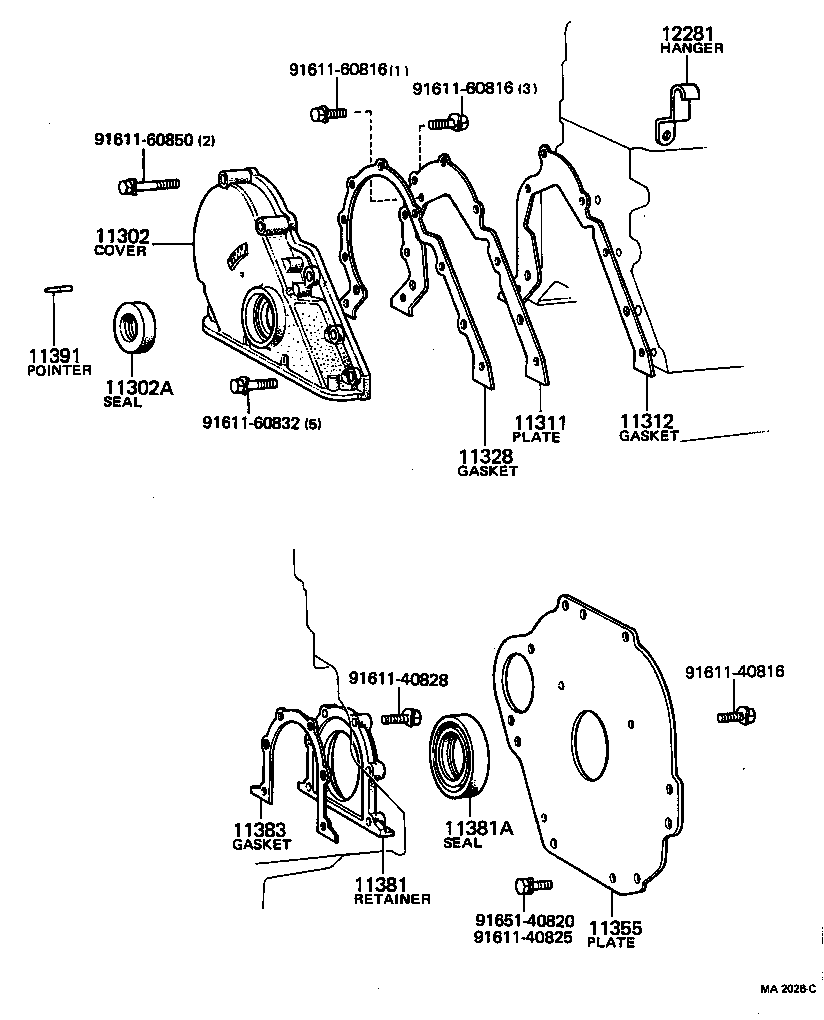

Figure MA3755A MA3755A 1972-07 → 1979-02 Figure MA2304B MA2304B 1971-09 → 1979-02 Figure MA0490B MA0490B 1972-07 → 1975-11 Figure MA2026C MA2026C 1975-11 → 1979-02

Part groups

PNCDescription
11301 Case Sub-assy, Timing Gear
11301A Pin, Straight(FOR TIMING GEAR CASE)
11301B Bolt,Stud(FOR TIMING GEAR CASE)
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11306 Cover Sub-assy, Flywheel Housing Under
11311 Plate, Front End
11312 Gasket, Front End Plate
11328 Gasket, Timing Gear OR Chain Cover
11345 Bearing, Injection Pump Gear Thrust
11355 Plate, Rear End
11367 Gasket, Flywheel Housing Under
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11383 Gasket, Engine Rear Oil Seal Retainer
11391 Pointer, Timing
12281 Hanger, Engine, NO.1
12282 Hanger, Engine, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
