Toyota Toyoace

1971-09 → 1979-02 · chassis RY1#,JY16 · catalogue 731220 · Europe

Discontinued model Data version 1979-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

14 part groups · 4 illustrations

Illustrations

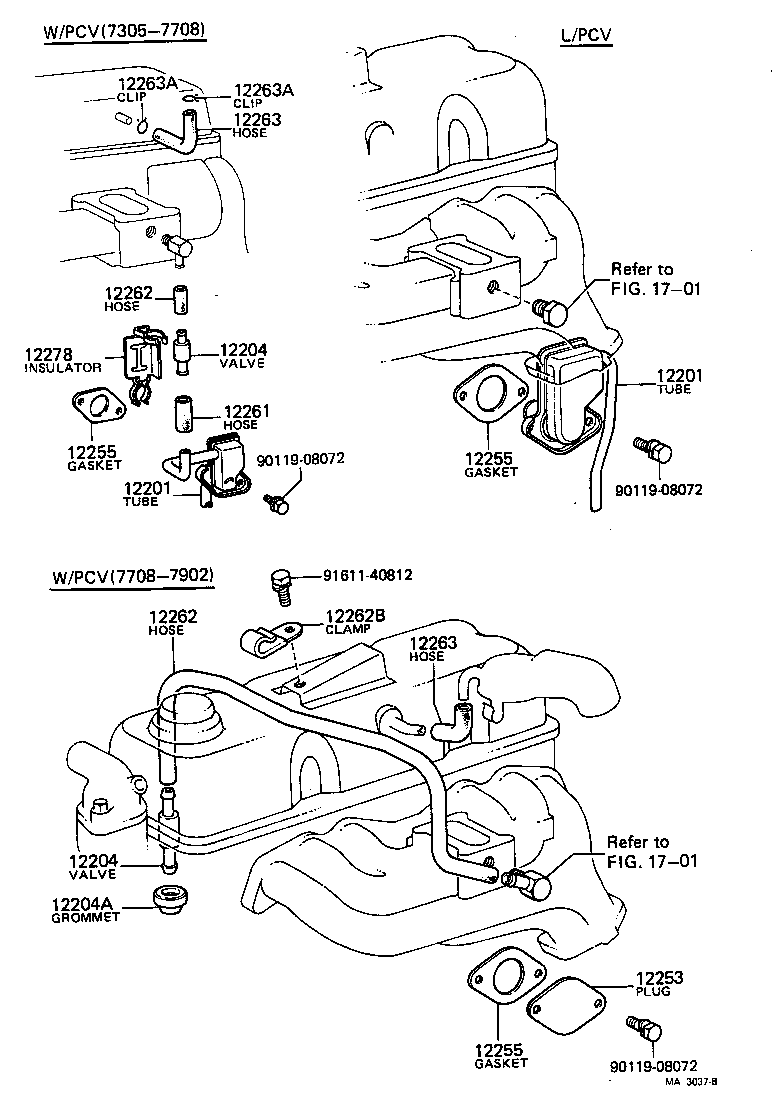

Figure MA0681E MA0681E 1972-07 → 1979-02 Figure MA0678E MA0678E 1971-09 → 1975-11 Figure MA2042A MA2042A 1975-11 → 1979-02 Figure MA3037B MA3037B 1972-07 → 1979-02

Part groups

PNCDescription
12201 Tube Sub-assy, Ventilation
12204 Valve Sub-assy, Ventilation
12204A Grommet(FOR VENTILATION SYSTEM)
12253 Plug, Ventilation Hole
12255 Gasket, Ventilation
12261 Hose, Ventilation
12261A Clip OR Clamp(FOR VENTILATION HOSE)
12261B Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12262B Clamp(FOR VENTILATION HOSE)
12263 Hose, Ventilation, NO.3
12263A Clip(FOR VENTILATION HOSE)
12278 Insulator, Ventilation Hose Heat
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
