Toyota Toyoace

1971-09 → 1979-02 · chassis RY1#,JY16 · catalogue 731220 · Europe

Discontinued model Data version 1979-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camshaft & Valve

36 part groups · 5 illustrations

Illustrations

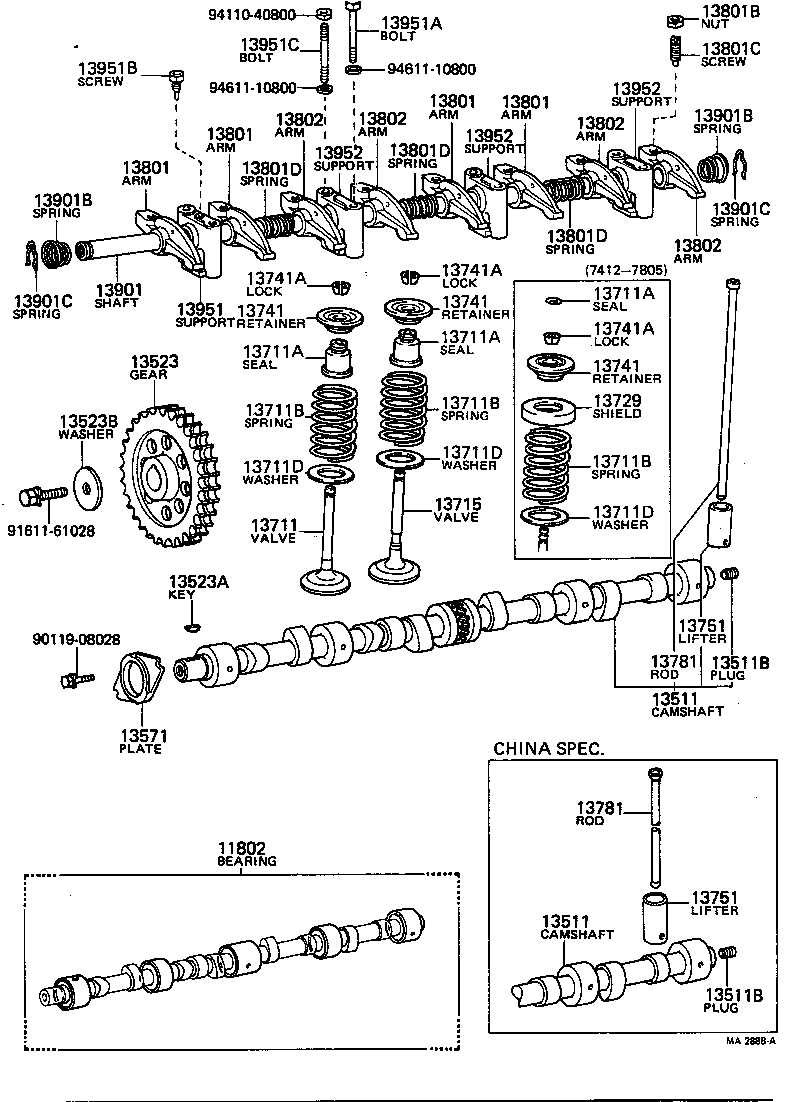

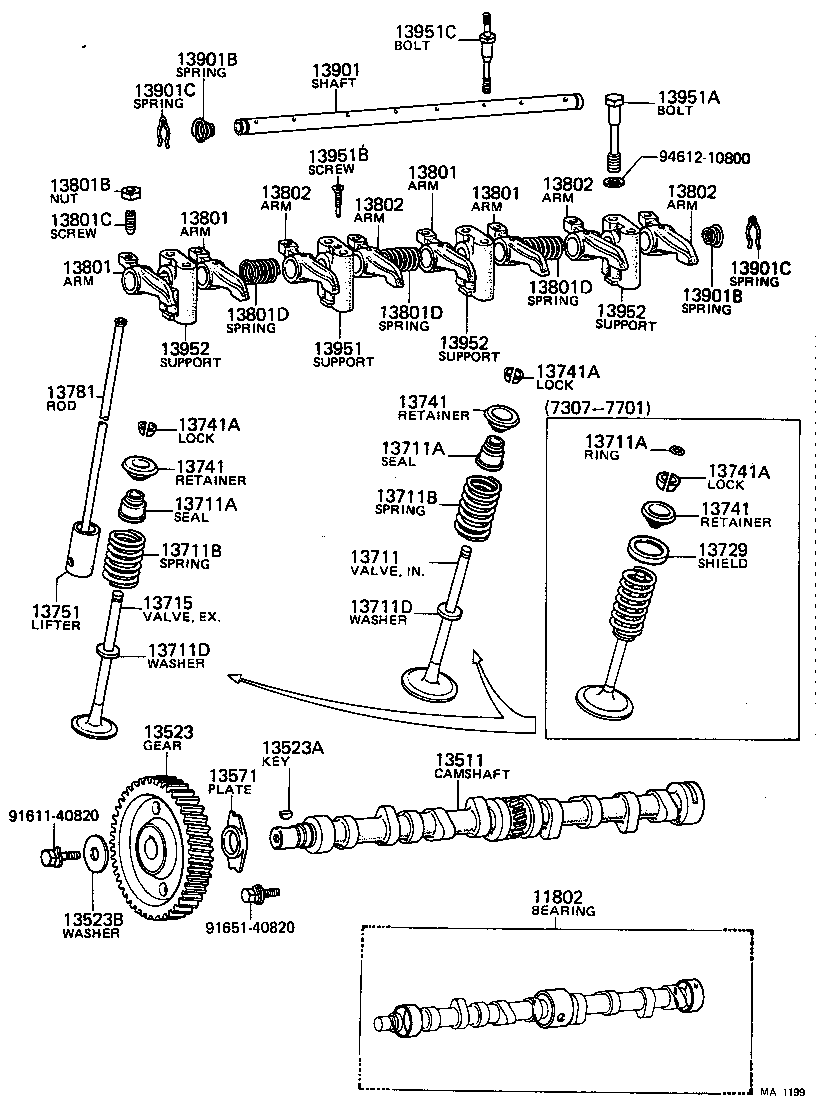

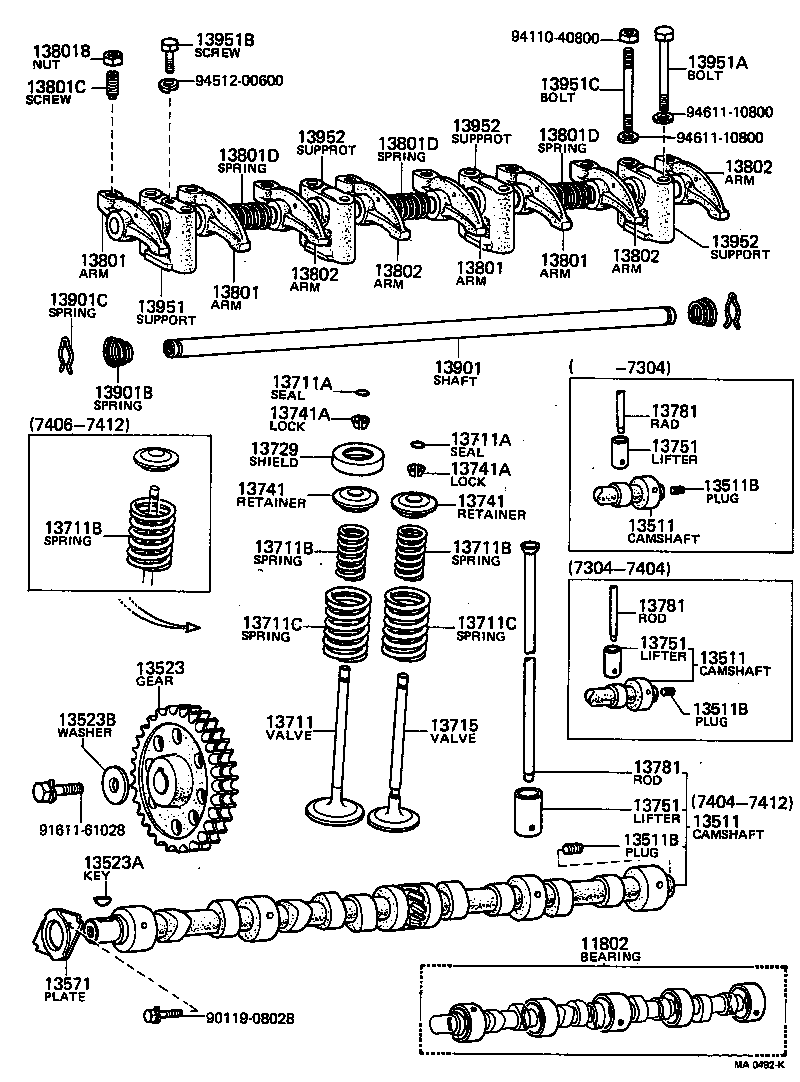

Figure MA3915 MA3915 1972-07 → 1979-02 Figure MA0581I MA0581I 1971-09 → 1973-07 Figure MA1199 MA1199 1973-07 → 1979-02 Figure MA0492K MA0492K 1972-07 → 1974-12 Figure MA2888A MA2888A 1974-12 → 1979-02

Part groups

PNCDescription
11802 Bearing Set, Camshaft
13511 Camshaft
13511B Plug, Expansion(FOR CAMSHAFT)
13523 Gear OR Sprocket, Camshaft Timing
13523A Key, Woodruff(FOR TIMING GEAR)
13523B Washer, Plate(FOR TIMING GEAR)
13571 Plate, Camshaft Thrust
13571A Washer, Plate(FOR CAMSHAFT THRUST PLATE)
13711 Valve, Intake
13711A Seal OR Ring, O(FOR VALVE STEM OIL)
13711B Spring, Compression(FOR INNER)
13711C Spring, Compression(FOR OUTER)
13711D Washer, Plate(FOR VALVE SPRING SEAT)
13715 Valve, Exhaust
13729 Shield, Valve Stem Oil
13734 Seat, Valve Spring
13741 Retainer, Valve Spring
13741A Lock, Valve Spring Retainer
13751 Lifter, Valve
13781 Rod, Valve Push
13801 Arm Sub-assy, Valve Rocker, NO.1
13801B Nut, Hexagon(FOR VALVE ADJUSTING)
13801C Screw, Valve Adjusting
13801D Spring, Compression(FOR ROCKER ARM)
13802 Arm Sub-assy, Valve Rocker, NO.2
13901 Shaft Sub-assy, Valve Rocker, NO.1
13901B Spring, Conical(FOR VALVE ROCKER SHAFT)
13901C Spring, Retainer(FOR VALVE ROCKER SHAFT)
13951 Support, Valve Rocker, NO.1
13951A Bolt(FOR ROCKER SUPPORT SET)
13951B Screw OR Bolt(FOR VALVE ROCKER SHAFT LOCK)
13951C Bolt, Stud(FOR ROCKER SUPPORT)
13951D Washer, Seal(FOR HEAD COVER SET)
13952 Support, Valve Rocker, NO.2
13953 Support, Valve Rocker, NO.3
13954 Support, Valve Rocker, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
