Toyota Toyoace

1971-09 → 1979-02 · chassis RY1#,JY16 · catalogue 731220 · Europe

Discontinued model Data version 1979-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

23 part groups · 4 illustrations

Illustrations

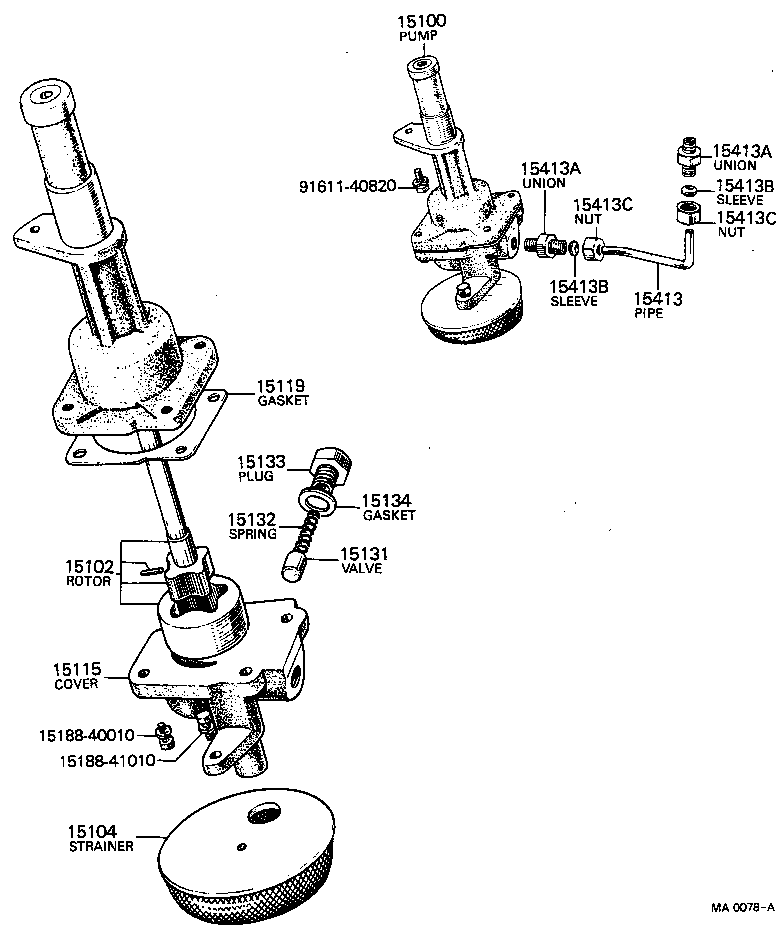

Figure MA0947C MA0947C 1972-07 → 1979-02 Figure MA0078A MA0078A 1971-09 → 1972-12 Figure MA1164B MA1164B 1972-12 → 1979-02 Figure MA2894 MA2894 1972-07 → 1979-02

Part groups

PNCDescription
15100 Pump Assy, Oil
15102 Rotor Set, Oil Pump
15104 Strainer Sub-assy, Oil
15114 Ring, Shaft Snap
15115 Cover, Oil Pump
15119 Gasket, Oil Pump Cover
15121 Gear, Oil Pump Drive
15121A Key, Oil Pump Drive Shaft
15122 Gear, Oil Pump Driven
15125 Shaft, Oil Pump
15131 Valve, Oil Pump Relief
15132 Spring, Oil Pump Relief Valve
15133 Plug, Oil Pump Relief Valve
15134 Gasket, Oil Pump Relief Valve
15163 Gear, Oil Pump Drive Shaft
15163A Pin, Straight(FOR OIL PUMP DRIVE SHAFT GEAR)
15413 Pipe, Oil Pump Outlet
15413A Union(FOR OIL PUMP OUTLET PIPE)
15413B Sleeve, Ball(FOR OIL PUMP OUTLET PIPE)
15413C Nut, Union(FOR OIL PUMP OUTLET PIPE)
15705 Pipe Sub-assy, Oil, Injection Pump Inlet
15705A Union(FOR INJECTION PUMP INLET PIPE)
15705B Gasket(FOR INJECTION PUMP INLET PIPE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
