Toyota Toyoace

1971-09 → 1979-02 · chassis RY1#,JY16 · catalogue 731220 · Europe

Discontinued model Data version 1979-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

14 part groups · 6 illustrations

Illustrations

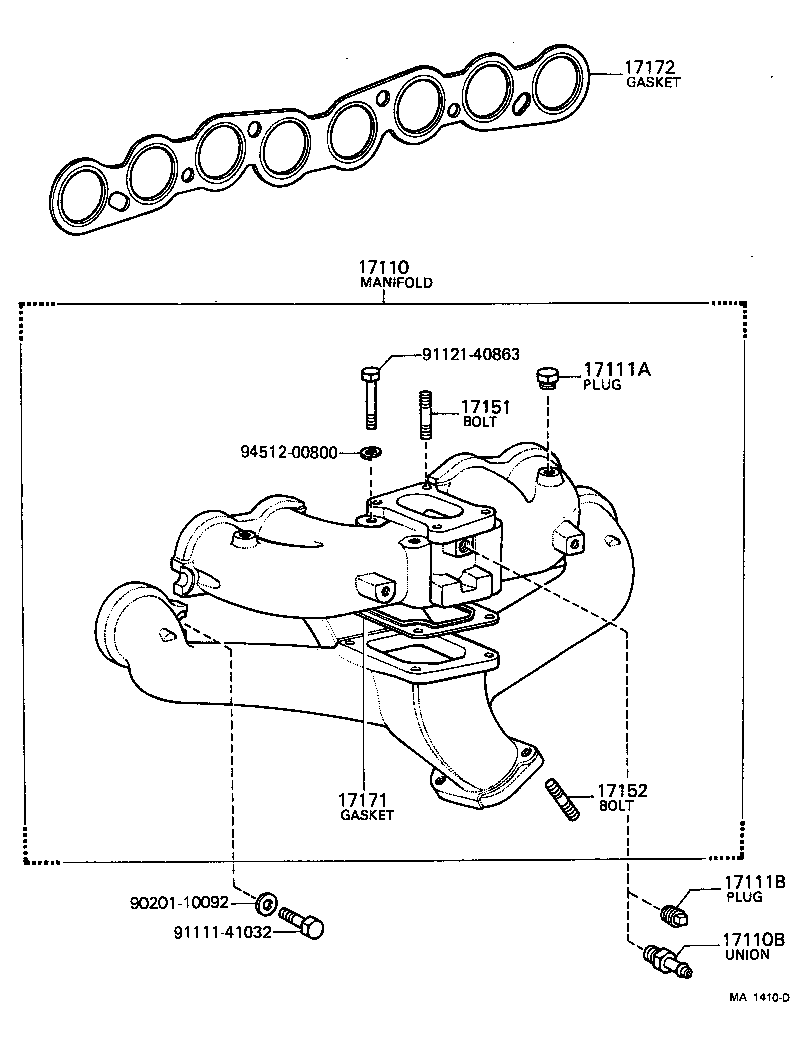

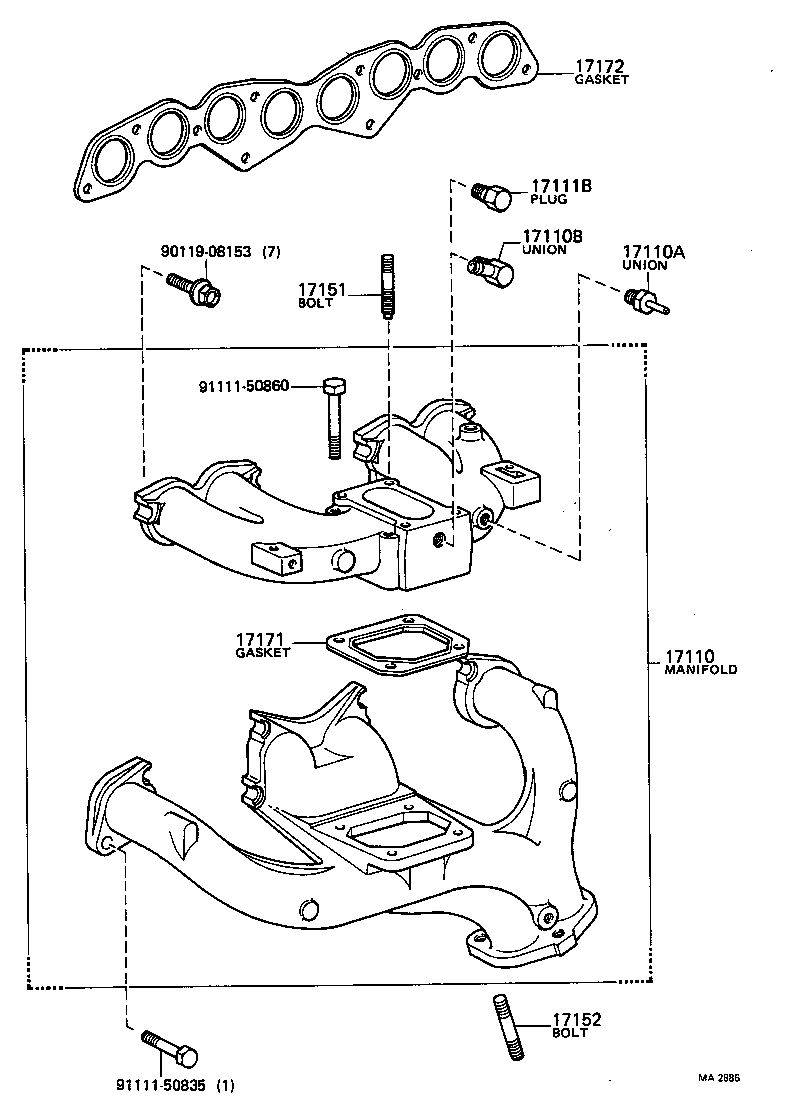

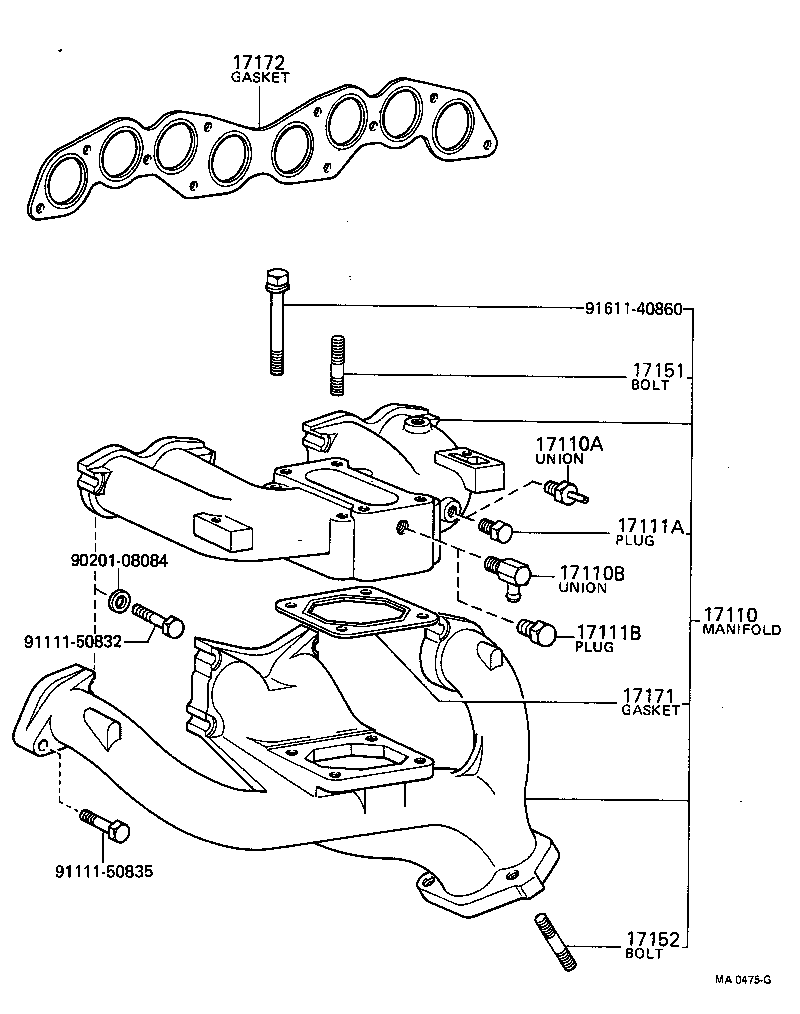

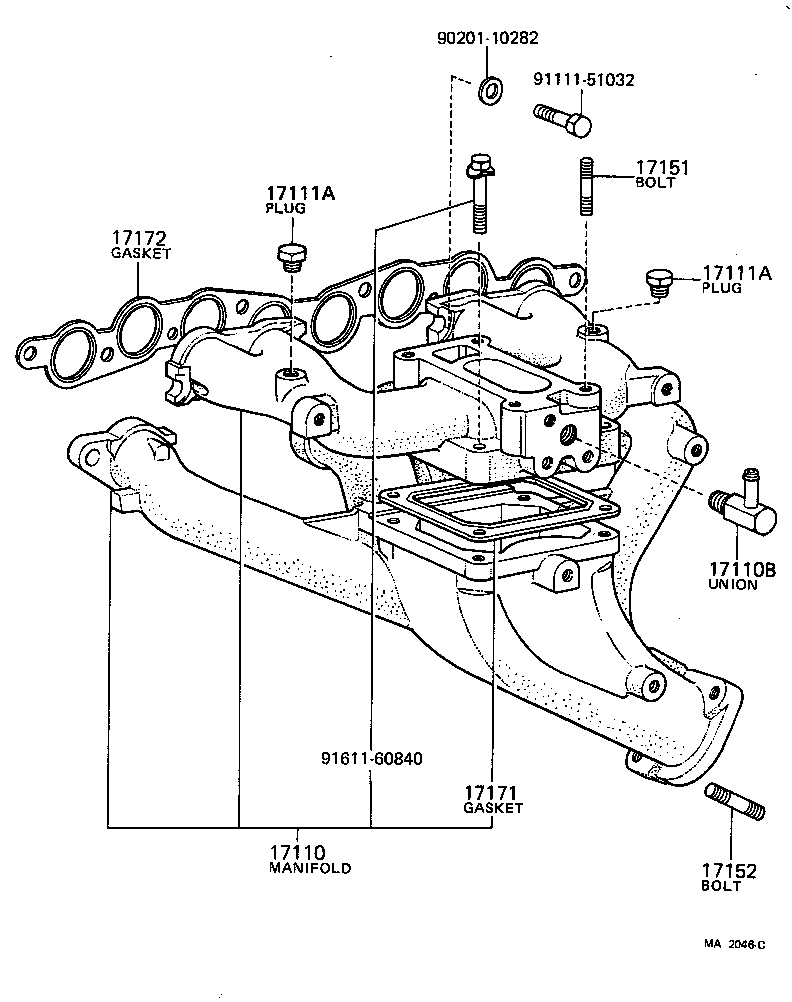

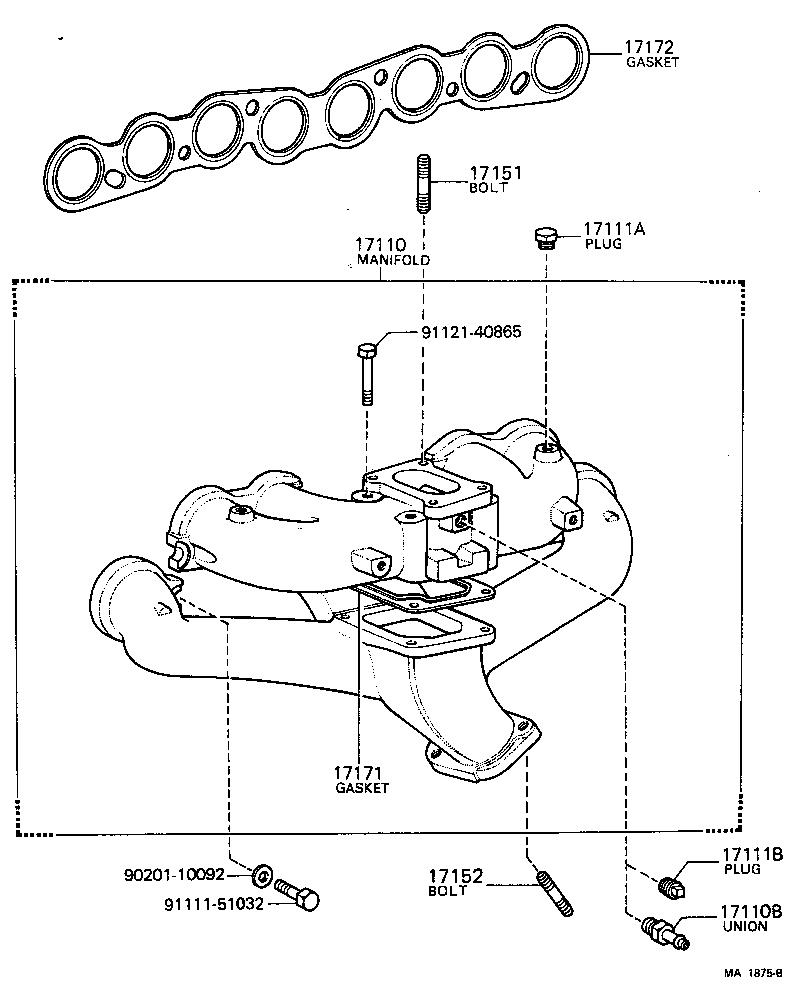

Figure MA0952B MA0952B 1972-07 → 1979-02 Figure MA1410D MA1410D 1971-09 → 1975-02 Figure MA1875B MA1875B 1975-02 → 1975-11 Figure MA2046C MA2046C 1975-11 → 1979-02 Figure MA0475G MA0475G 1972-07 → 1975-05 Figure MA2886 MA2886 1975-05 → 1979-02

Part groups

PNCDescription
17110 Manifold Assy
17110A Union, Vacuum Hose
17110B Union(FOR VENTILATION HOSE TO MANIFOLD)
17111 Manifold, Intake
17111A Plug, NO.1
17111B Plug, NO.2
17141 Manifold, Exhaust
17151 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17171 Gasket, Intake TO Exhaust Manifold
17172 Gasket, Manifold TO Cylinder Head
17173 Gasket, Exhaust Manifold TO Head
17179 Gasket, Exhaust Manifold, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
