Toyota Toyoace

1971-09 → 1979-02 · chassis RY1#,JY16 · catalogue 731220 · Europe

Discontinued model Data version 1979-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

22 part groups · 6 illustrations

Illustrations

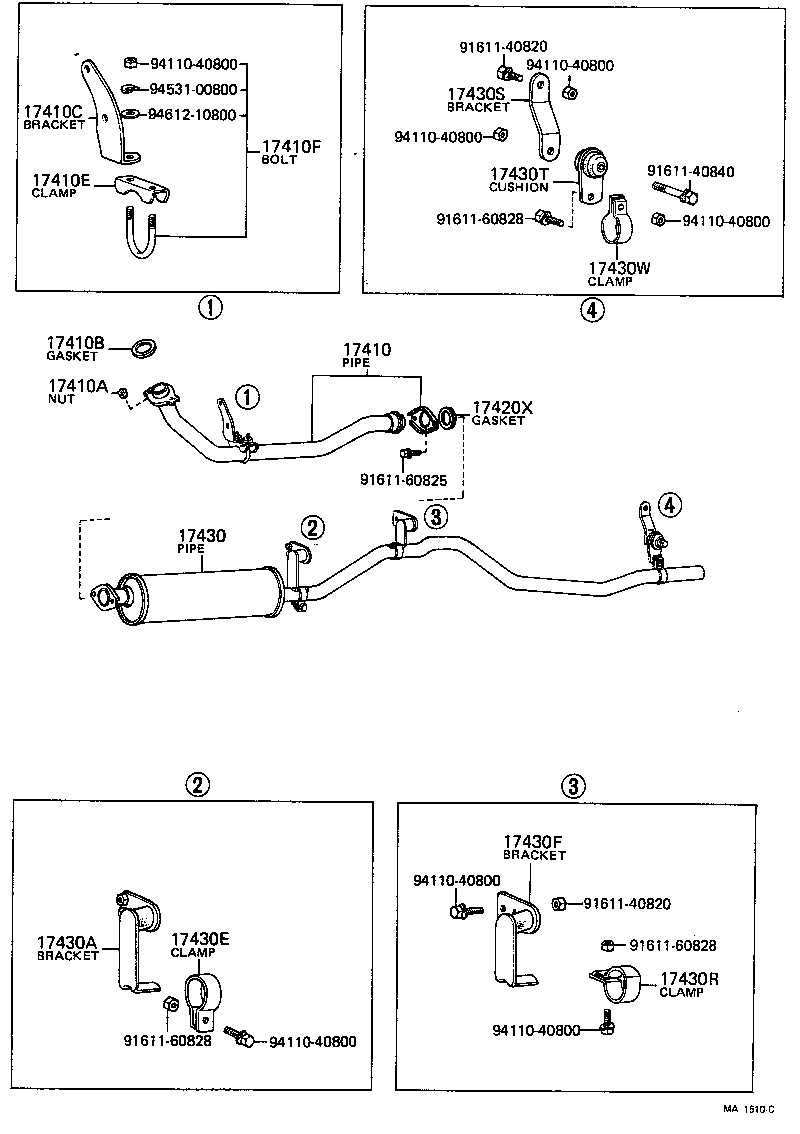

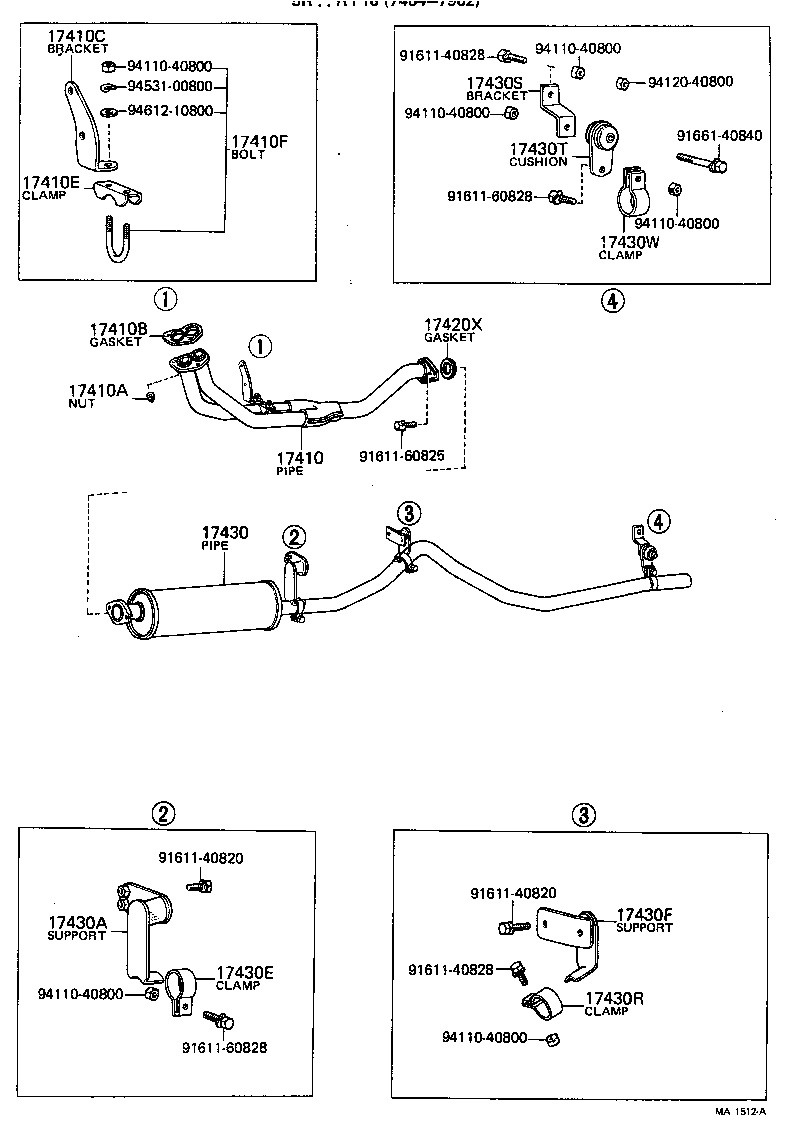

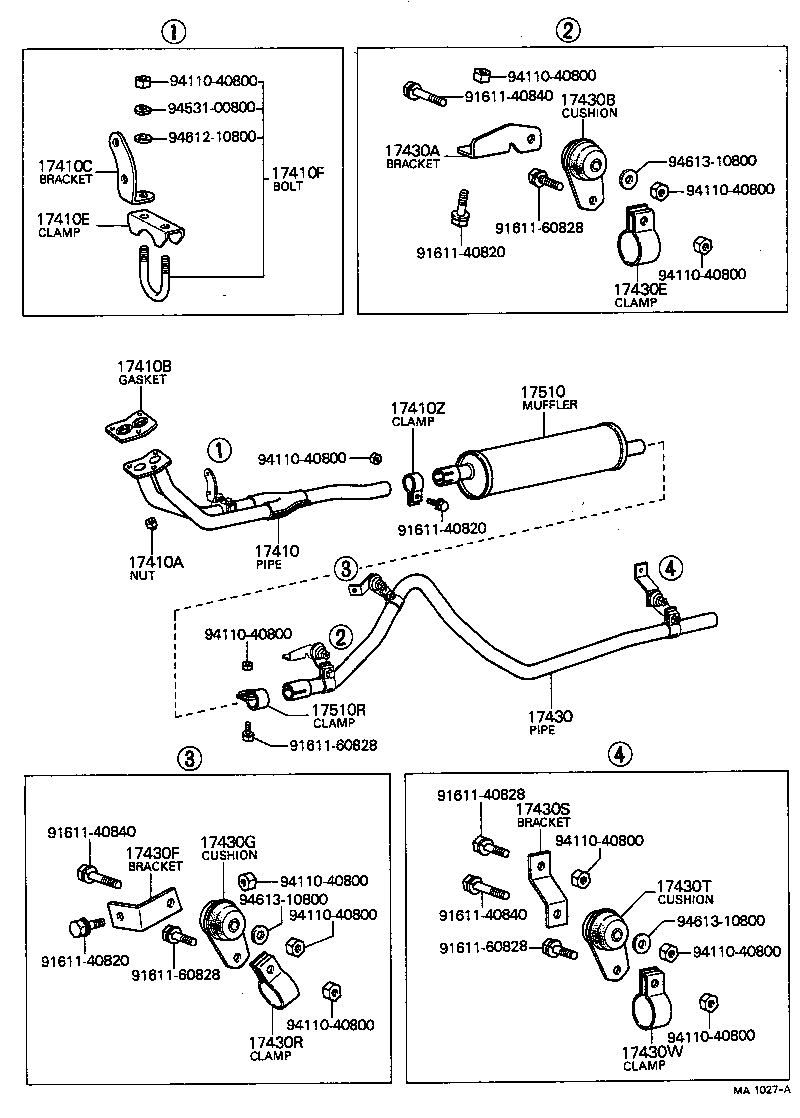

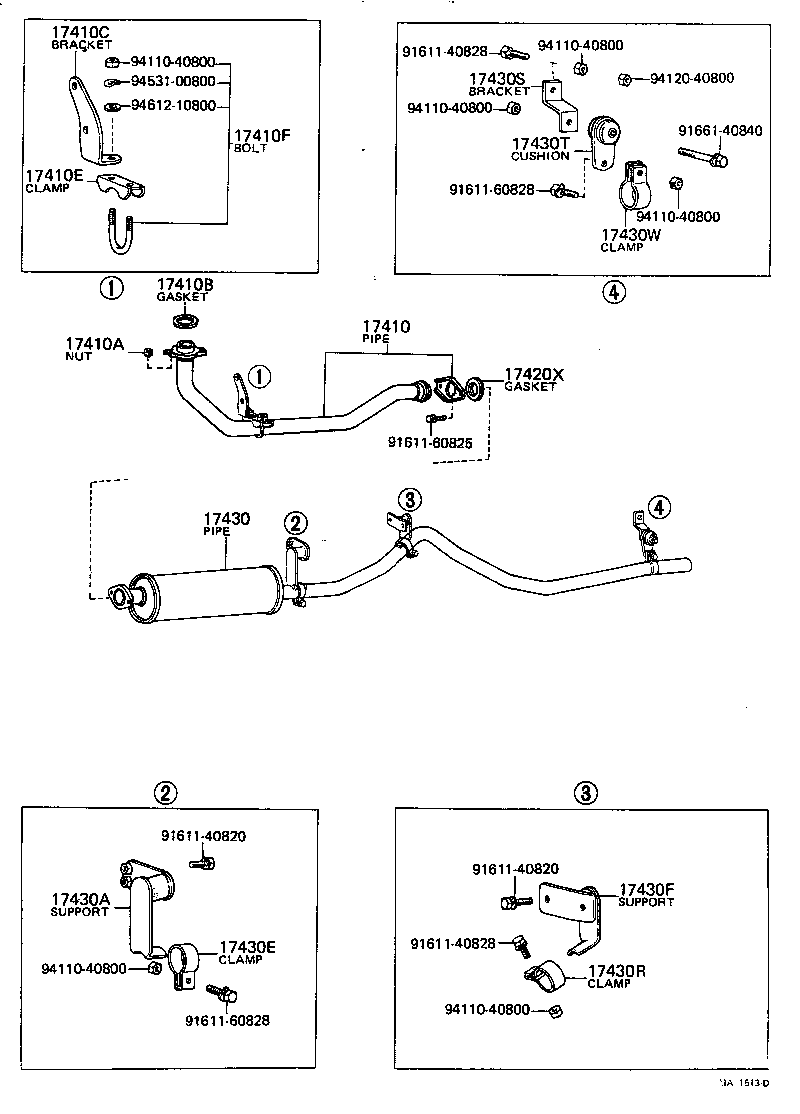

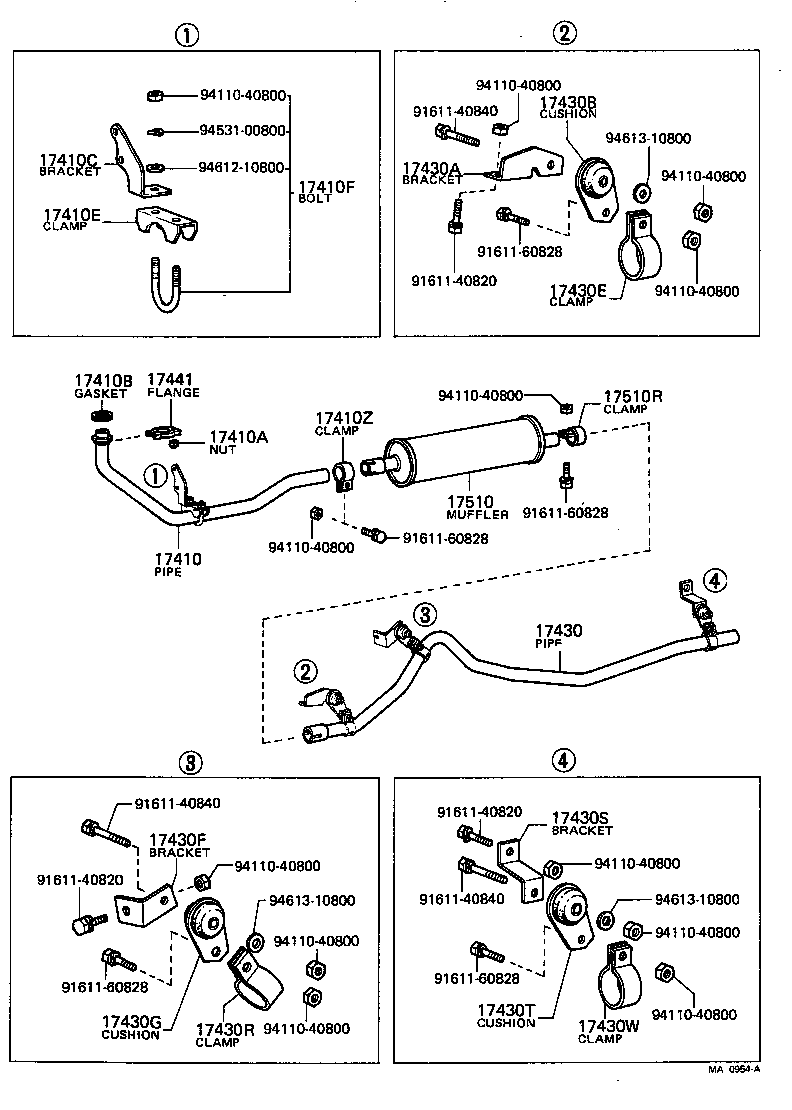

Figure MA0748B MA0748B 1971-09 → 1974-04 Figure MA1510C MA1510C 1974-04 → 1979-02 Figure MA1027A MA1027A 1972-07 → 1974-04 Figure MA1512A MA1512A 1974-04 → 1979-02 Figure MA0954A MA0954A 1972-07 → 1974-07 Figure MA1513D MA1513D 1974-04 → 1979-02

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17410C Bracket, Exhaust Pipe Front (FOR FRONT)
17410E Clamp NO.1, Exhaust Pipe Front (FOR FRONT)
17410F Bolt OR Ring, Exhaust Pipe Front (FOR FRONT)
17410Z Clamp NO.2, Exhaust Pipe Front (FOR REAR)
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17430A Bracket, Exhaust Tailpipe(FOR FRONT)
17430B Cushion, Exhaust Tailpipe(FOR FRONT)
17430E Clamp NO.2, Exhaust Tailpipe(FOR FRONT)
17430F Bracket, Exhaust Tailpipe(FOR CENTER)
17430G Cushion, Exhaust Tailpipe(FOR CENTER)
17430R Clamp NO.2, Exhaust Tailpipe (FOR CENTER)
17430S Bracket, Exhaust Tailpipe (FOR REAR)
17430T Cushion, Exhaust Tailpipe (FOR REAR)
17430W Clamp NO.2, Exhaust Tailpipe (FOR REAR)
17441 Flange, Exhaust Pipe
17510 Muffler Assy
17510F Bracket, Muffler, Rear
17510R Clamp NO.2, Muffler, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
