Toyota Toyoace

1971-09 → 1979-02 · chassis RY1#,JY16 · catalogue 731220 · Europe

Discontinued model Data version 1979-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Pipe & Clamp

16 part groups · 4 illustrations

Illustrations

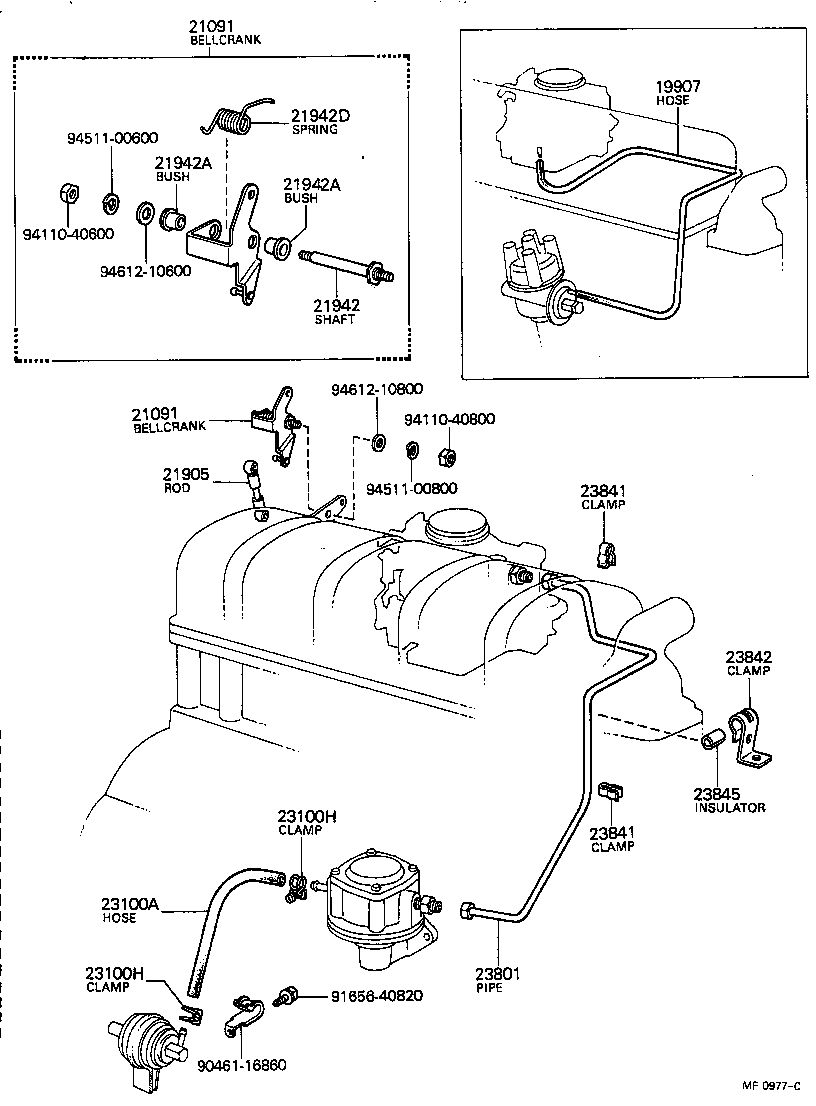

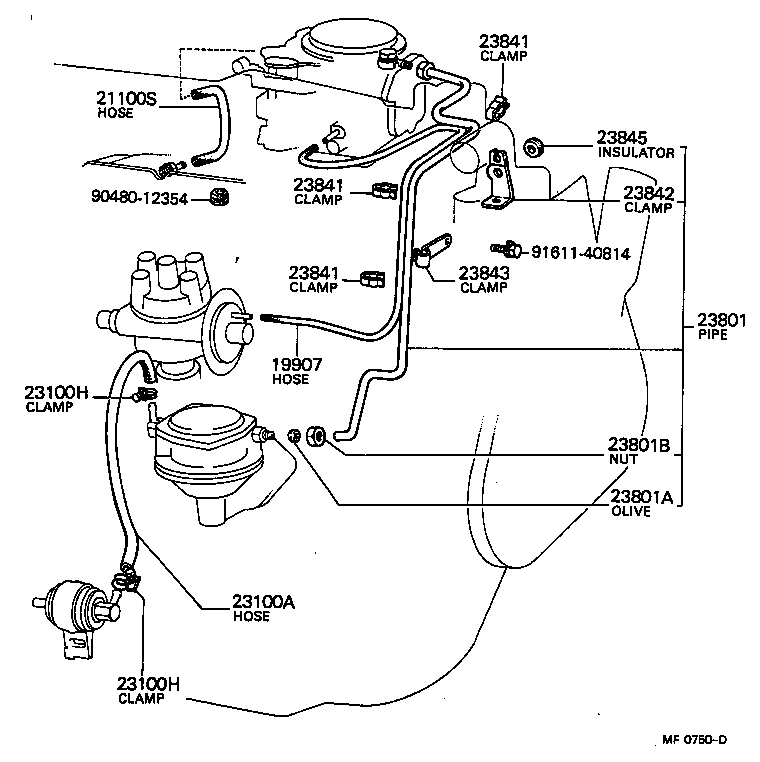

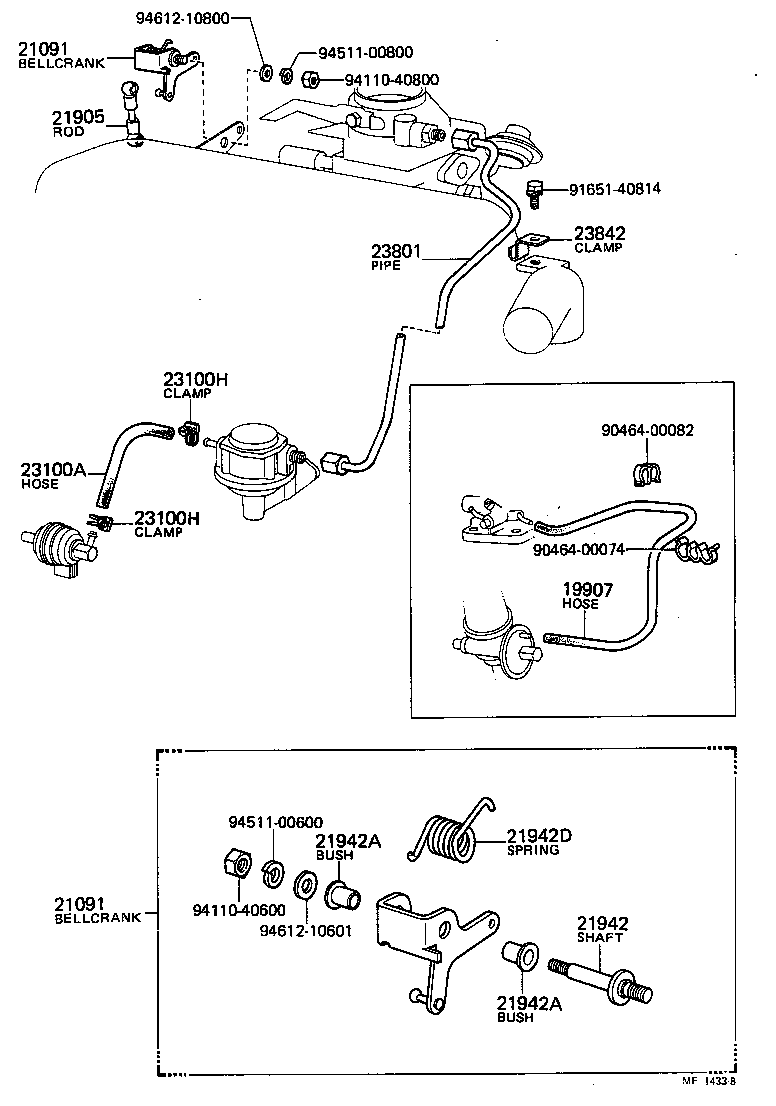

Figure MF0236G MF0236G 1971-09 → 1973-09 Figure MF0977C MF0977C 1973-09 → 1975-11 Figure MF1433B MF1433B 1975-11 → 1979-02 Figure MF0750D MF0750D 1972-07 → 1979-02

Part groups

PNCDescription
19907 Hose, Vacuum, NO.1
21091 Bellcrank Sub-assy, Accelerator
21100S Hose(FOR CARBURETOR TO MANIFOLD)
21905 Rod Sub-assy, Accelerator Connecting
21942 Shaft, Accelerator Link
21942A Bush(FOR ACCELERATOR LINK SHAFT)
21942D Spring(FOR ACCELERATOR LINK SHAFT)
23100A Hose, Fuel
23100H Clip(FOR FUEL HOSE)
23801 Pipe OR Hose Sub-assy, Carburetor Fuel, NO.1
23801A Olive(FOR FUEL PIPE)
23801B Nut, Union(FOR FUEL PIPE)
23841 Clamp, Fuel Pipe(HOSE), NO.1
23842 Clamp, Fuel Pipe(HOSE), NO.2
23843 Clamp, Fuel Pipe(HOSE), NO.3
23845 Insulator, Fuel Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
