Toyota Toyoace

1971-09 → 1979-02 · chassis RY1#,JY16 · catalogue 731220 · Europe

Discontinued model Data version 1979-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Carburetor Assembly

7 part groups · 4 illustrations

Illustrations

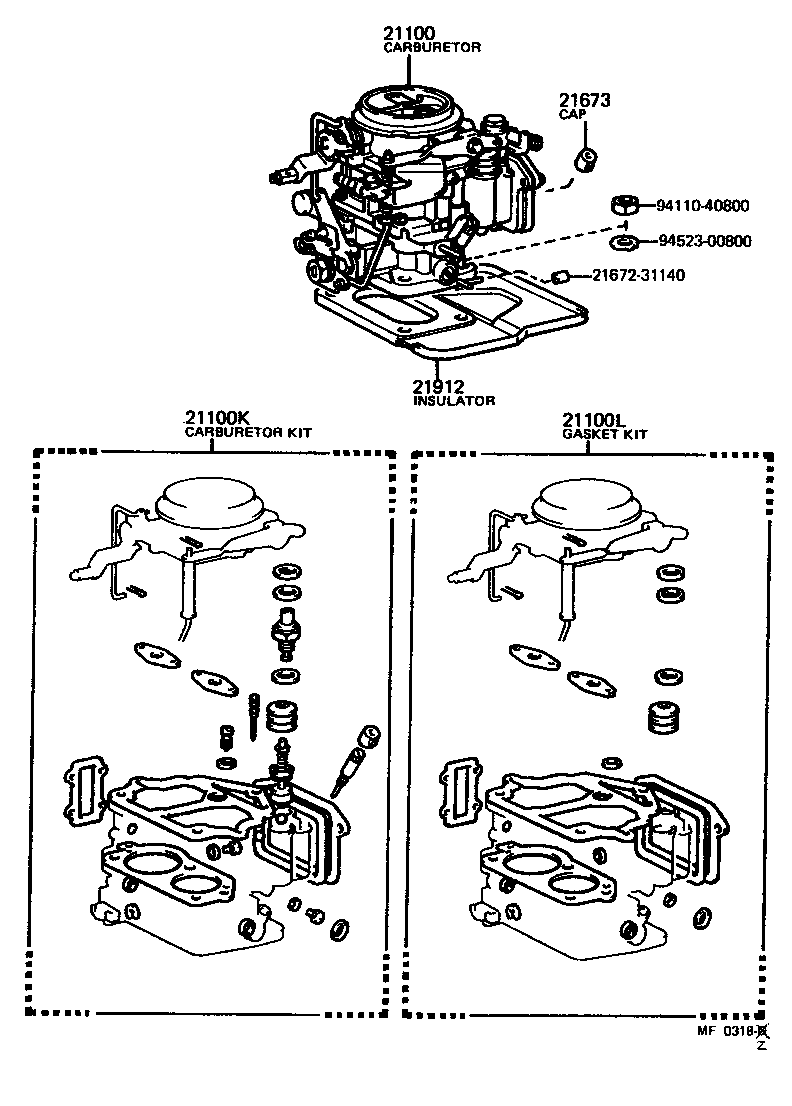

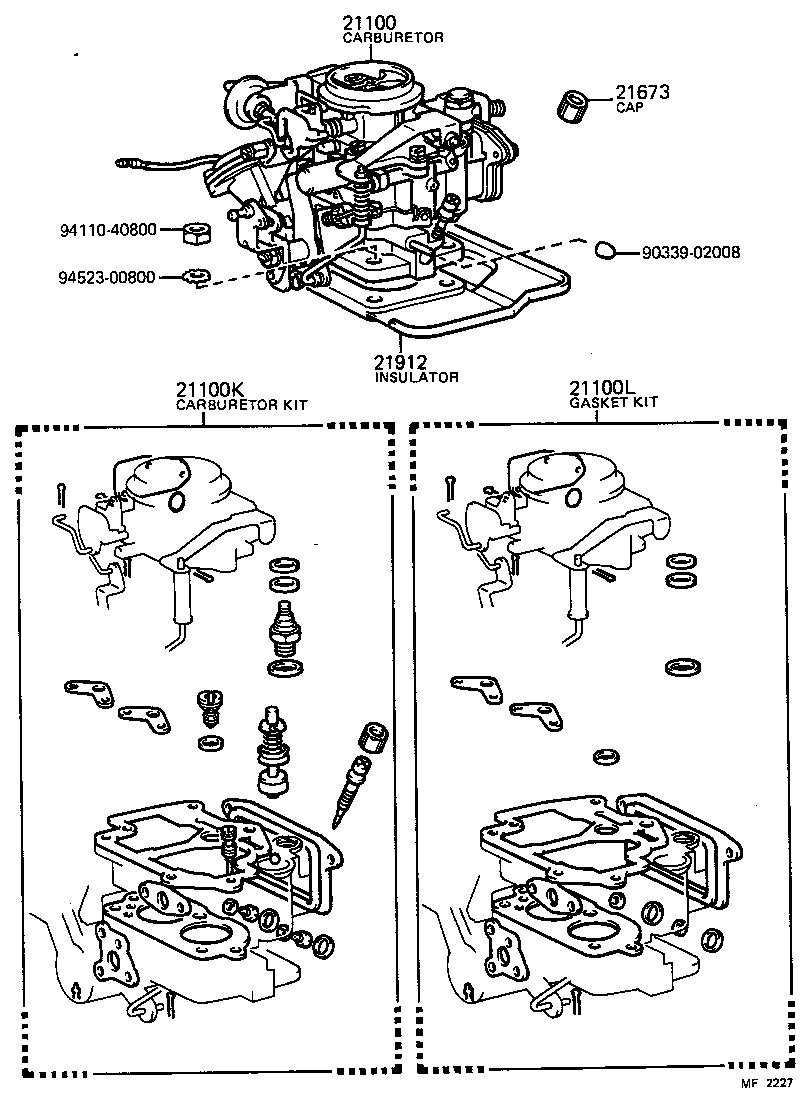

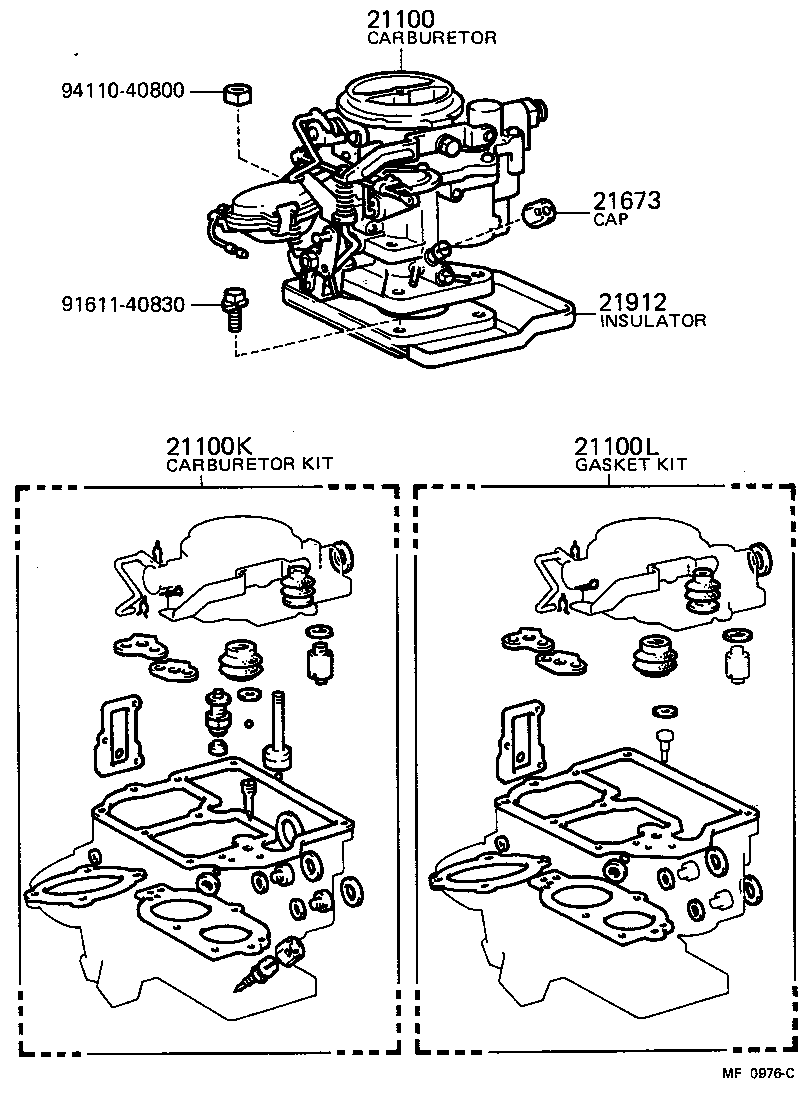

Figure MF0658 MF0658 1971-09 → 1973-09 Figure MF0976C MF0976C 1973-09 → 1979-02 Figure MF0318Z MF0318Z 1972-07 → 1973-09 Figure MF2227 MF2227 1973-09 → 1979-02

Part groups

PNCDescription
21100 Carburetor Assy
21100K Carburetor Kit
21100L Gasket Kit, Carburetor
21673 Cap, Idle Limit
21912 Insulator, Carburetor Heat
21934R Valve, Solenoid Throttle
21935 Bracket, Throttle Valve Solenoid
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
