Toyota Toyoace
1971-09 → 1979-02 · chassis RY1#,JY16 · catalogue 731220 · Europe
Discontinued model
Data version 1979-02
Carburetor

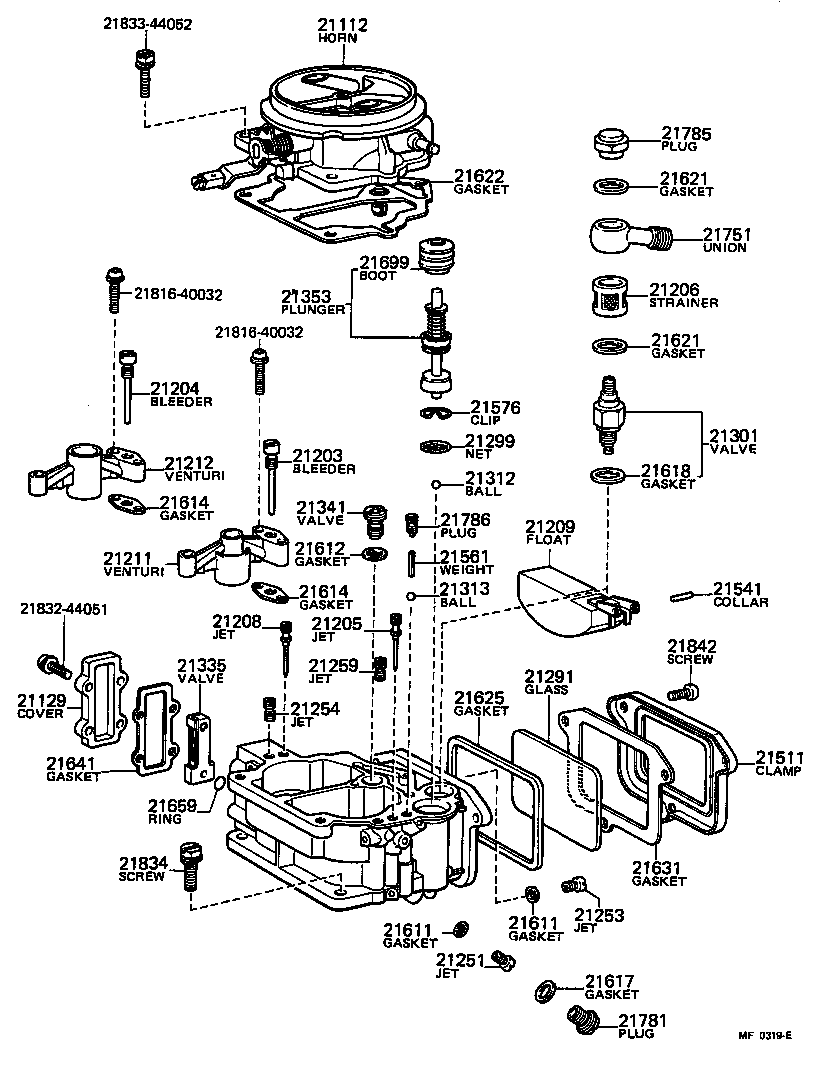

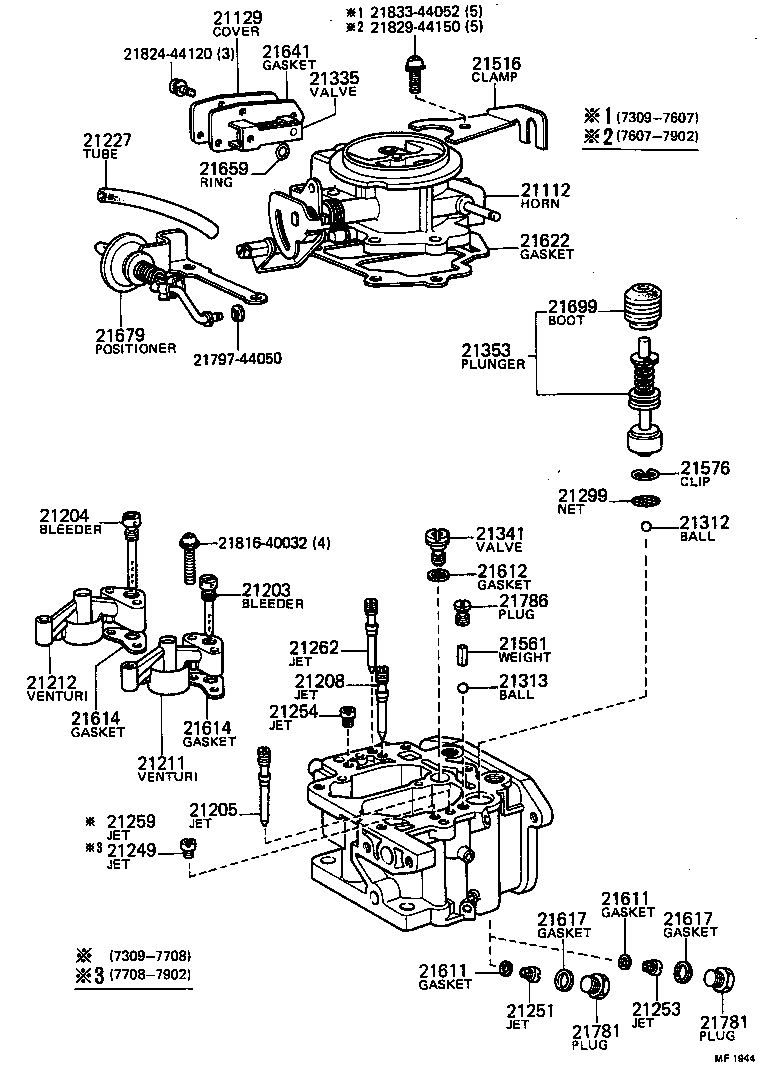

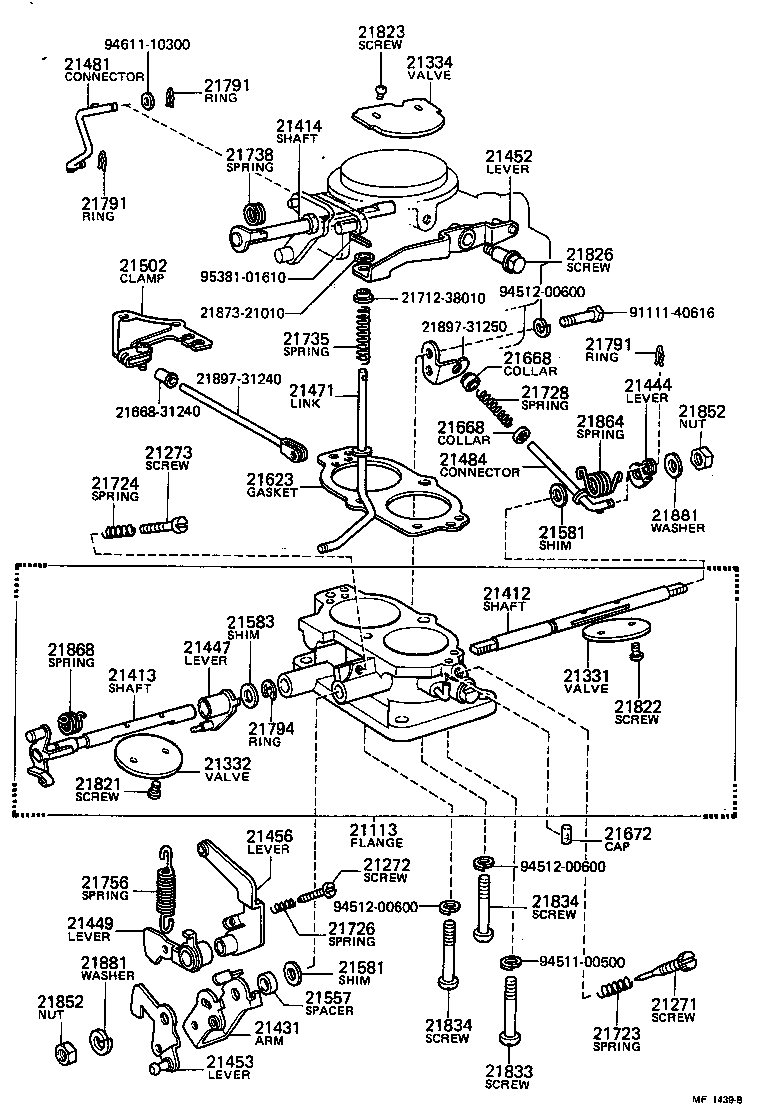

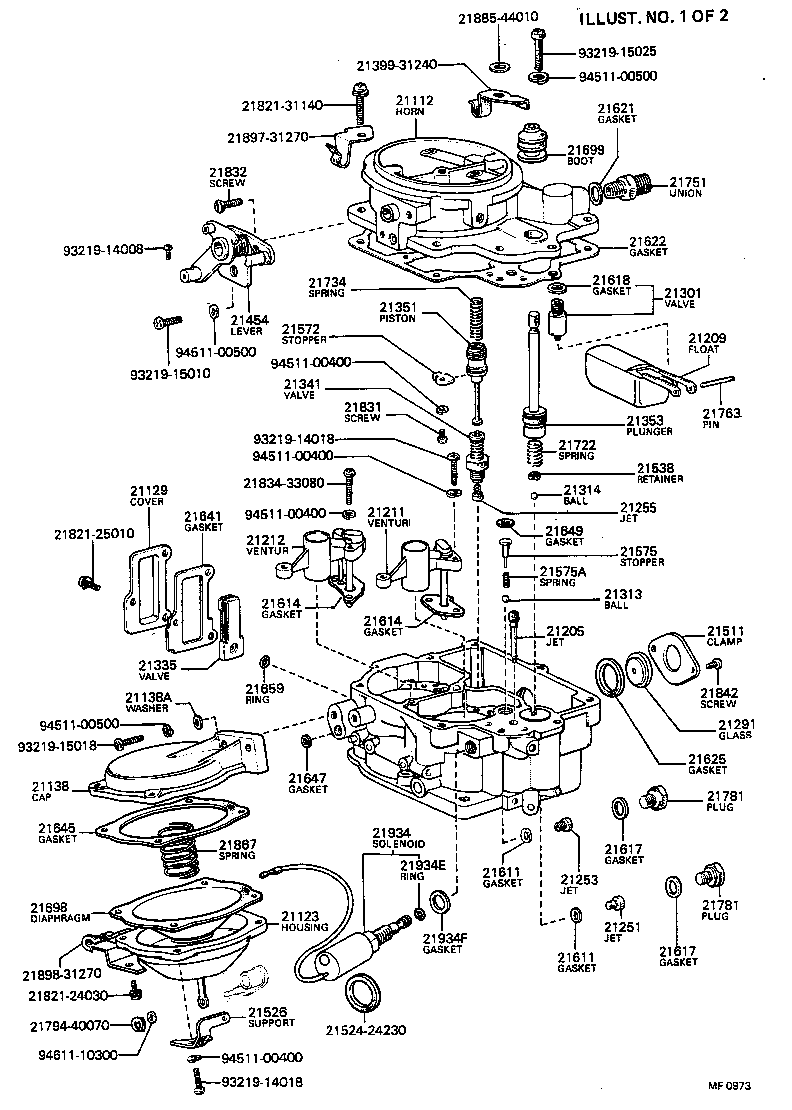

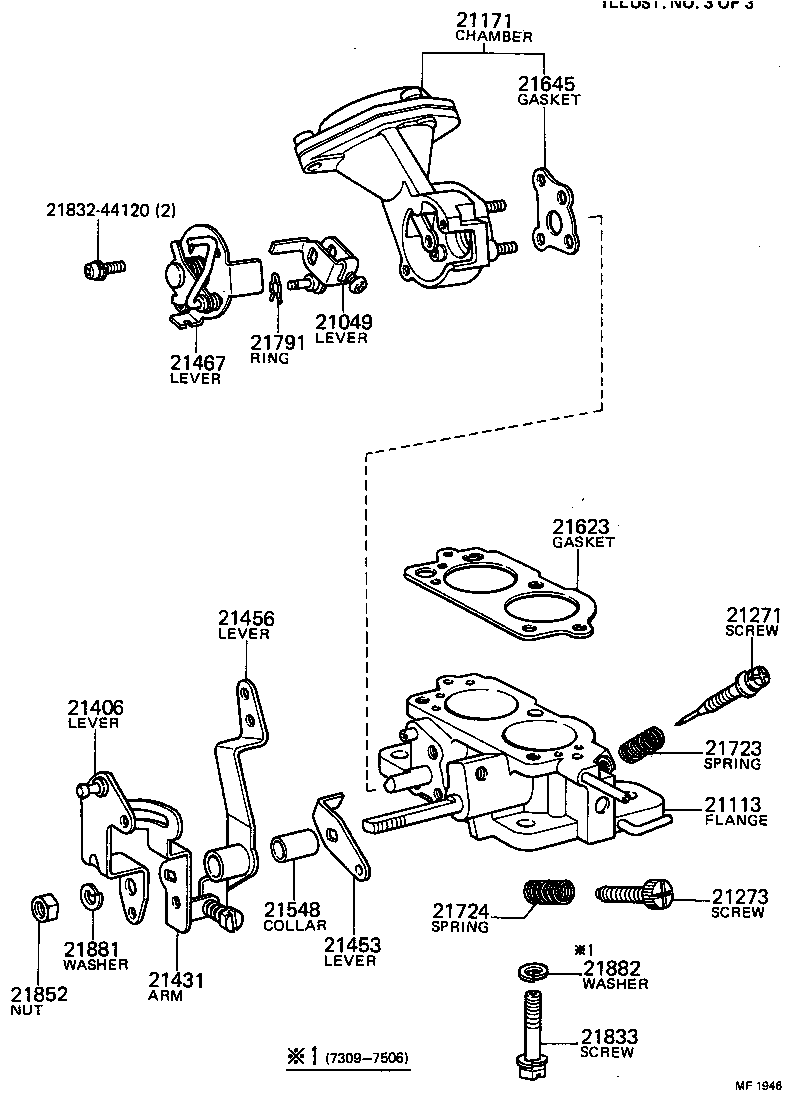

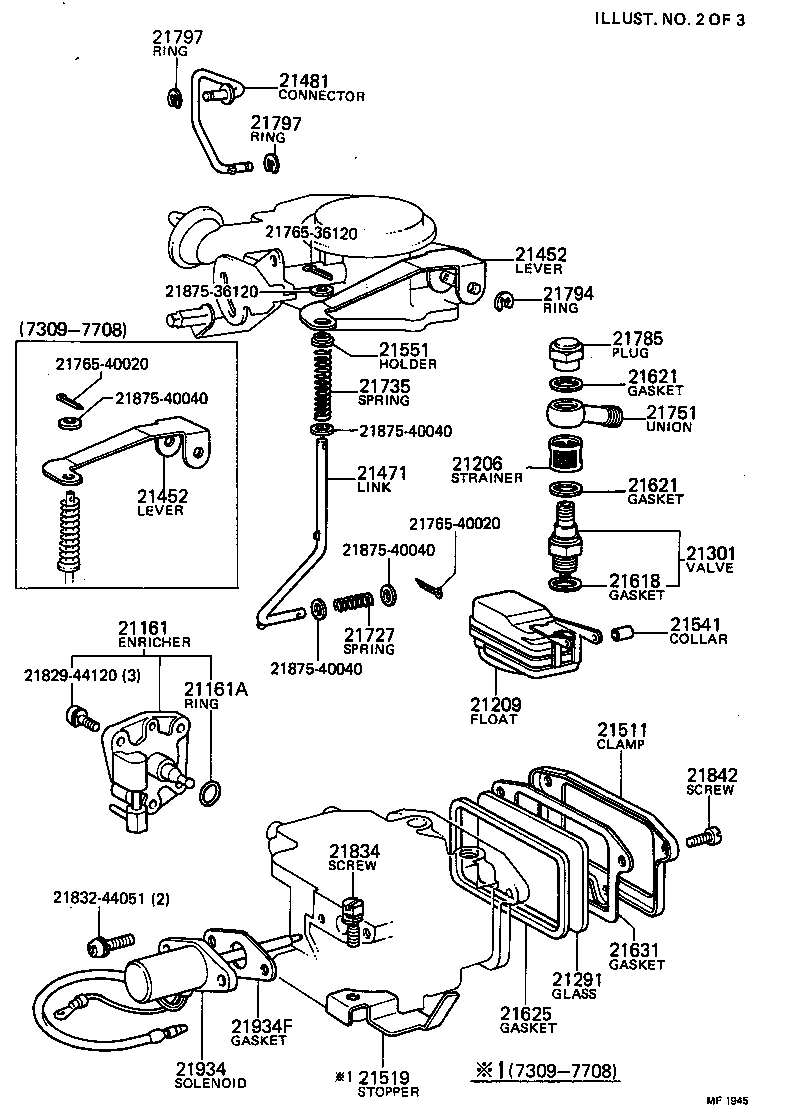

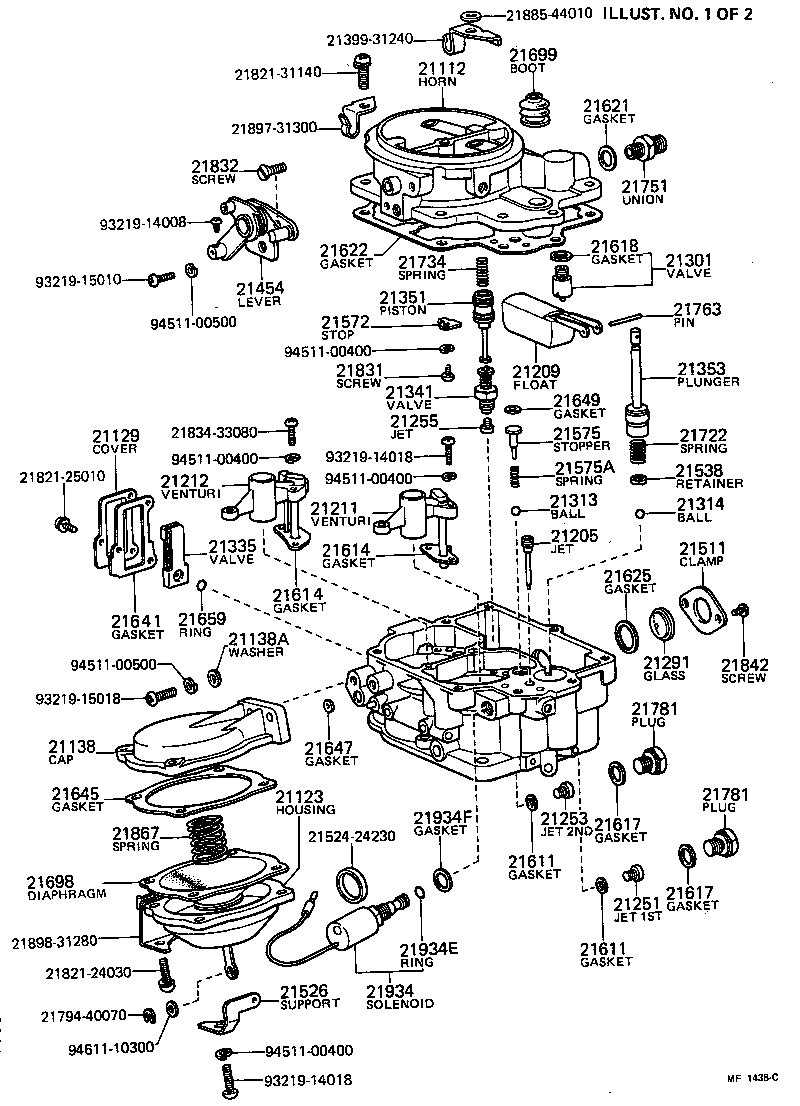

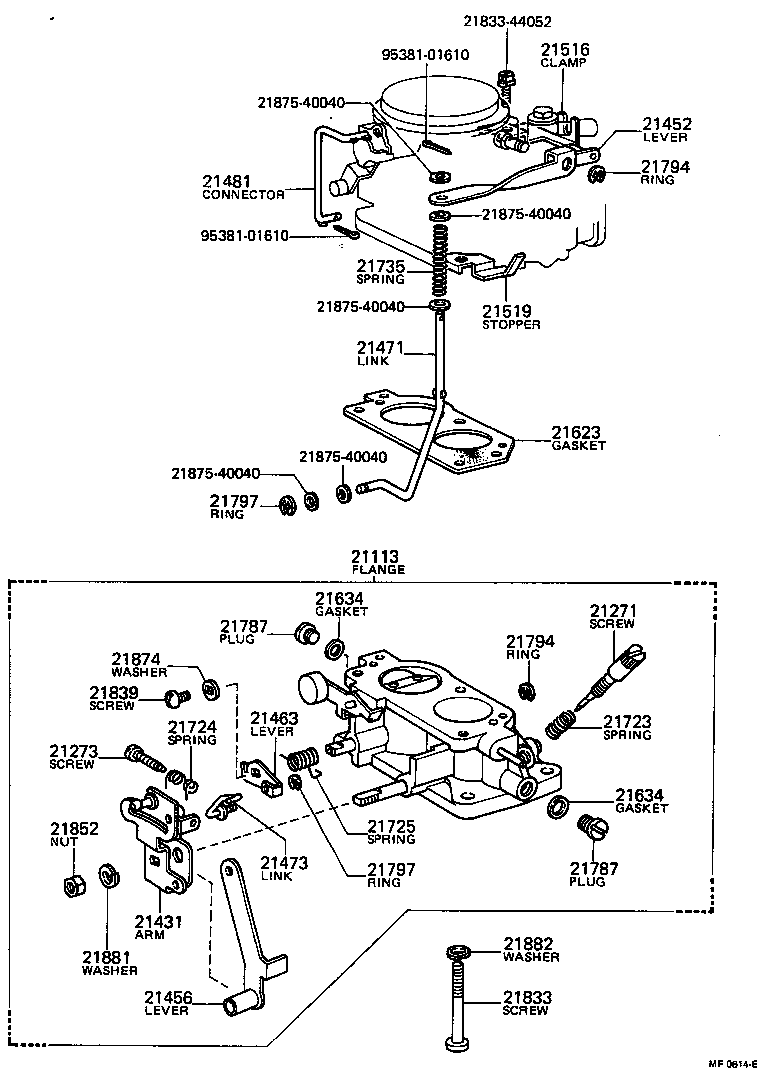

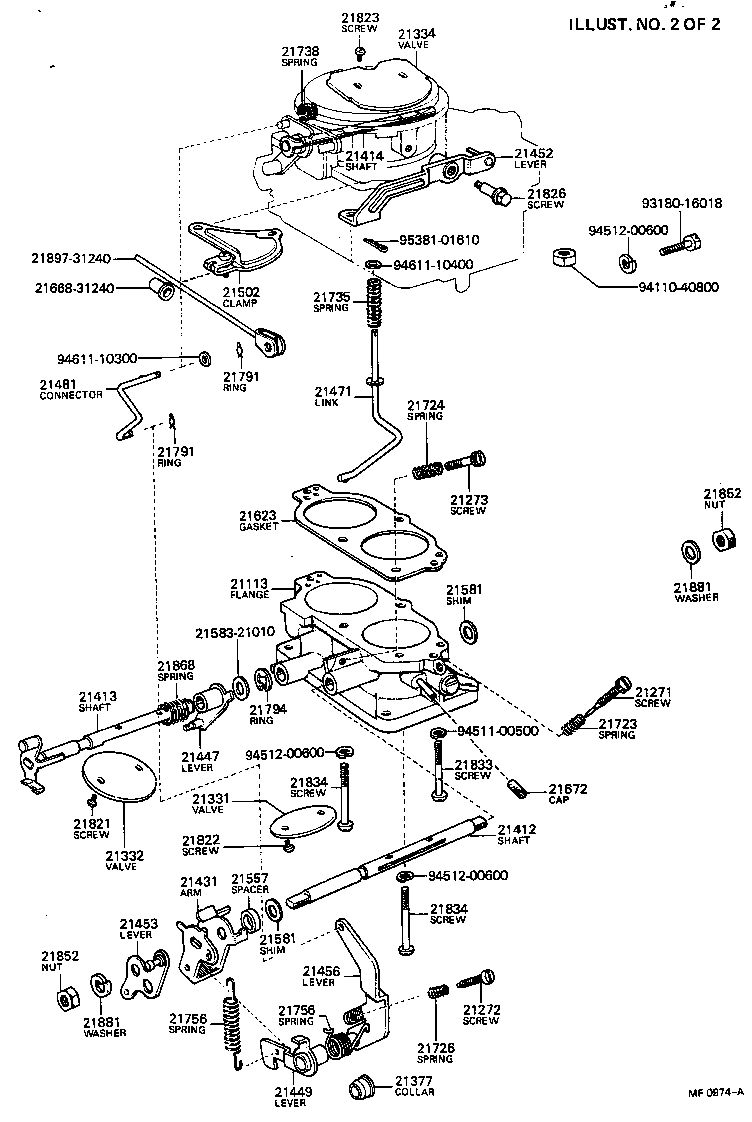

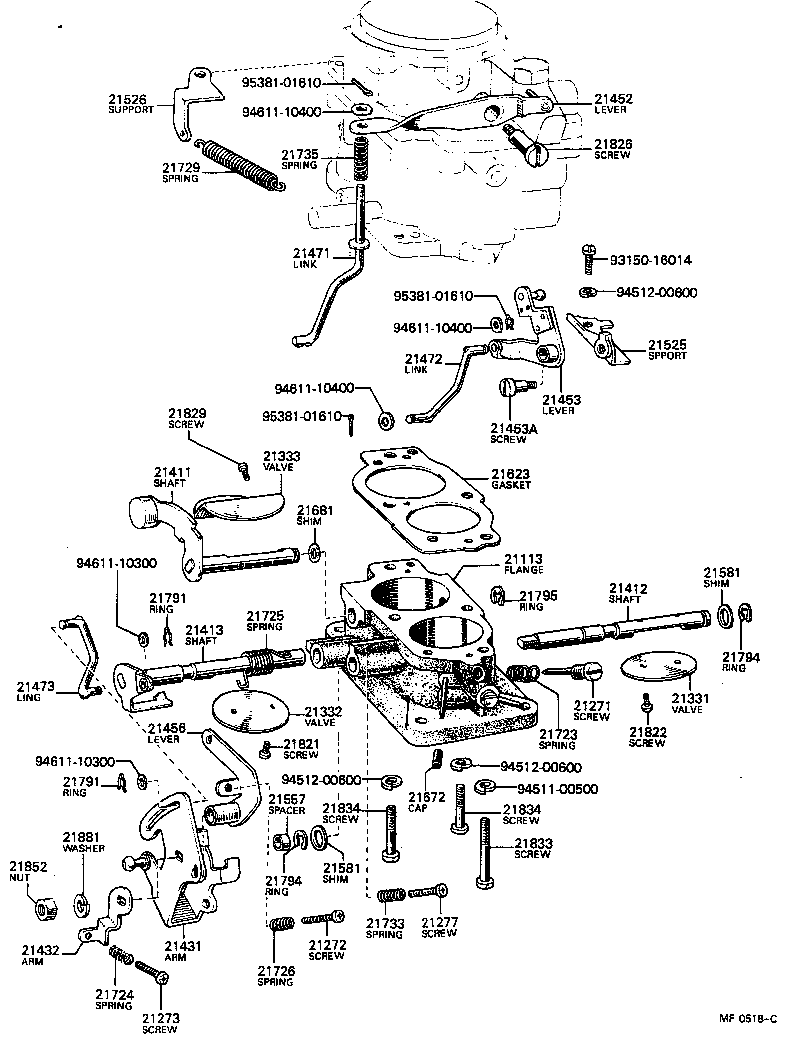

151 part groups · 11 illustrations
Part groups
| PNC | Description |
|---|---|
| 21049 | Lever Sub-assy, 2ND Throttle |
| 21112 | Horn, Air |
| 21113 | Flange, Carburetor |
| 21123 | Housing, Diaphragm |
| 21129 | Cover(FOR THERMOSTATIC VALVE) |
| 21138 | Cap, Diaphragm |
| 21138A | Washer(FOR DIAPHRAGM CAP SET) |
| 21161 | Enricher, Coasting |
| 21161A | Ring, O(FOR COASTING ENRICHER) |
| 21171 | Chamber, Diaphragm |
| 21203 | Bleeder Sub-assy, 1ST Main Air |
| 21204 | Bleeder Sub-assy, 2ND Main Air |
| 21205 | Jet Sub-assy, Slow |
| 21206 | Strainer Sub-assy |
| 21208 | Jet Sub-assy, Step |
| 21209 | Float Sub-assy |
| 21211 | Venturi, 1ST Small |
| 21212 | Venturi, 2ND Small |
| 21227 | Tube, Air Vent |
| 21249 | Jet, Air Bleed, NO.2 |
| 21251 | Jet, 1ST Main |
| 21253 | Jet, 2ND Main |
| 21254 | Jet, Step Air Bleed |
| 21255 | Jet, Power |
| 21259 | Jet, Air Bleed |
| 21262 | Jet, Main Air Bleed |
| 21271 | Screw, Idle Adjusting |
| 21272 | Screw, 1ST Idle Adjusting |
| 21273 | Screw, Throttle Adjusting |
| 21277 | Screw, Low Idle Adjusting |
| 21291 | Glass, Level Gage |
| 21299 | Net, Pump Filter |
| 21301 | Valve Sub-assy, Needle |
| 21312 | Ball, Steel |
| 21313 | Ball, Steel, NO.1(FOR DISCHARGE WEIGHT) |
| 21314 | Ball, Steel, NO.2(FOR PUMP PLUNGER) |
| 21331 | Valve, 1ST Throttle |
| 21332 | Valve, 2ND Throttle |
| 21333 | Valve, High Speed |
| 21334 | Valve, Choke |
| 21335 | Valve, Thermostatic |
| 21341 | Valve, Power |
| 21351 | Piston, Power |
| 21353 | Plunger, Pump |
| 21377 | Collar(FOR 2ND THROTTLE SHAFT) |
| 21406 | Lever Sub-assy, 1ST Throttle |
| 21411 | Shaft, High Speed |
| 21412 | Shaft, 1ST Throttle |
| 21413 | Shaft, 2ND Throttle |
| 21414 | Shaft, Choke |
| 21431 | Arm, 1ST Throttle Shaft |
| 21432 | Arm, Throttle |
| 21444 | Lever(FOR RELOADER LINK MECHANISM) |
| 21447 | Lever, Diaphragm |
| 21449 | Lever, 2ND Kick |
| 21452 | Lever, Pump |
| 21453 | Lever, 1ST Throttle |
| 21453A | Screw, 1ST Throttle Lever Set |
| 21454 | Lever, Choke |
| 21456 | Lever, 1ST Throttle Idle Adjusting, NO.1 |
| 21463 | Lever, 2ND Throttle |
| 21467 | Lever, 2ND Throttle Return |
| 21471 | Link, Pump Connecting |
| 21472 | Link, Pump Connecting, NO.2 |
| 21473 | Link, Throttle Shaft |
| 21481 | Connector, 1ST Idle |
| 21484 | Connector(FOR OPENER) |
| 21502 | Clamp Sub-assy, Choke Wire |
| 21511 | Clamp, Level Gage |
| 21516 | Clamp, Connector |
| 21519 | Stopper, Idle Adjusting Screw Cap |
| 21525 | Support, Accelerator Link |
| 21526 | Support, Back Spring |
| 21538 | Retainer, Ball Check |
| 21541 | Collar, Float Pin |
| 21548 | Collar, Throttle Lever |
| 21551 | Holder, Back Spring |
| 21557 | Spacer(FOR 1ST IDLE CAM) |
| 21561 | Weight, Pump Discharge |
| 21572 | Stop, Power Piston |
| 21575 | Stopper, B(FOR DISCHARGE WEIGHT) |
| 21575A | Spring(FOR STOPPER, B) |
| 21576 | Clip, Pump Strainer |
| 21581 | Shim, 1ST Throttle Shaft |
| 21583 | Shim, 2ND Throttle Shaft |
| 21611 | Gasket, Main Jet |
| 21612 | Gasket, Power Valve |
| 21614 | Gasket, Venturi |
| 21617 | Gasket, Main Passage Plug |
| 21618 | Gasket, Needle Valve Seat |
| 21621 | Gasket, Union Nipple |
| 21622 | Gasket, Air Horn |
| 21623 | Gasket, Body Flange |
| 21625 | Gasket, Level Gage |
| 21631 | Gasket, Main Guide |
| 21634 | Gasket, Slow Passage Plug |
| 21641 | Gasket(FOR THERMOSTATIC VALVE COVER) |
| 21645 | Gasket, Diaphragm, Cap |
| 21647 | Gasket, Diaphragm Housing Cap |
| 21649 | Gasket(FOR PUMP DISCHARGE WEIGHT STOPPER) |
| 21659 | Ring, O(FOR THERMOSTATIC VALVE) |
| 21668 | Collar |
| 21672 | Cap |
| 21679 | Positioner |
| 21681 | Shim(FOR HIGH SPEED SHAFT) |
| 21698 | Diaphragm |
| 21699 | Boot(FOR PUMP PLUNGER) |
| 21722 | Spring, Pump Damping |
| 21723 | Spring, Idle Adjusting |
| 21724 | Spring, Throttle Adjusting |
| 21725 | Spring, 2ND Throttle Back |
| 21726 | Spring, 1ST Idle Adjusting |
| 21727 | Spring, Pump Connecting Link Support |
| 21728 | Spring, Throttle Valve Return |
| 21729 | Spring, 1ST Throttle Back |
| 21733 | Spring, Low Idle Adjusting |
| 21734 | Spring, Power Piston |
| 21735 | Spring, Pump Arm |
| 21738 | Spring, Choke Valve Relief |
| 21751 | Union, Nipple |
| 21756 | Spring, Back(FOR THROTTLE SHAFT) |
| 21763 | Pin, Float Lever |
| 21781 | Plug, Main Passage(FOR CARBURETOR JET) |
| 21785 | Plug, Carburetor Fuel Inlet Strainer |
| 21786 | Plug, Pump Passage |
| 21787 | Plug, Pump Jet |
| 21791 | Ring, Snap, NO.1(FOR CARBURETOR LINK) |
| 21794 | Ring, Retainer, NO.1(FOR THROTTLE SHAFT) |
| 21795 | Ring, Retainer, NO.2(FOR HIGH SPEED SHAFT) |
| 21797 | Ring, Snap, NO.4(FOR CARBURETOR LINK) |
| 21821 | Screw, 2ND Throttle Valve Set |
| 21822 | Screw, 1ST Throttle Valve Set |
| 21823 | Screw, Choke, Valve Set |
| 21826 | Screw, Pump Arm Set |
| 21829 | Screw, High Speed Valve Set |
| 21831 | Screw, Power Piston Stop |
| 21832 | Screw(FOR CHOKE LEVER ADAPTER SET) |
| 21833 | Screw, Set, NO.1(FOR CARBURETOR BODY SET) |
| 21834 | Screw, Set, NO.2(FOR CARBURETOR BODY SET) |
| 21839 | Screw, 2ND Throttle Lever Set |
| 21842 | Screw, Set(FOR CARBURETOR LEVEL GAGE CLAMP SET) |
| 21852 | Nut, Throttle Lever Set |
| 21864 | Spring(FOR 1ST THROTTLE ARM) |
| 21867 | Spring, Diaphragm |
| 21868 | Spring, Diaphragm Relief |
| 21874 | Washer, 2ND Throttle Lever Set |
| 21881 | Washer, Lock(FOR THROTTLE SHAFT) |
| 21882 | Washer, Spring |
| 21934 | Solenoid, Throttle Valve |
| 21934E | Ring, O(FOR SOLENOID VALVE) |
| 21934F | Gasket |
